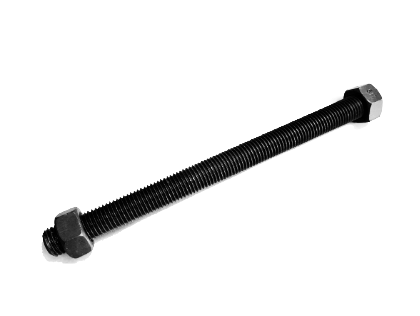

VW 517 — Threaded Spindle

VW 517

Known manufacturer(s): Matra

Stock Numbers
Matra 517
NATO Stock Number (NSN) —

The VW 517 is an arbor that can be used:

  • in conjunction with 3062 and 2050 to install of pinion shaft inner bearing race in a differential housing,
  • in conjunction with 3062 and 30-205 to install a pinion shaft outer bearing race in a differential housing.

For other tools, see this list of Iltis-related specialty tools.

Uses

Installation of Pinion Shaft Inner Bearing Race in Differential Housing
Installation of Pinion Shaft Inner Bearing Race in Differential HousingClick image to enlarge.

Installation of Pinion Shaft Outer Bearing Race
Installation of Pinion Shaft Outer Bearing RaceClick image to enlarge.

   Do you have a clever substitution for this tool? If you are willing to share, contact us and we'll add it here!
