VW 385/17 — Measure Plate (50 mm)

VW 385/17

Known manufacturer(s): Unknown

Stock Numbers
NATO Stock Number (NSN) —

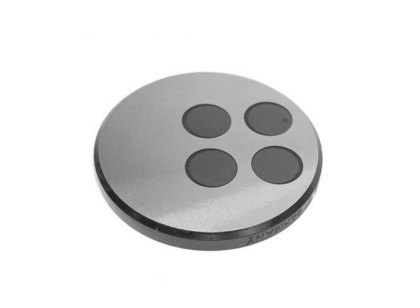

The VW 385/17 is a measure plate that can be used:

  • in conjunction with VW 387 and a dial gauge to measure carrier axial play,
  • in conjunction with VW 387, a threaded rod (or VW 294b/3), and a dial gauge to measure pinion axial play.

For other tools, see this list of Iltis-related specialty tools.

Uses

Measurement of Carrier Axial Play
Measurement of Carrier Axial PlayClick image to enlarge.

Measurement of Pinion Axial Play
Measurement of Pinion Axial PlayClick image to enlarge.
