VW 295 — Drift
Known manufacturer(s): Matra
| Stock Numbers | |
|---|---|
| Matra | VW 295 |
| NATO Stock Number (NSN) | 5120-21-896-7669 |
VW 295 is a drift that can be used:
- to install a clutch release shaft bushing,
- in conjunction with 3062 to install a pinion bearing race in differential housing,
- in conjunction with VW 511 to install a left carrier bearing race,
- in conjunction with VW 511 to install a carrier bearing race in a differential housing,
- in conjunction with 30-507 to install an input shaft bearing,
- in conjunction with 30-204 to install a countershaft roller bearing.
For other tools, see this list of Iltis-related specialty tools.
Uses

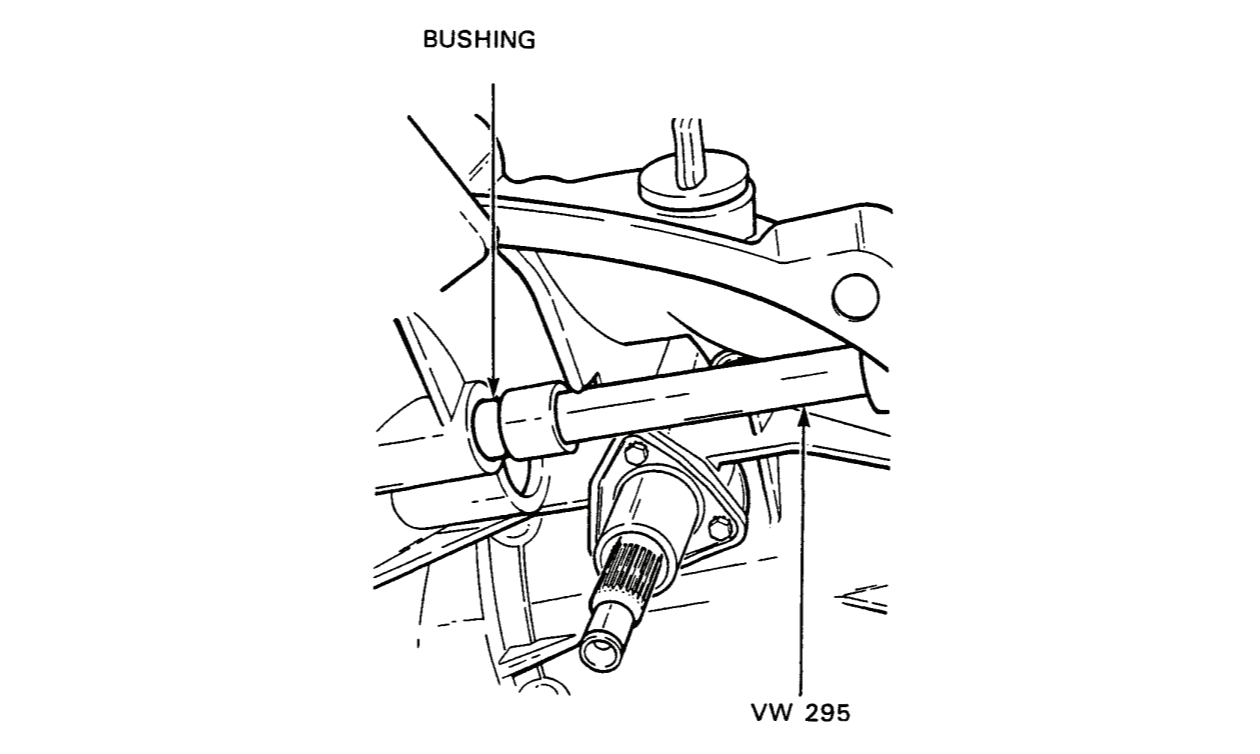

Installation of Clutch Release Shaft BushingClick image to enlarge.
Installation of Pinion Bearing Race in Differential HousingClick image to enlarge.
Installation of Left Carrier Bearing RaceClick image to enlarge.
Installation of Input Shaft BearingClick image to enlarge.
Installation of Countershaft Roller BearingClick image to enlarge.
Installation of Carrier Bearing Race in Differential HousingClick image to enlarge.
