40-105 — Press Piece
Known manufacturer(s): Matra
| Stock Numbers | |
|---|---|
| Matra | 40-105 |
| NATO Stock Number (NSN) | 5120-12-176-1102 |

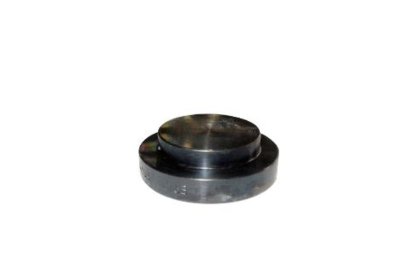

The 40-105 is a press piece that can be used:
- in conjuction with KUKKO 17-2 and KUKKO 44-2 to remove a bearing race from the wheel hub,
- in conjuction with KUKKO 44-2 to remove a large carrier bearing,
- in conjuction with OTC 1025 to remove a small carrier bearing.
For other tools, see this list of Iltis-related specialty tools.
Uses
Installation of KUKKO 44-2 and Tool 17-2 on Wheel HubClick image to enlarge.
Removal of Large Carrier BearingClick image to enlarge.
Removal of Small Carrier BearingClick image to enlarge.
