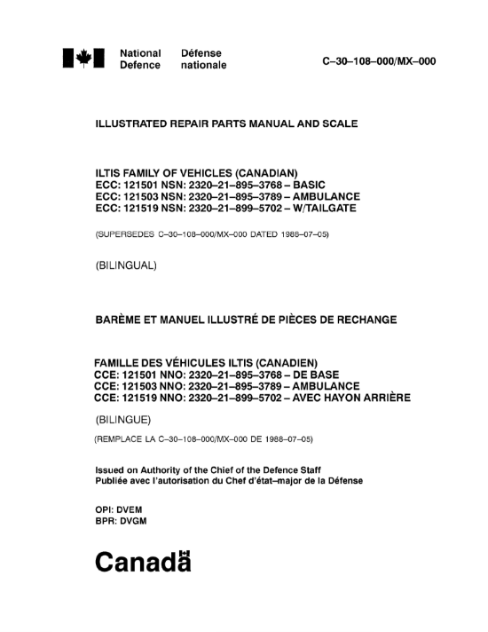

C-30-108-000/MX-000

Illustrated Repair Parts Manual and Scale

Iltis Family of Vehicles (Canadian)
ECC: 121501    NSN: 2320-21-895-3768 - Basic
ECC: 121503    NSN: 2320-21-895-3769 - Ambulance
ECC: 121519    NSN: 2320-21-899-5702 - w/Tailgate
(Supersedes C-30-108-000/MX-000 dated 1988-07-05)
Issued on Authority of the Chief of the Defence Staff
OPI: DVEM
Canada logo


Special Instructions

1.This CFTO is composed of the following EAC's/ESL's.

EAC ESL Equipment
30114 834947 Charging System
30115 834948 Starting System
30116 834949 Lights and Wiring
30117 834950 Electrical Accessories
30118 834952 Ignition System
30119 834951 Body Assembly
30120 834953 Frame Assembly
30121 874351 Iltis Ambulance
36102 834936 Engine Assembly 1.7L Gasoline
36104 834937 Transmission Assembly
36106 834938 Cooling System
36107 834939 Intake and Exhaust System
36108 854502 Fuel System
37150 834941 Differential
37151 834942 Axles and Propeller Shafts
37152 834943 Clutch Assembly
37154 834944 Brake System
37155 834945 Steering System
37156 844907 Suspension Assembly

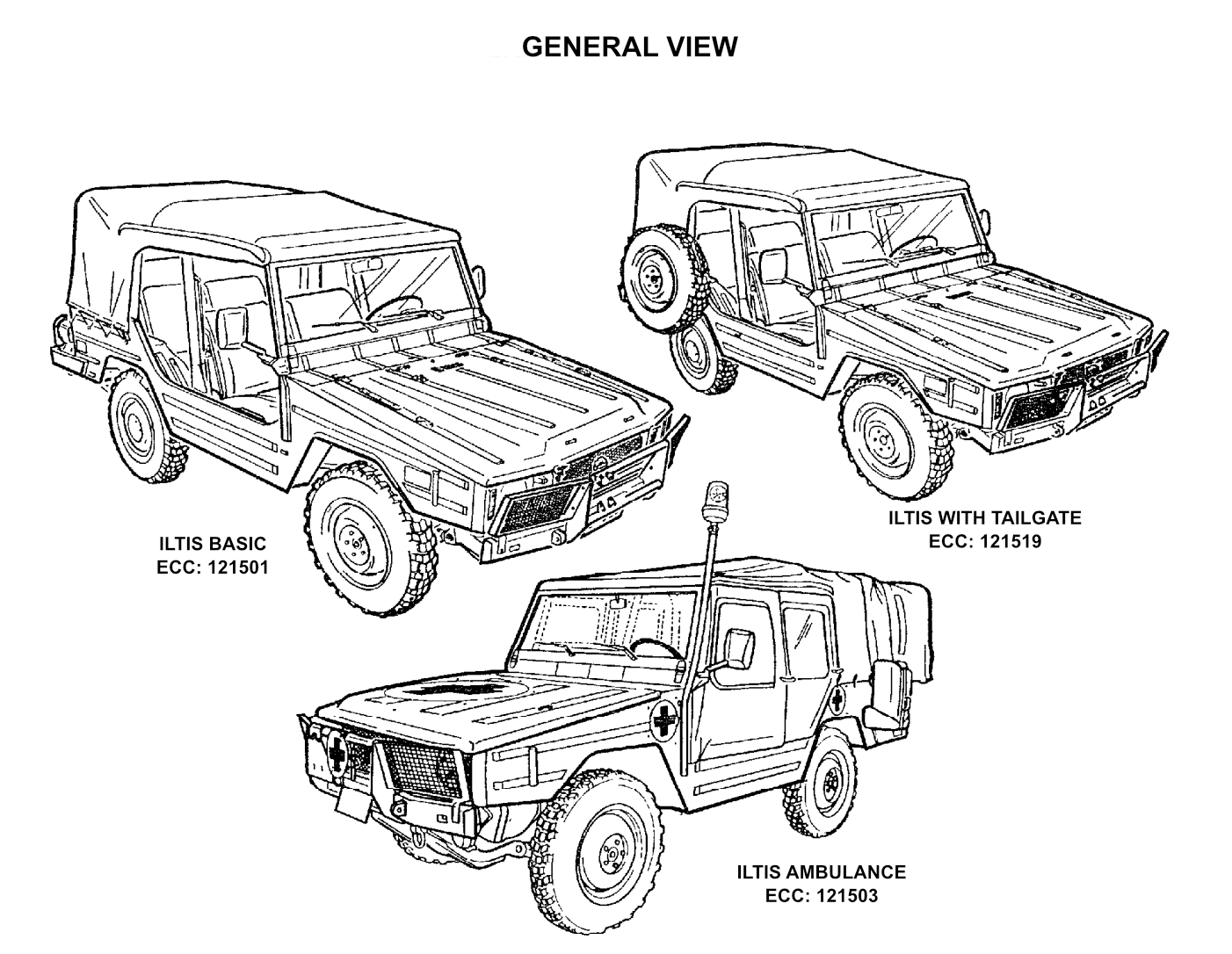

General View
Click image to enlarge.

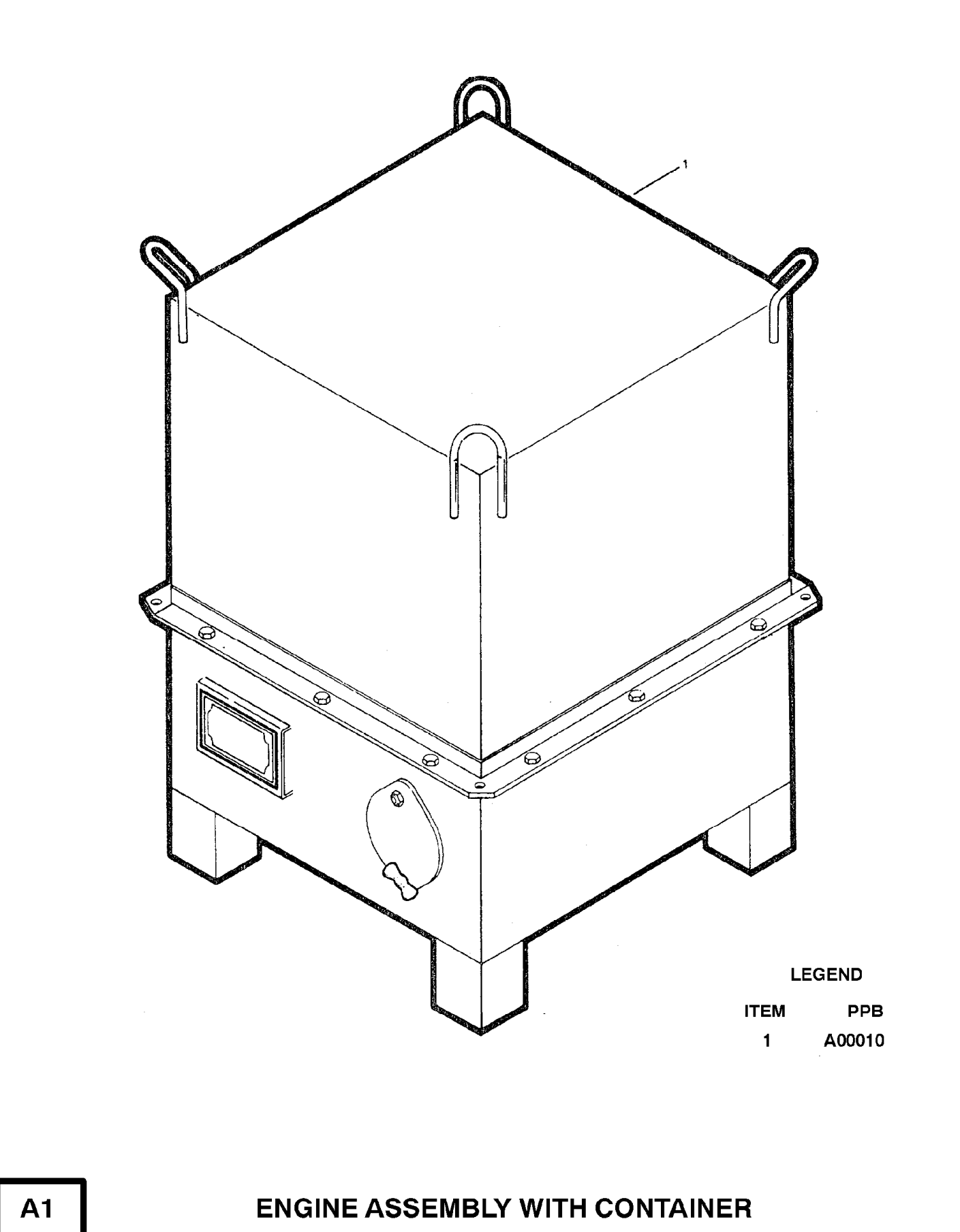

A1 — Engine Assembly with Container A1 — Engine Assembly with Container
Click image to enlarge.

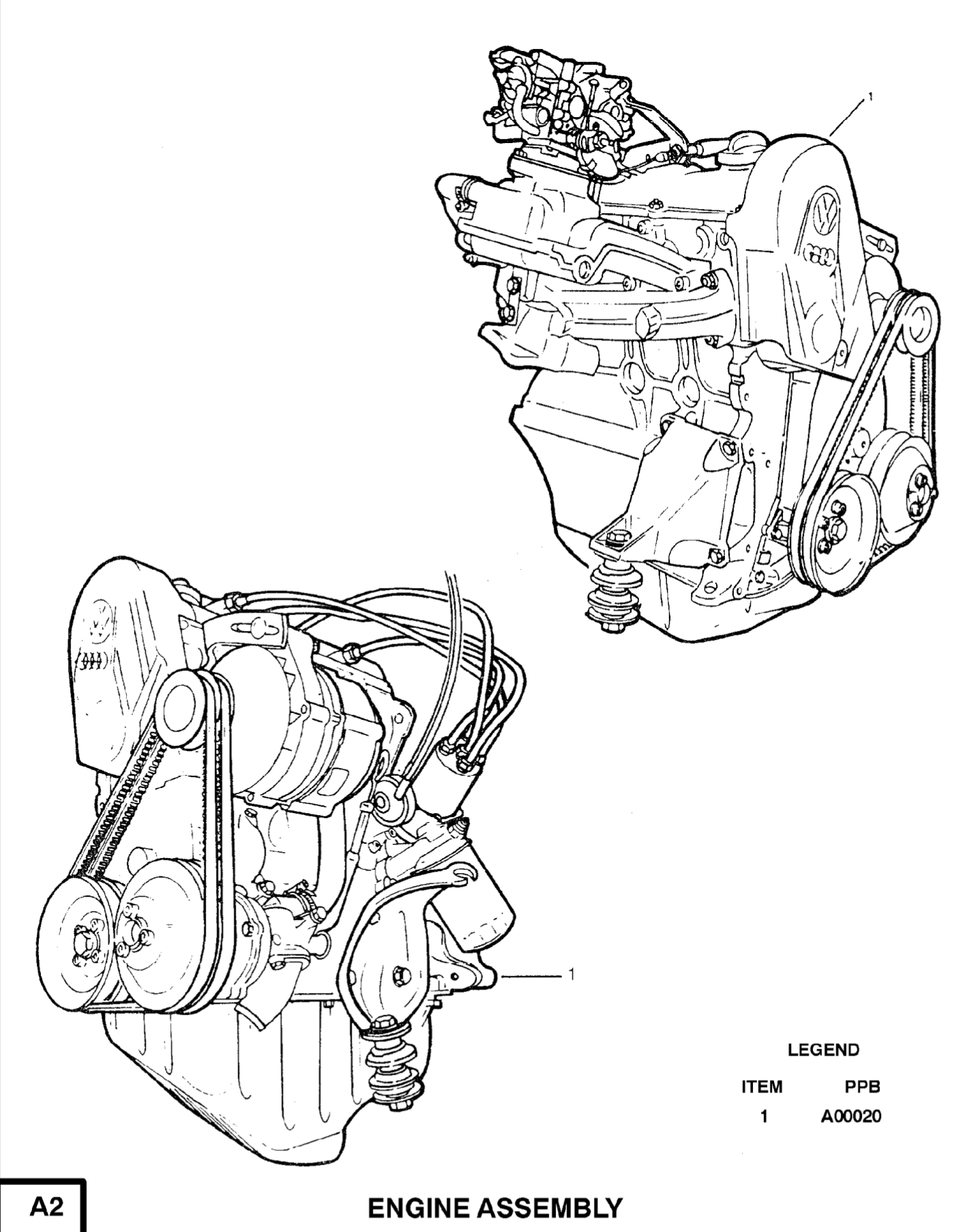

A2 — Engine Assembly A2 — Engine Assembly
Click image to enlarge.

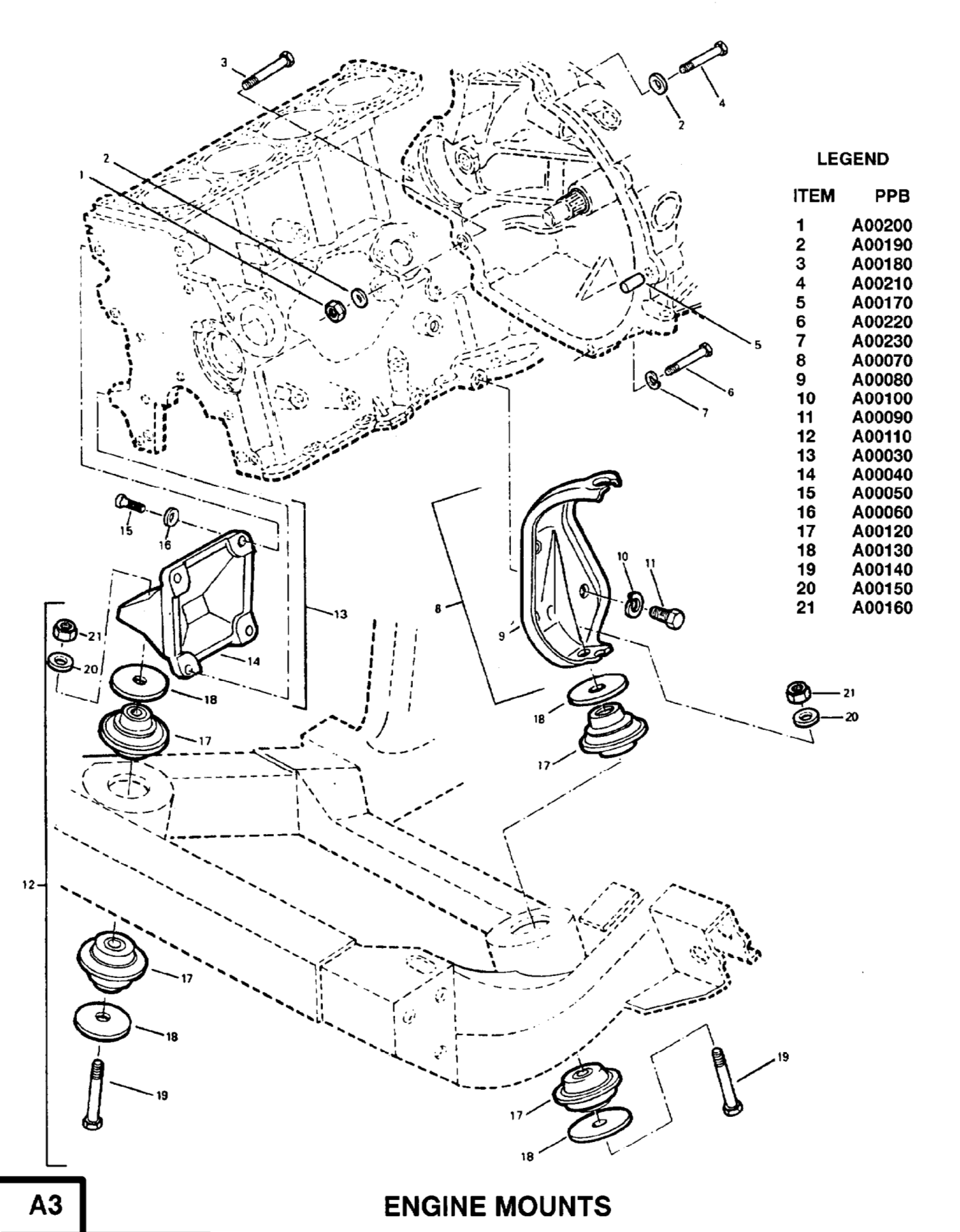

A3 — Engine Mounts A3 — Engine Mounts
Click image to enlarge.

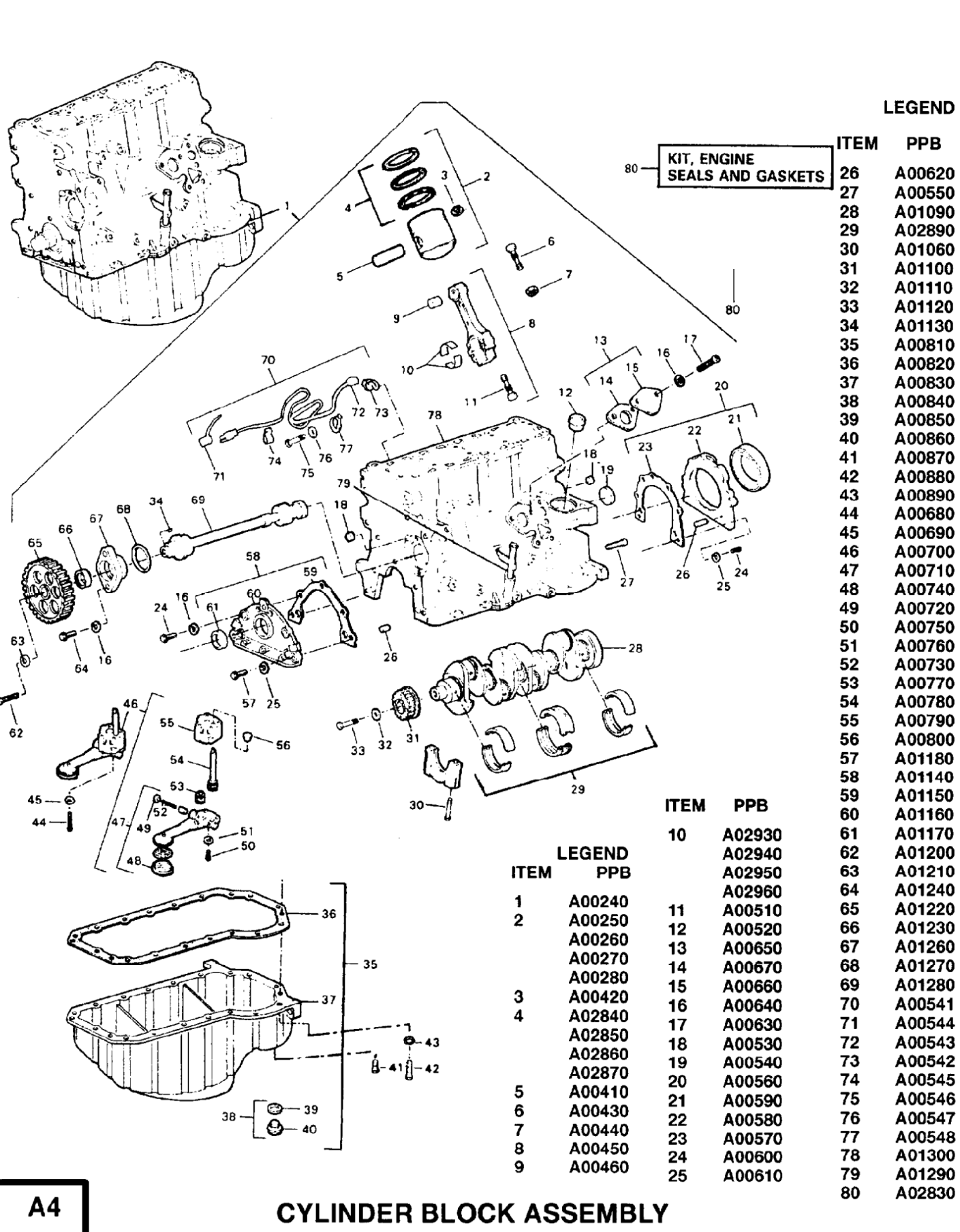

A4 — Cylinder Block Assembly A4 — Cylinder Block Assembly
Click image to enlarge.

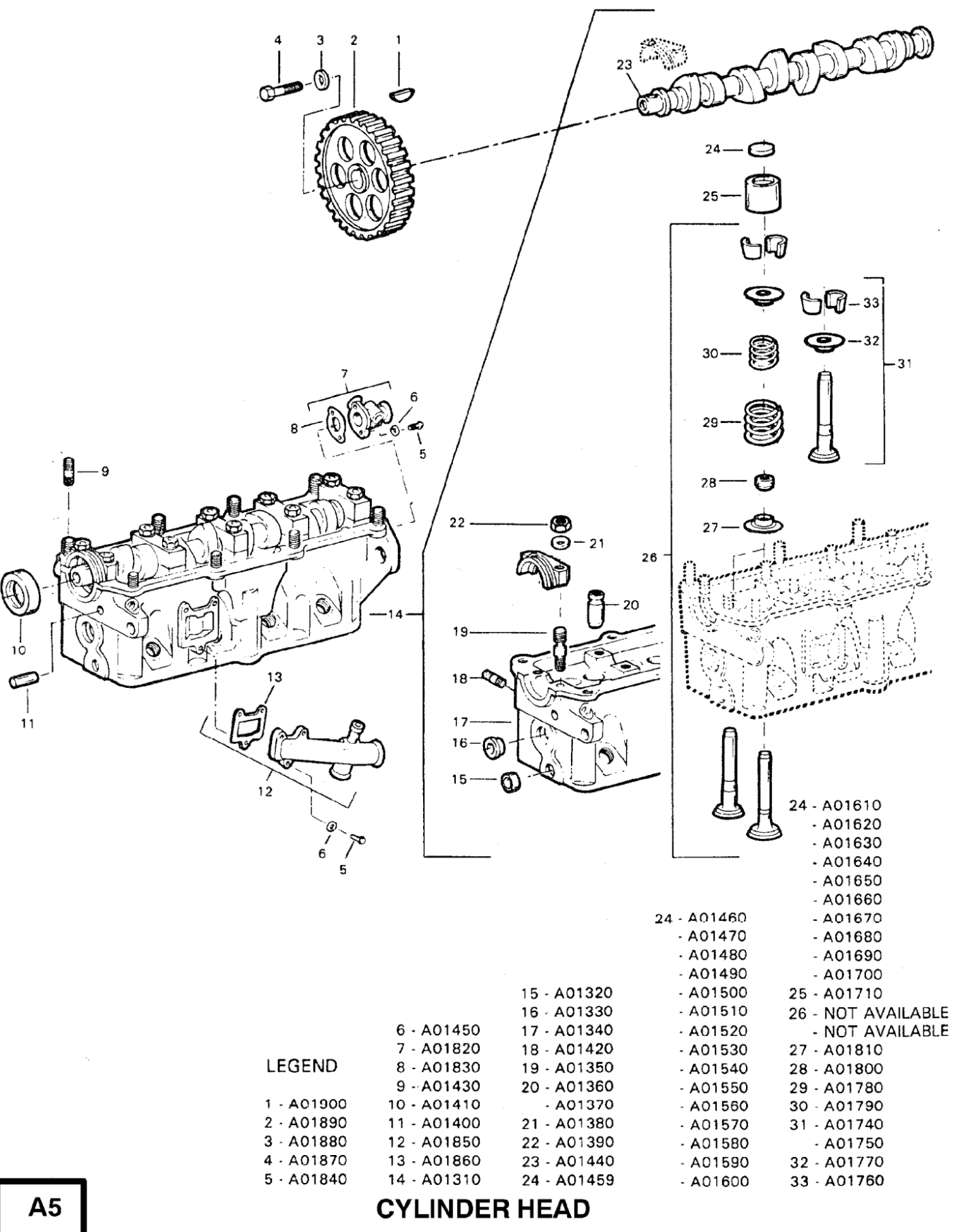

A5 — Cylinder Head A5 — Cylinder Head
Click image to enlarge.

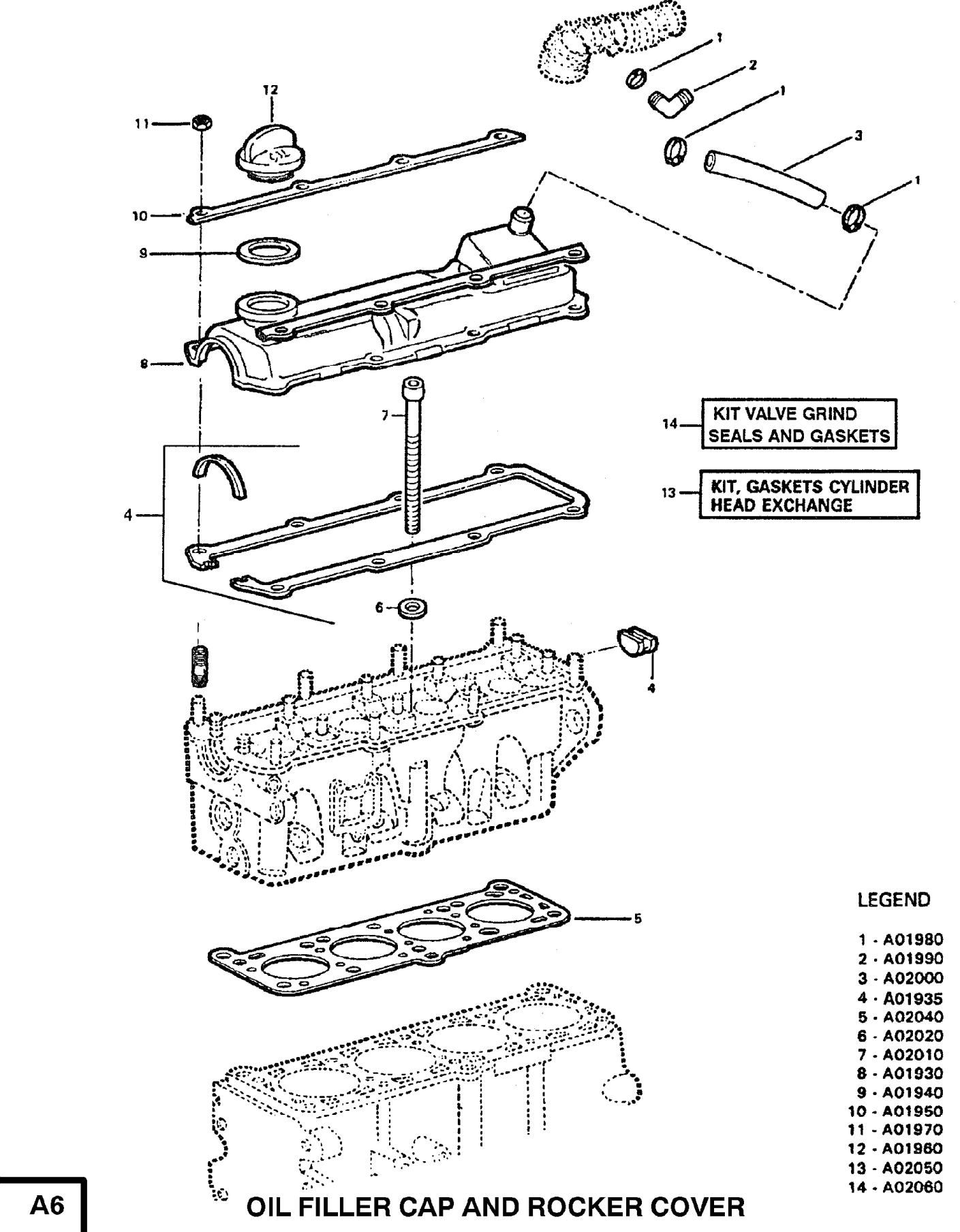

A6 — Oil Filler Cap and Rocker Cover A6 — Oil Filler Cap and Rocker Cover
Click image to enlarge.

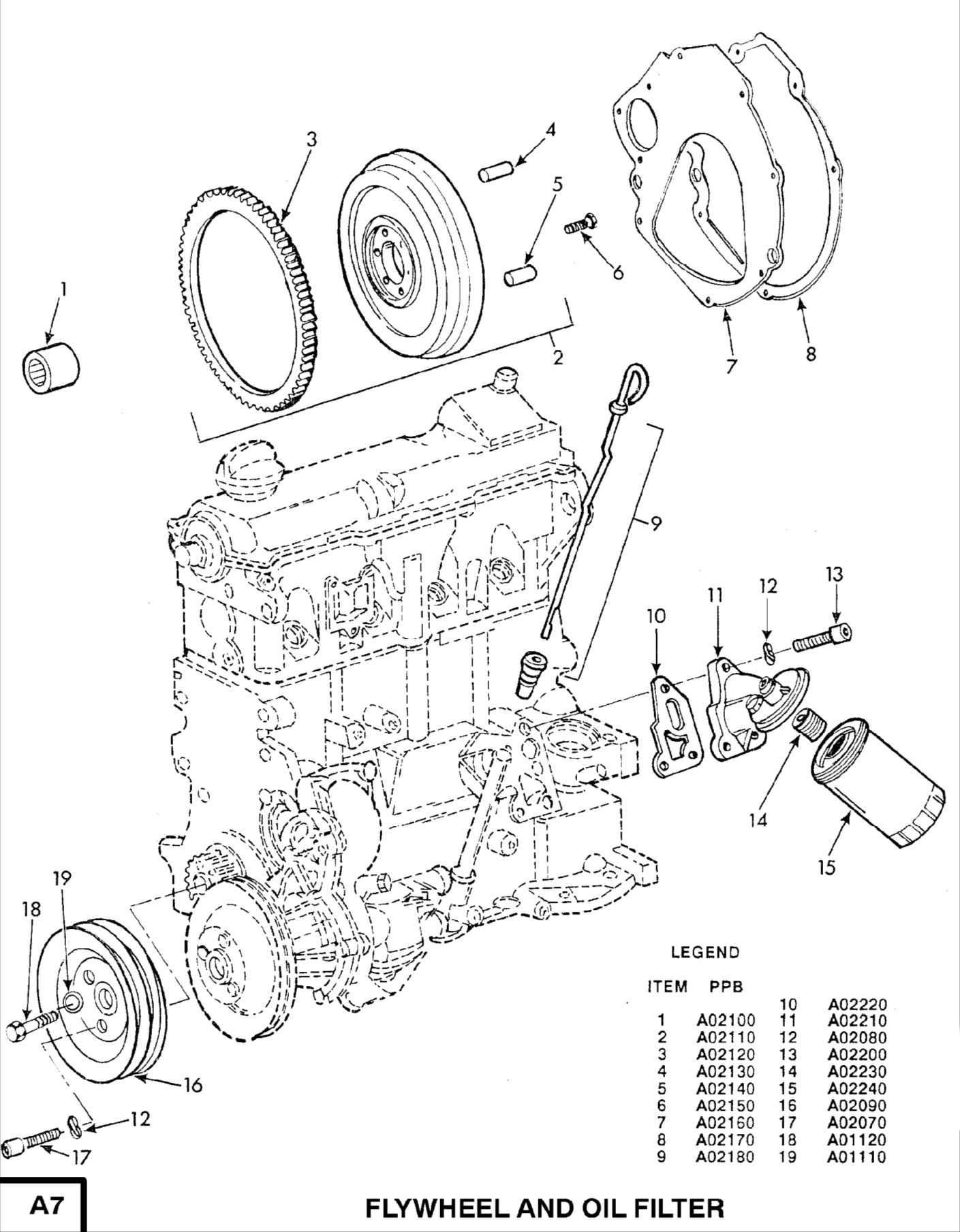

A7 — Flywheel and Oil Filter A7 — Flywheel and Oil Filter
Click image to enlarge.

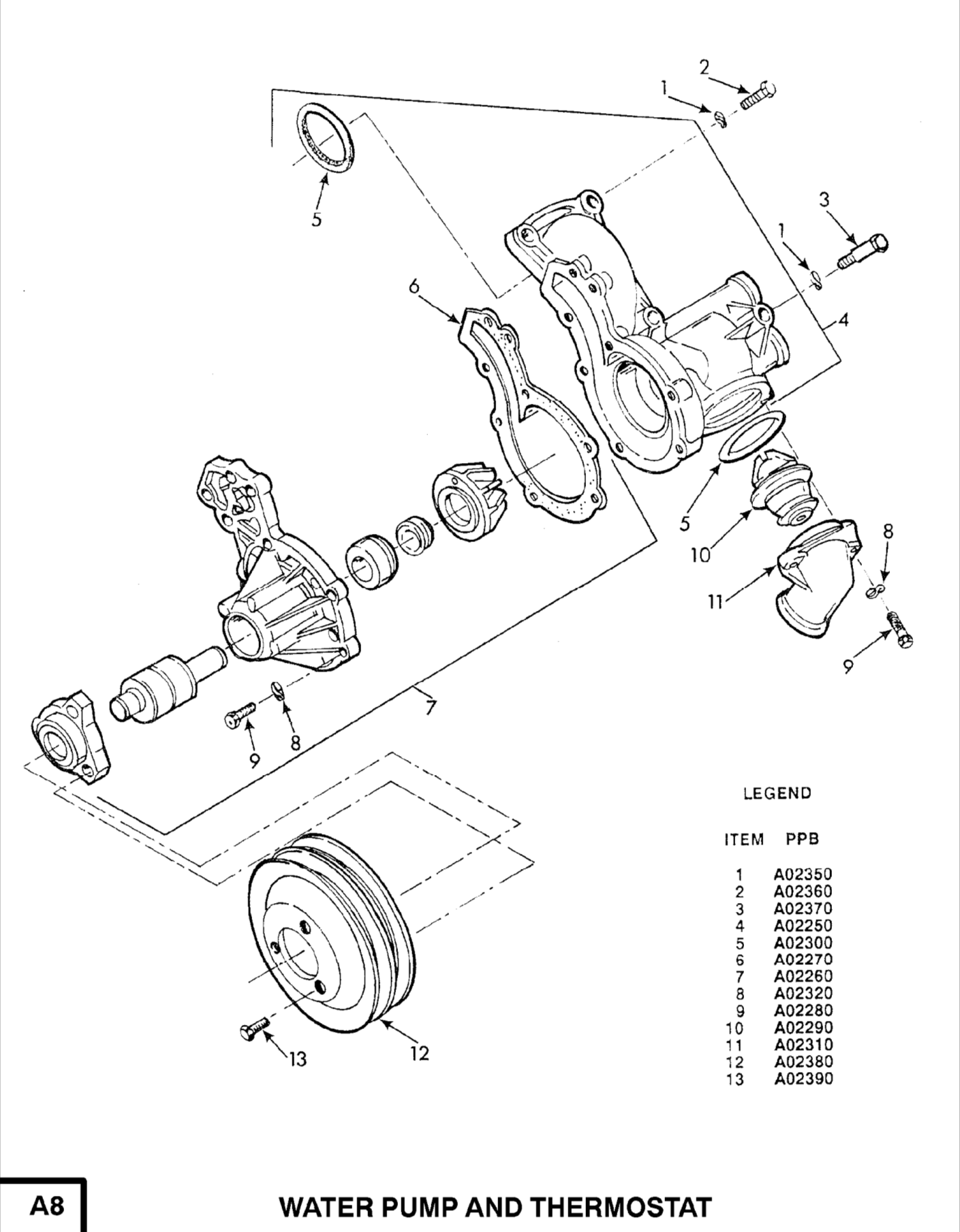

A8 — Water Pump and Thermostat A8 — Water Pump and Thermostat
Click image to enlarge.

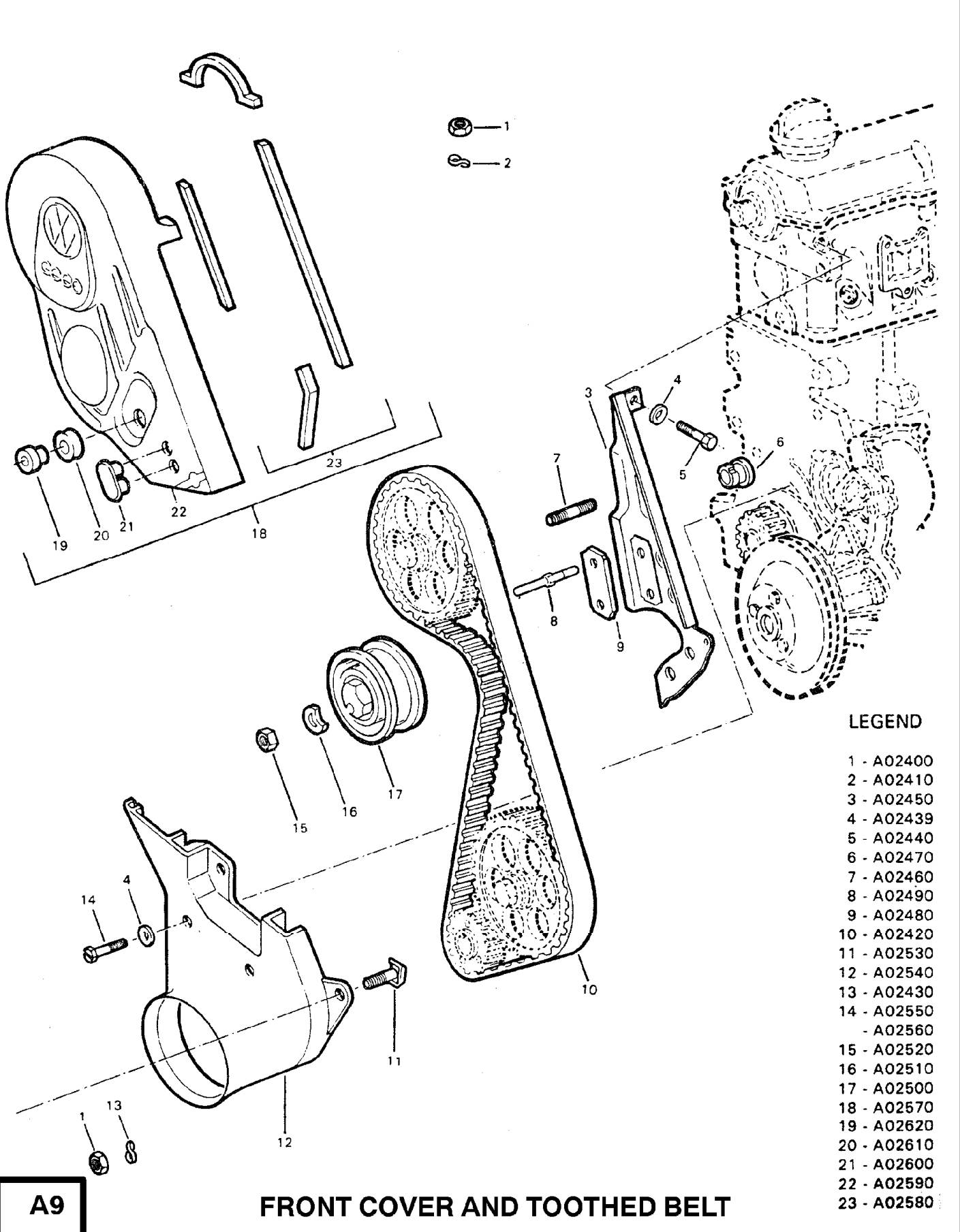

A9 — Front Cover and Toothed Belt A9 — Front Cover and Toothed Belt
Click image to enlarge.

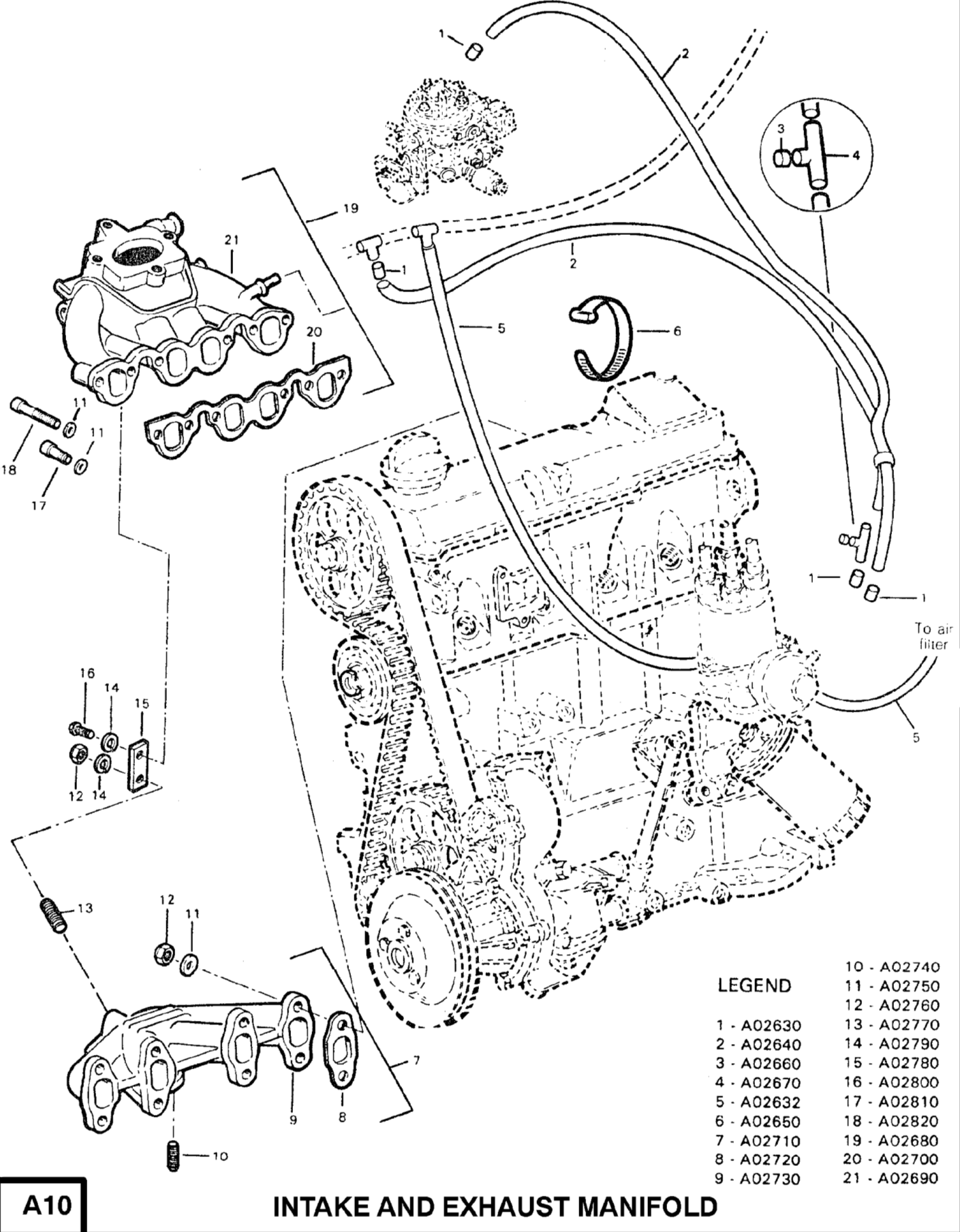

A10 — Intake and Exhaust Manifold A10 — Intake and Exhaust Manifold
Click image to enlarge.

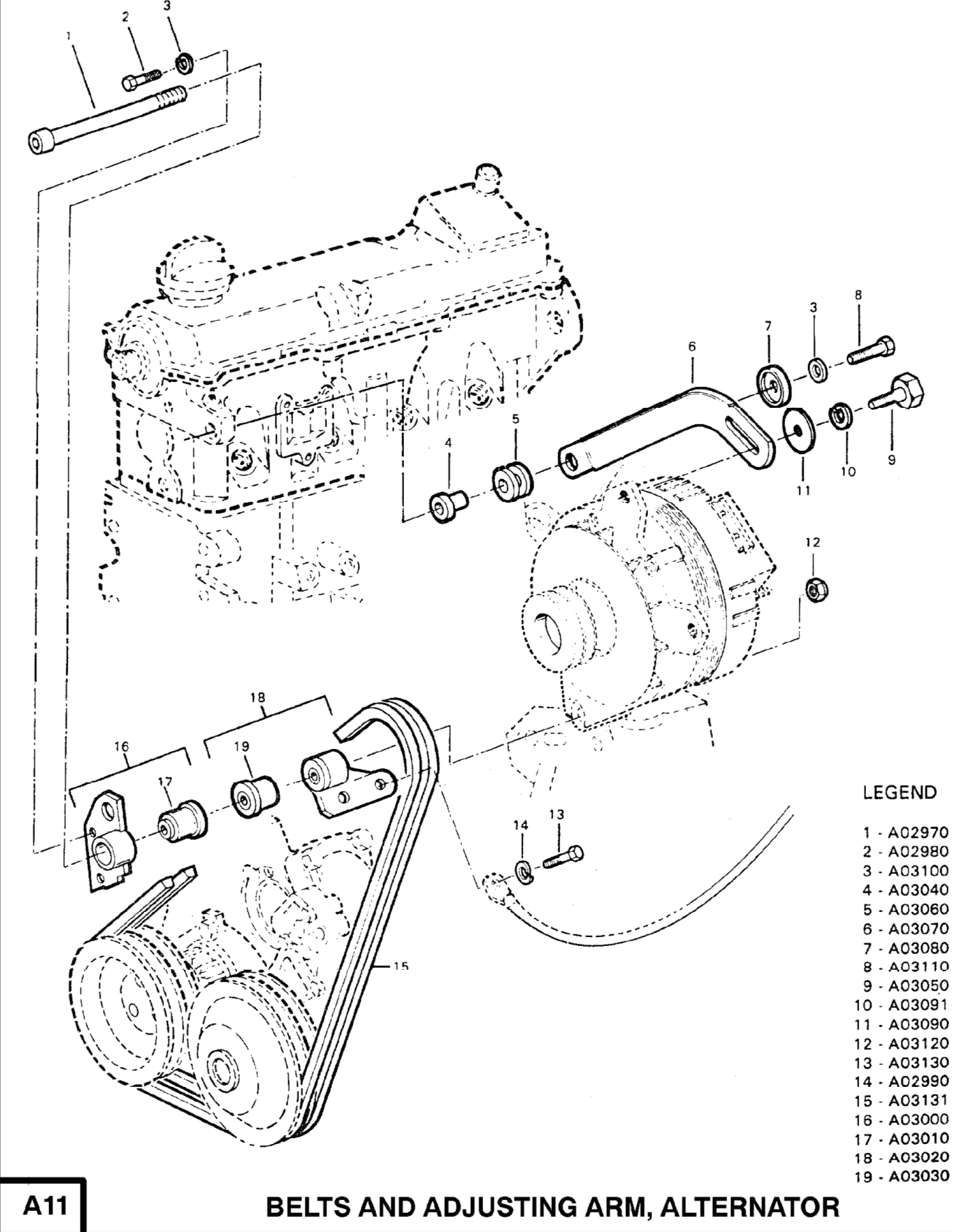

A11 — Belts and Adjusting Arm, Alternator A11 — Belts and Adjusting Arm, Alternator
Click image to enlarge.

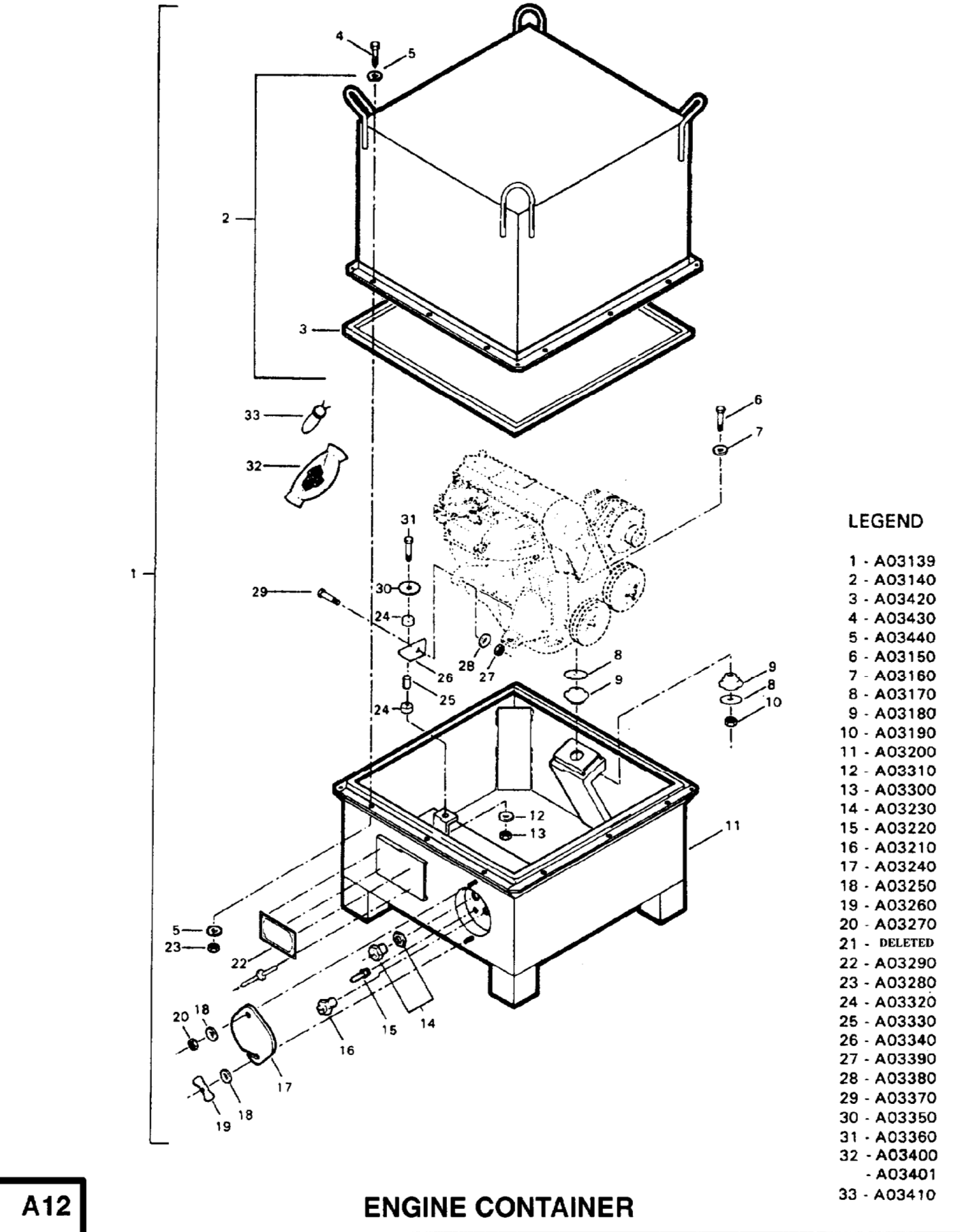

A12 — Engine Container A12 — Engine Container
Click image to enlarge.

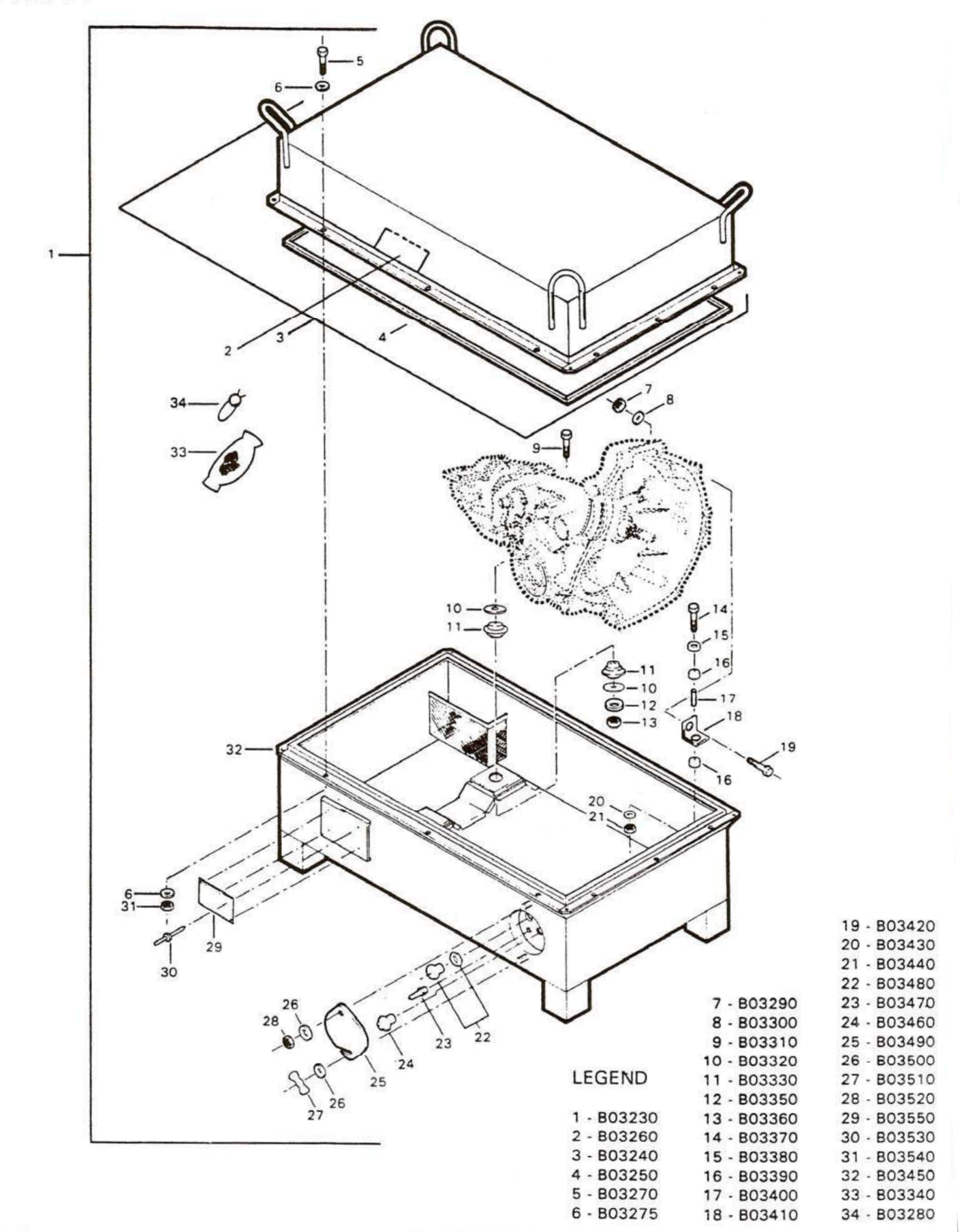

B1 — Transmission and Container Assembly B1 — Transmission and Container Assembly
Click image to enlarge.

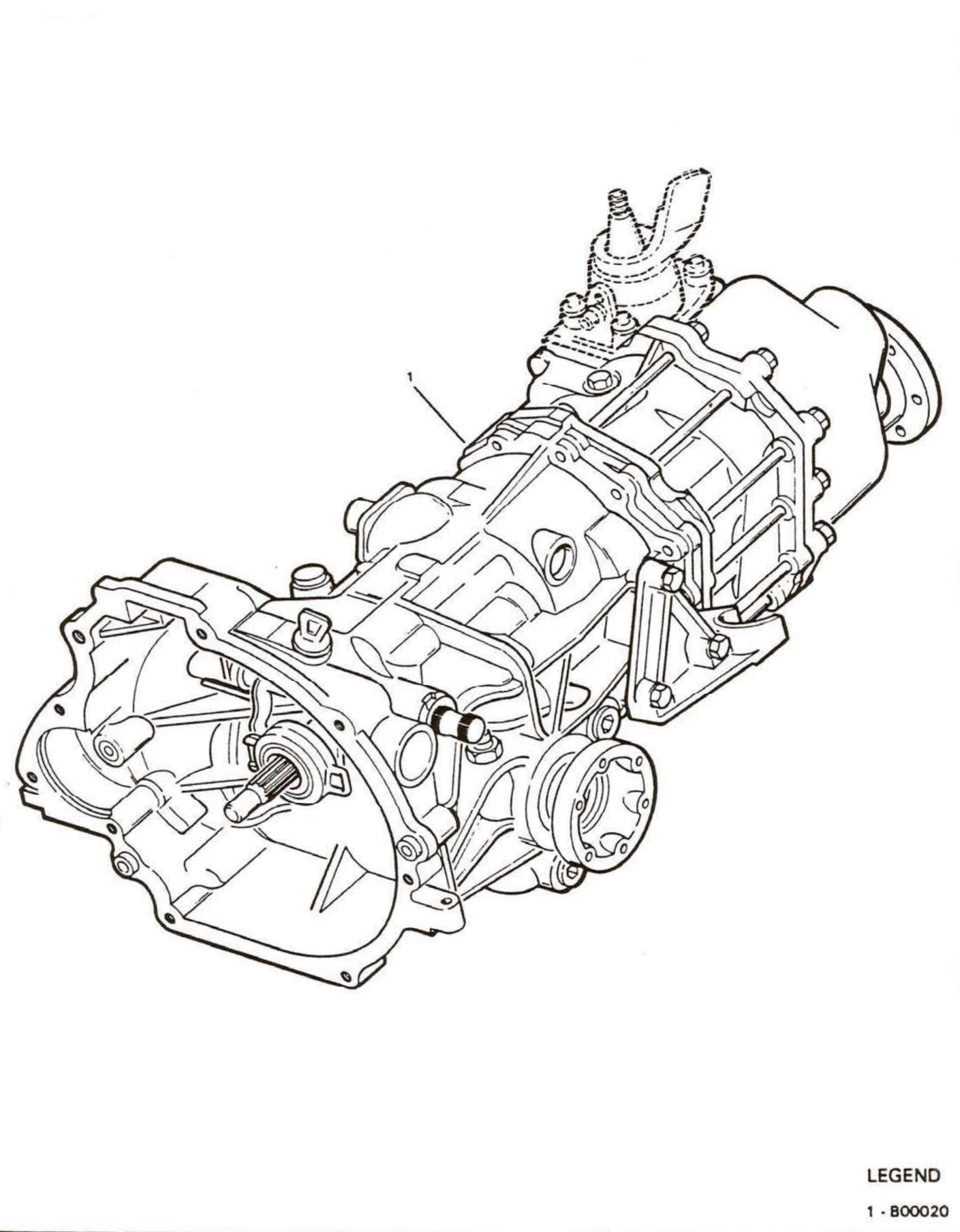

B2 — Transmission Assembly B2 — Transmission Assembly
Click image to enlarge.

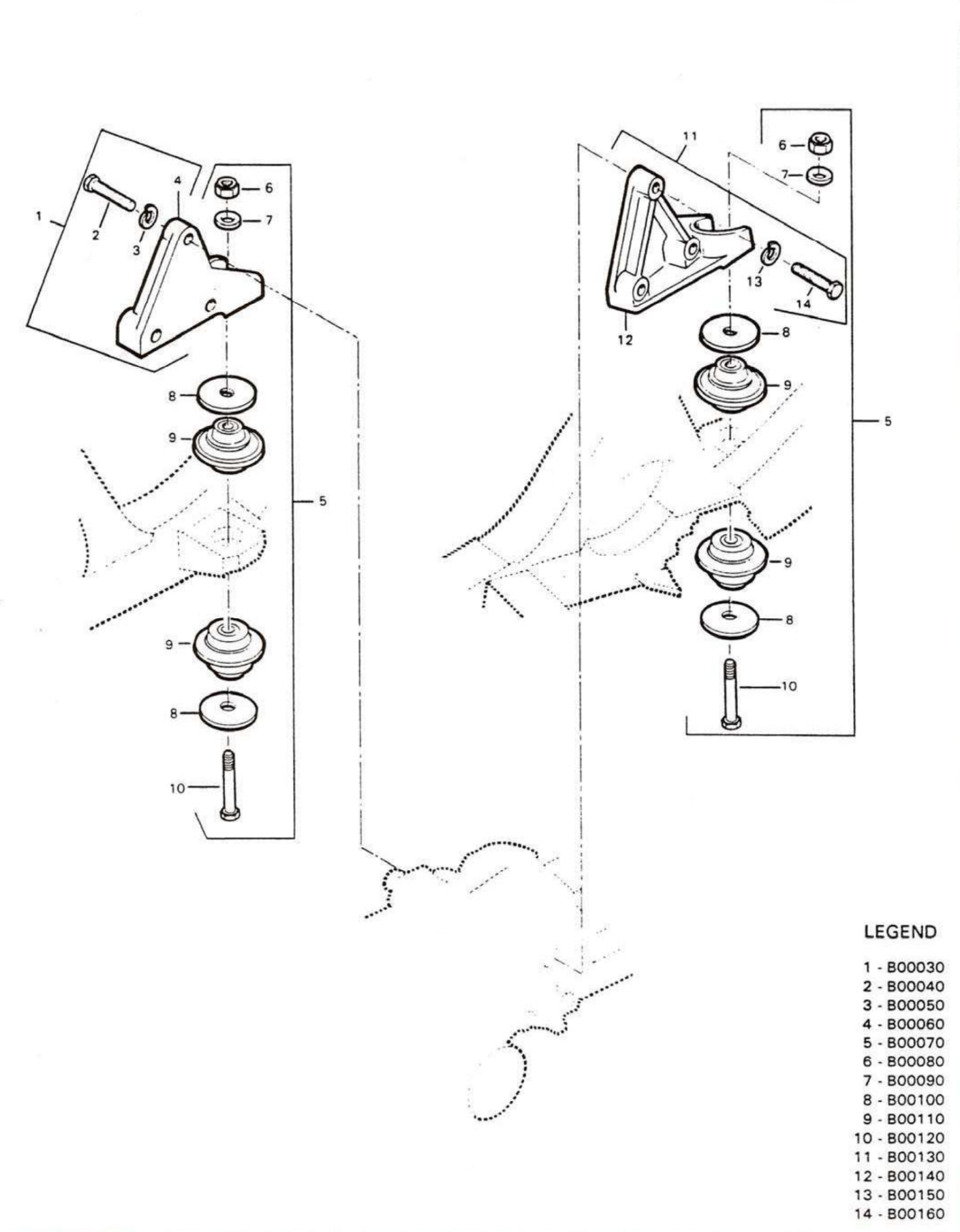

B3 — Transmission Mounts B3 — Transmission Mounts
Click image to enlarge.

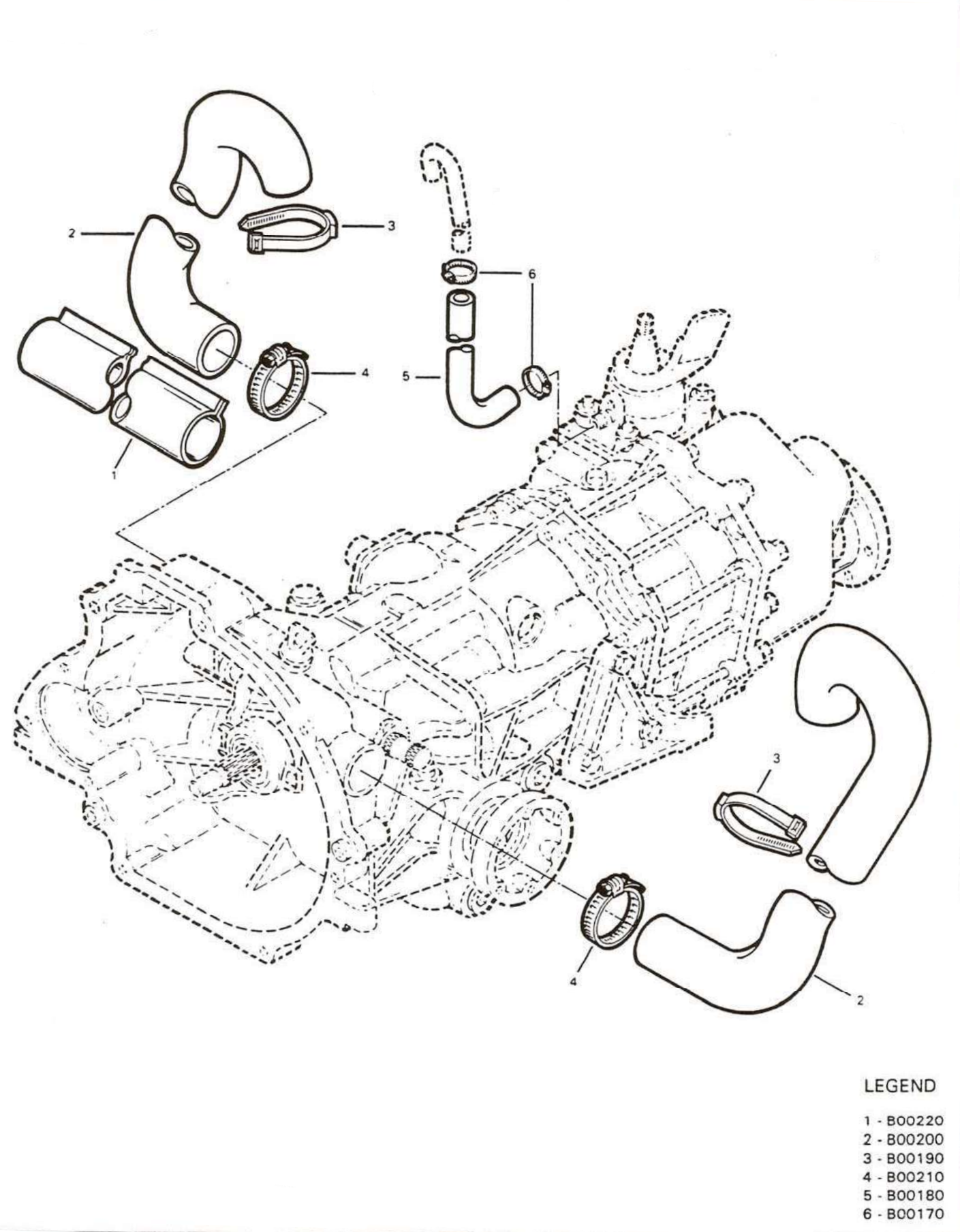

B4 — Transmission Breather Hoses B4 — Transmission Breather Hoses
Click image to enlarge.

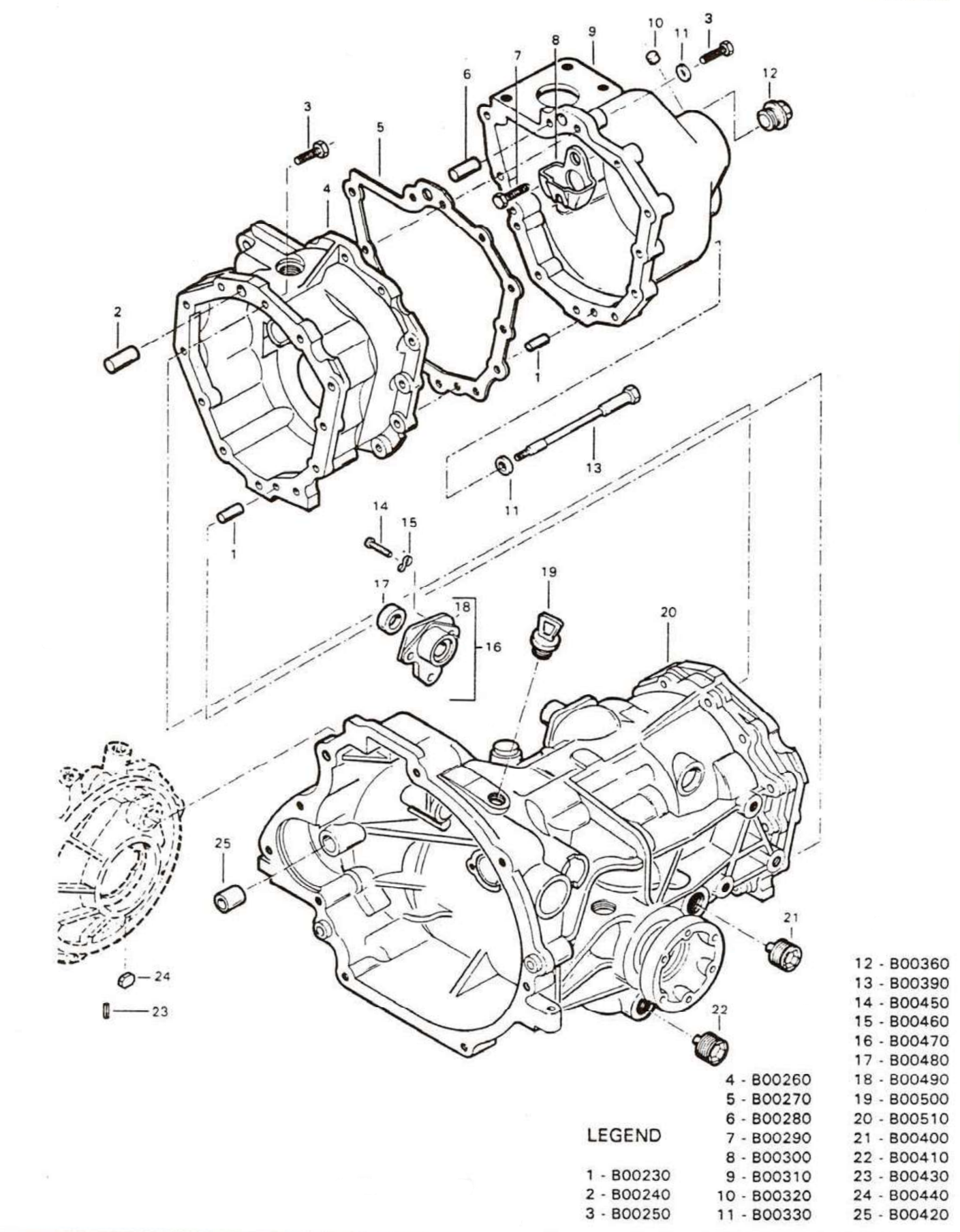

B5 — Transmission Housing B5 — Transmission Housing
Click image to enlarge.

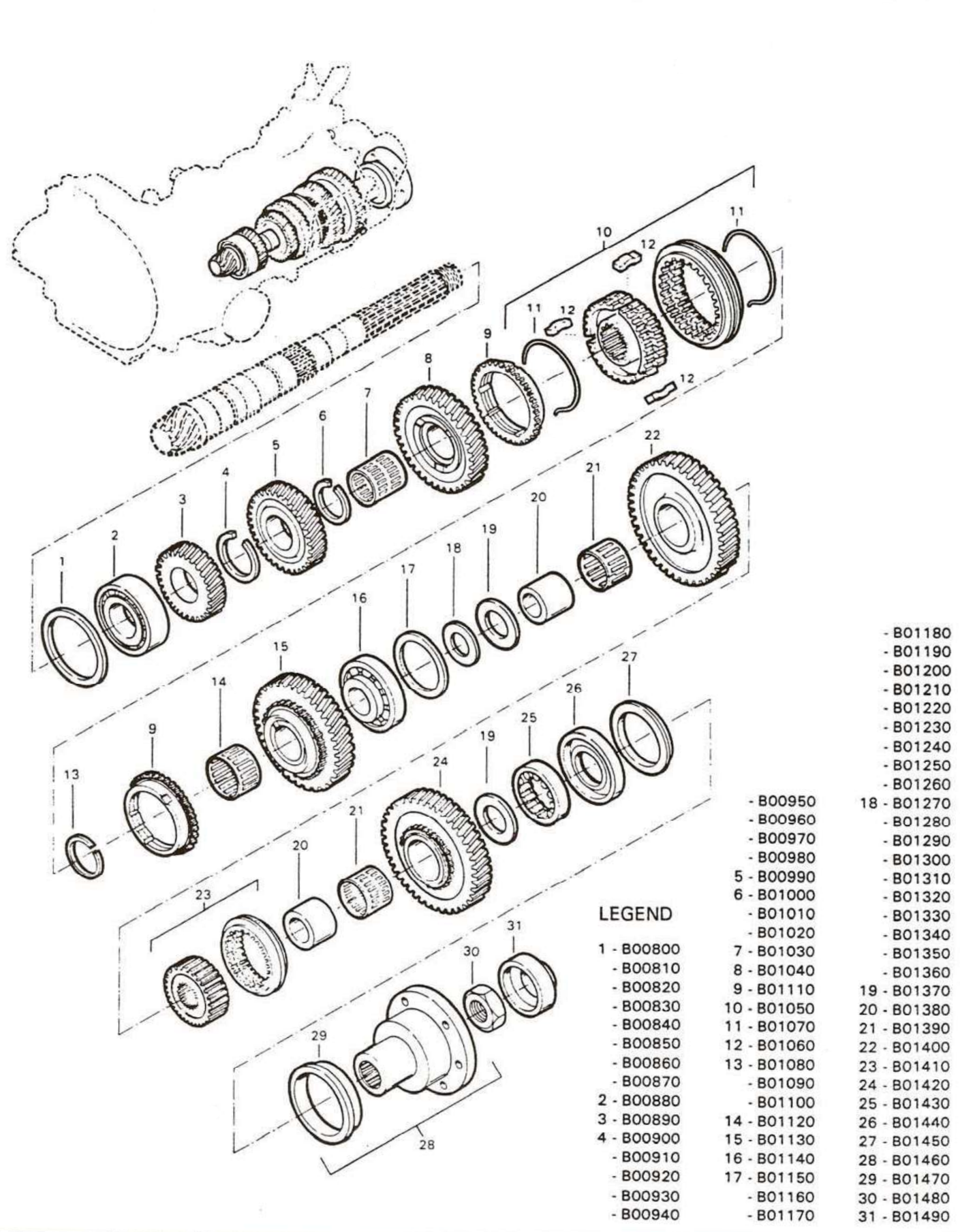

B6 — Transmission Input Shaft B6 — Transmission Input Shaft
Click image to enlarge.

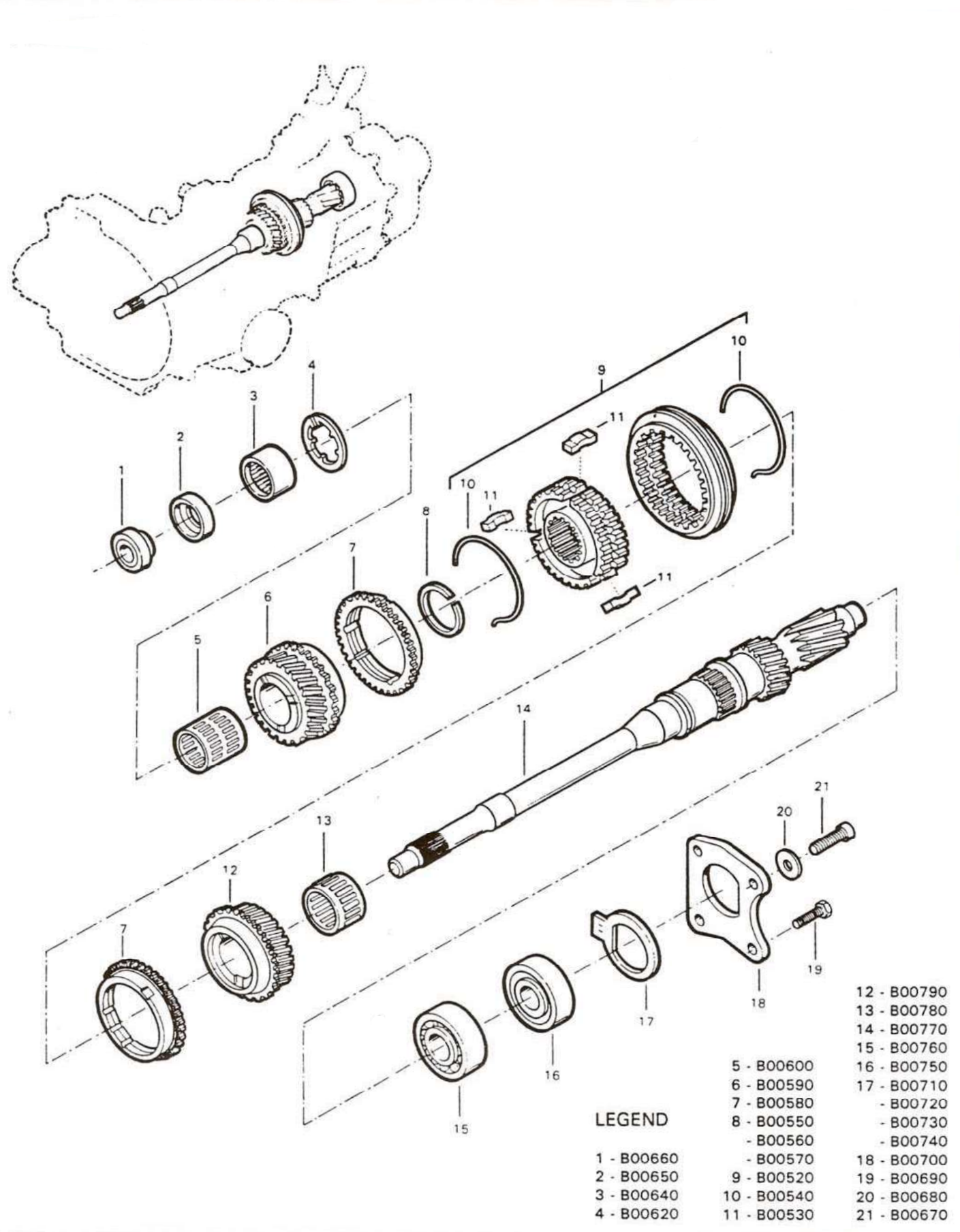

B7 — Transmission Output Shaft B7 — Transmission Output Shaft
Click image to enlarge.

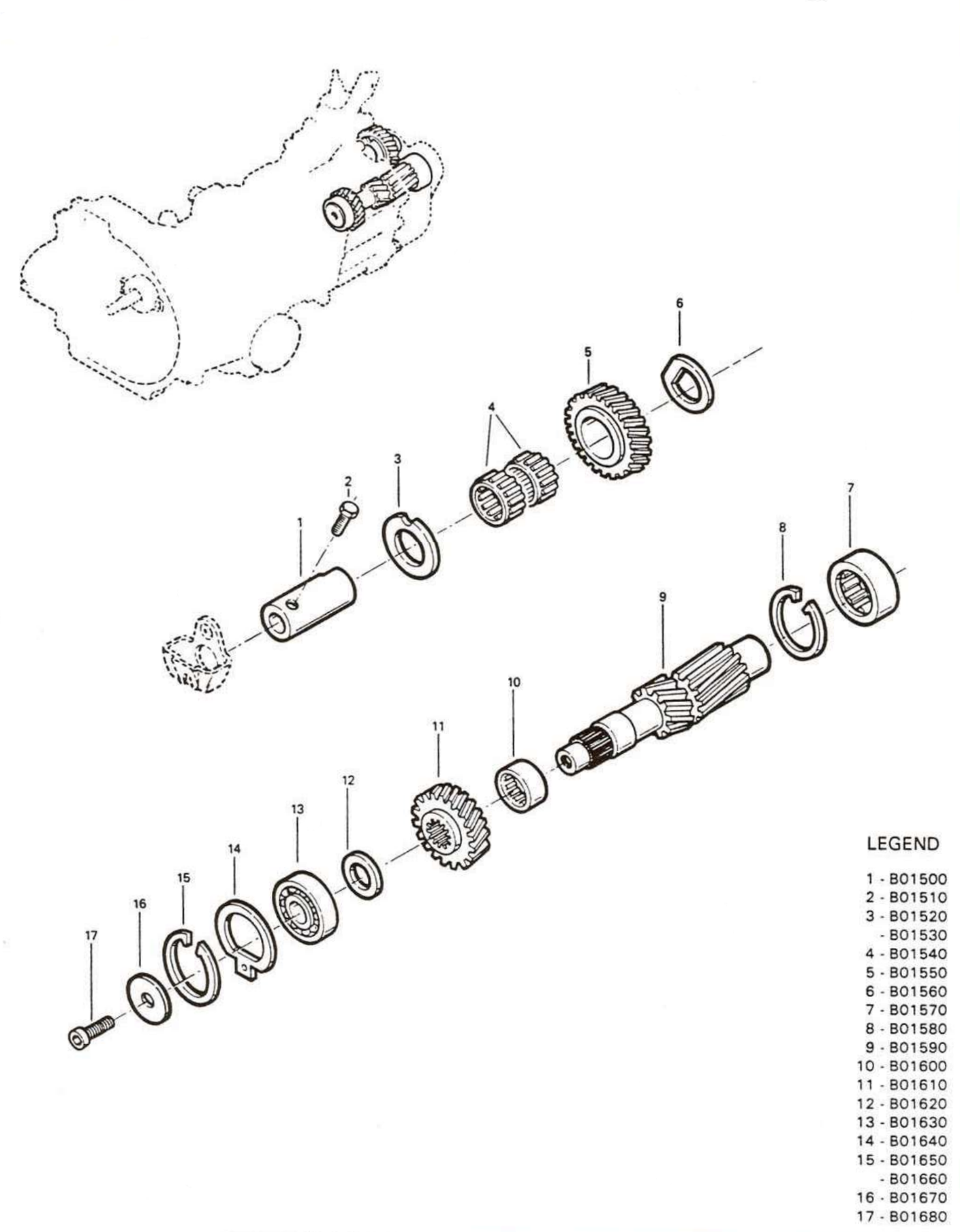

B8 — Transmission Countershaft B8 — Transmission Countershaft
Click image to enlarge.

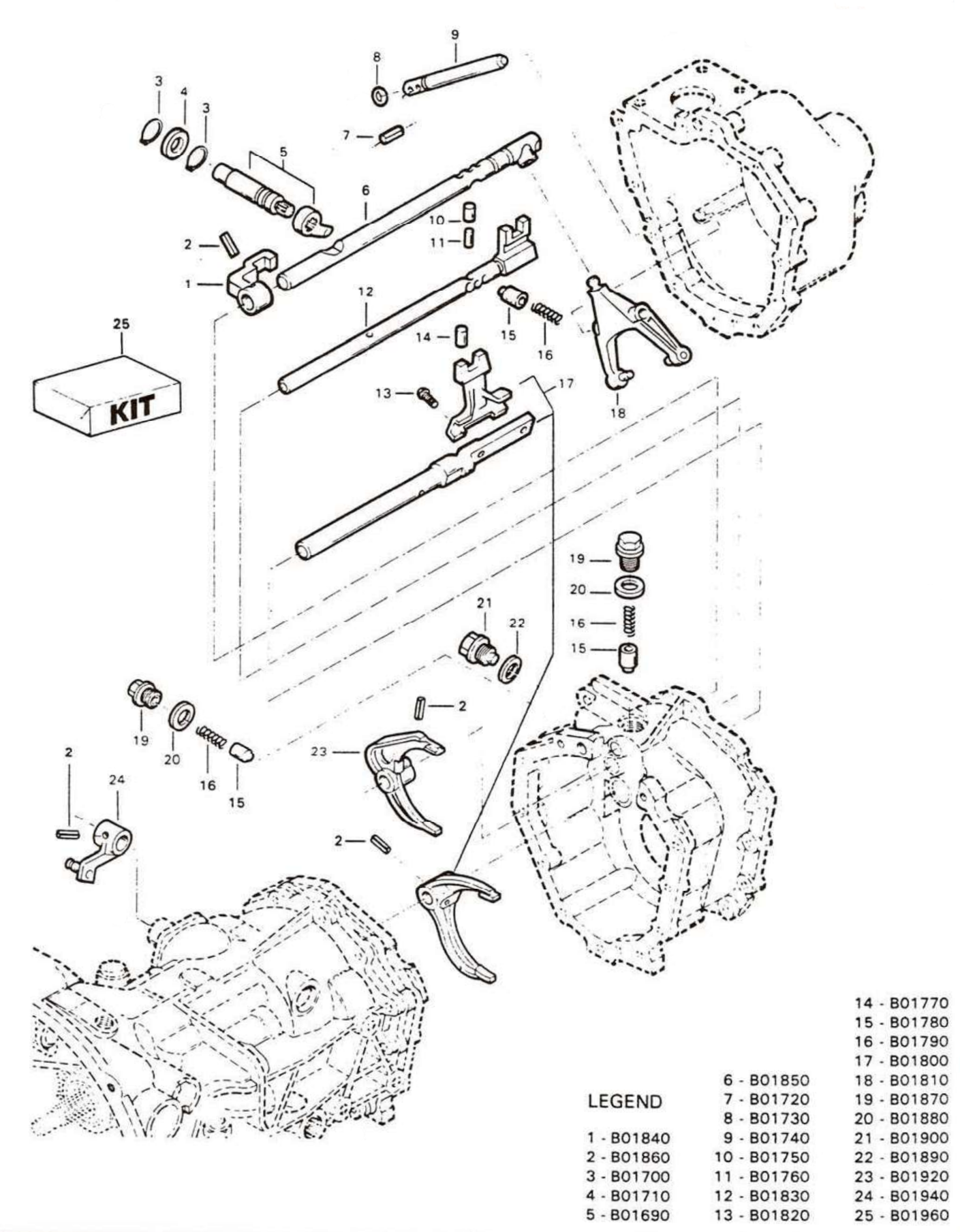

B9 — Forks and Selectors Shaft B9 — Forks and Selectors Shaft
Click image to enlarge.

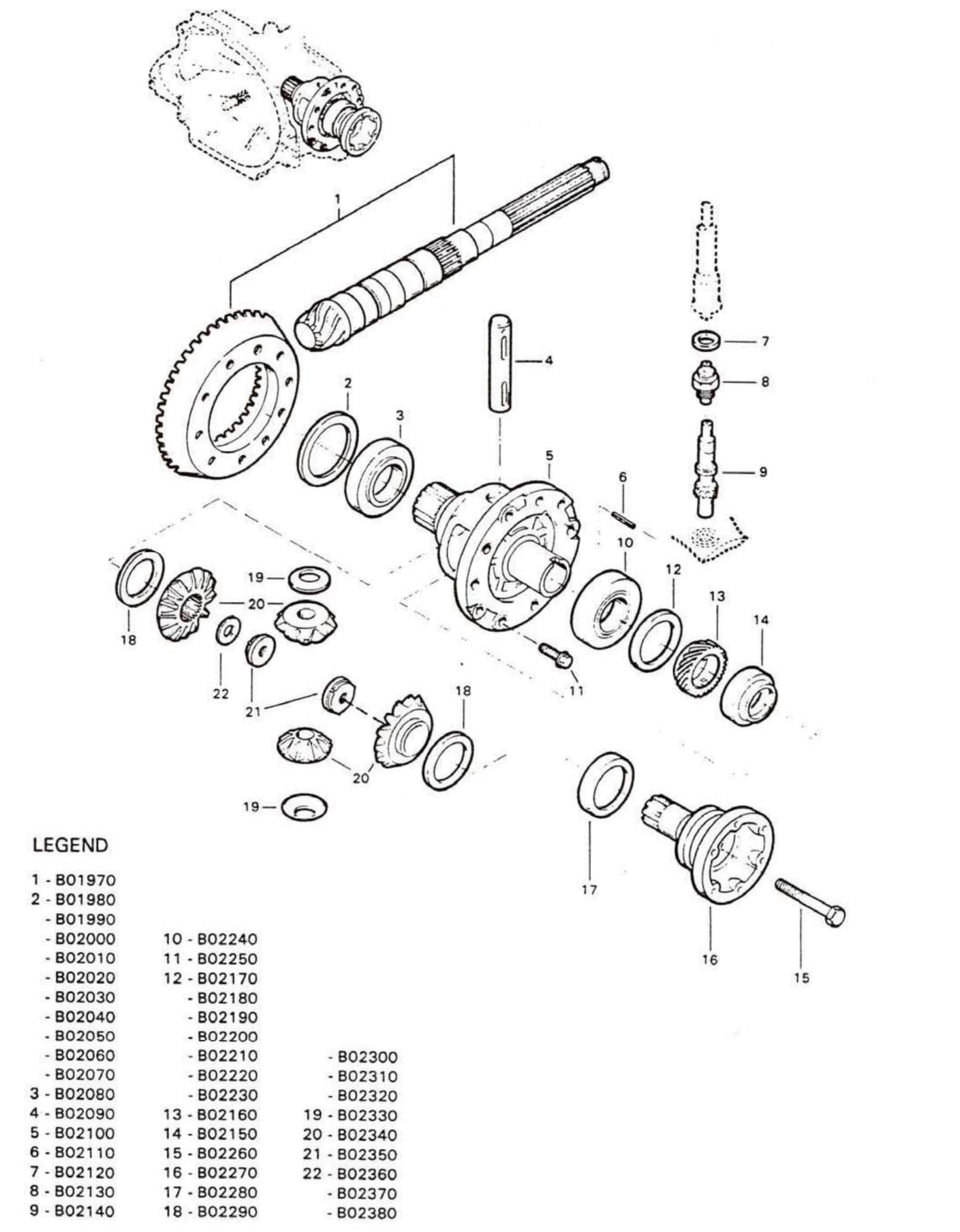

B10 — Front Differential B10 — Front Differential
Click image to enlarge.

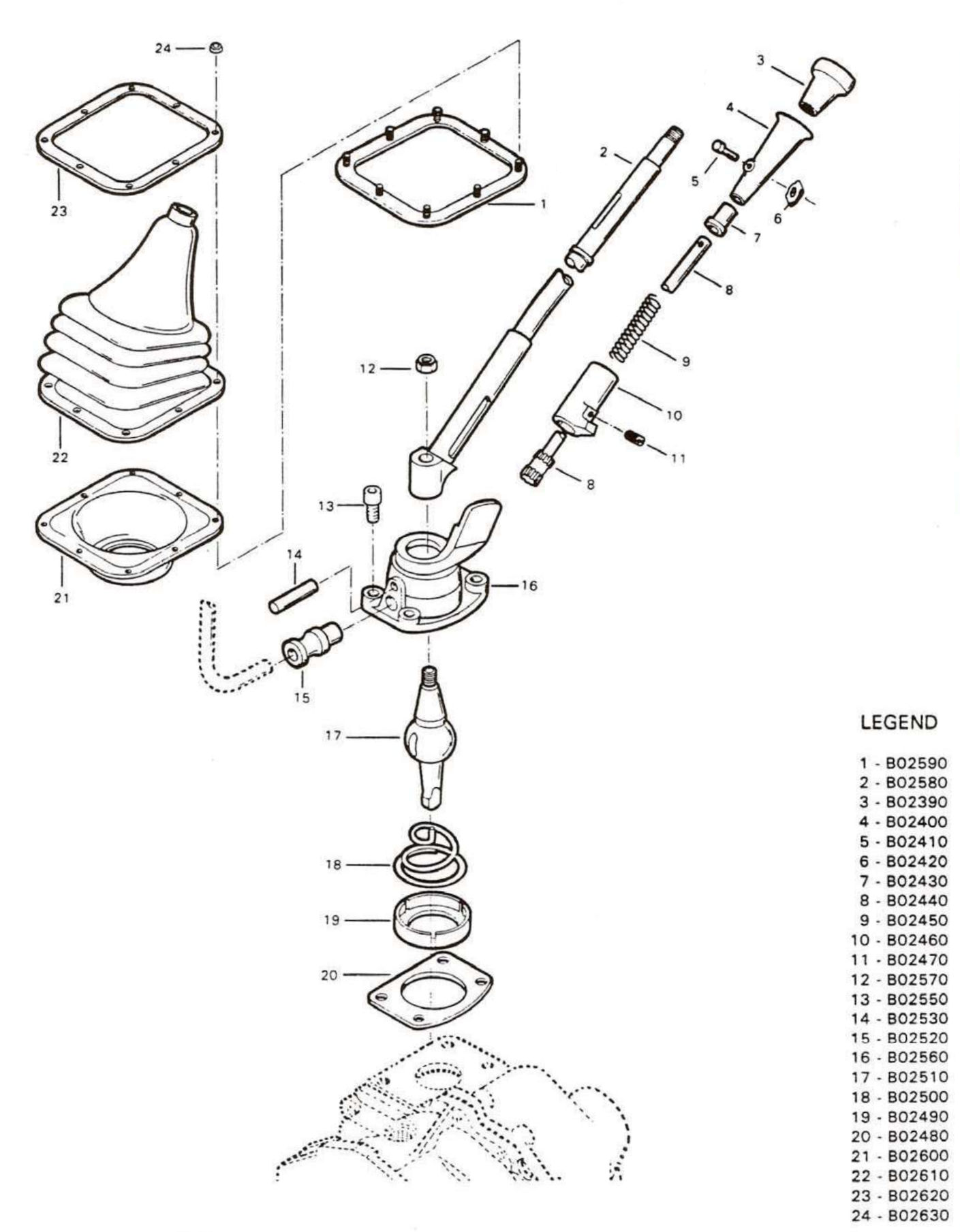

B11 — Shifter Arm B11 — Shifter Arm
Click image to enlarge.

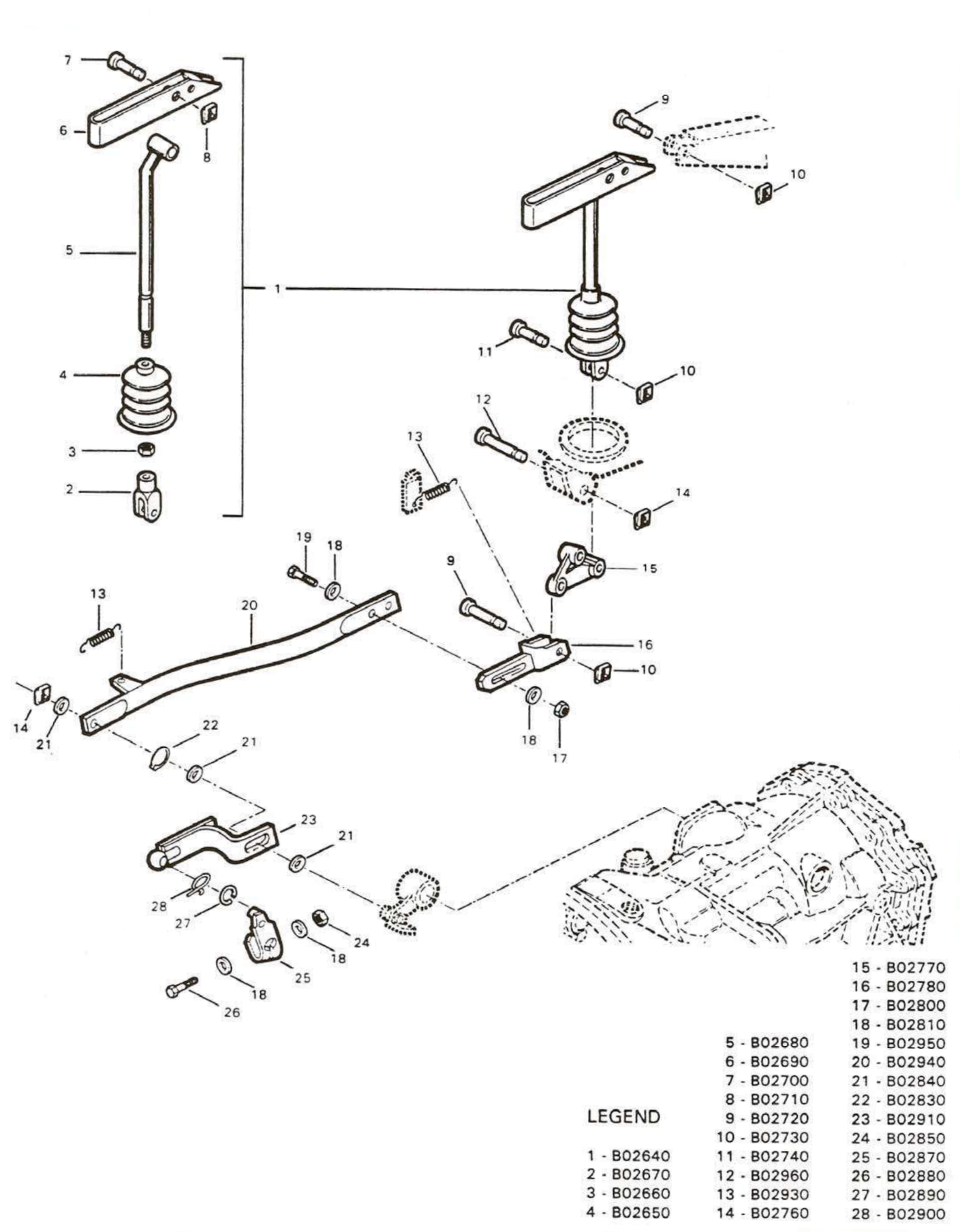

B12 — Control for Front Wheel Drive B12 — Control for Front Wheel Drive
Click image to enlarge.

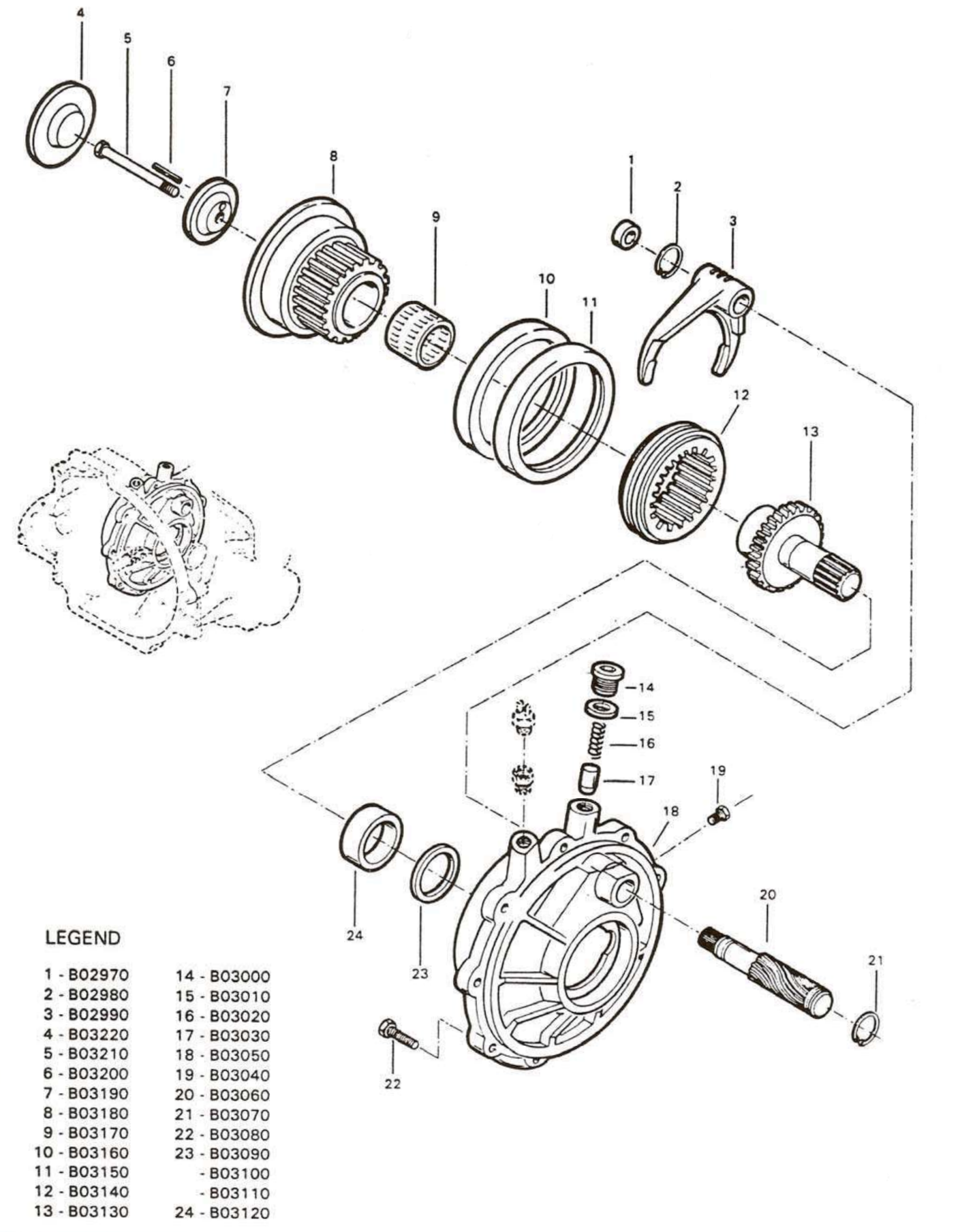

B13 — Cover and Front Differential B13 — Cover and Front Differential
Click image to enlarge.

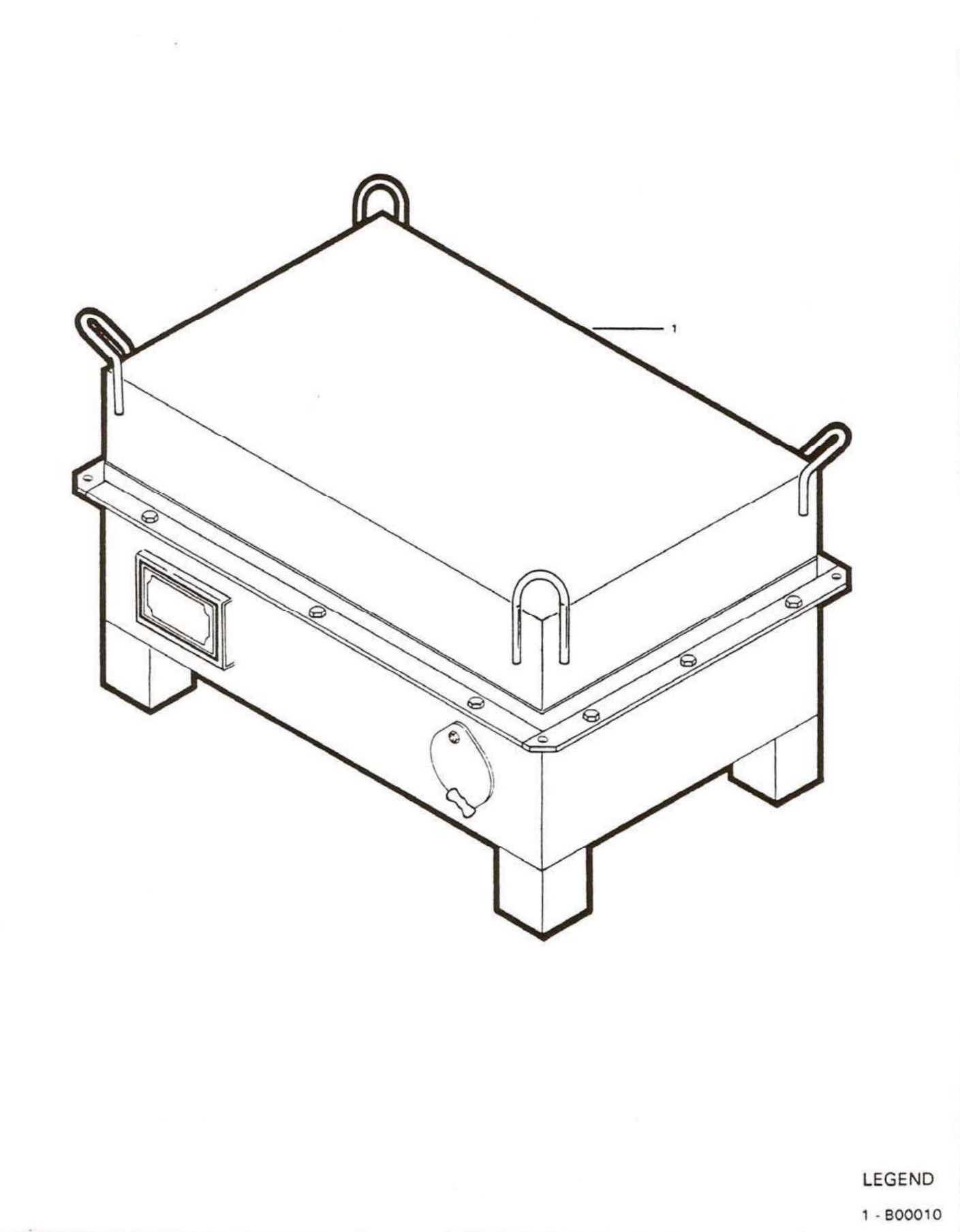

B14 — Transmission Container B14 — Transmission Container
Click image to enlarge.

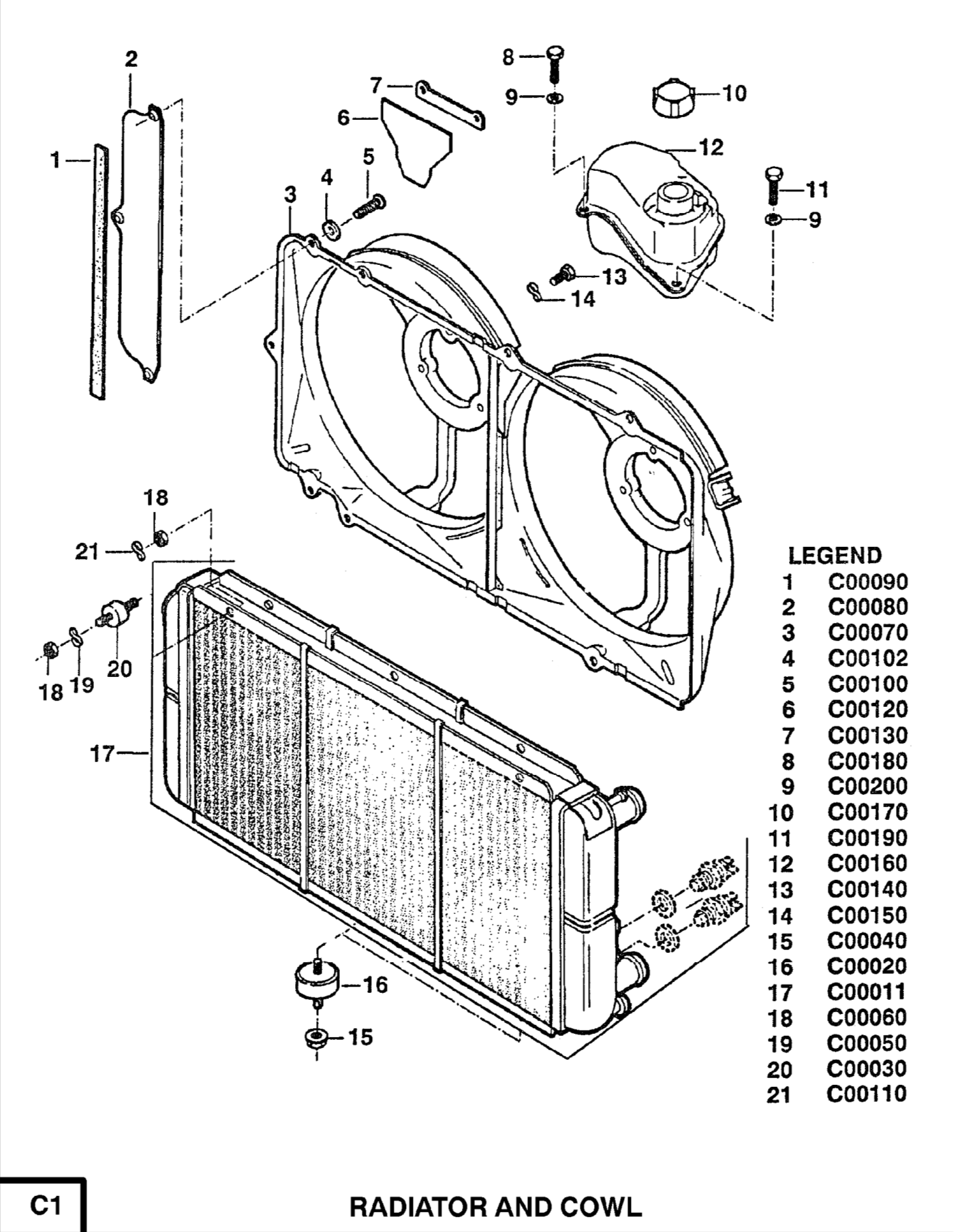

C1 — Radiator and Cowl C1 — Radiator and Cowl
Click image to enlarge.

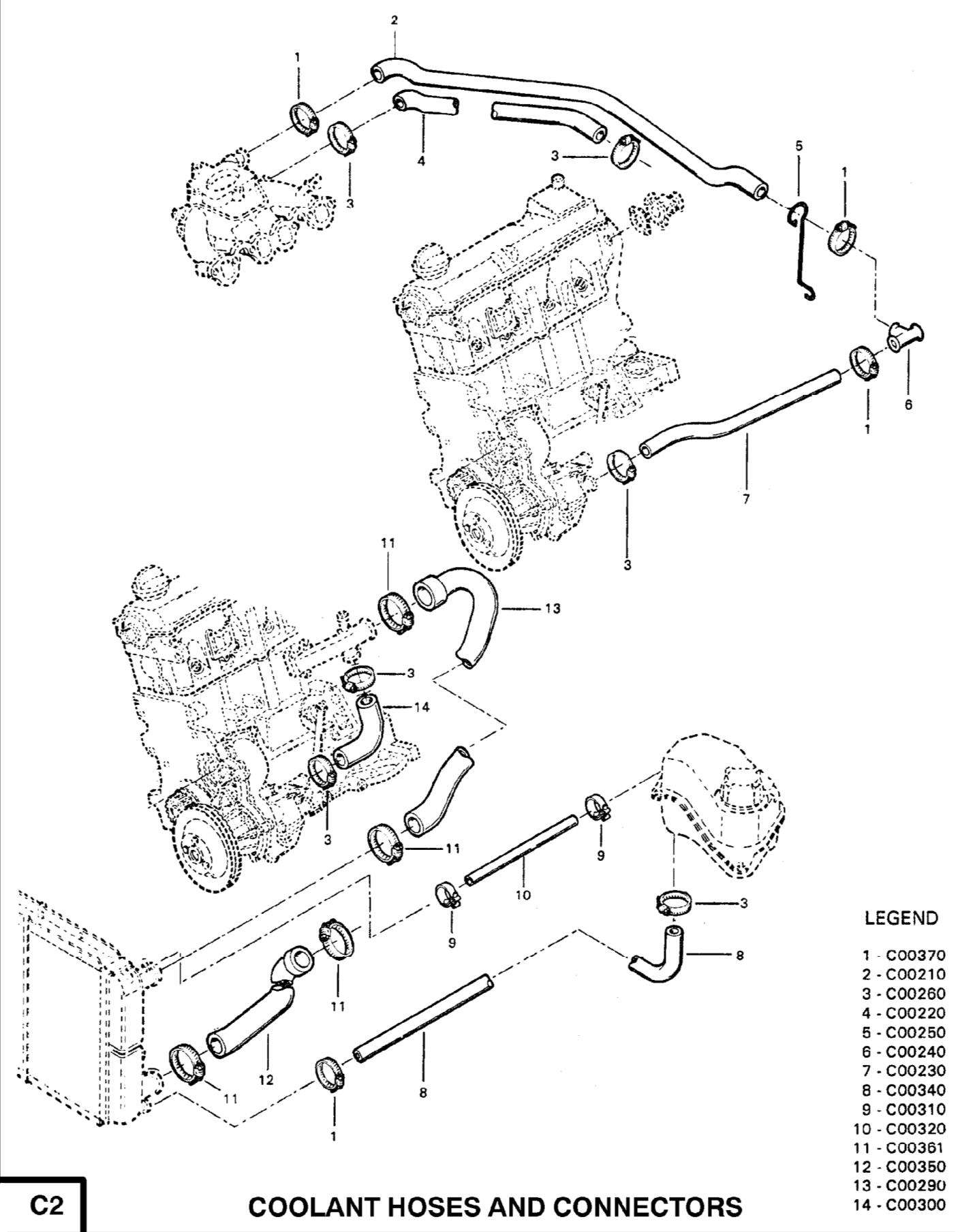

C2 — Coolant Hoses and Connectors C2 — Coolant Hoses and Connectors
Click image to enlarge.

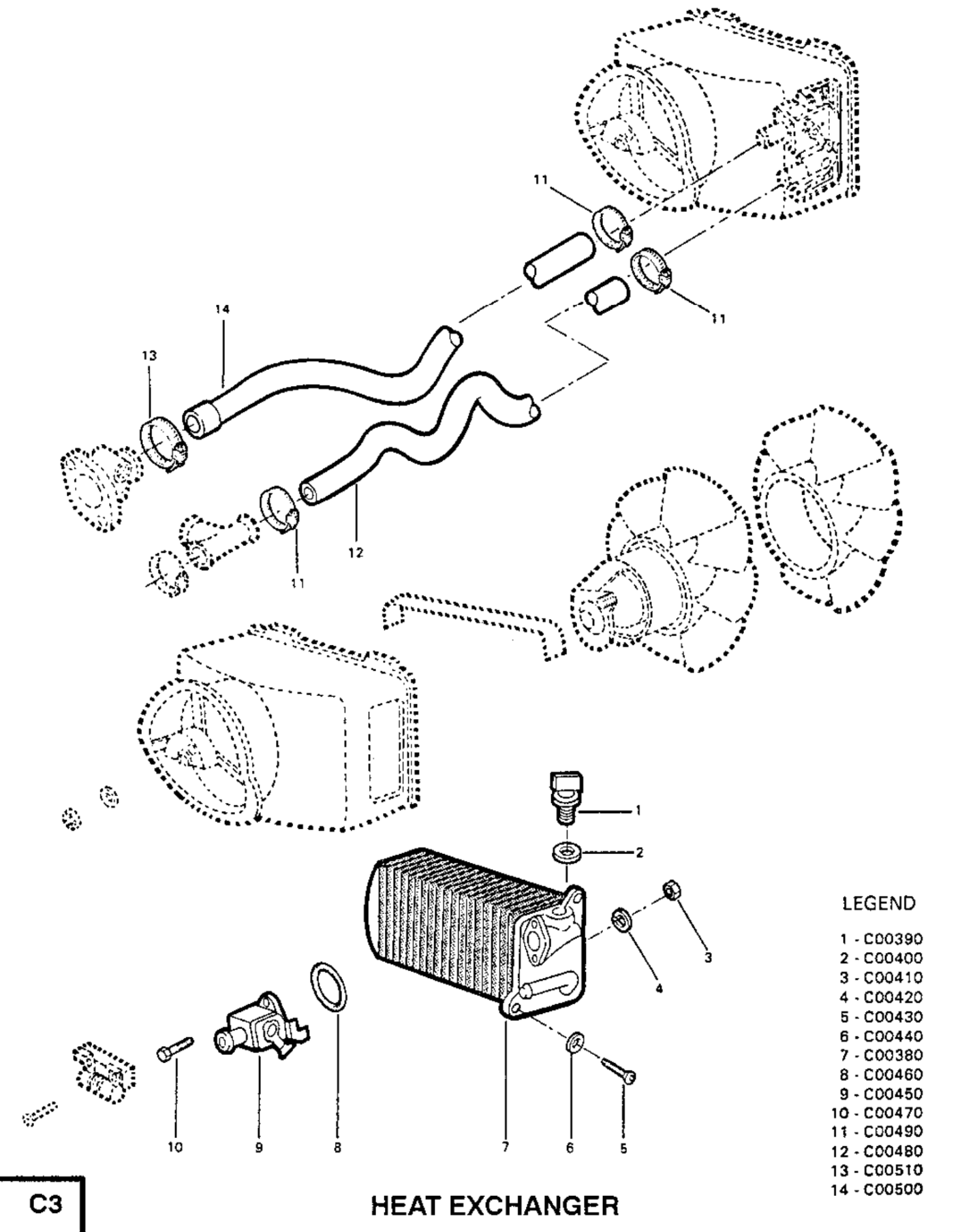

C3 — Heat Exchanger C3 — Heat Exchanger
Click image to enlarge.

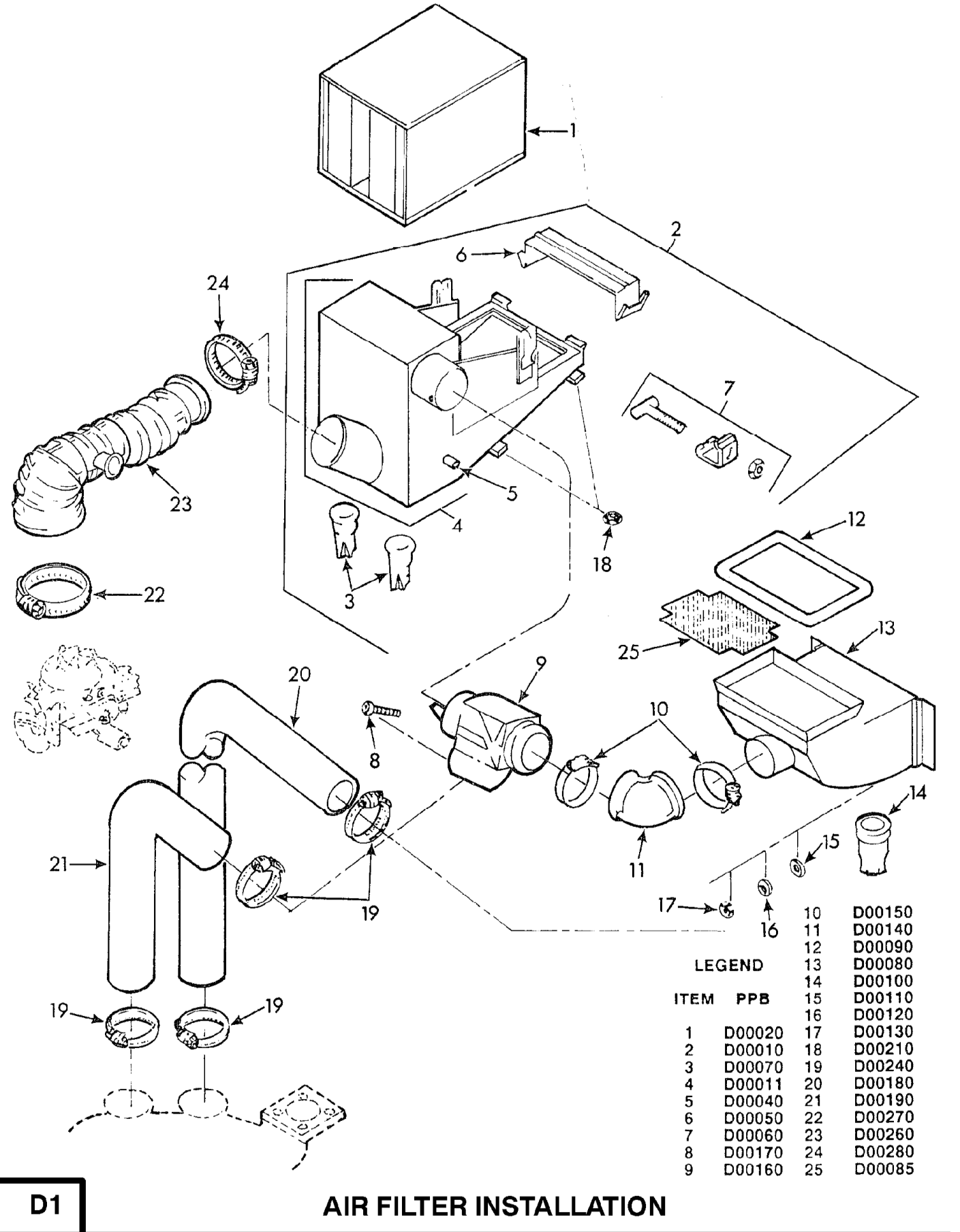

D1 — Air Filter Installation D1 — Air Filter Installation
Click image to enlarge.

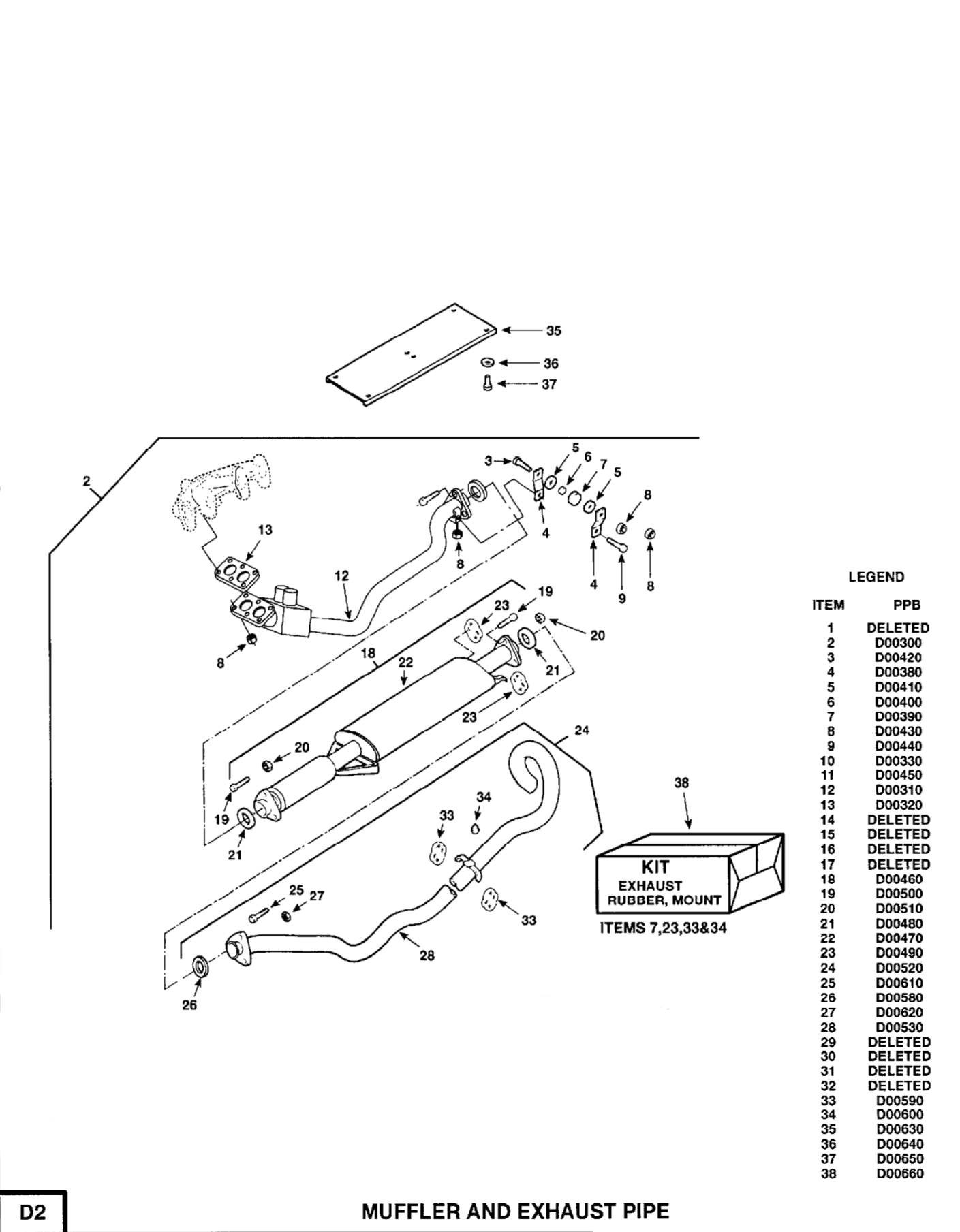

D2 — Muffler and Exhaust Pipe D2 — Muffler and Exhaust Pipe
Click image to enlarge.

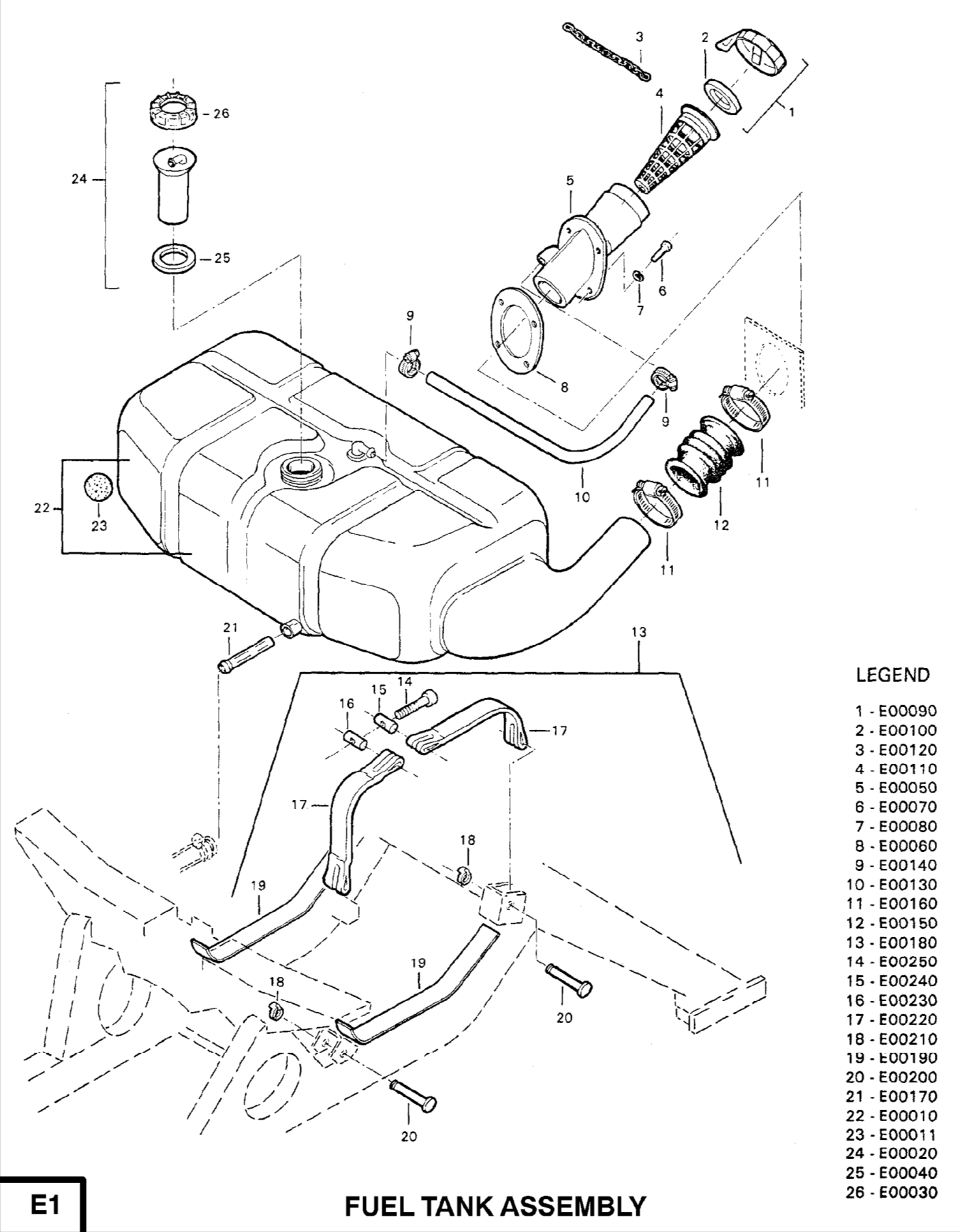

E1 — Fuel Tank Assembly E1 — Fuel Tank Assembly
Click image to enlarge.

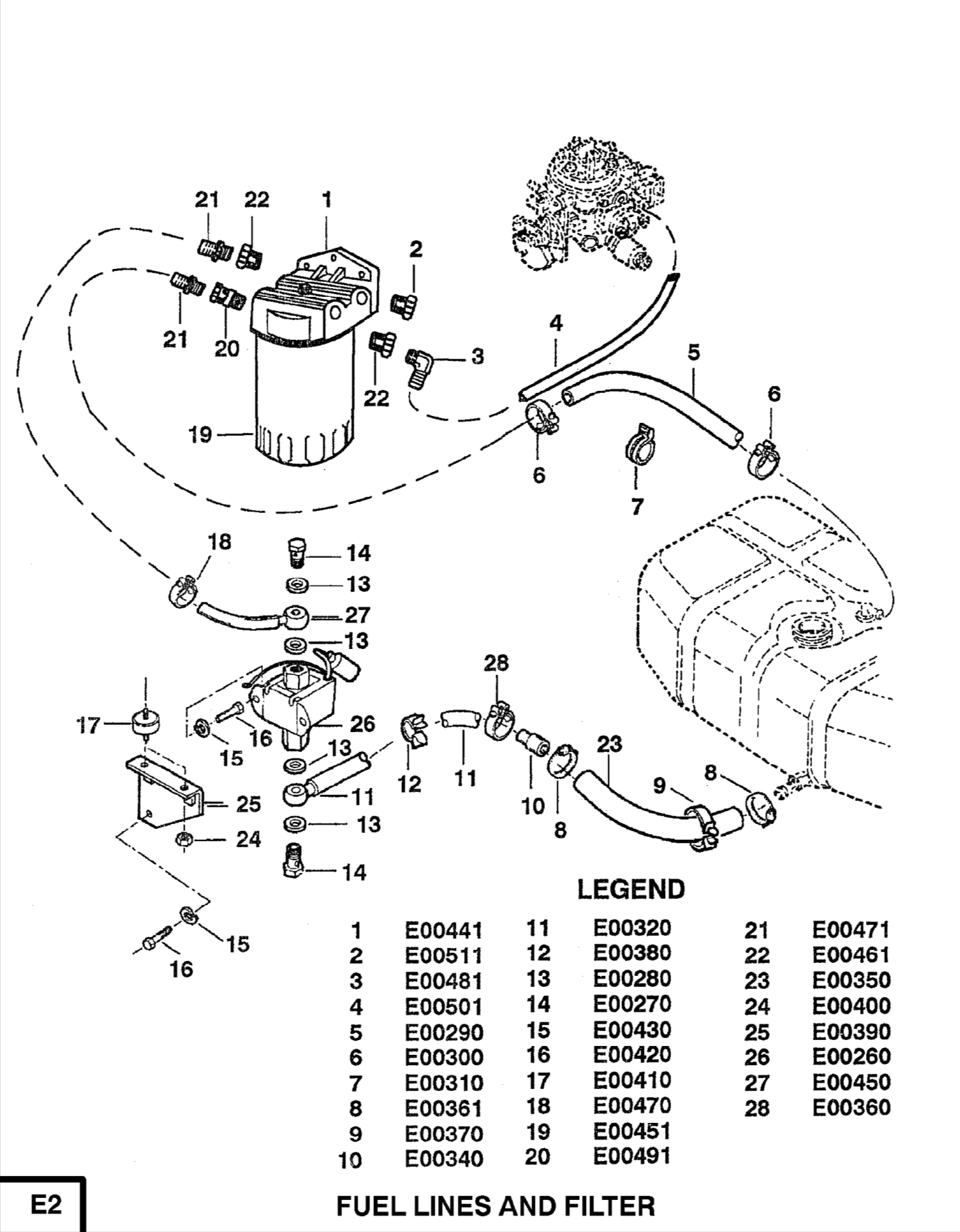

E2 — Fuel Lines and Filter E2 — Fuel Lines and Filter
Click image to enlarge.

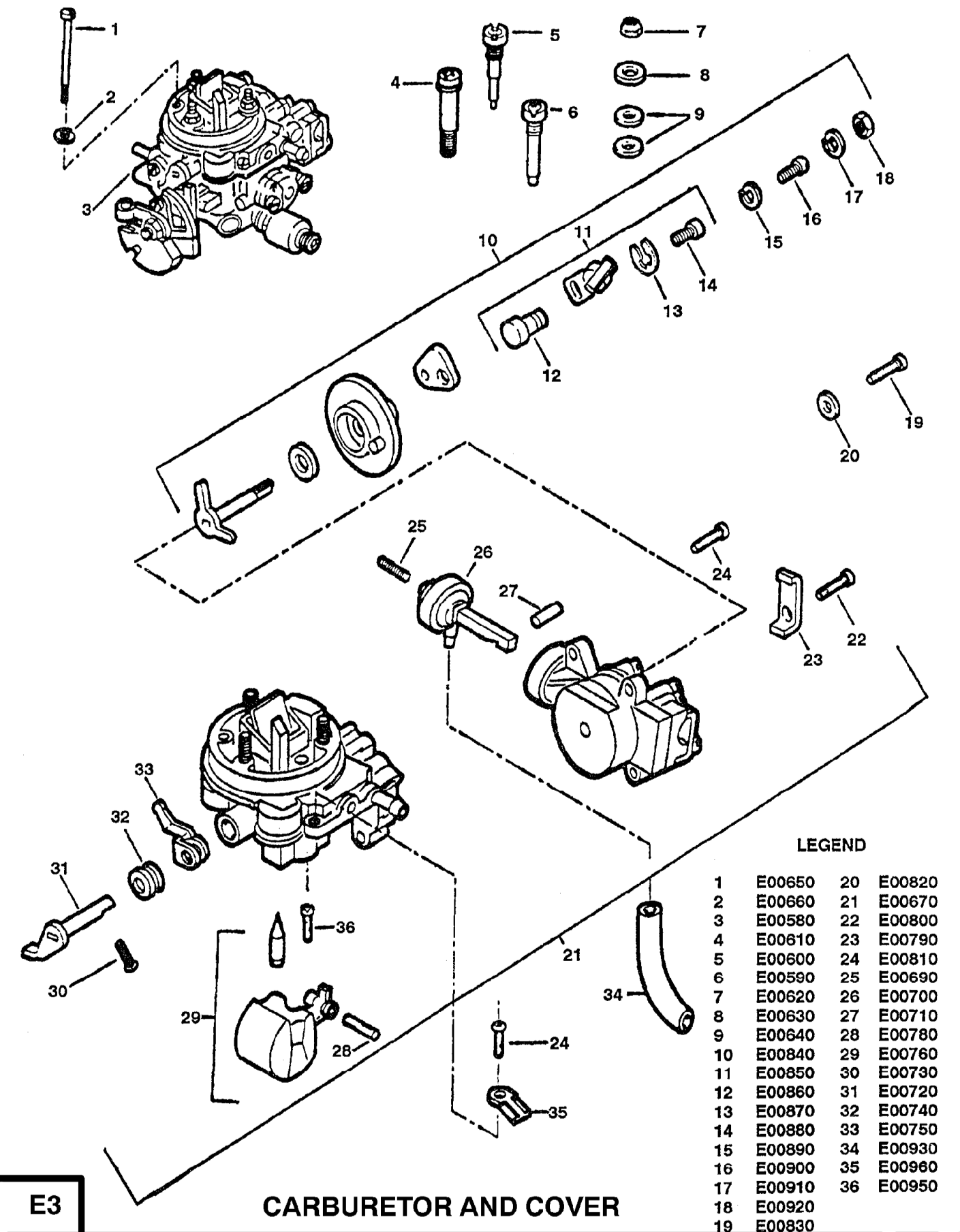

E3 — Carburetor and Cover E3 — Carburetor and Cover
Click image to enlarge.

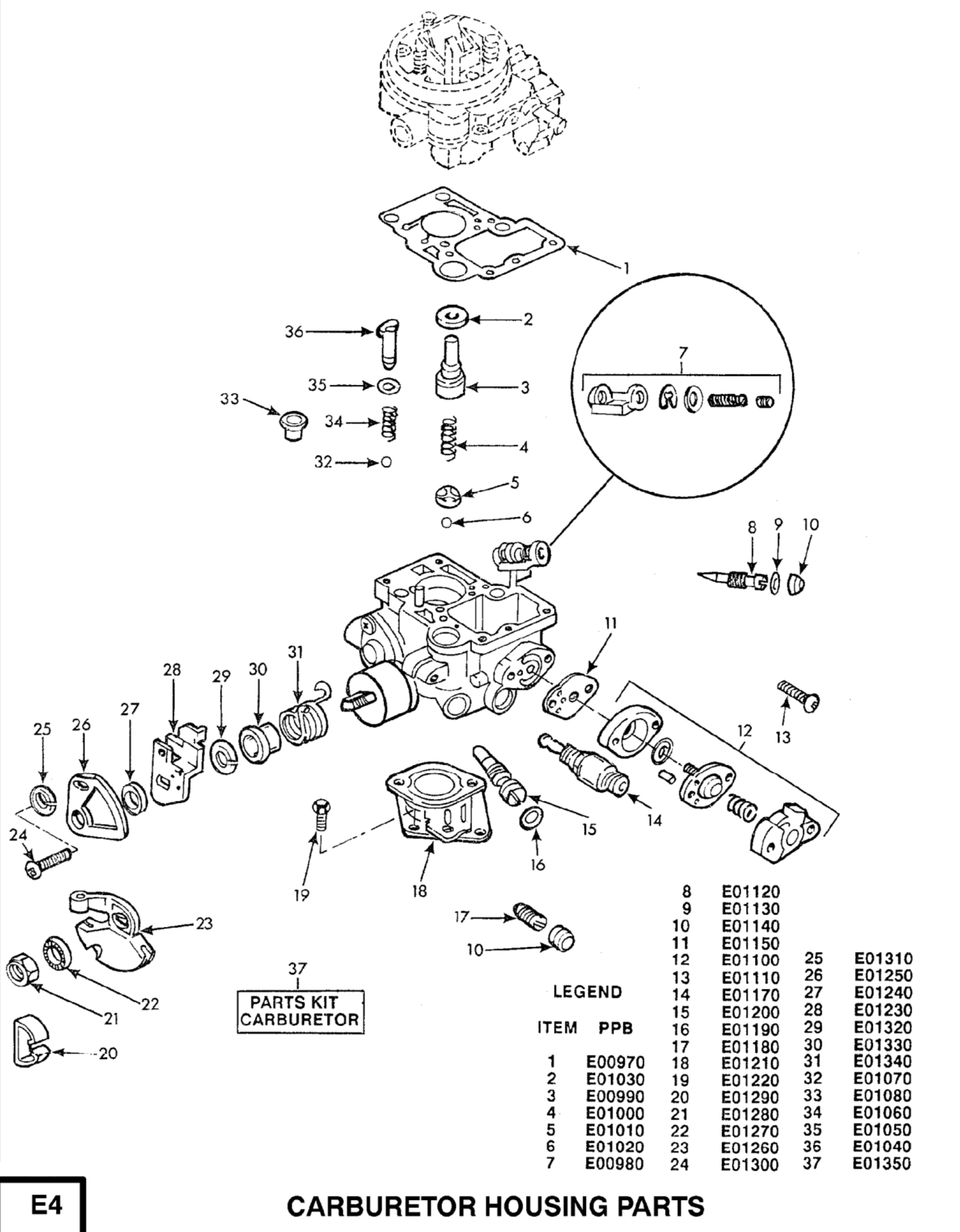

E4 — Carburetor Housing Parts E4 — Carburetor Housing Parts
Click image to enlarge.

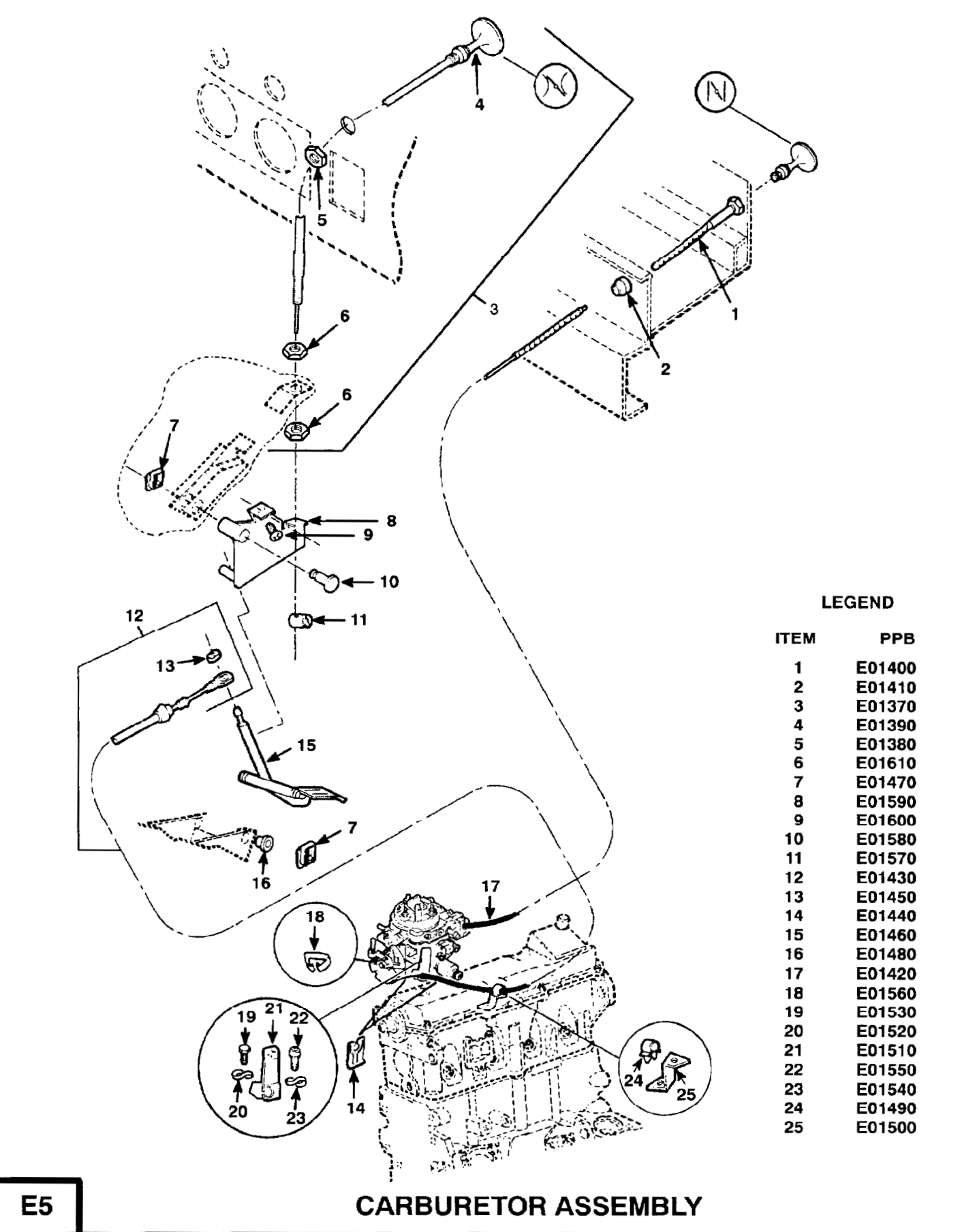

E5 — Carburetor Assembly E5 — Carburetor Assembly
Click image to enlarge.

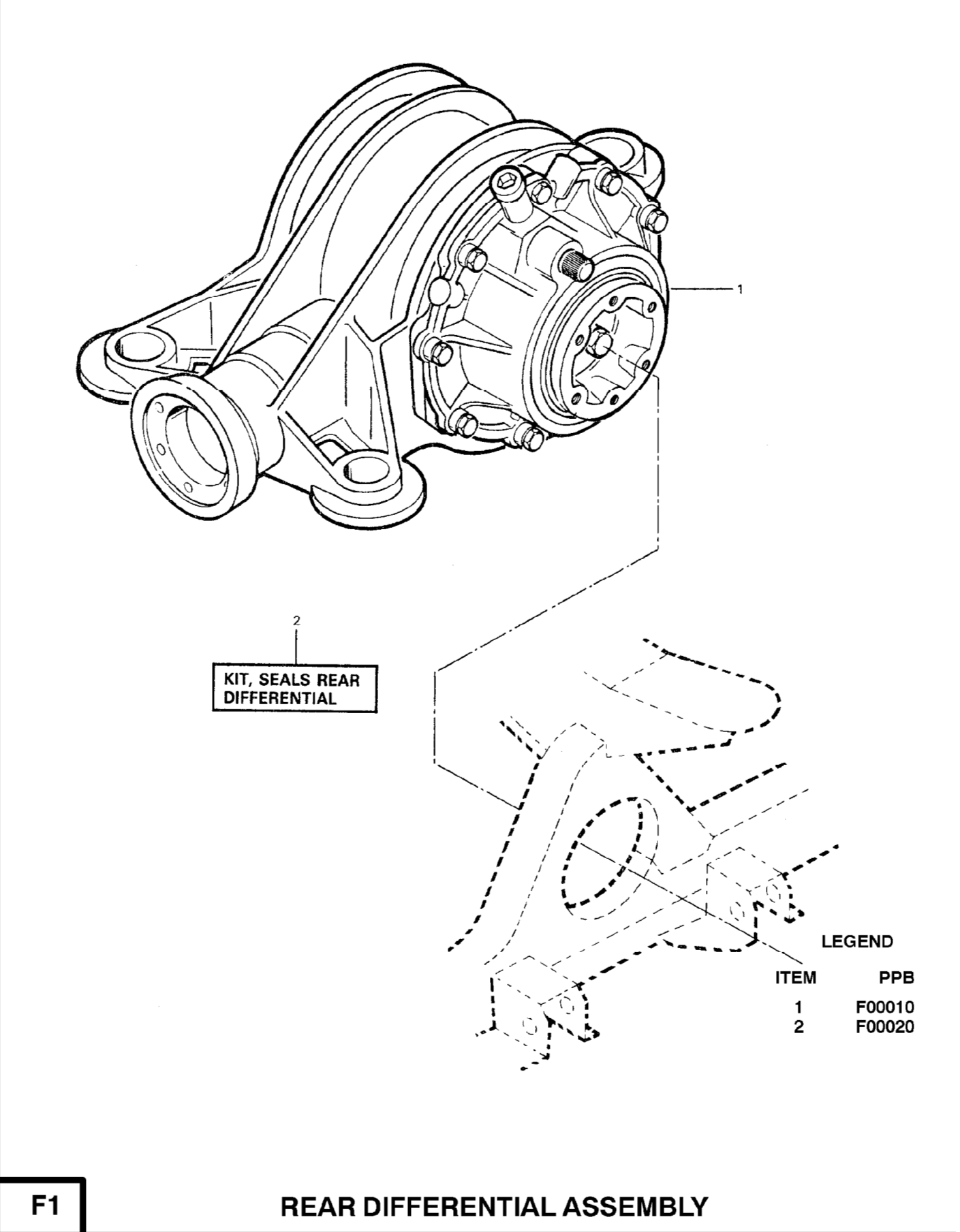

F1 — Rear Differential Assembly F1 — Rear Differential Assembly
Click image to enlarge.

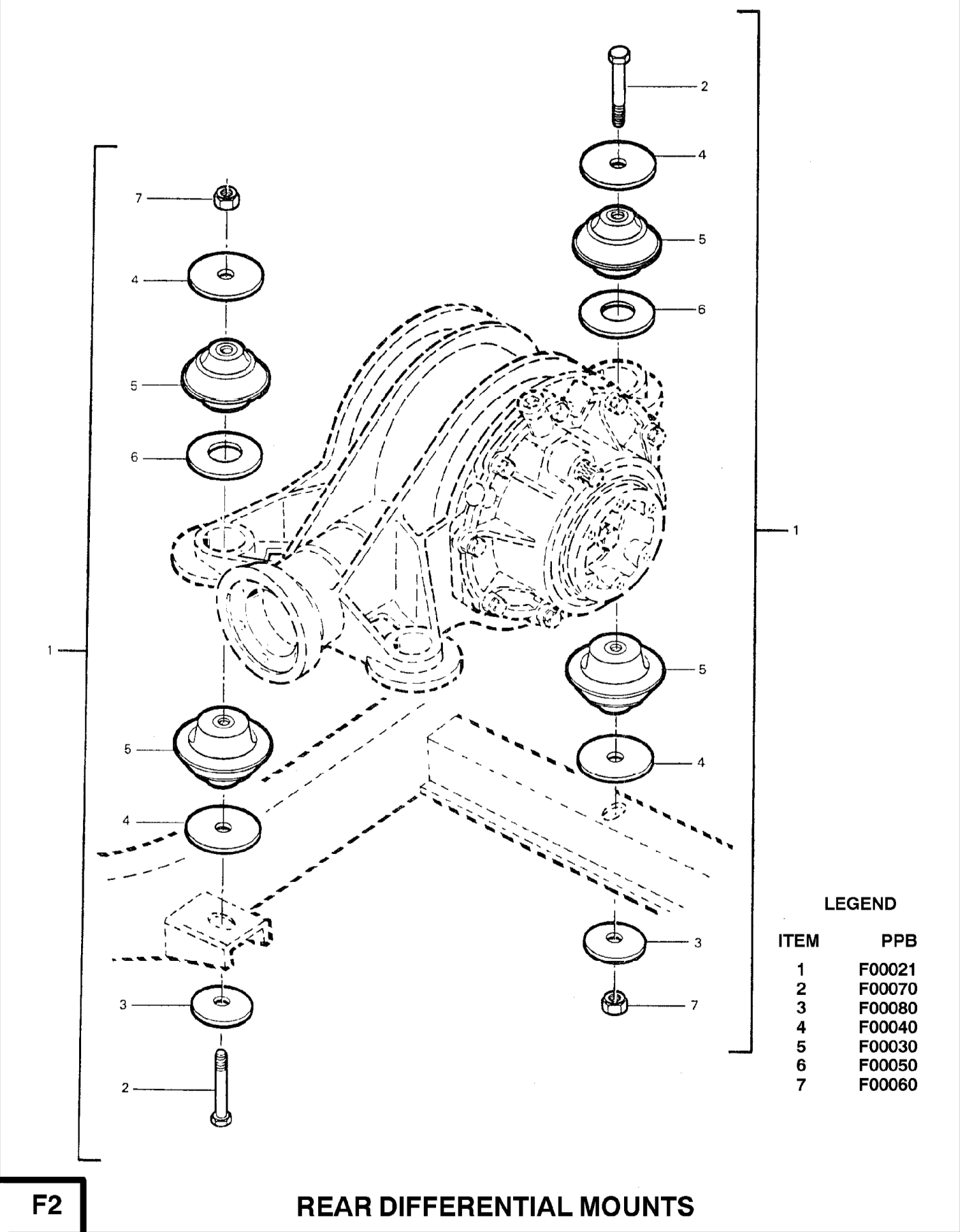

F2 — Rear Differential Mounts F2 — Rear Differential Mounts
Click image to enlarge.

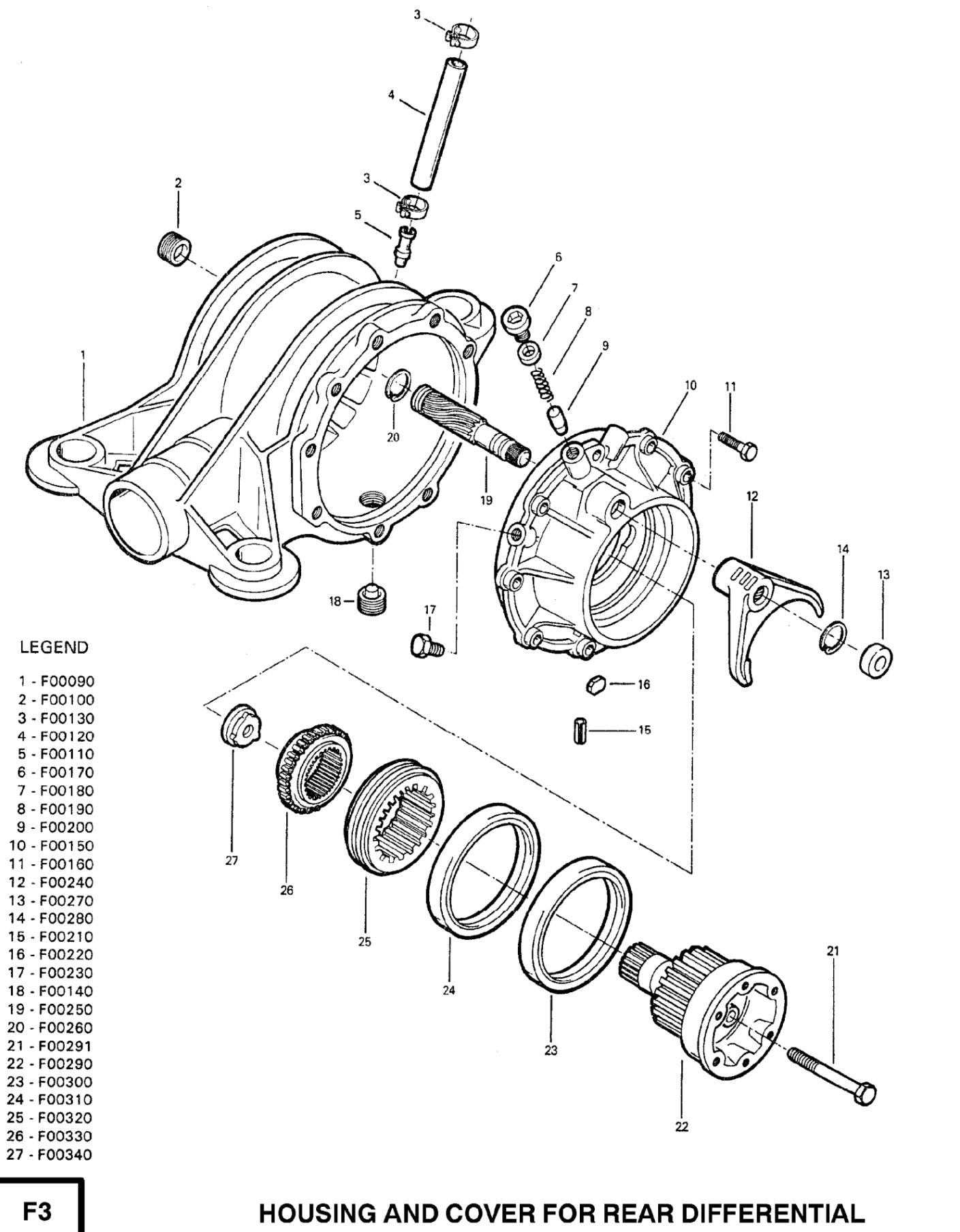

F3 — Housing and Cover for Rear Differential F3 — Housing and Cover for Rear Differential
Click image to enlarge.

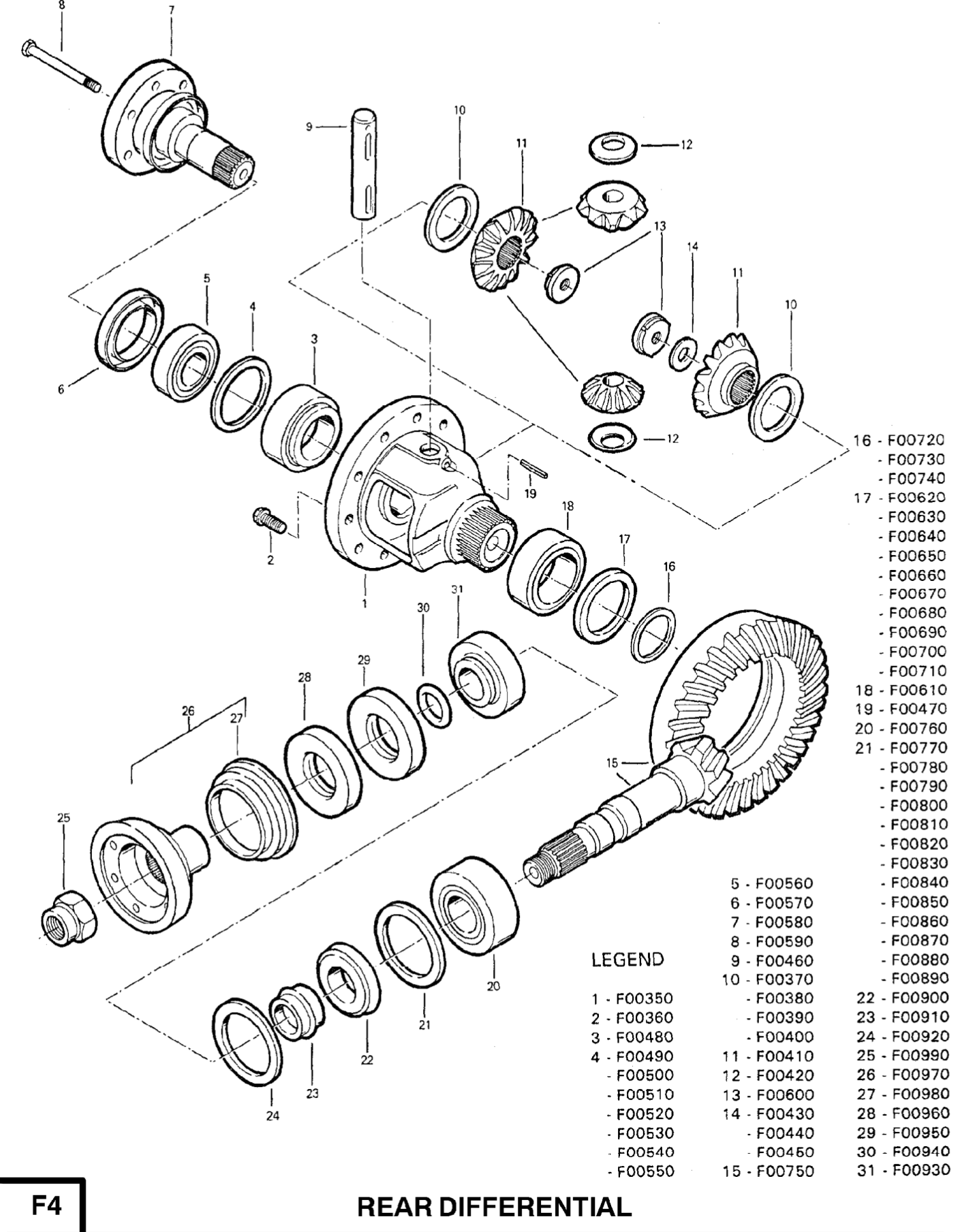

F4 — Rear Differential F4 — Rear Differential
Click image to enlarge.

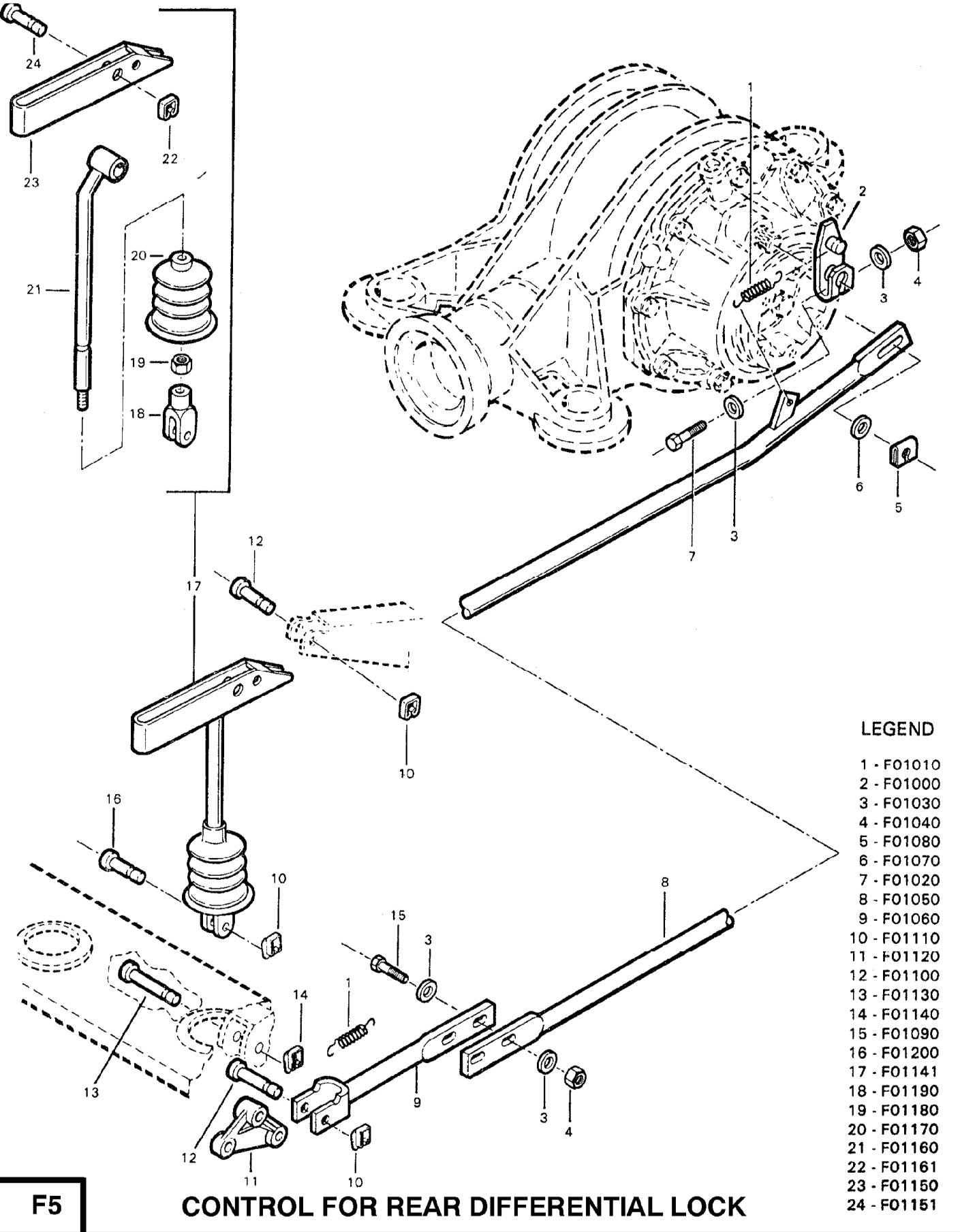

F5 — Control for Rear Differential Lock F5 — Control for Rear Differential Lock
Click image to enlarge.

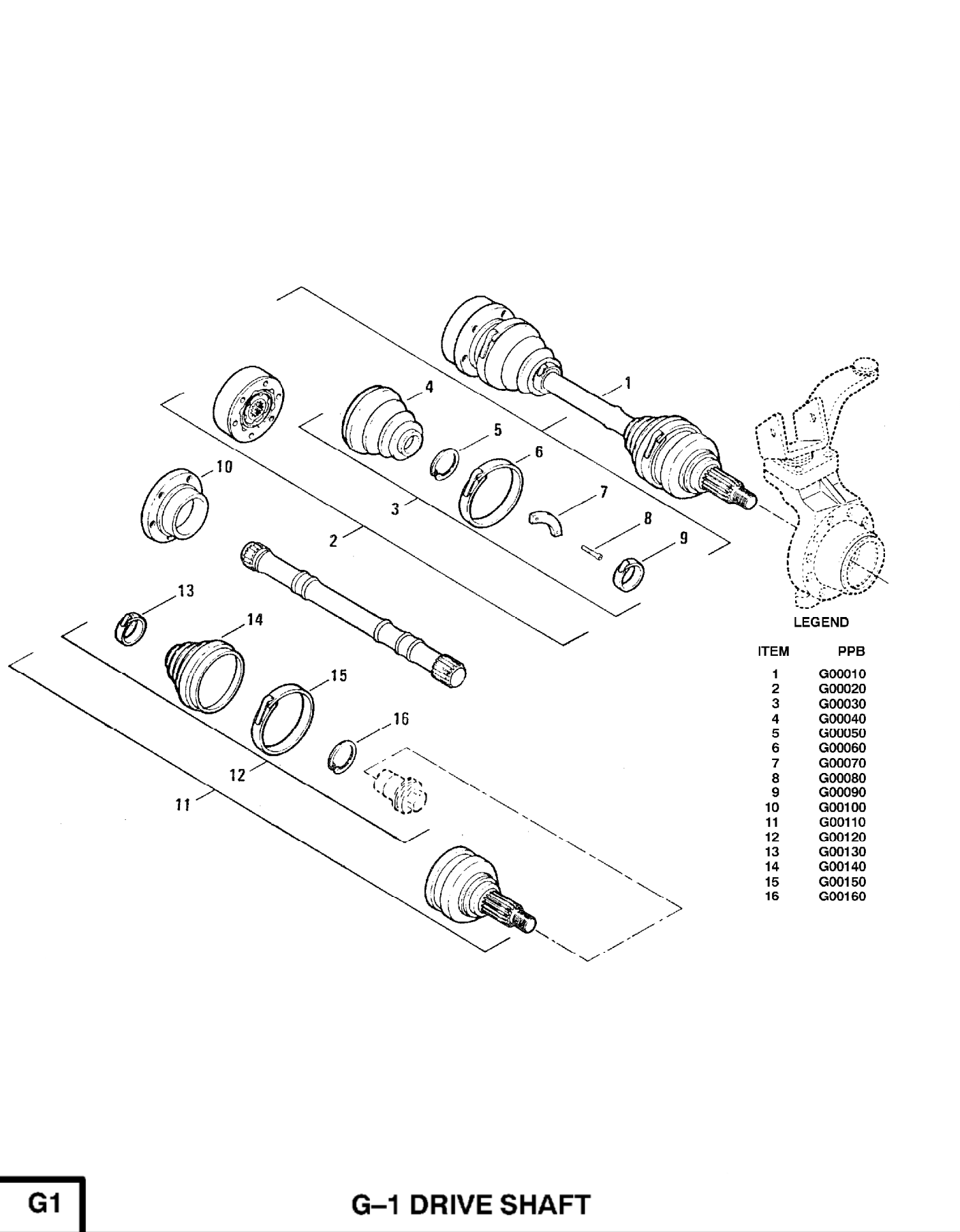

G1 — Drive Shaft G1 — Drive Shaft
Click image to enlarge.

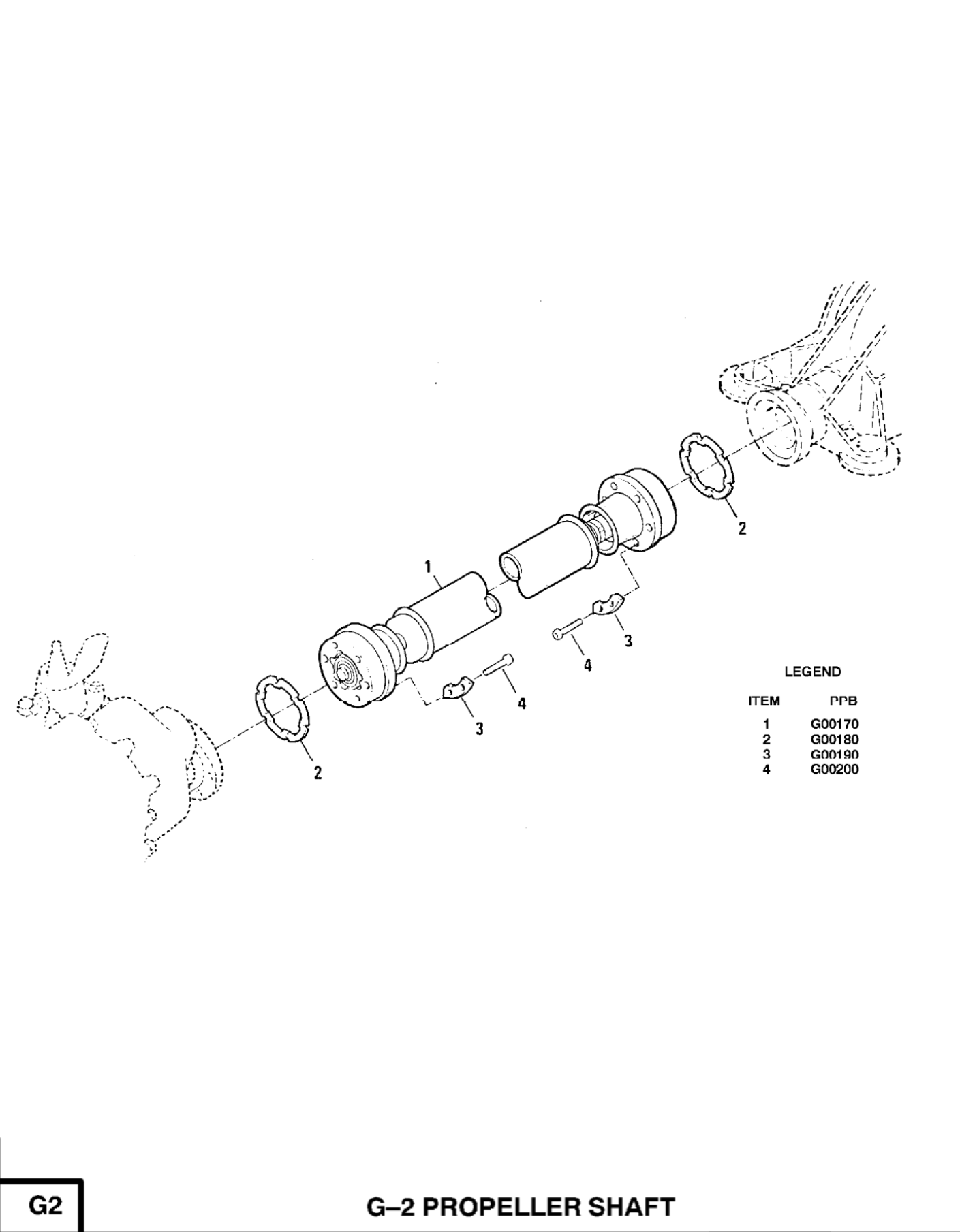

G2 — Propeller Shaft G2 — Propeller Shaft
Click image to enlarge.

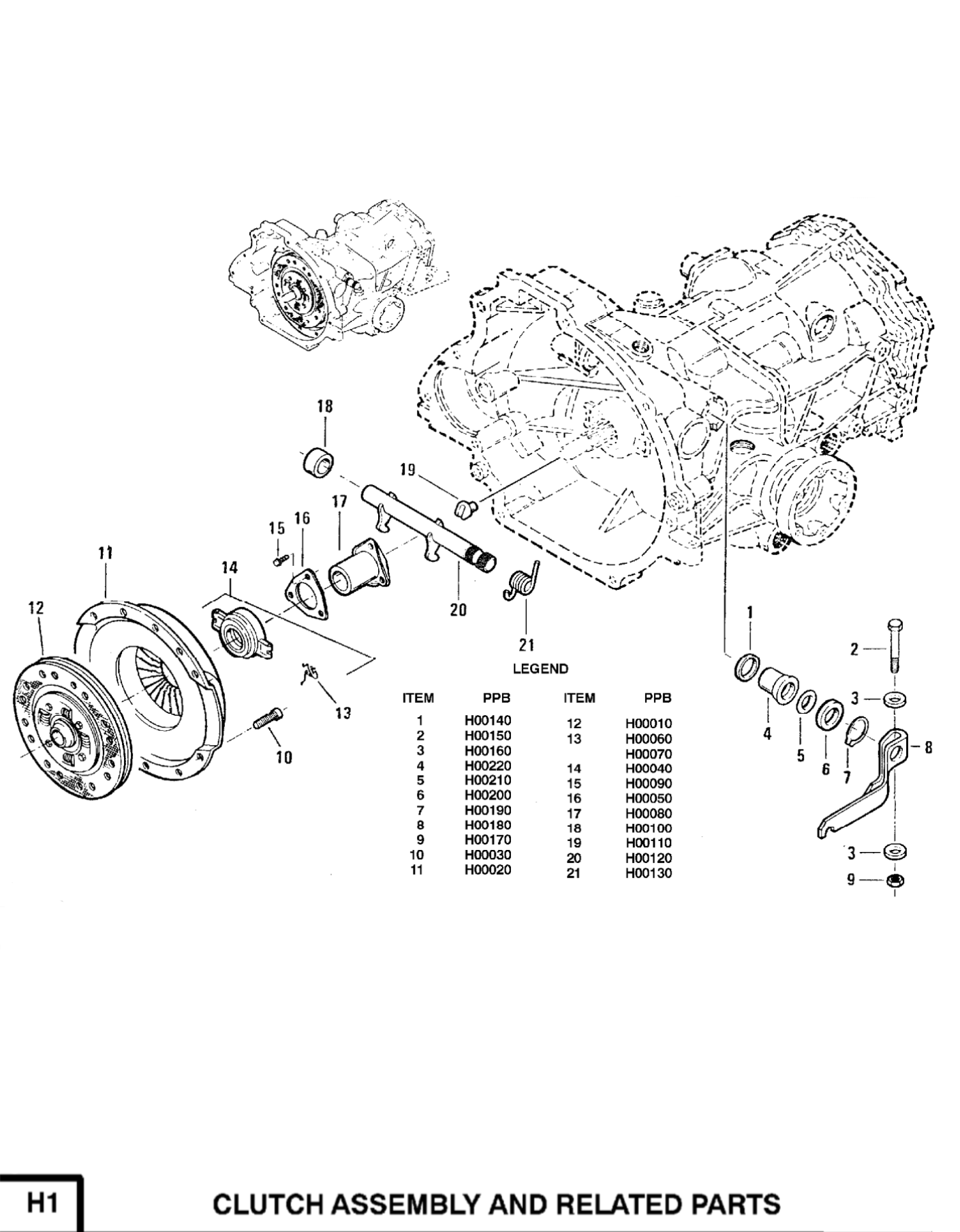

H1 — Clutch Assembly and Related Parts H1 — Clutch Assembly and Related Parts
Click image to enlarge.

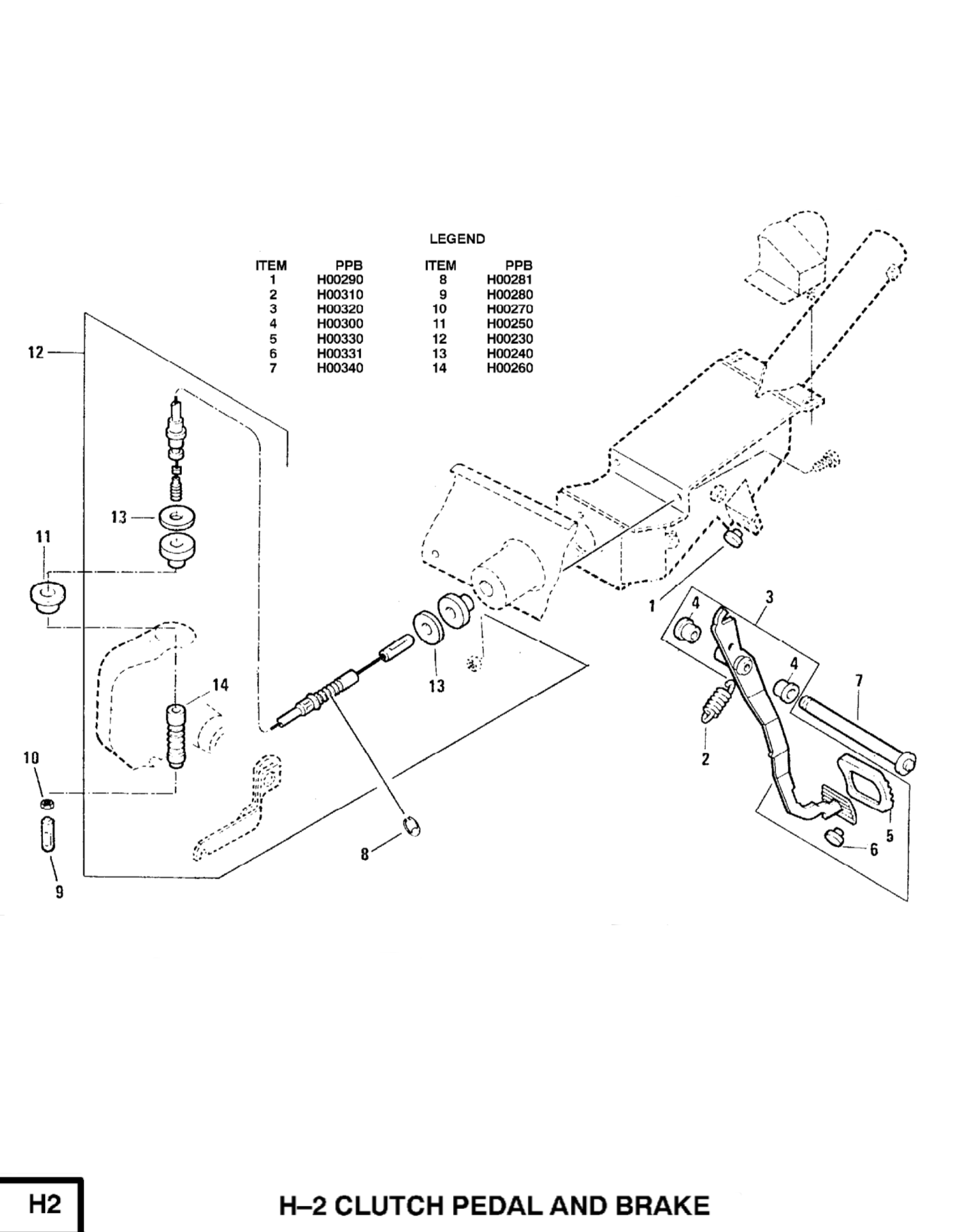

H2 — Clutch Pedal and Brake H2 — Clutch Pedal and Brake
Click image to enlarge.

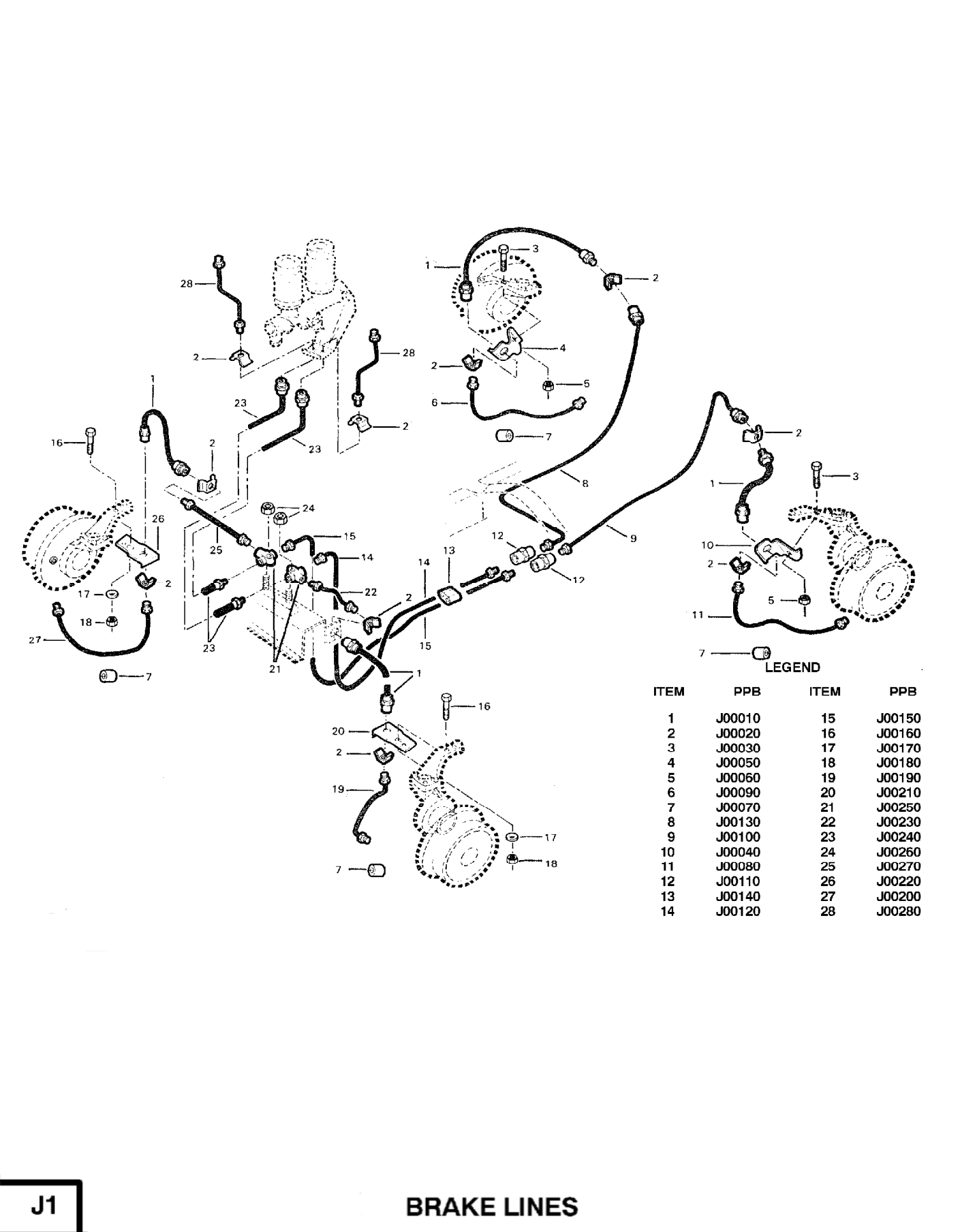

J1 — Brake Lines J1 — Brake Lines
Click image to enlarge.

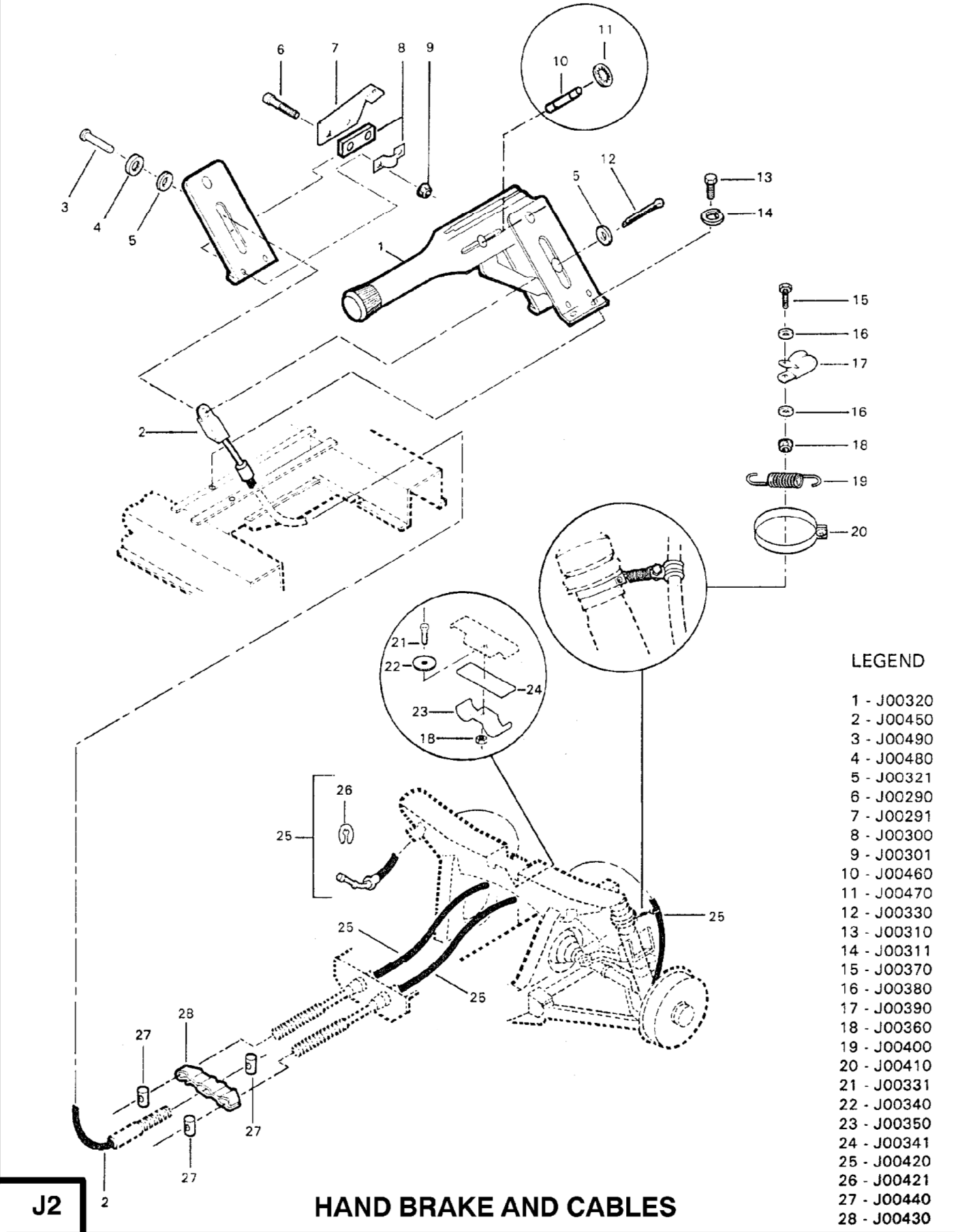

J2 — Hand Brake and Cables J2 — Hand Brake and Cables
Click image to enlarge.

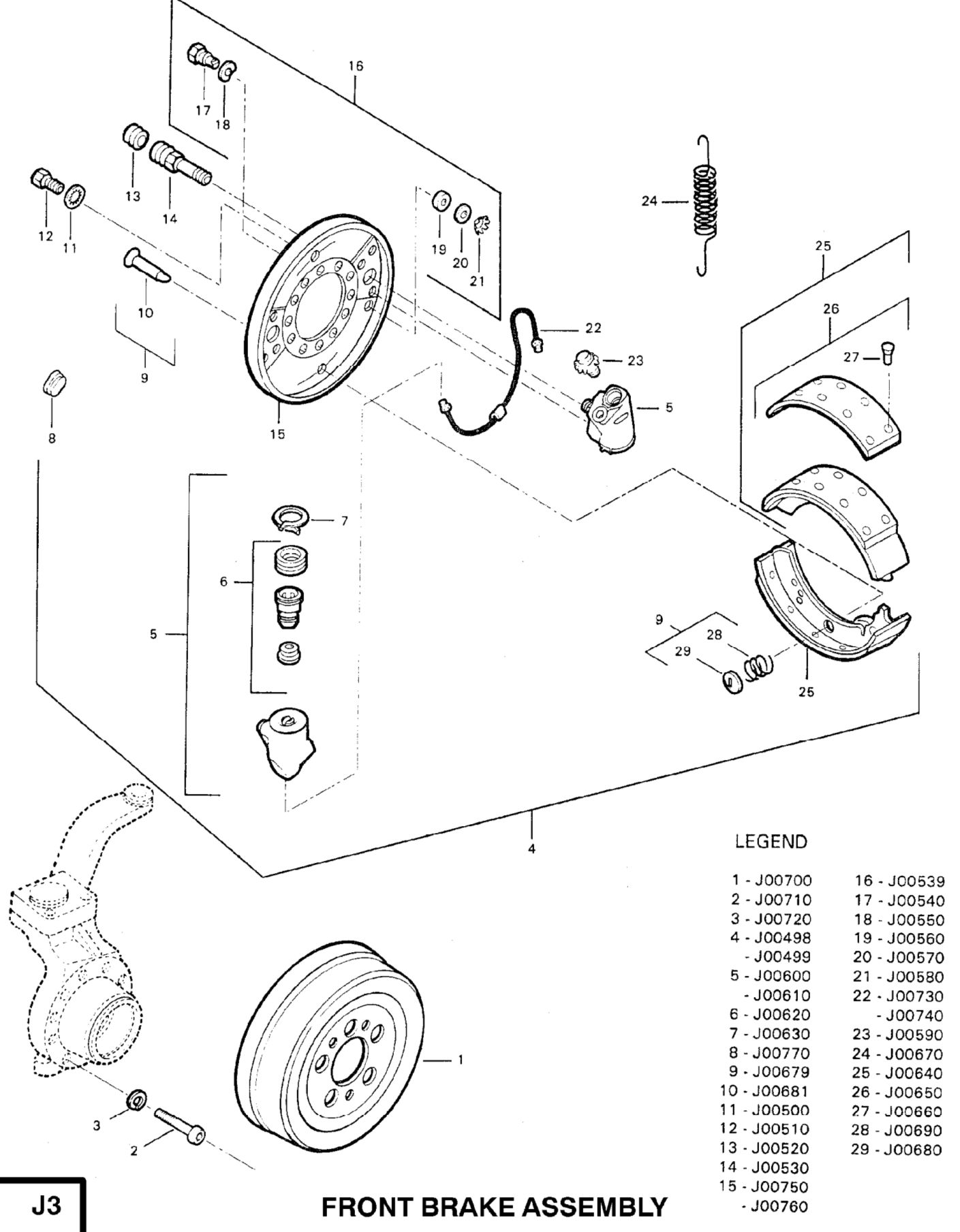

J3 — Front Brake Assembly J3 — Front Brake Assembly
Click image to enlarge.

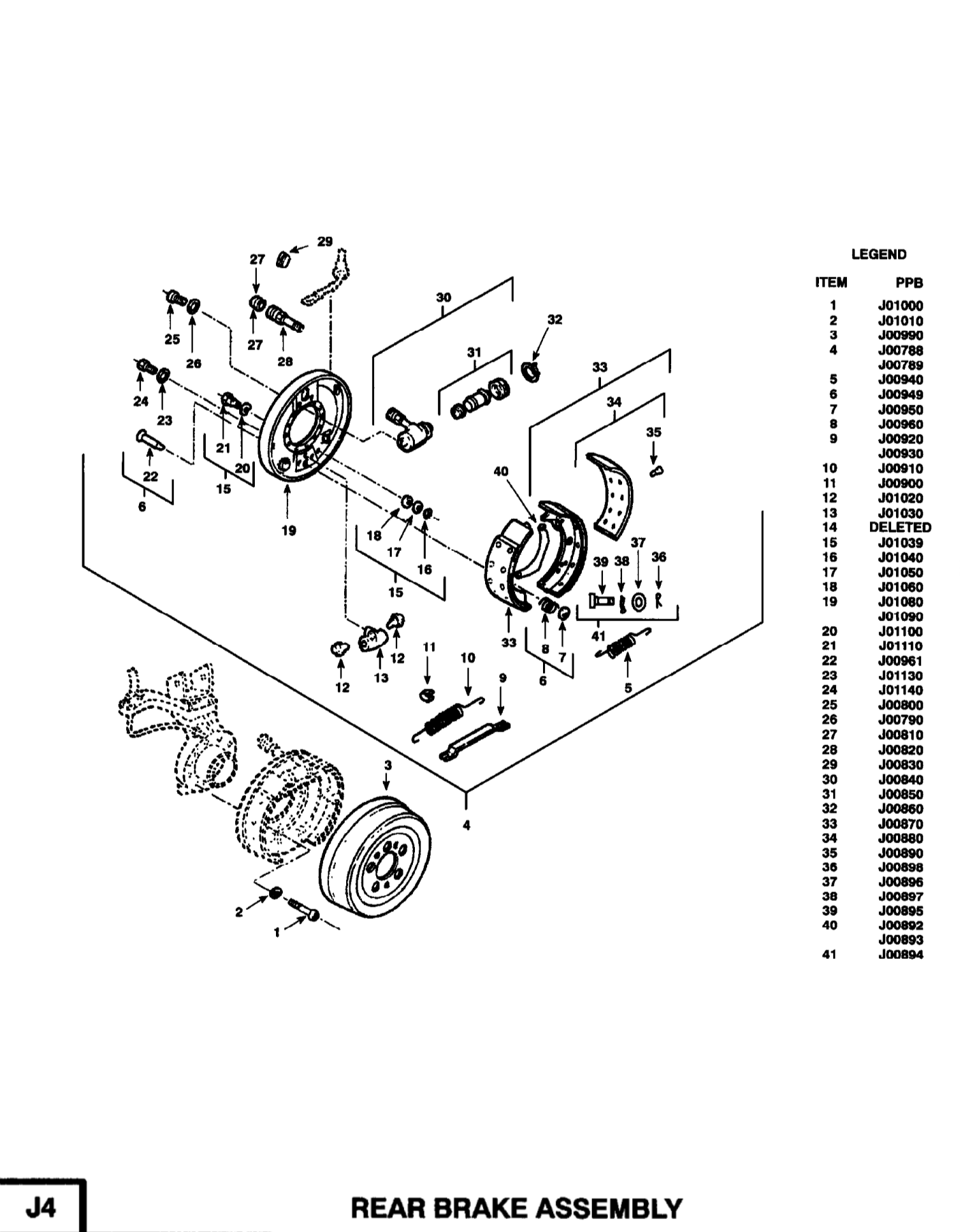

J4 — Rear Brake Assembly J4 — Rear Brake Assembly
Click image to enlarge.

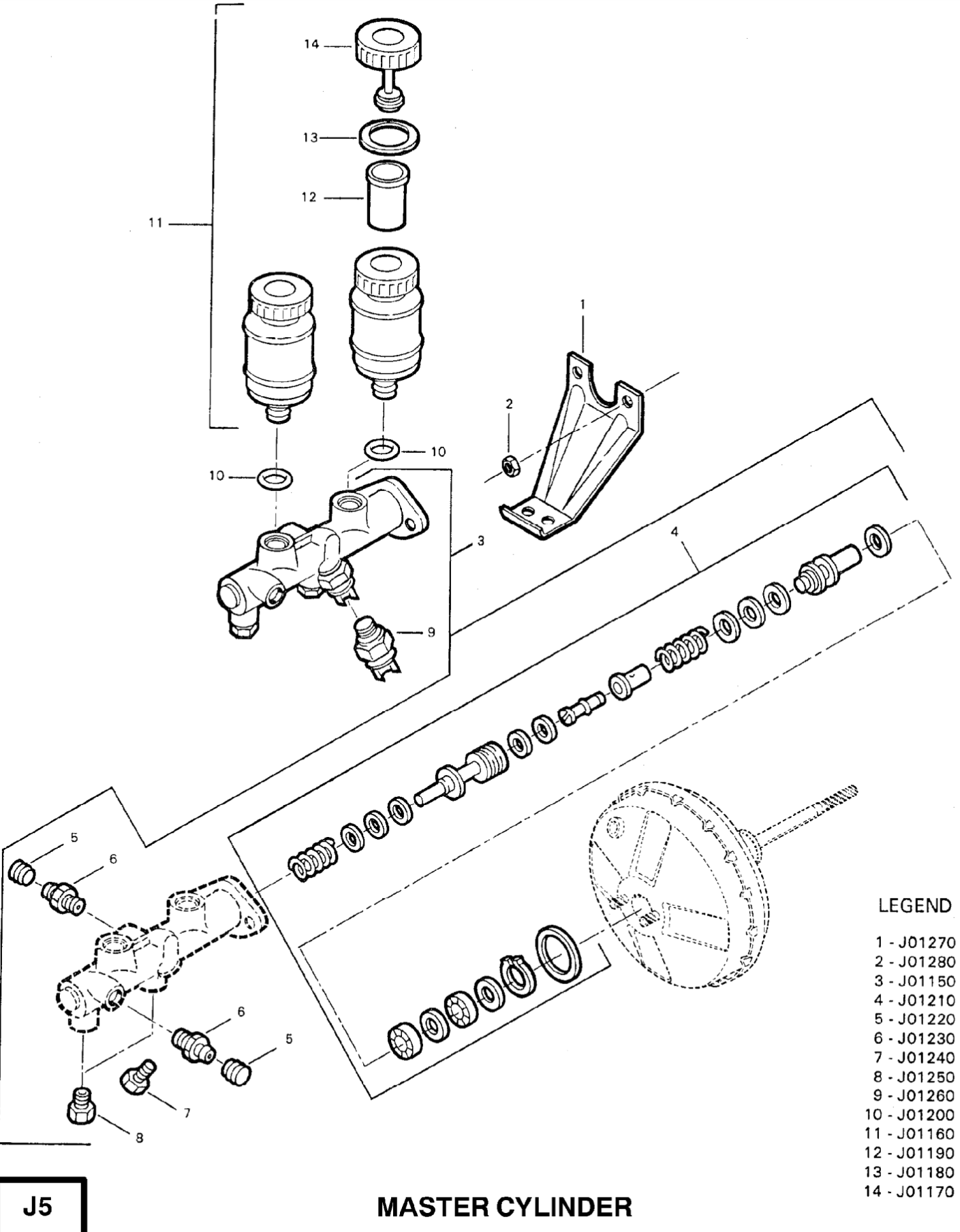

J5 — Master Cylinder J5 — Master Cylinder
Click image to enlarge.

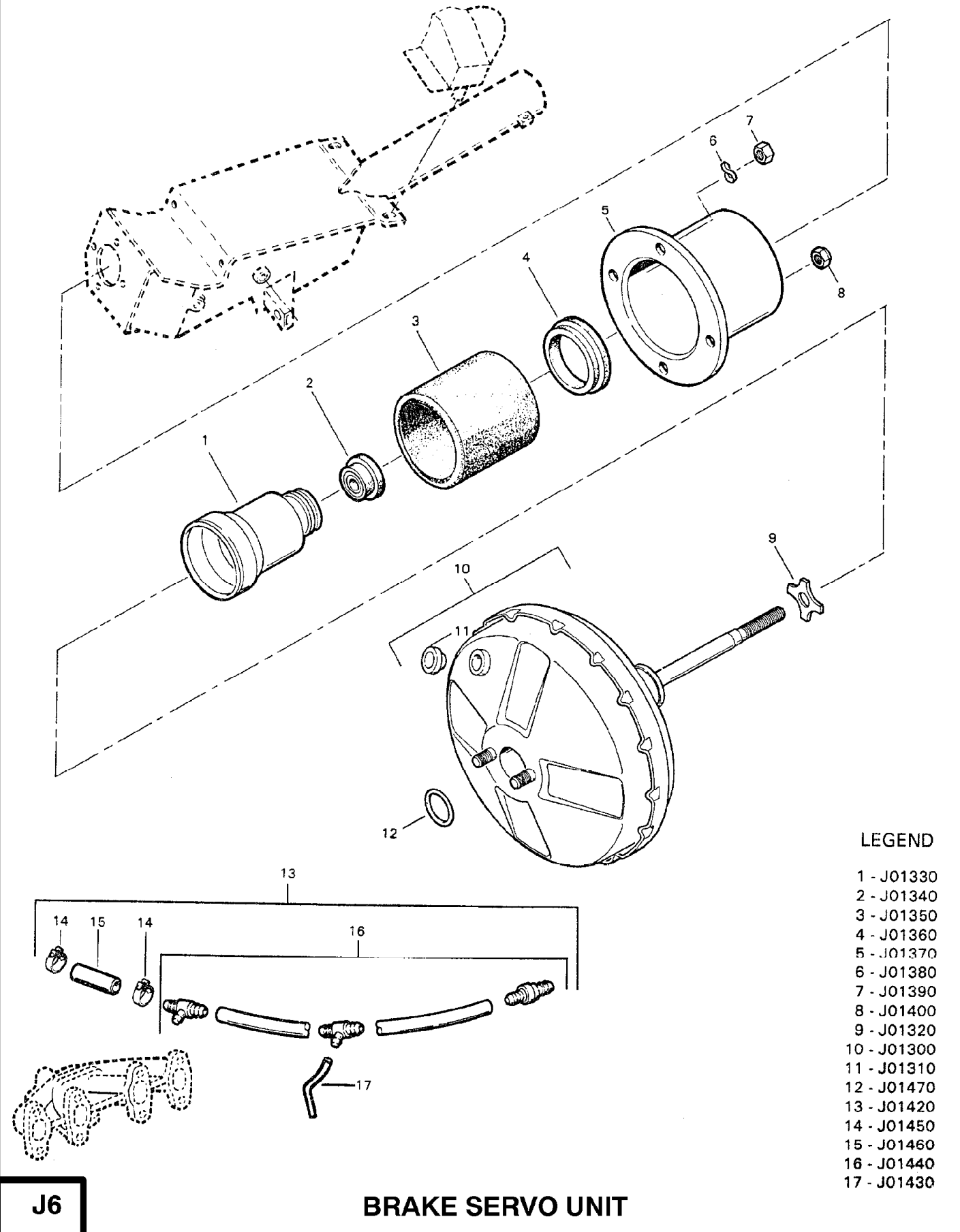

J6 — Brake Servo Unit J6 — Brake Servo Unit
Click image to enlarge.

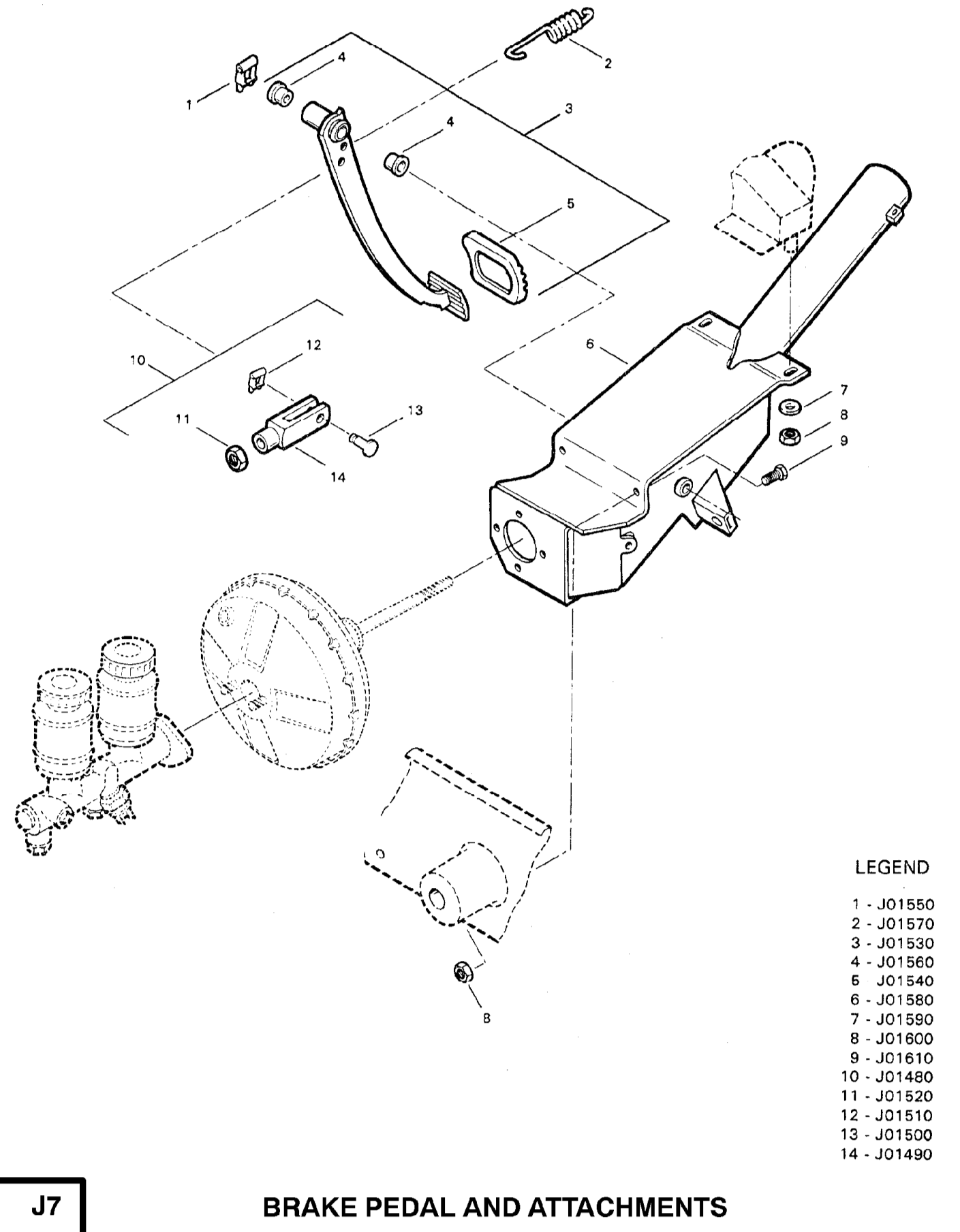

J7 — Brake Pedal and Attachments J7 — Brake Pedal and Attachments
Click image to enlarge.

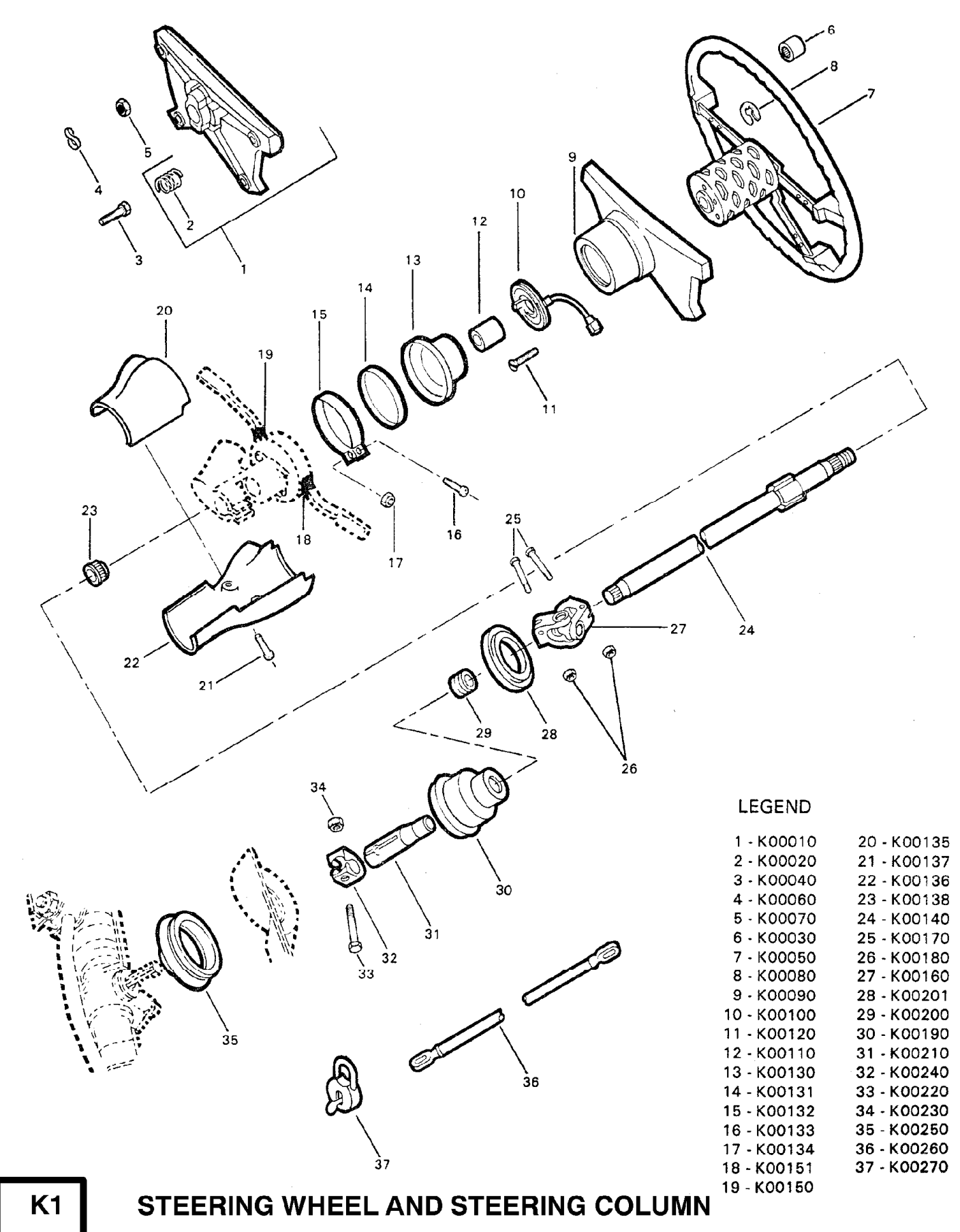

K1 — Steering Wheel and Steering Column K1 — Steering Wheel and Steering Column
Click image to enlarge.

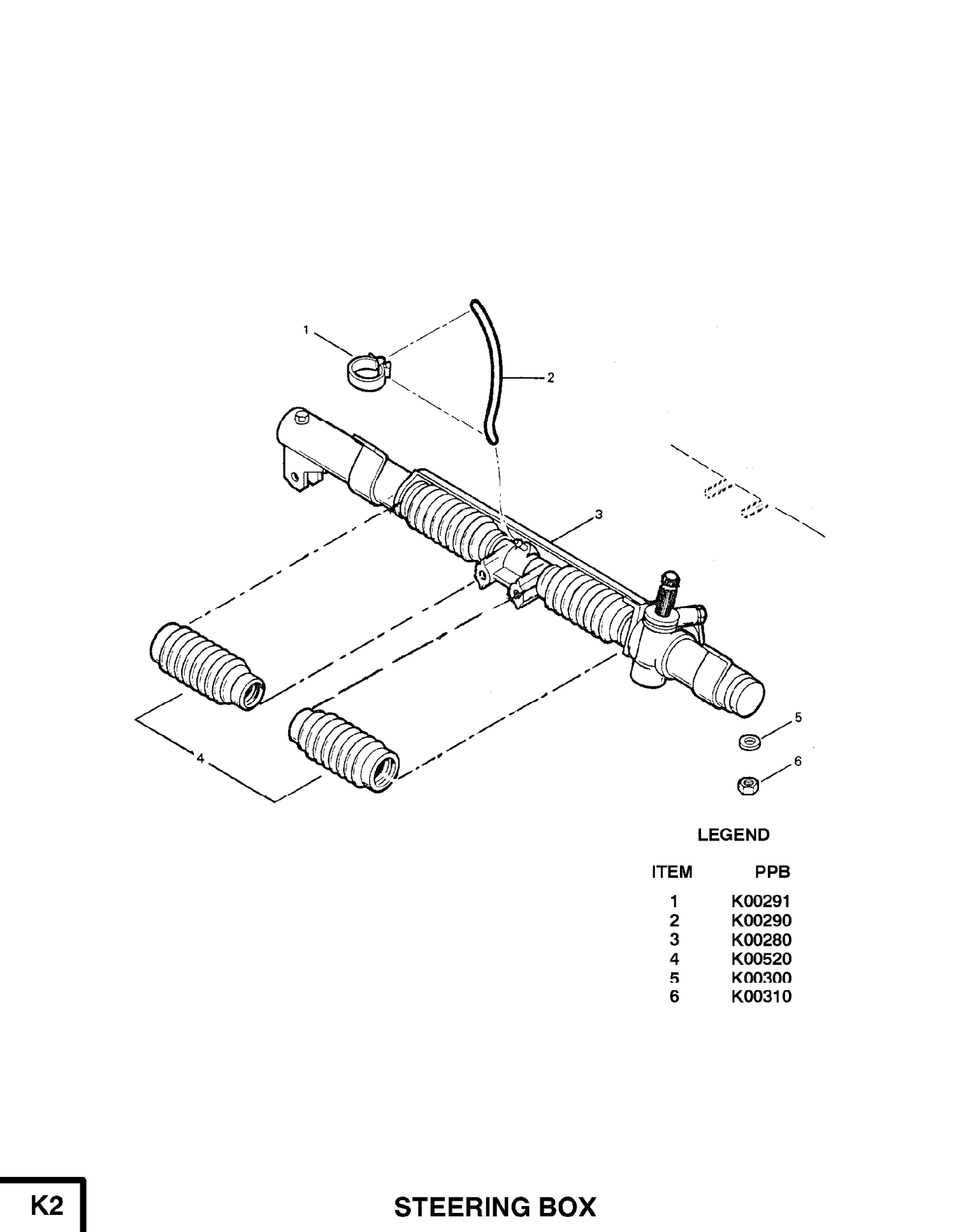

K2 — Steering Box K2 — Steering Box
Click image to enlarge.

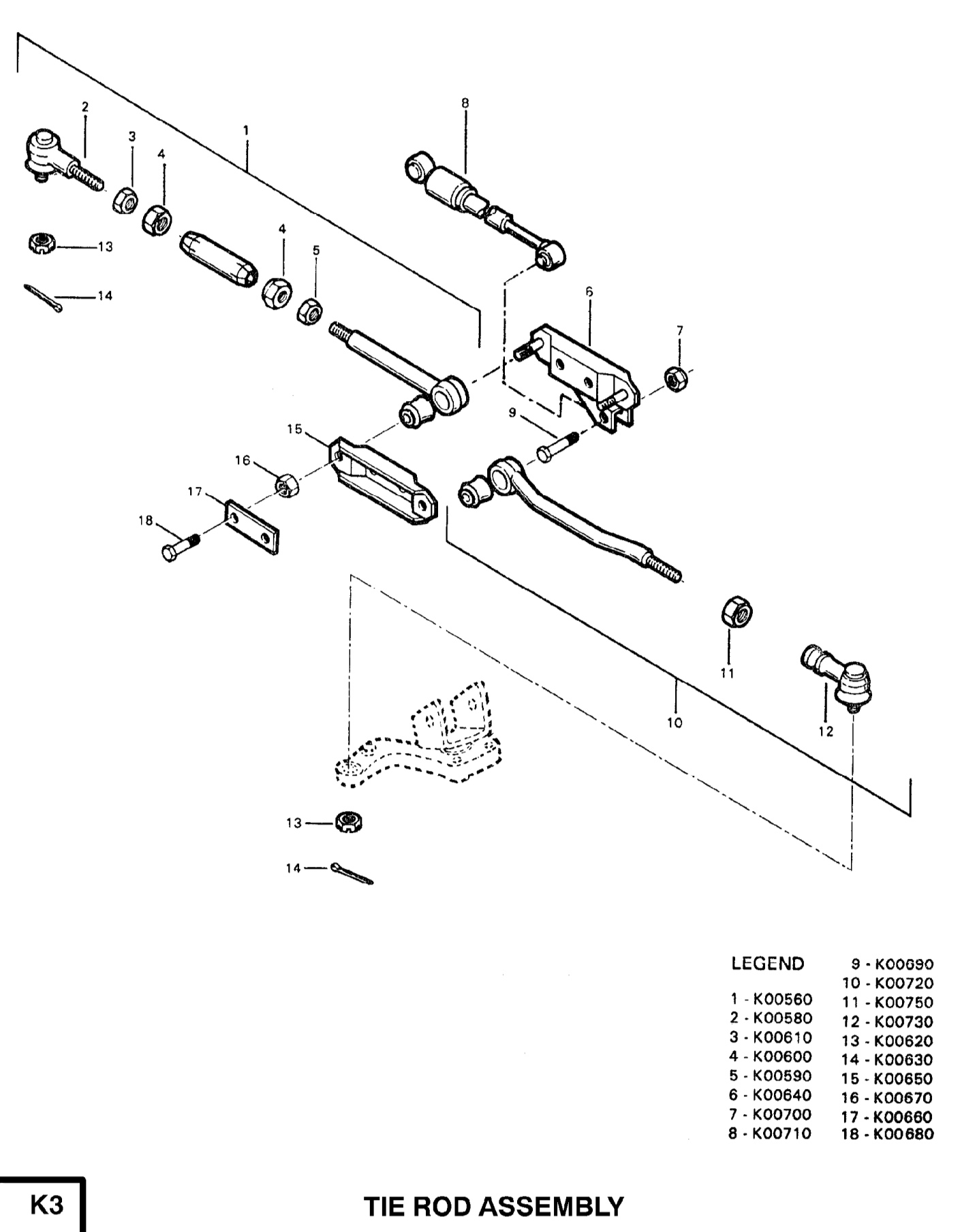

K3 — Tie Rod Assembly K3 — Tie Rod Assembly
Click image to enlarge.

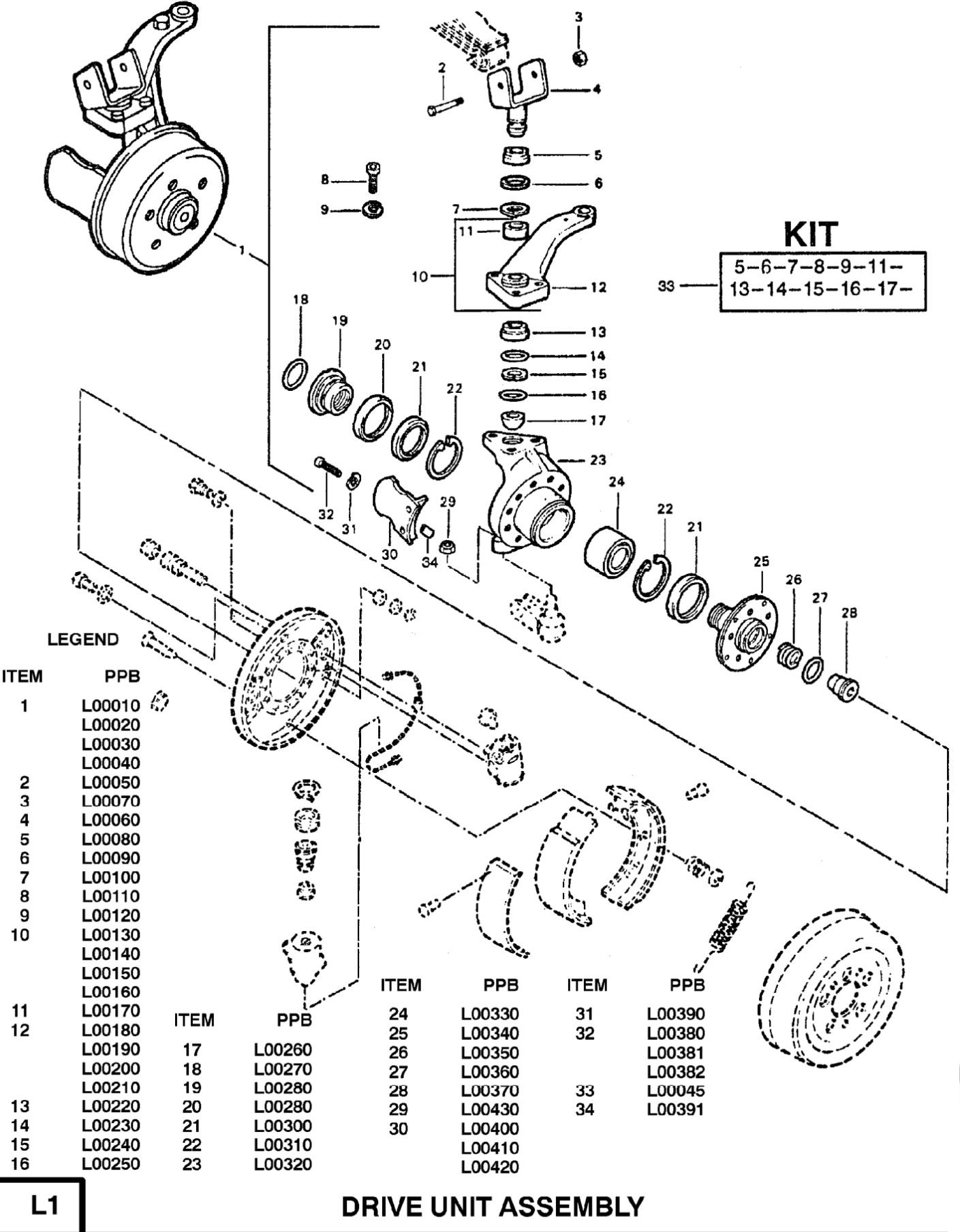

L1 — Drive Unit Assembly L1 — Drive Unit Assembly
Click image to enlarge.

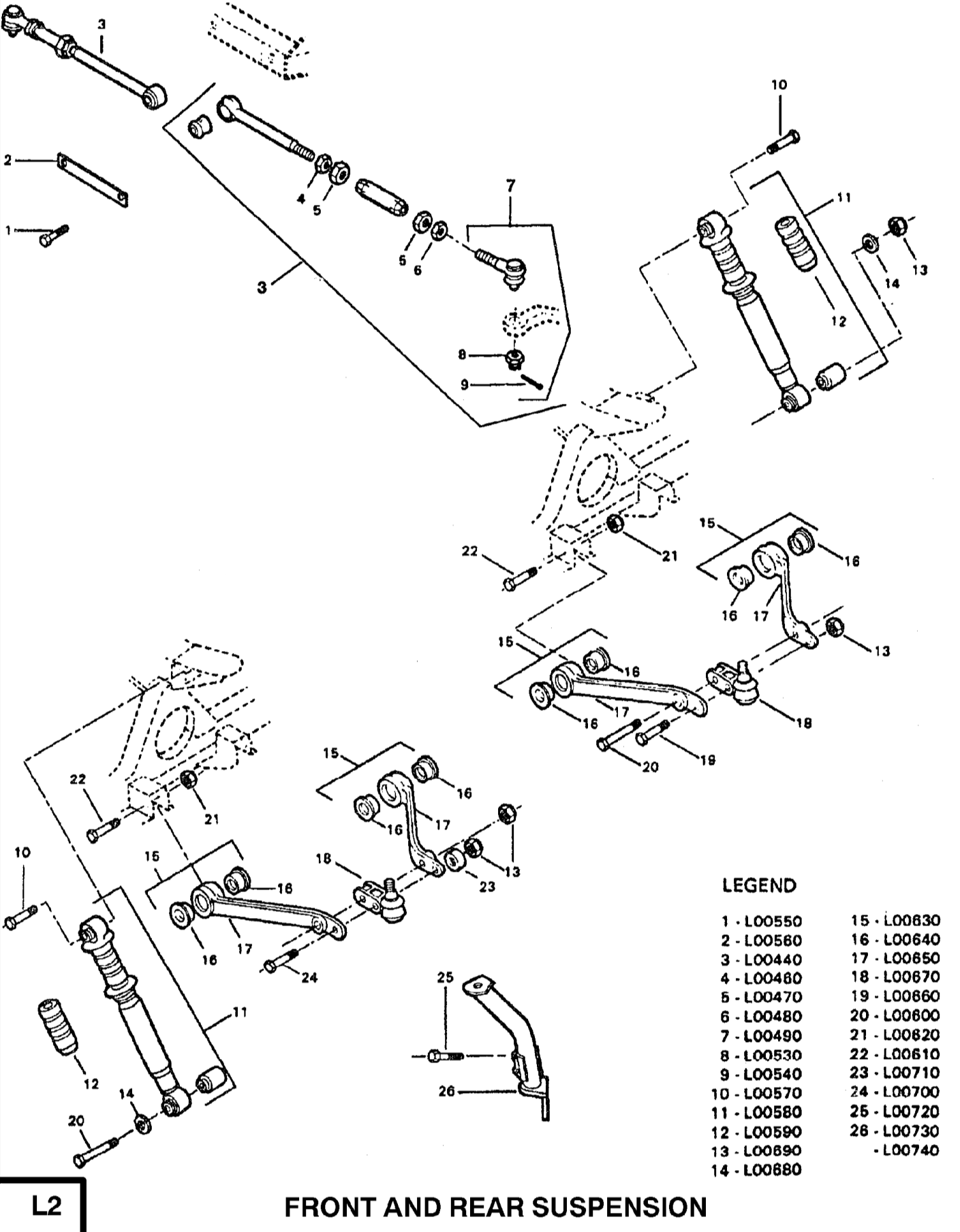

L2 — Front and Rear Suspension L2 — Front and Rear Suspension
Click image to enlarge.

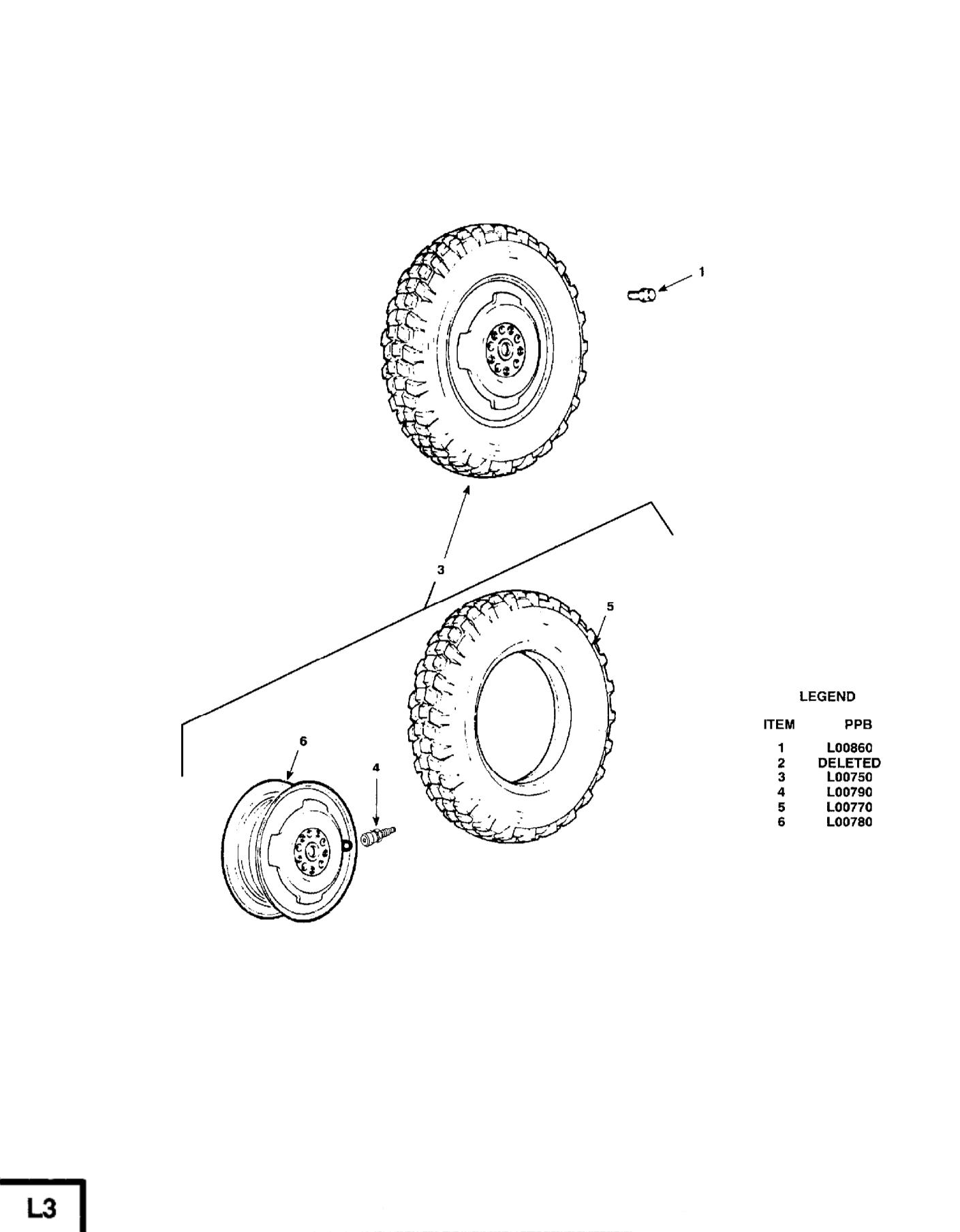

L3 — Wheel Assembly L3 — Wheel Assembly
Click image to enlarge.

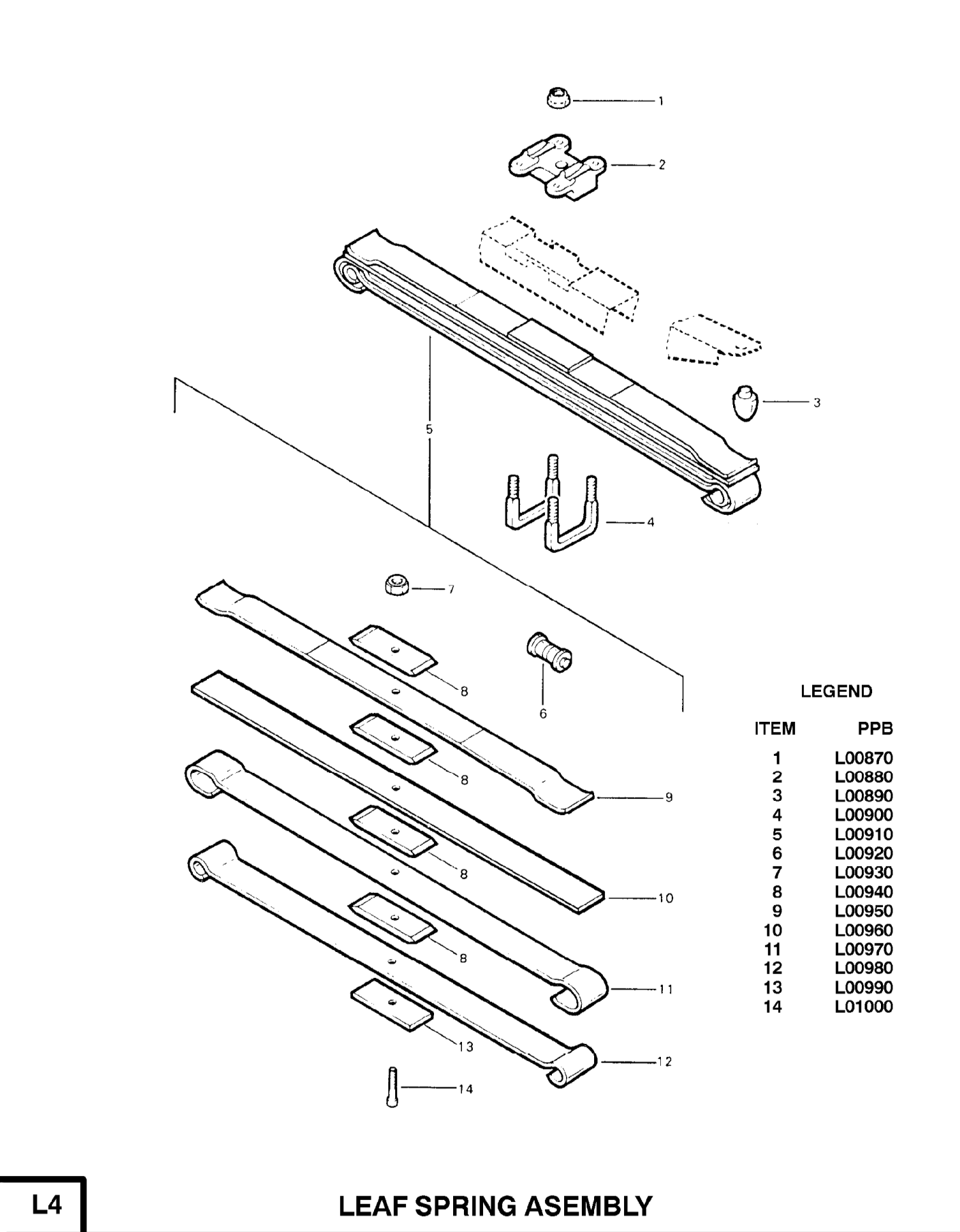

L4 — Leaf Spring Assembly L4 — Leaf Spring Assembly
Click image to enlarge.

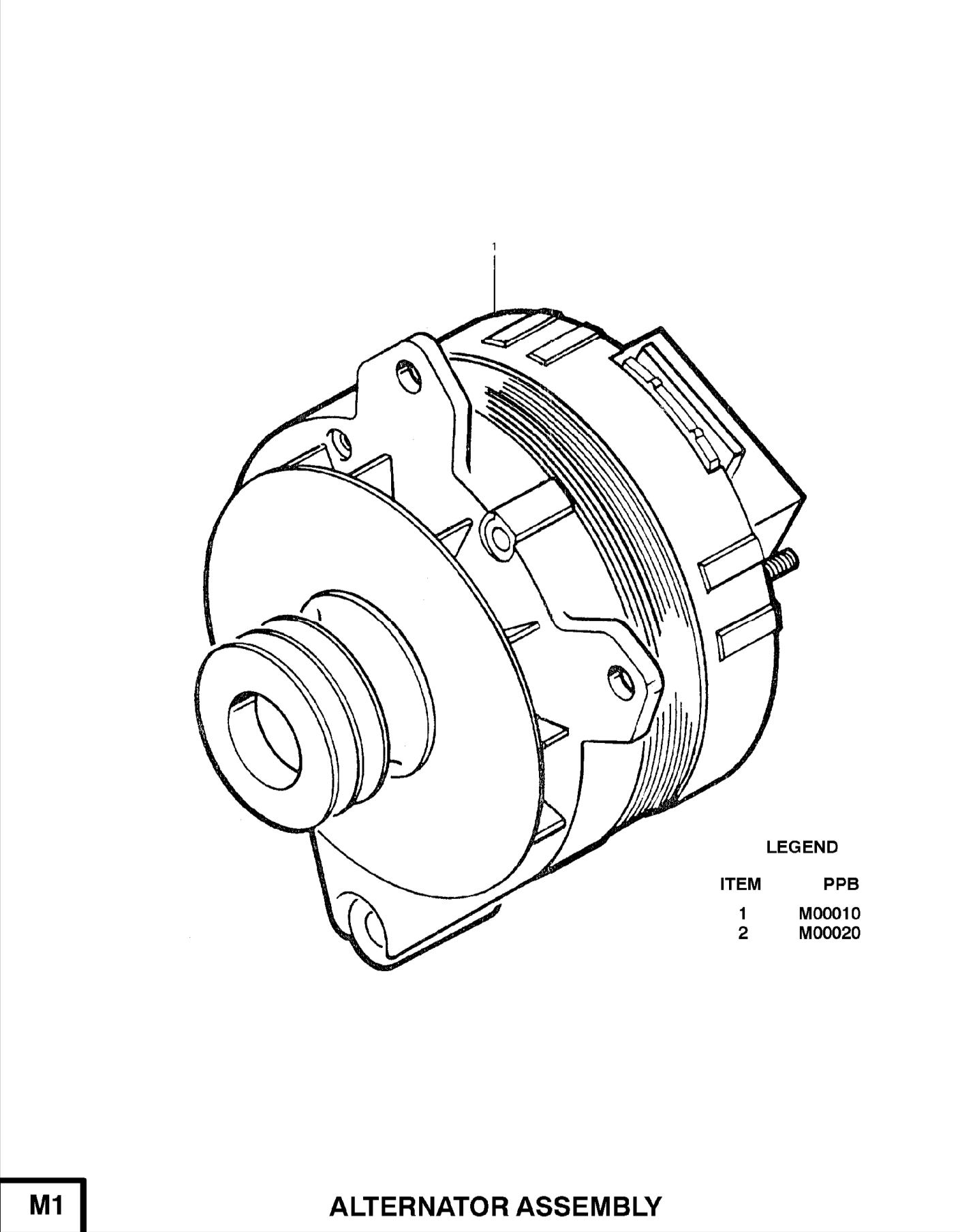

M1 — Alternator Assembly M1 — Alternator Assembly
Click image to enlarge.

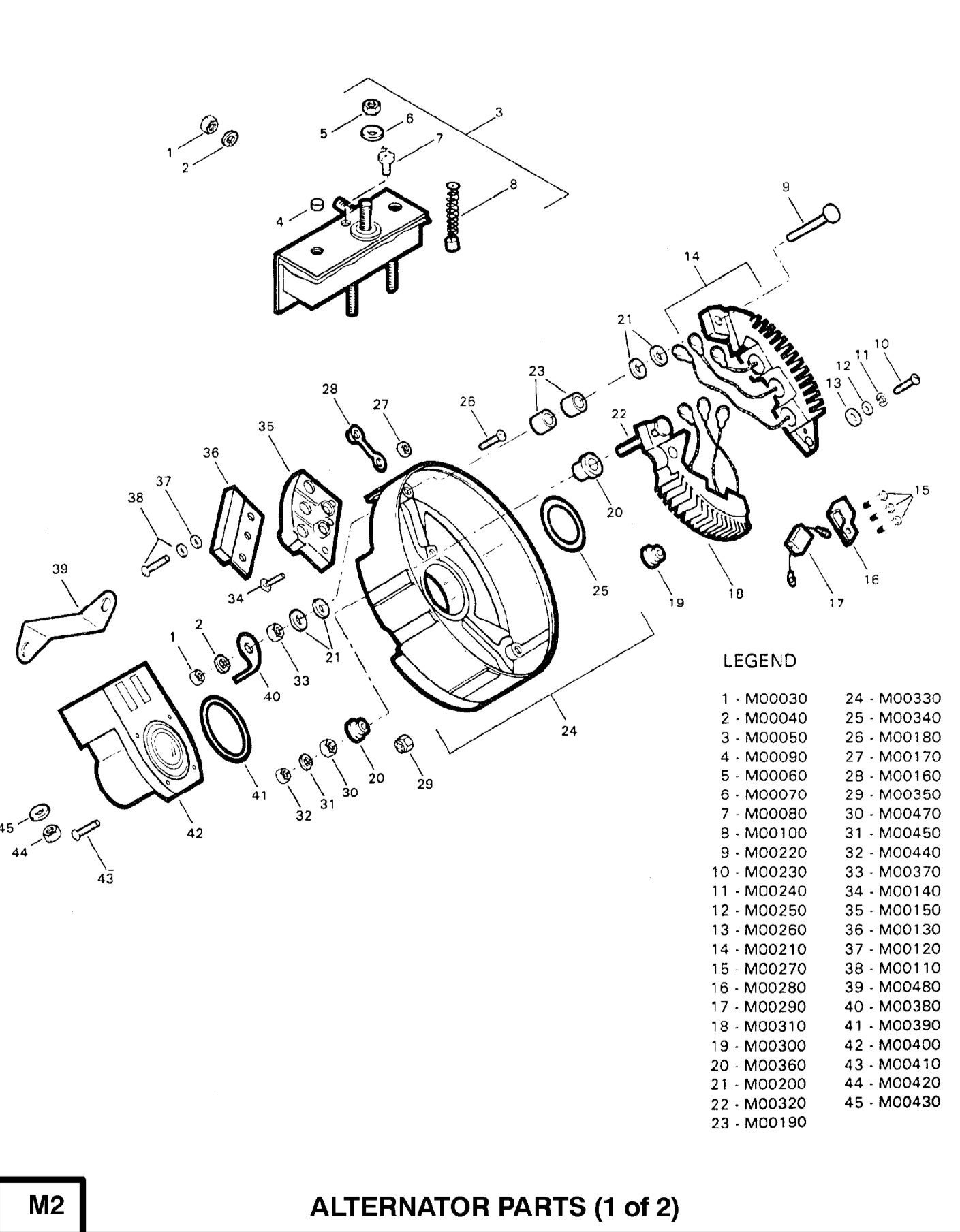

M2 — Alternator Parts (1 of 2) M2 — Alternator Parts (1 of 2)
Click image to enlarge.

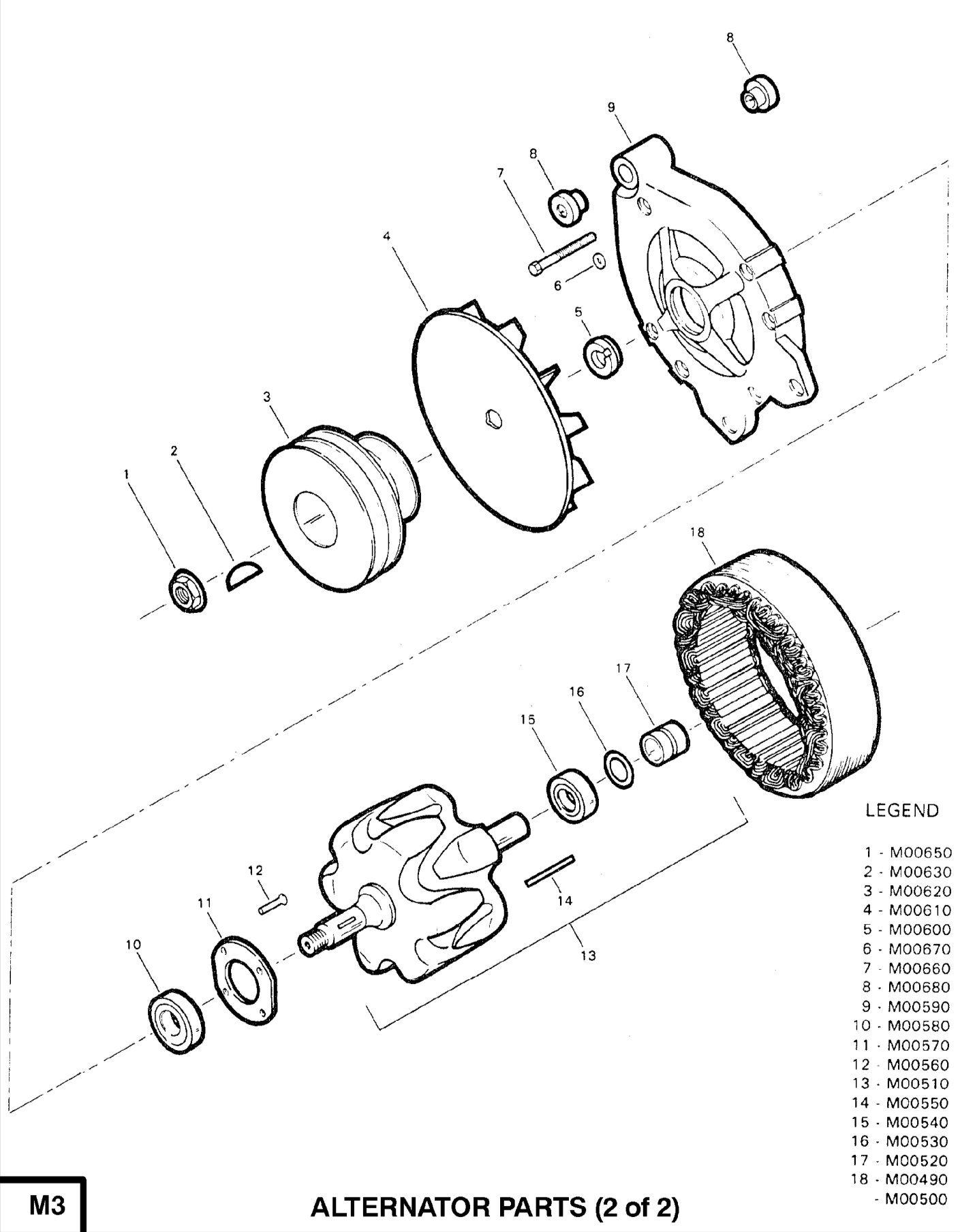

M3 — Alternator Parts (2 of 2) M3 — Alternator Parts (2 of 2)
Click image to enlarge.

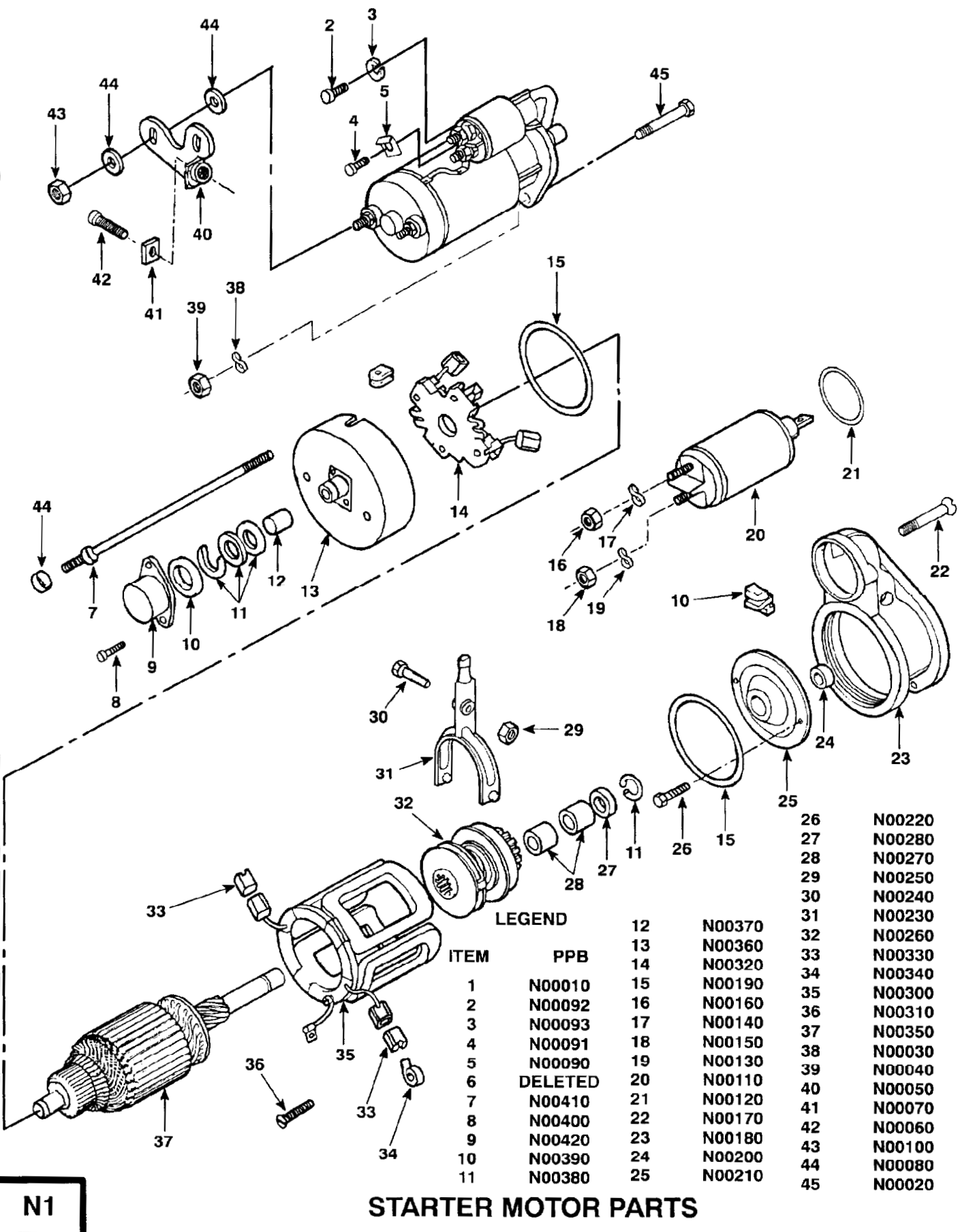

N1 — Starter Motor Parts N1 — Starter Motor Parts
Click image to enlarge.

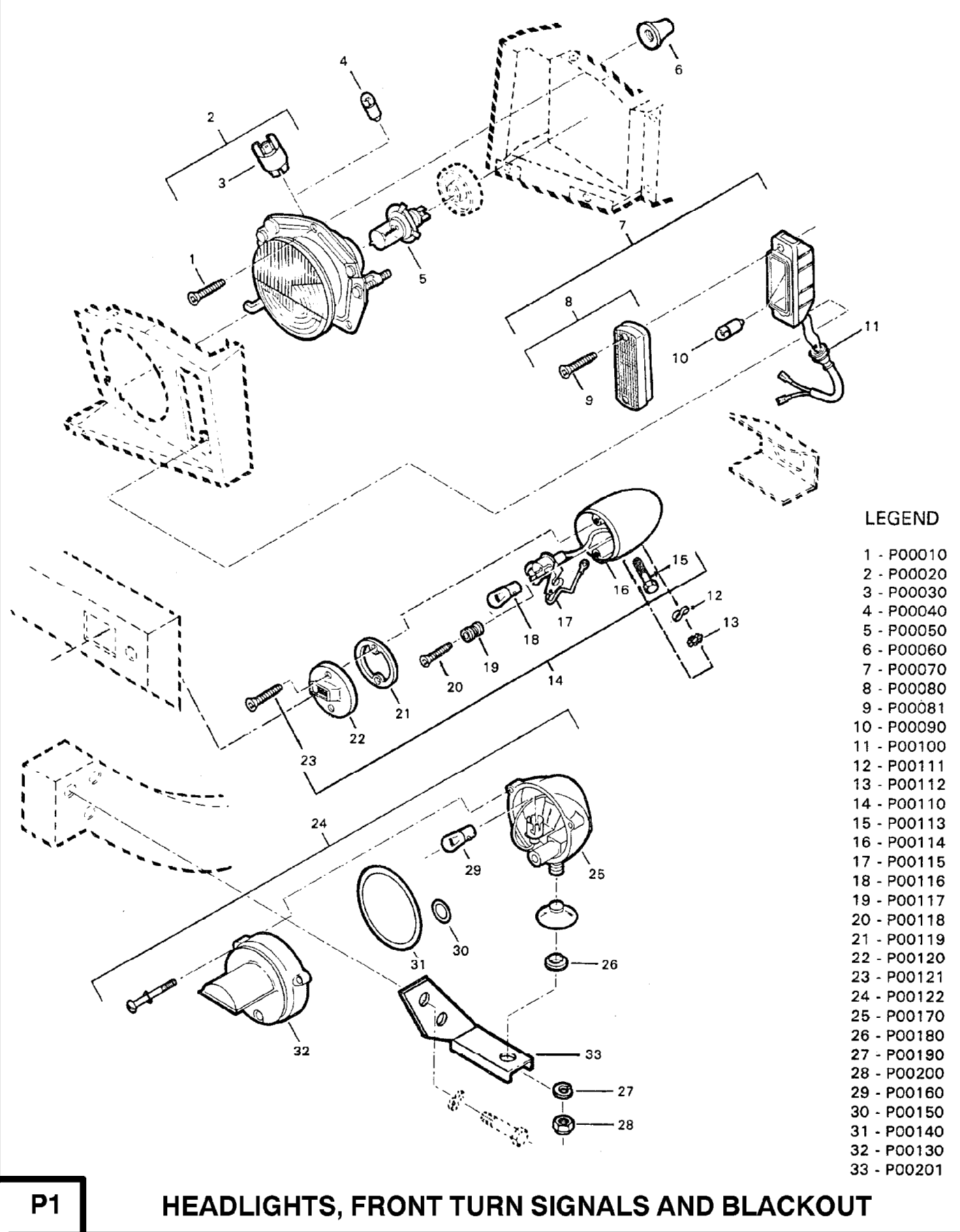

P1 — Headlights, Front Turn Signals and Blackout P1 — Headlights, Front Turn Signals and Blackout
Click image to enlarge.

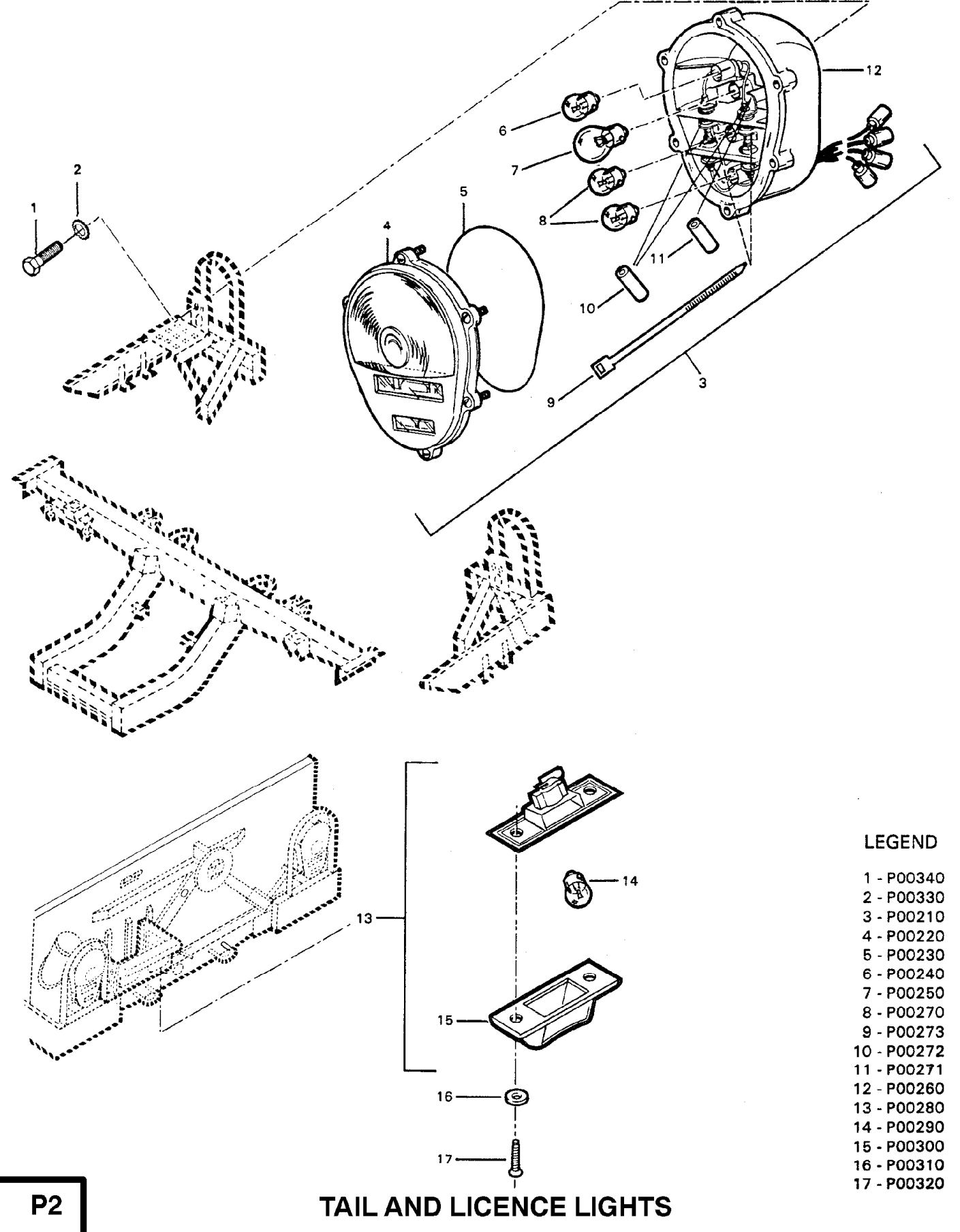

P2 — Tail and License Lights P2 — Tail and License Lights
Click image to enlarge.

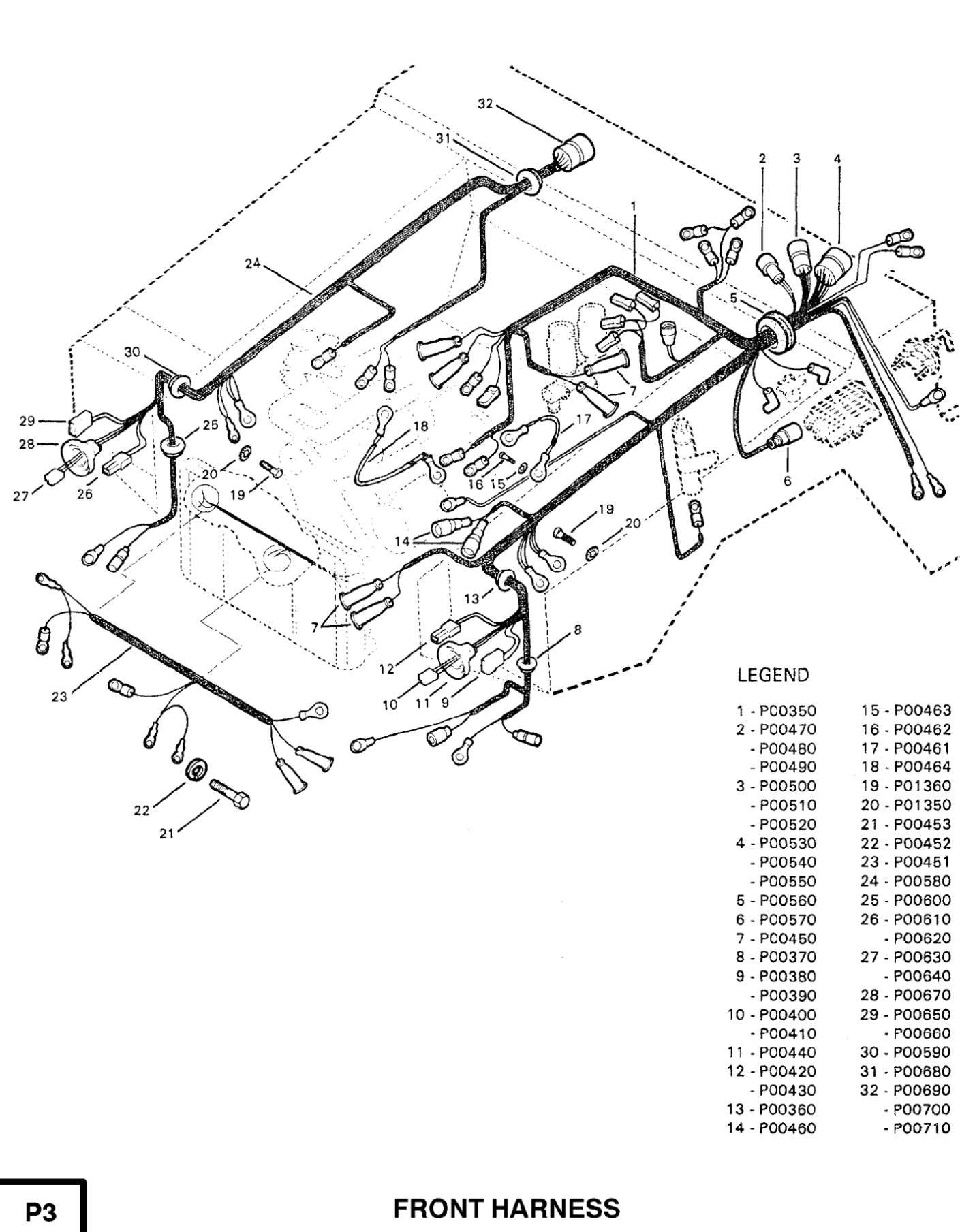

P3 — Front Harness P3 — Front Harness
Click image to enlarge.

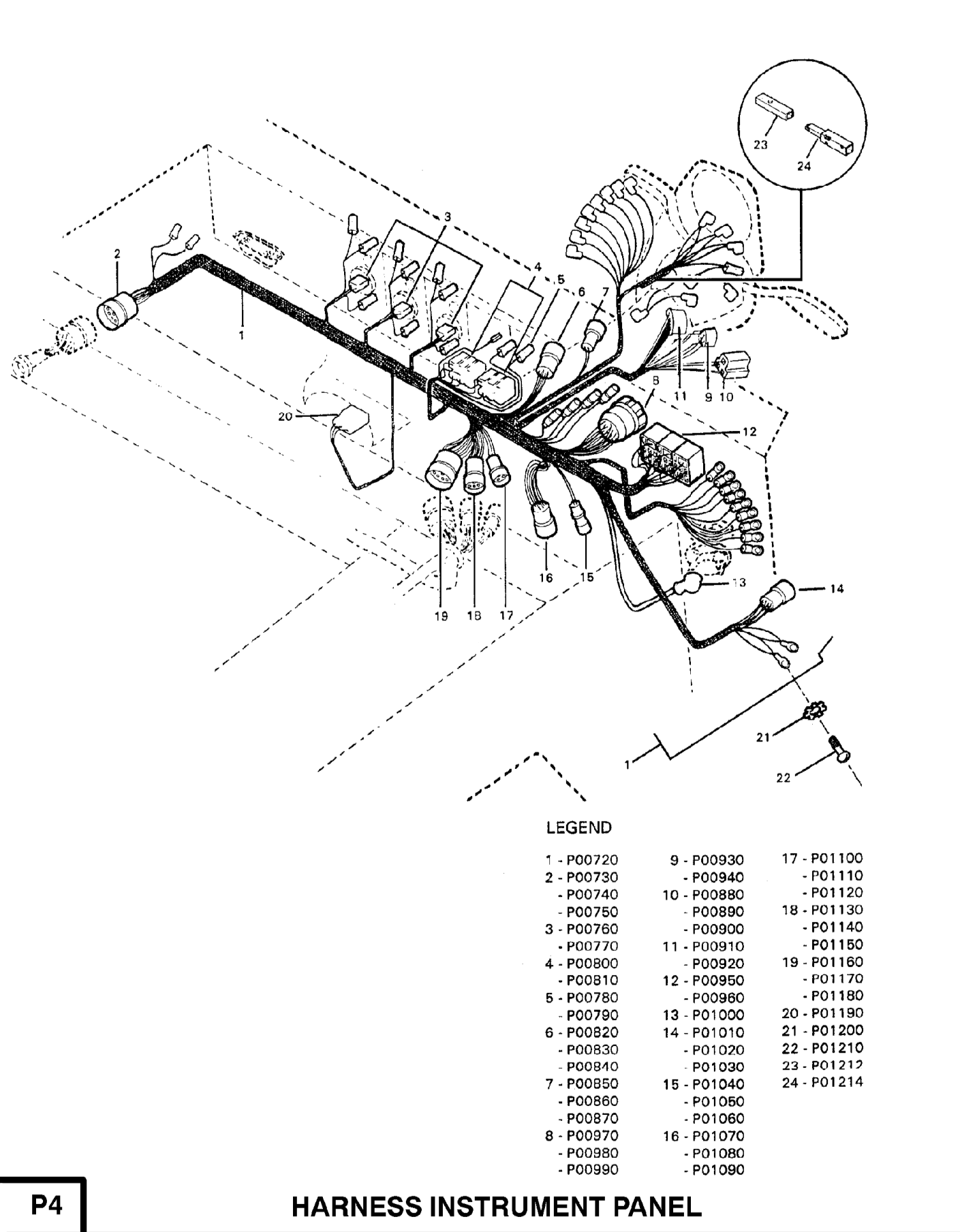

P4 — Harness Instrument Panel P4 — Harness Instrument Panel
Click image to enlarge.

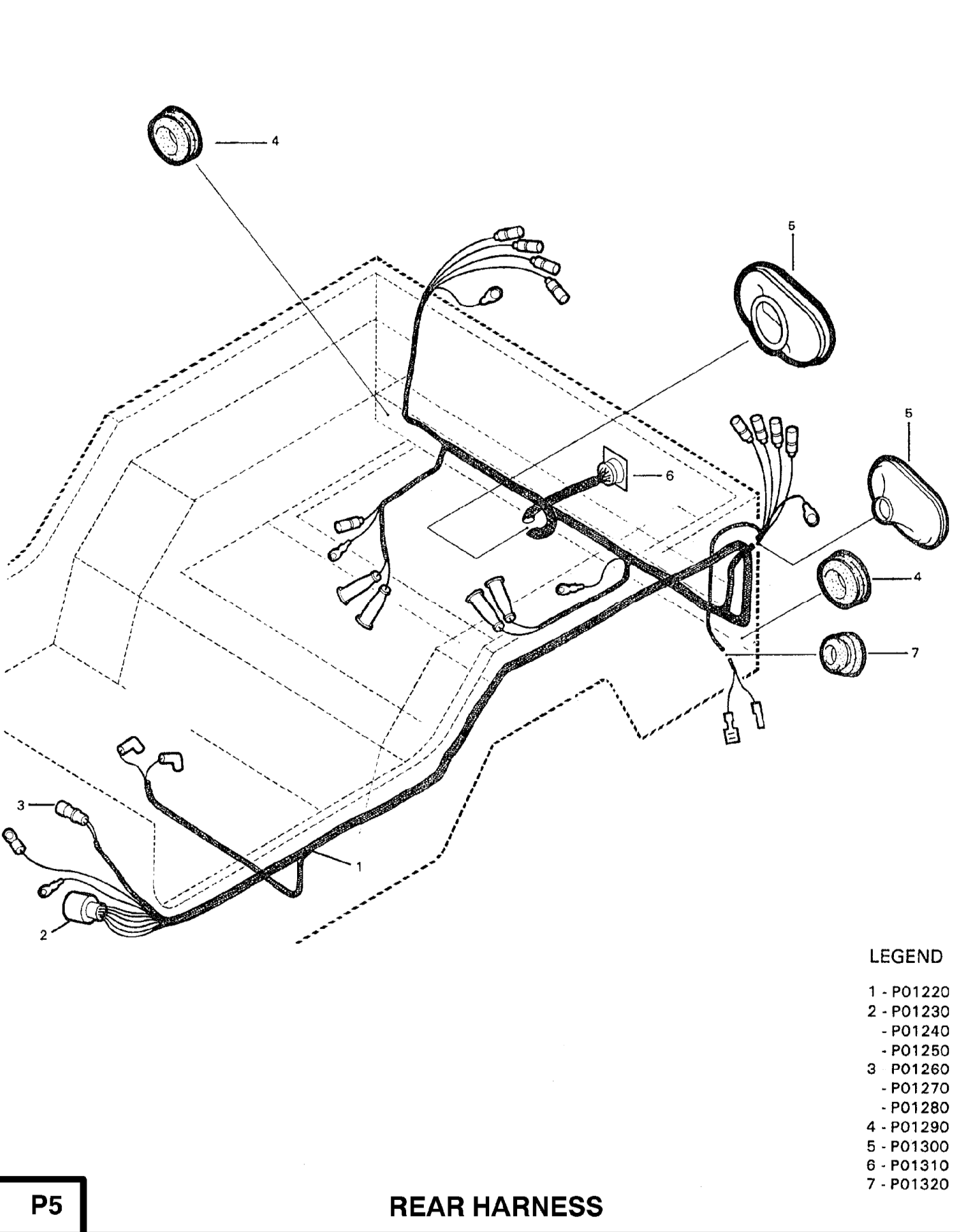

P5 — Rear Harness P5 — Rear Harness
Click image to enlarge.

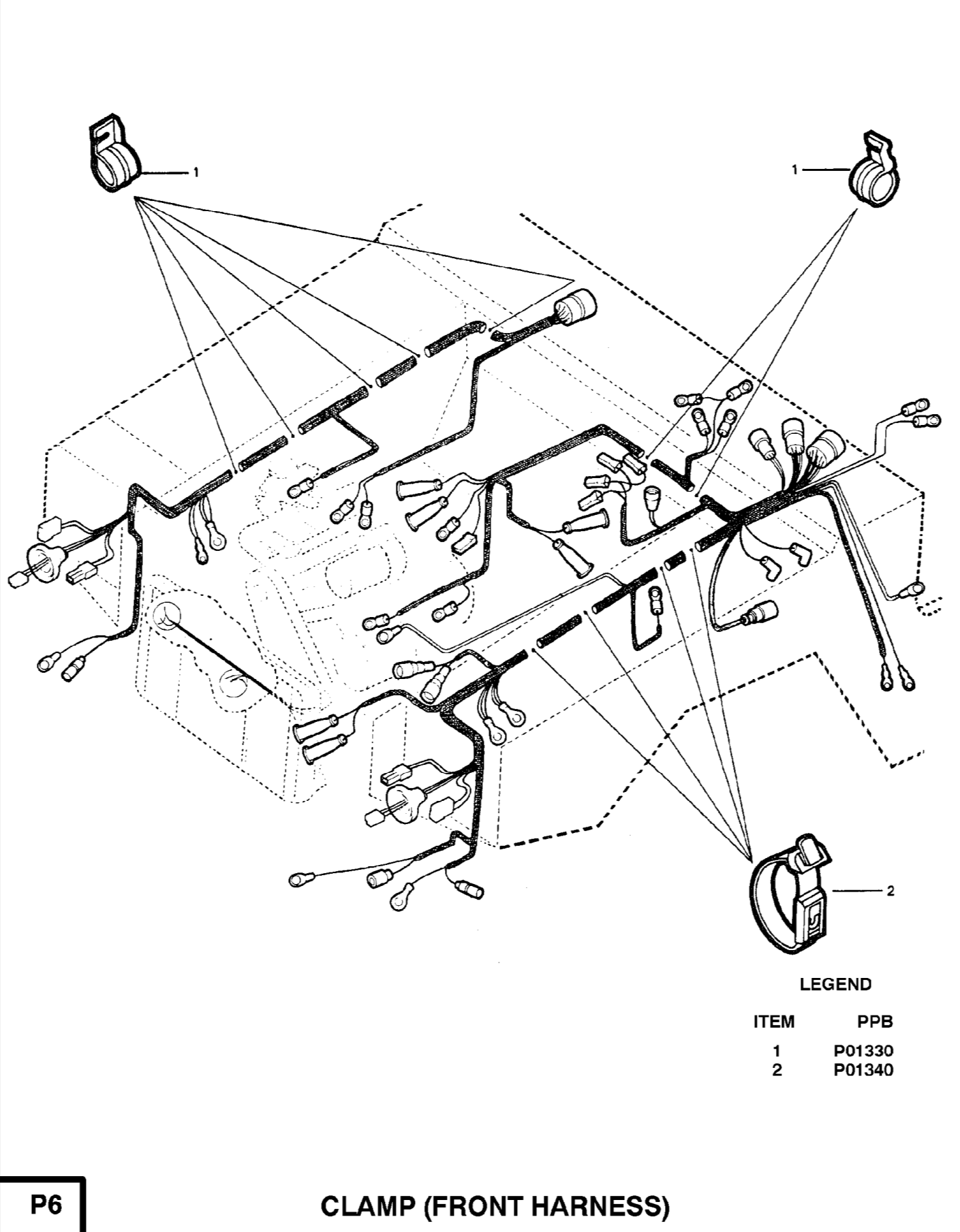

P6 — Clamp (Front Harness) P6 — Clamp (Front Harness)
Click image to enlarge.

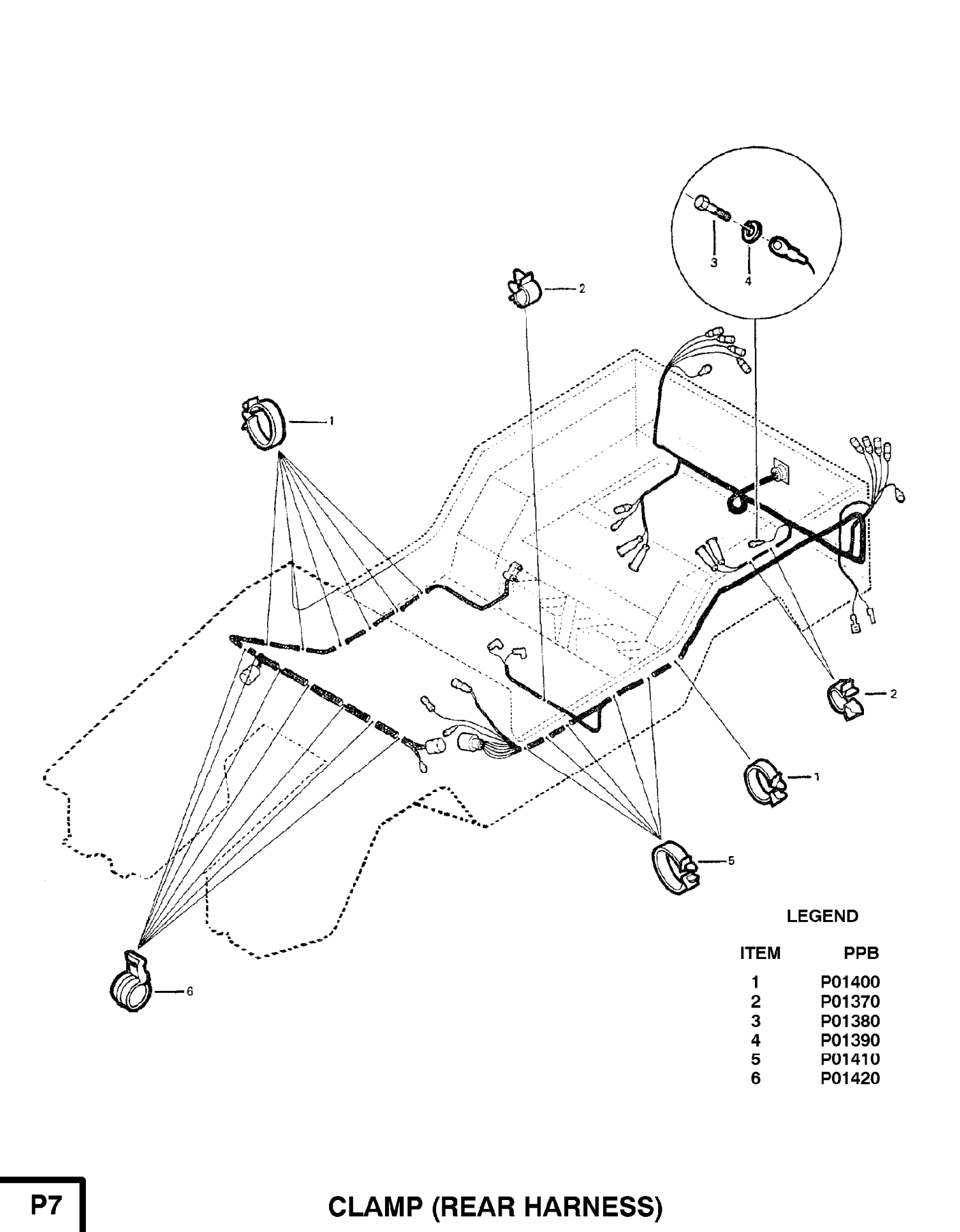

P7 — Clamp (Rear Harness) P7 — Clamp (Rear Harness)
Click image to enlarge.

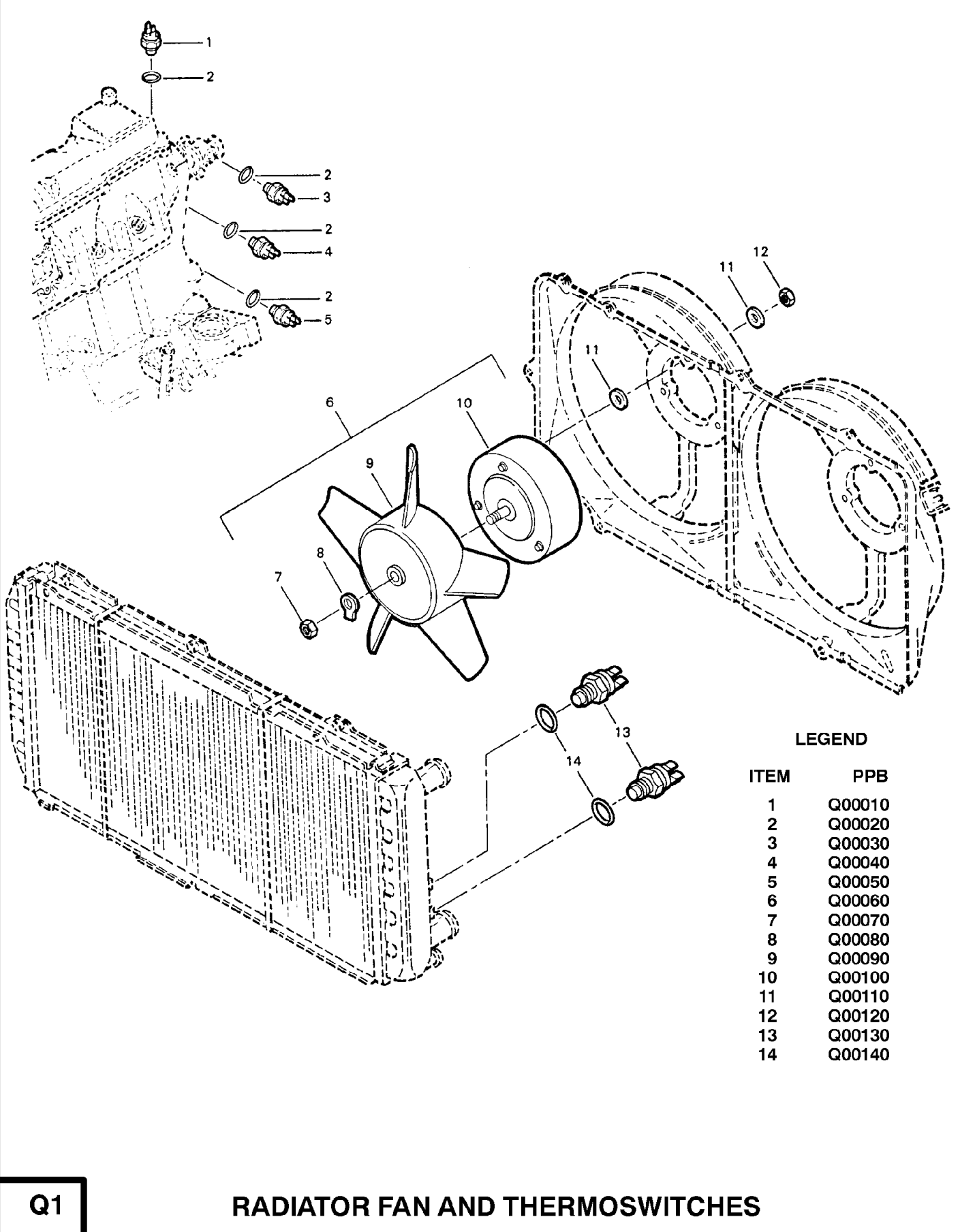

Q1 — Radiator Fan and Thermoswitches Q1 — Radiator Fan and Thermoswitches
Click image to enlarge.

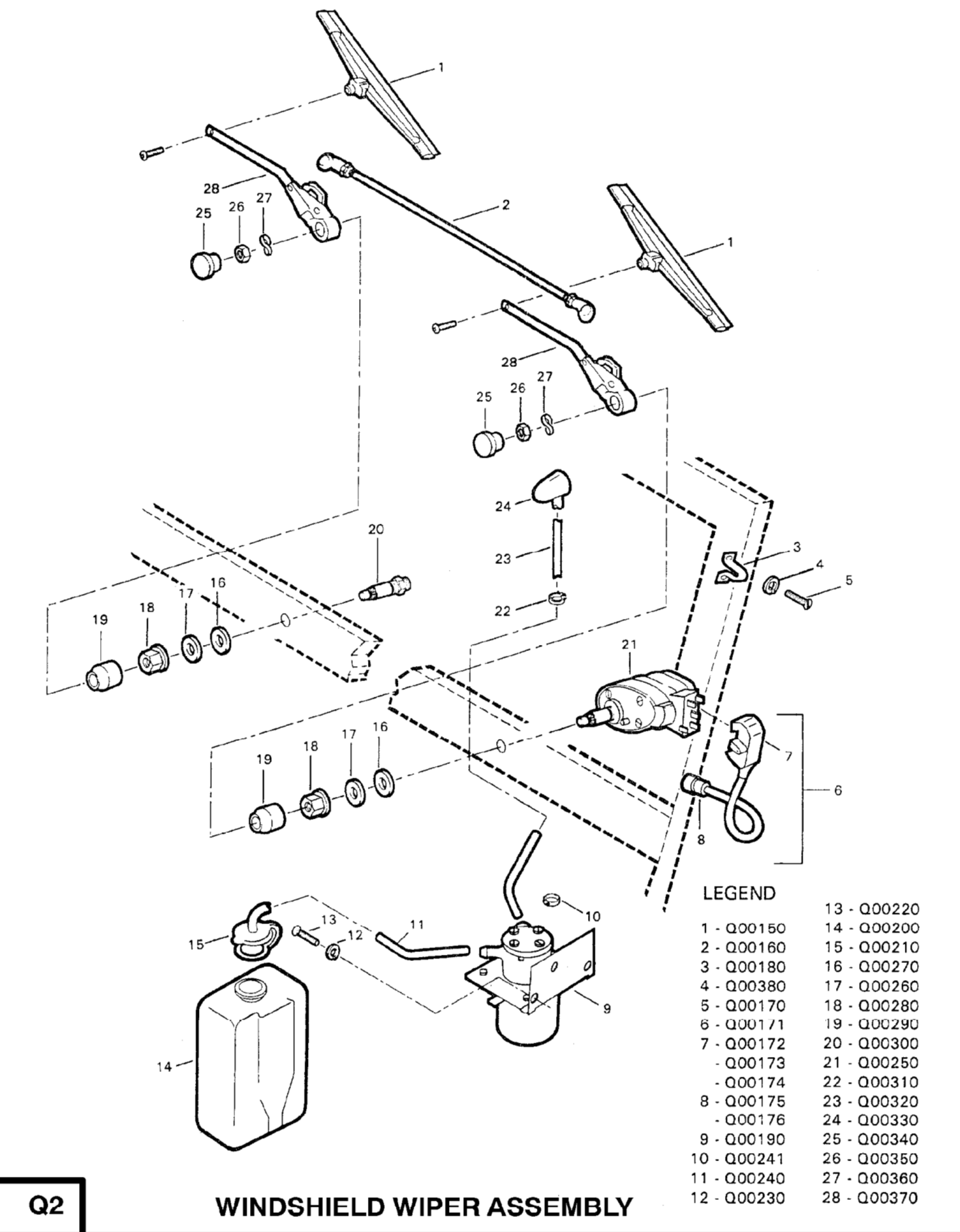

Q2 — Windshield Wiper Assembly Q2 — Windshield Wiper Assembly
Click image to enlarge.

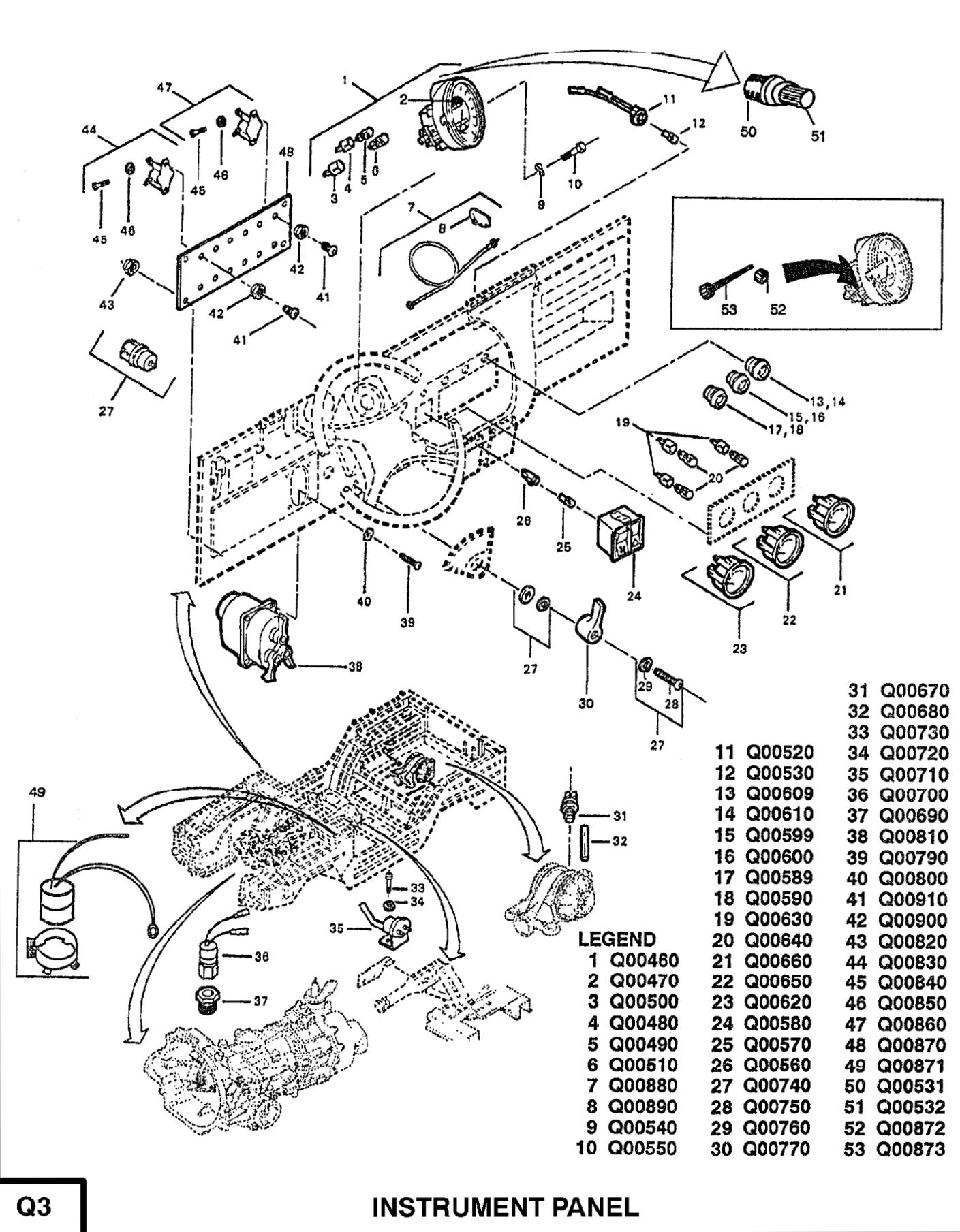

Q3 — Instrument Panel Q3 — Instrument Panel
Click image to enlarge.

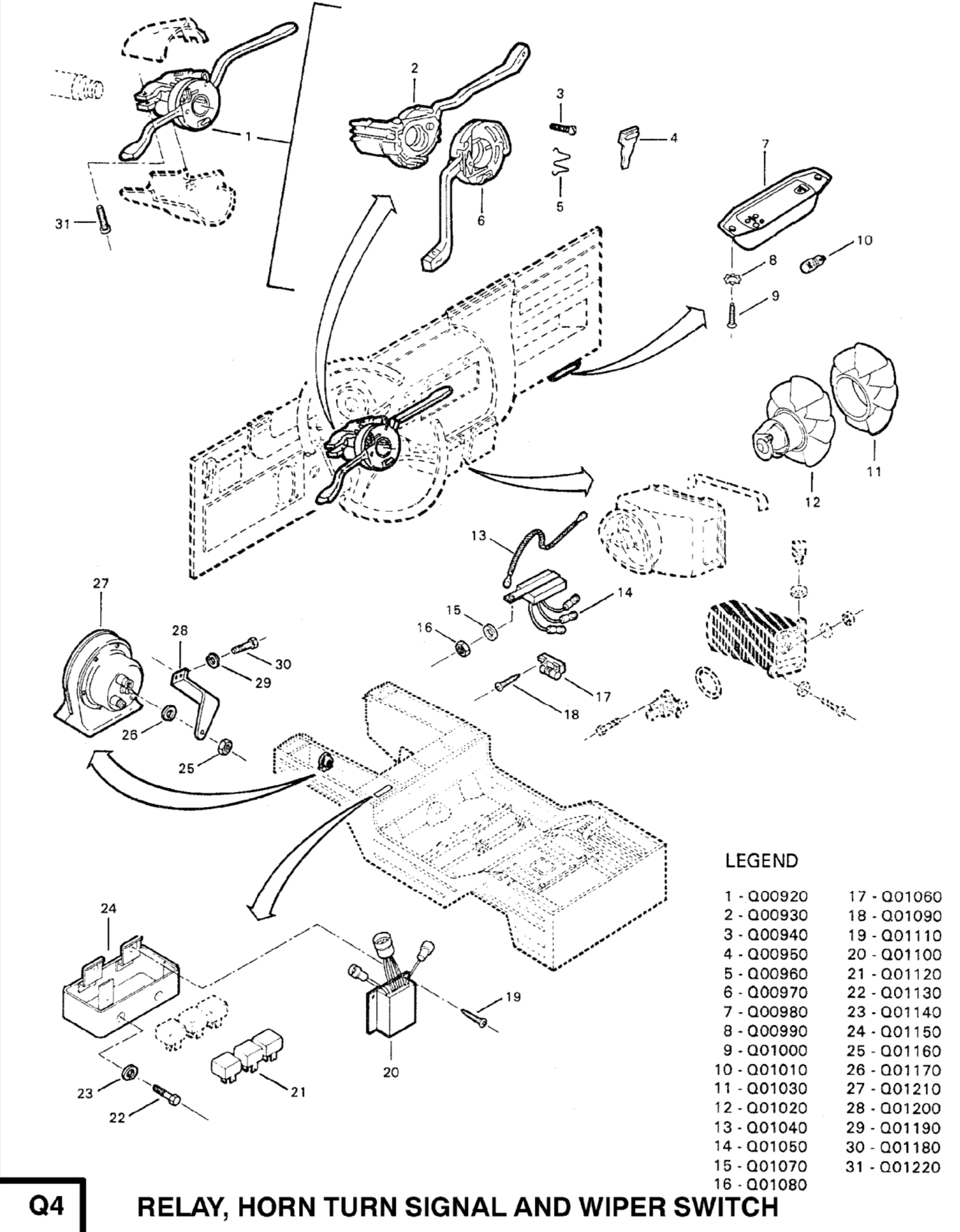

Q4 — Relay, Horn Turn Signal and Wiper Switch Q4 — Relay, Horn Turn Signal and Wiper Switch
Click image to enlarge.

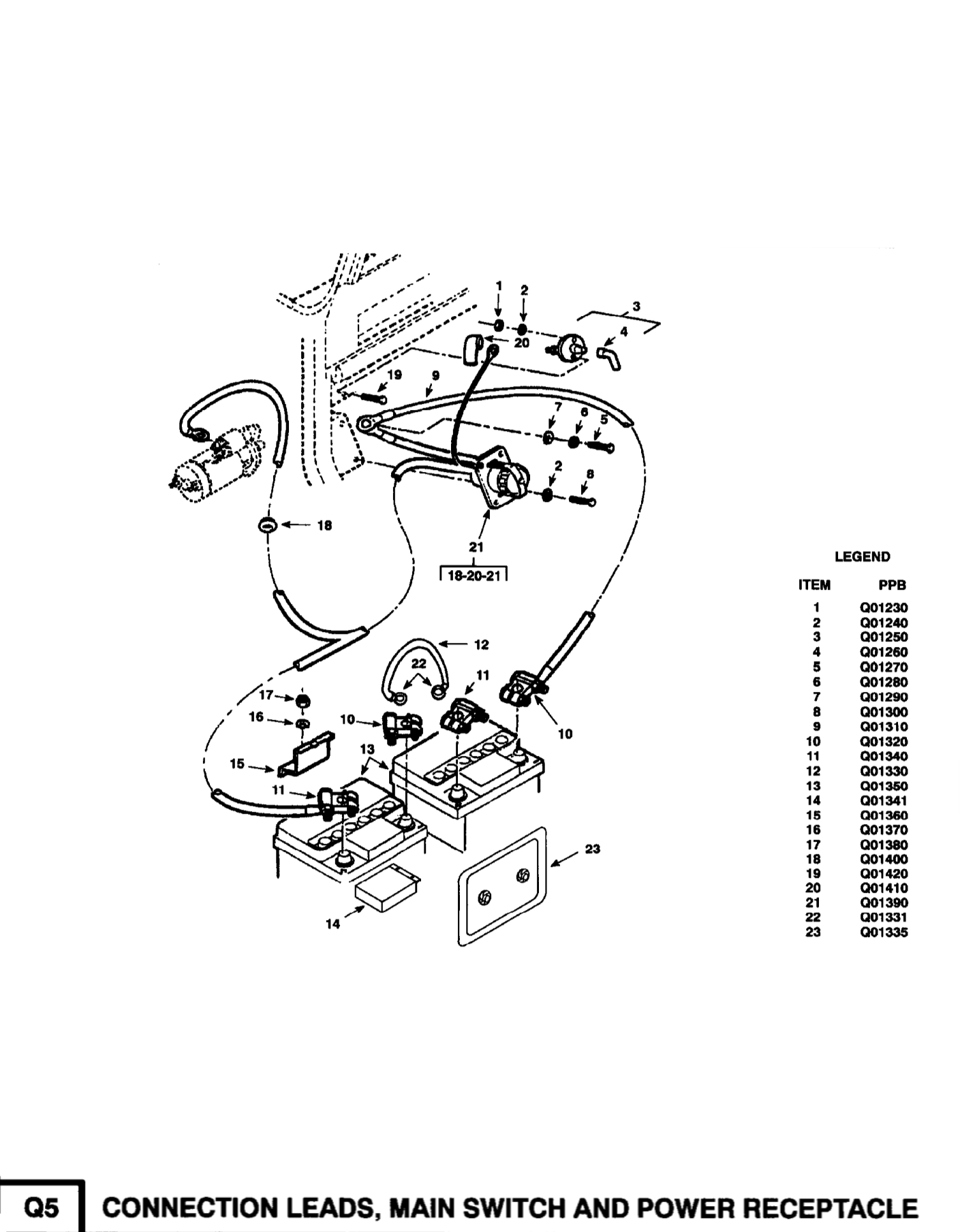

Q5 — Connection Leads, Main Switch and Power Receptacle Q5 — Connection Leads, Main Switch and Power Receptacle
Click image to enlarge.

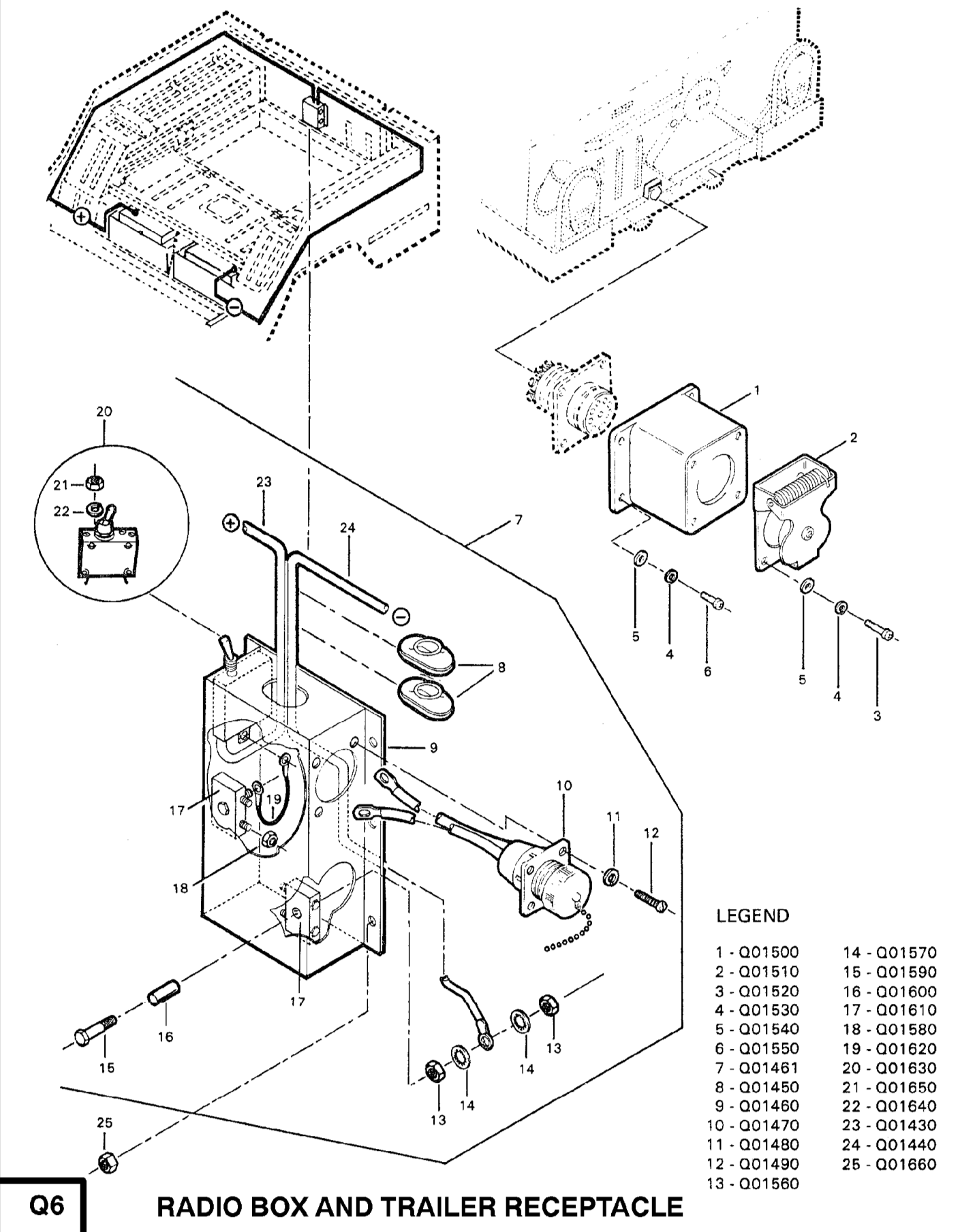

Q6 — Radio Box and Trailer Receptacle

Q6 — Radio Box and Trailer Receptacle
Click image to enlarge.

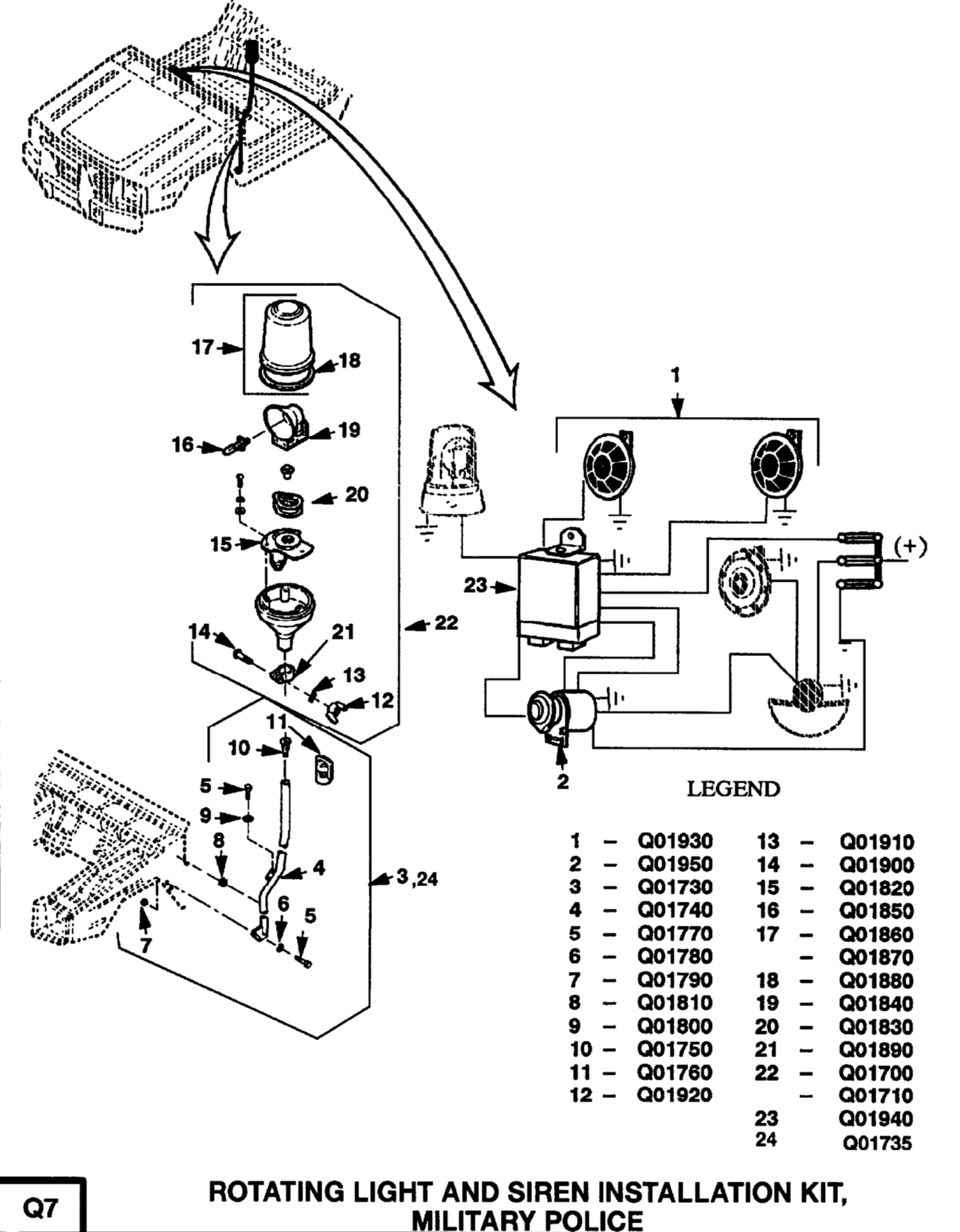

Q7 — Rotating Light and Siren Installation Kit, Military Police Q7 — Rotating Light and Siren Installation Kit, Military Police
Click image to enlarge.

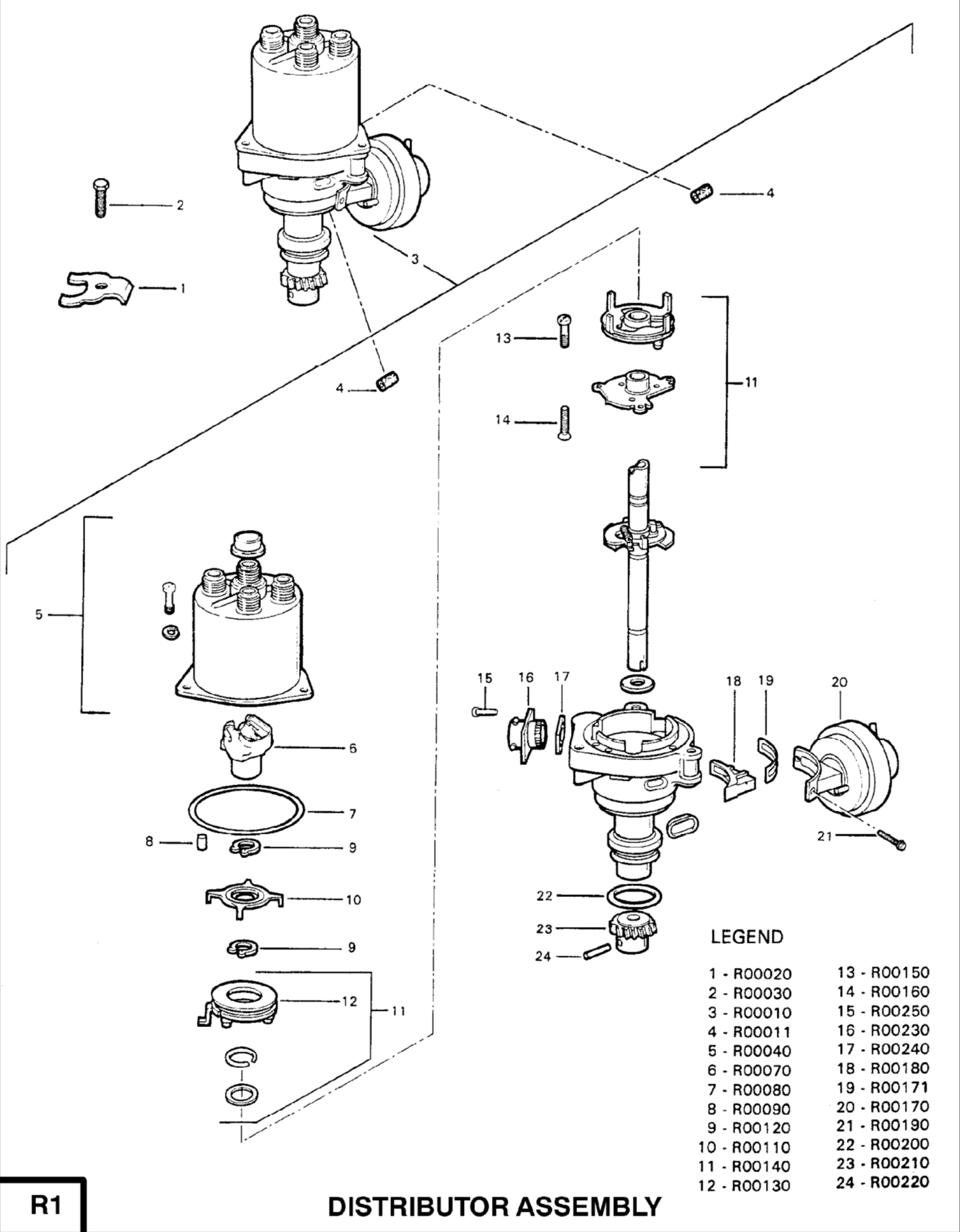

R1 — Distributor Assembly

R1 — Distributor Assembly
Click image to enlarge.

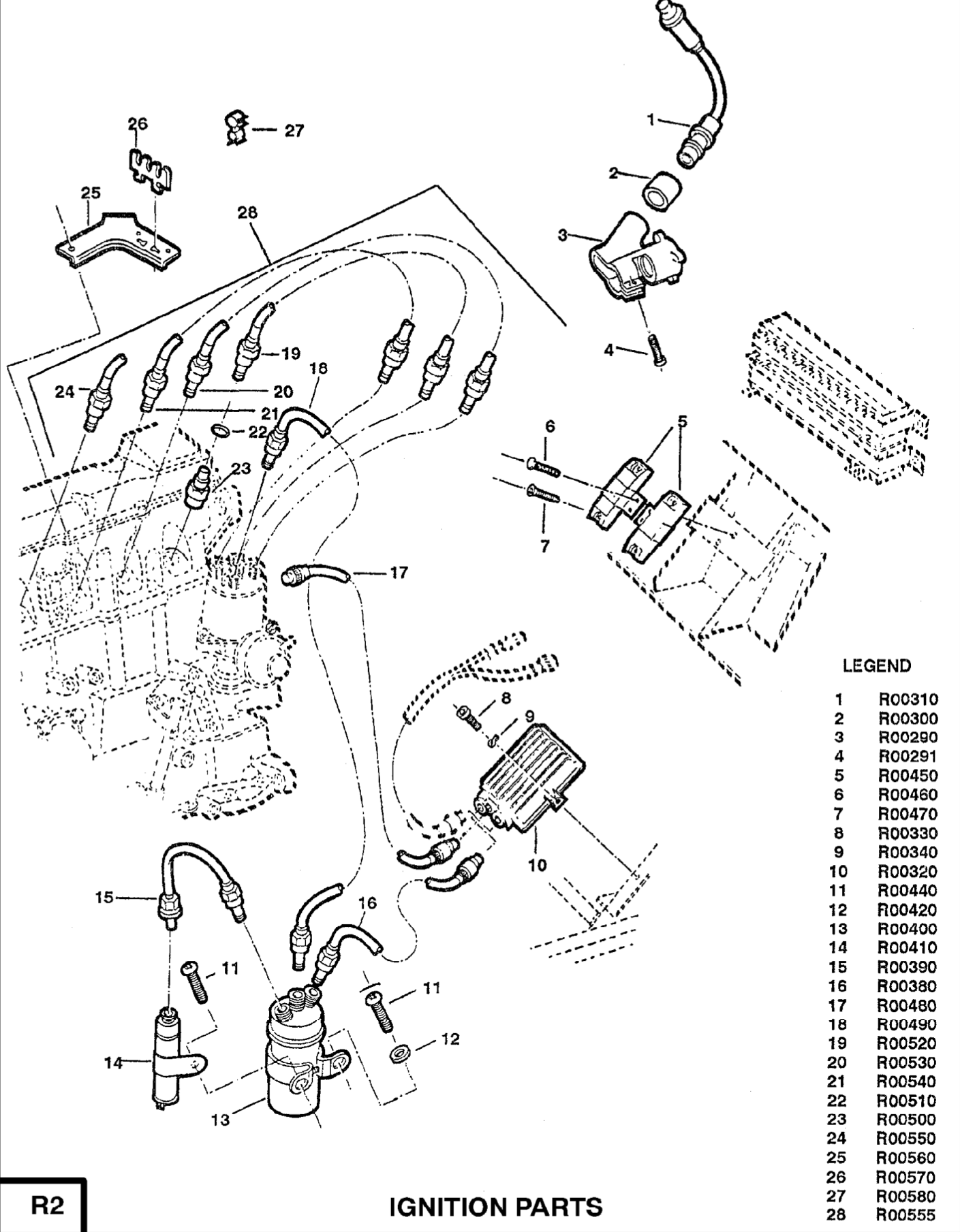

R2 — Ignition Parts R2 — Ignition Parts
Click image to enlarge.

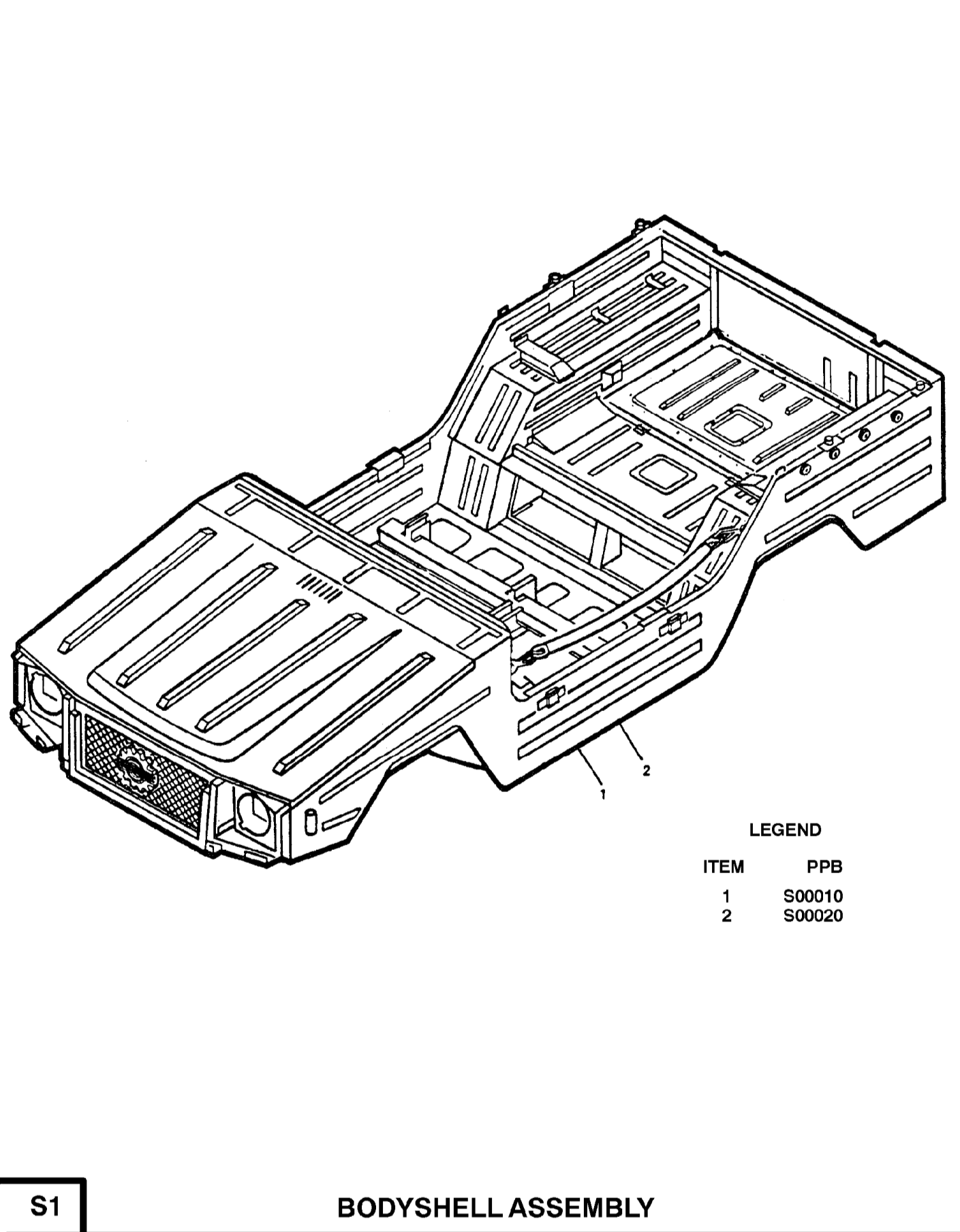

S1 — Bodyshell Assembly S1 — Bodyshell Assembly
Click image to enlarge.

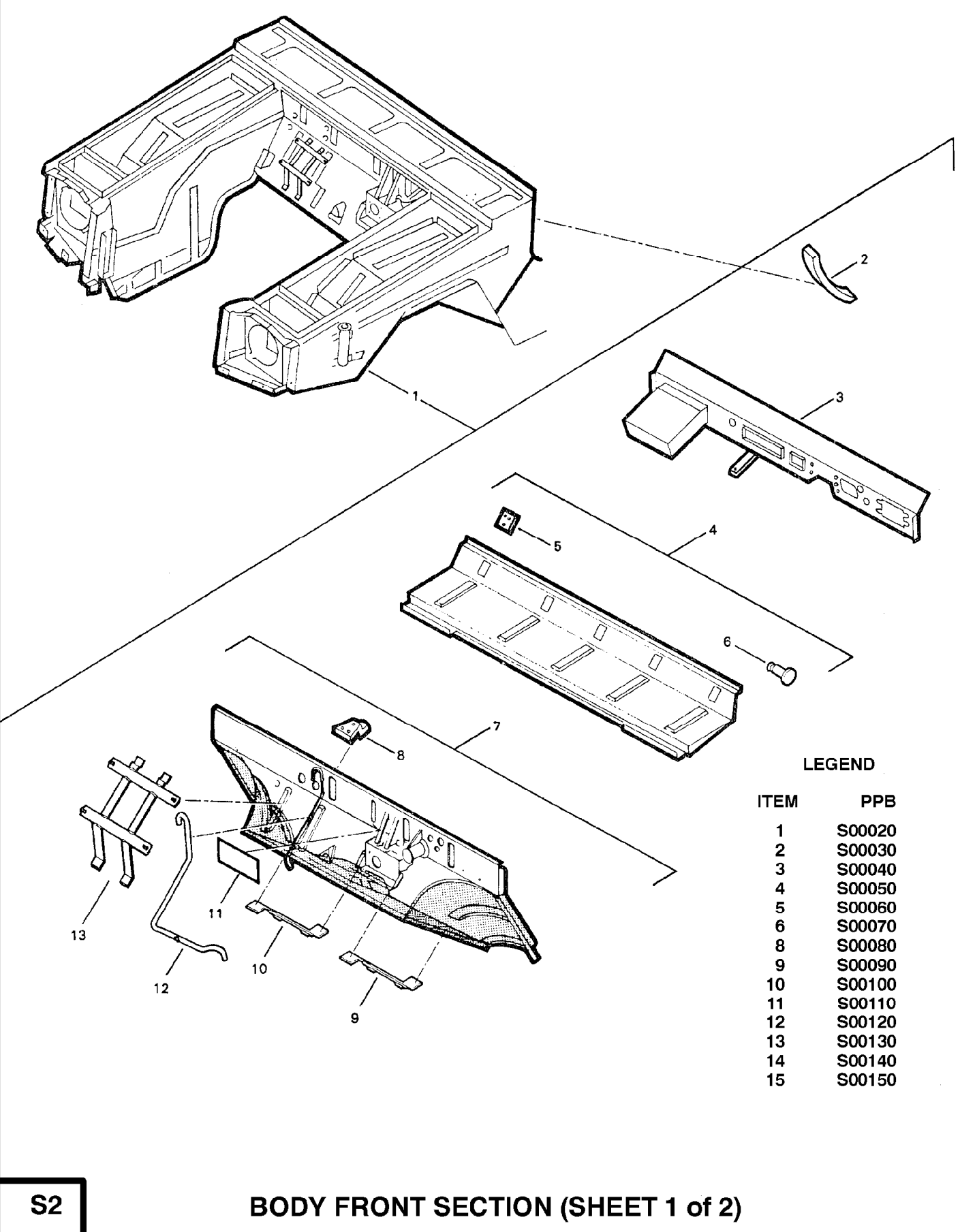

S2 — Body Front Section (Sheet 1 of 2) S2 — Body Front Section (Sheet 1 of 2)
Click image to enlarge.

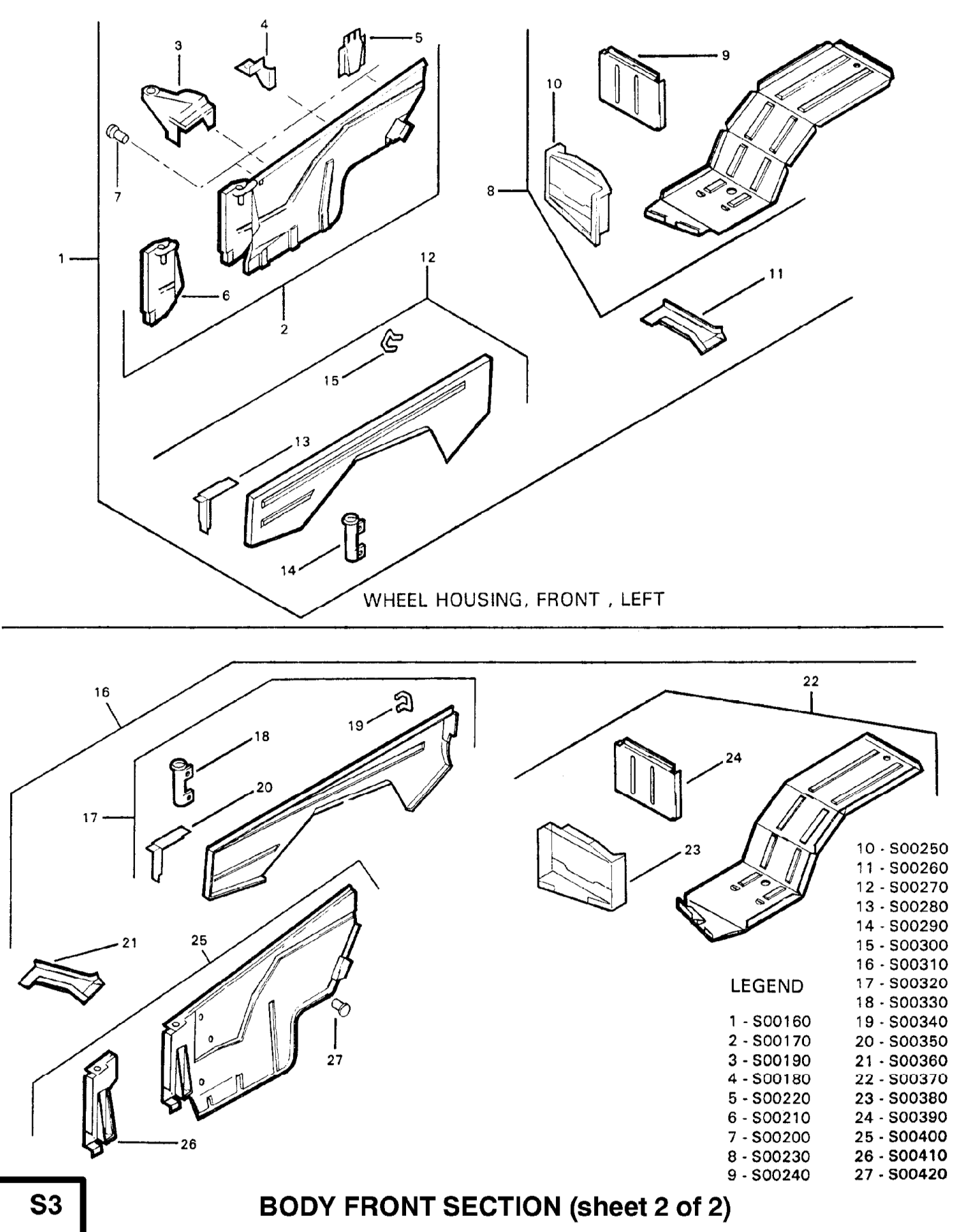

S3 — Body Front Section (Sheet 2 of 2) S3 — Body Front Section (Sheet 2 of 2)
Click image to enlarge.

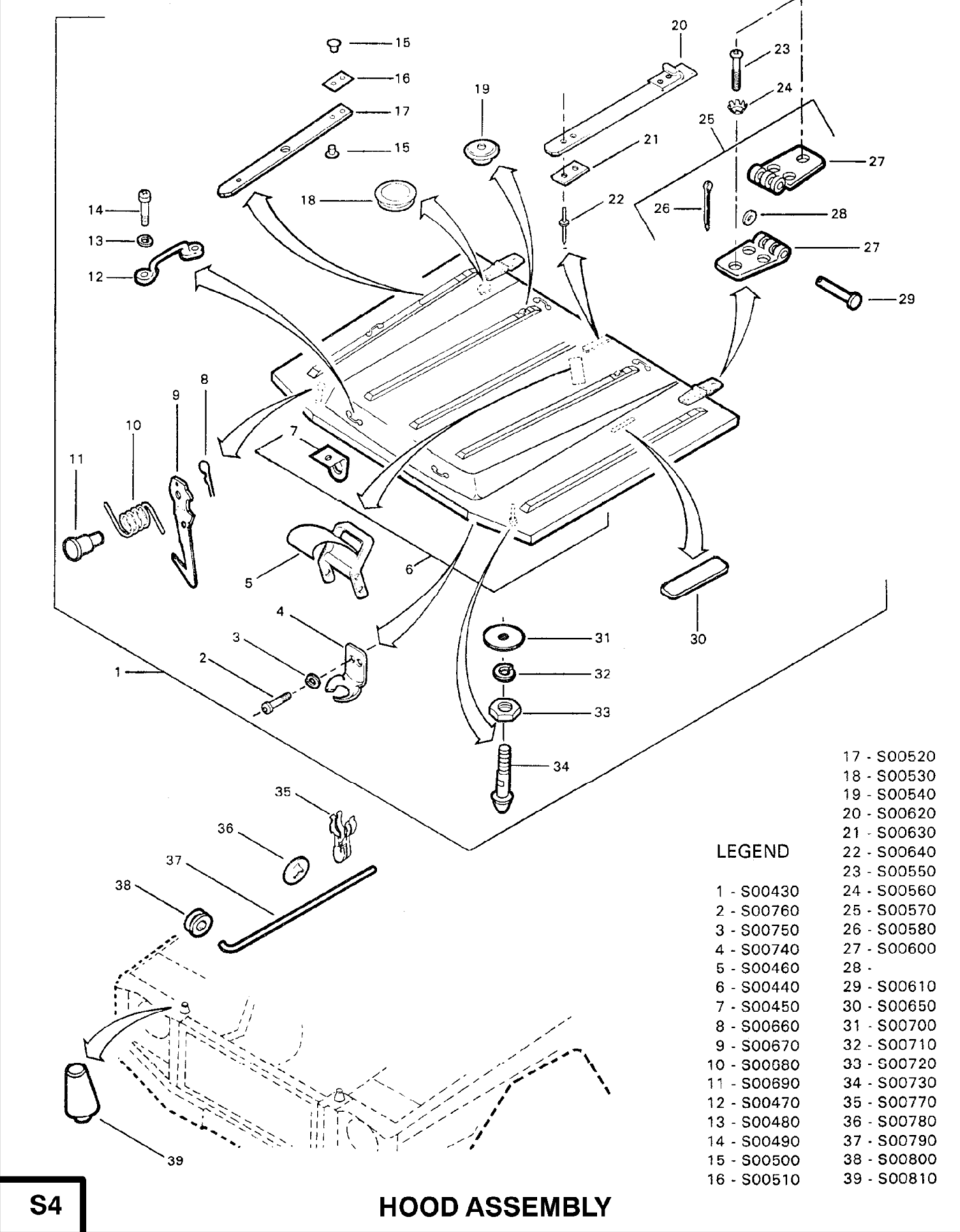

S4 — Hood Assembly S4 — Hood Assembly
Click image to enlarge.

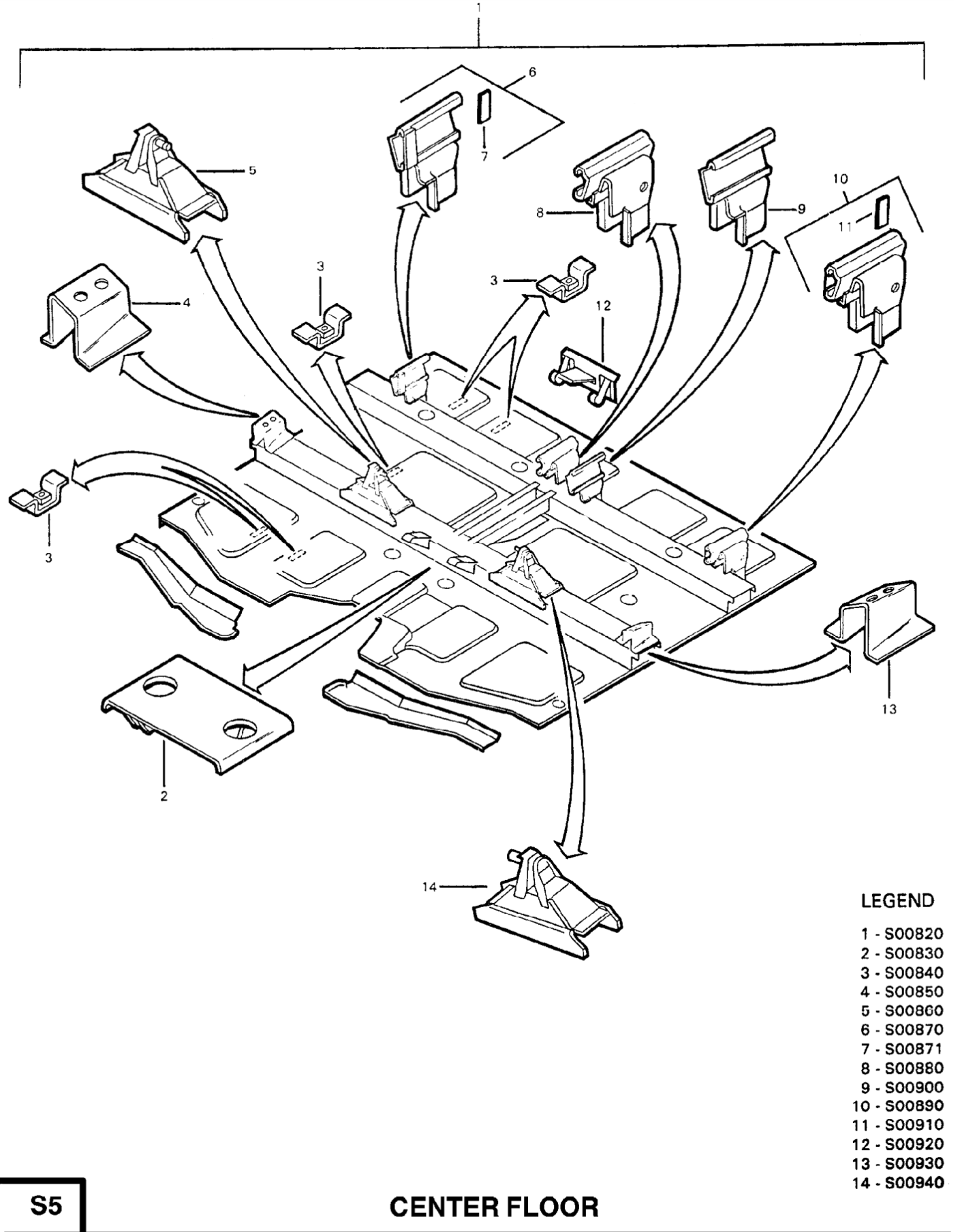

S5 — Center Floor S5 — Center Floor
Click image to enlarge.

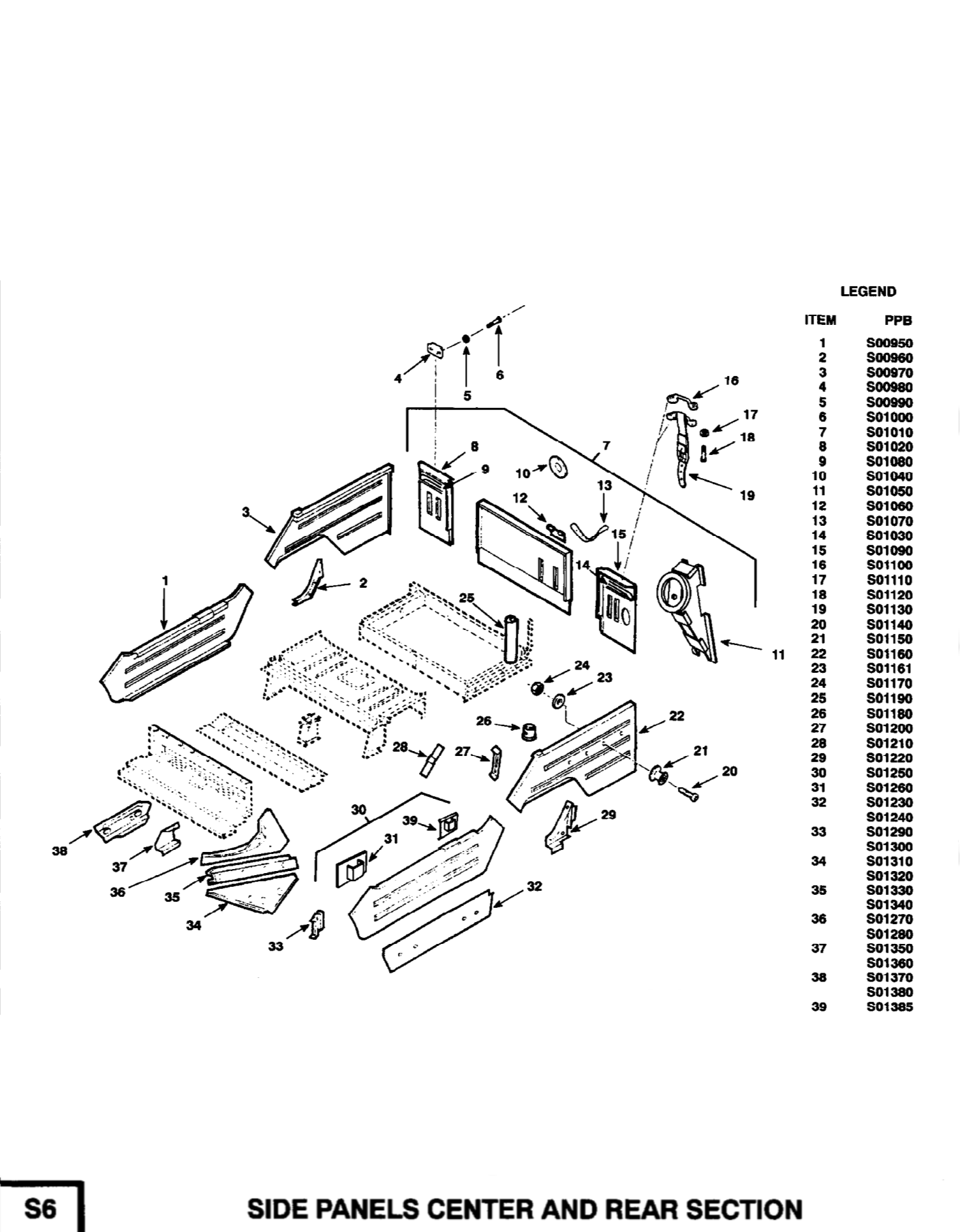

S6 — Side Panels Center and Rear Position S6 — Side Panels Center and Rear Position
Click image to enlarge.

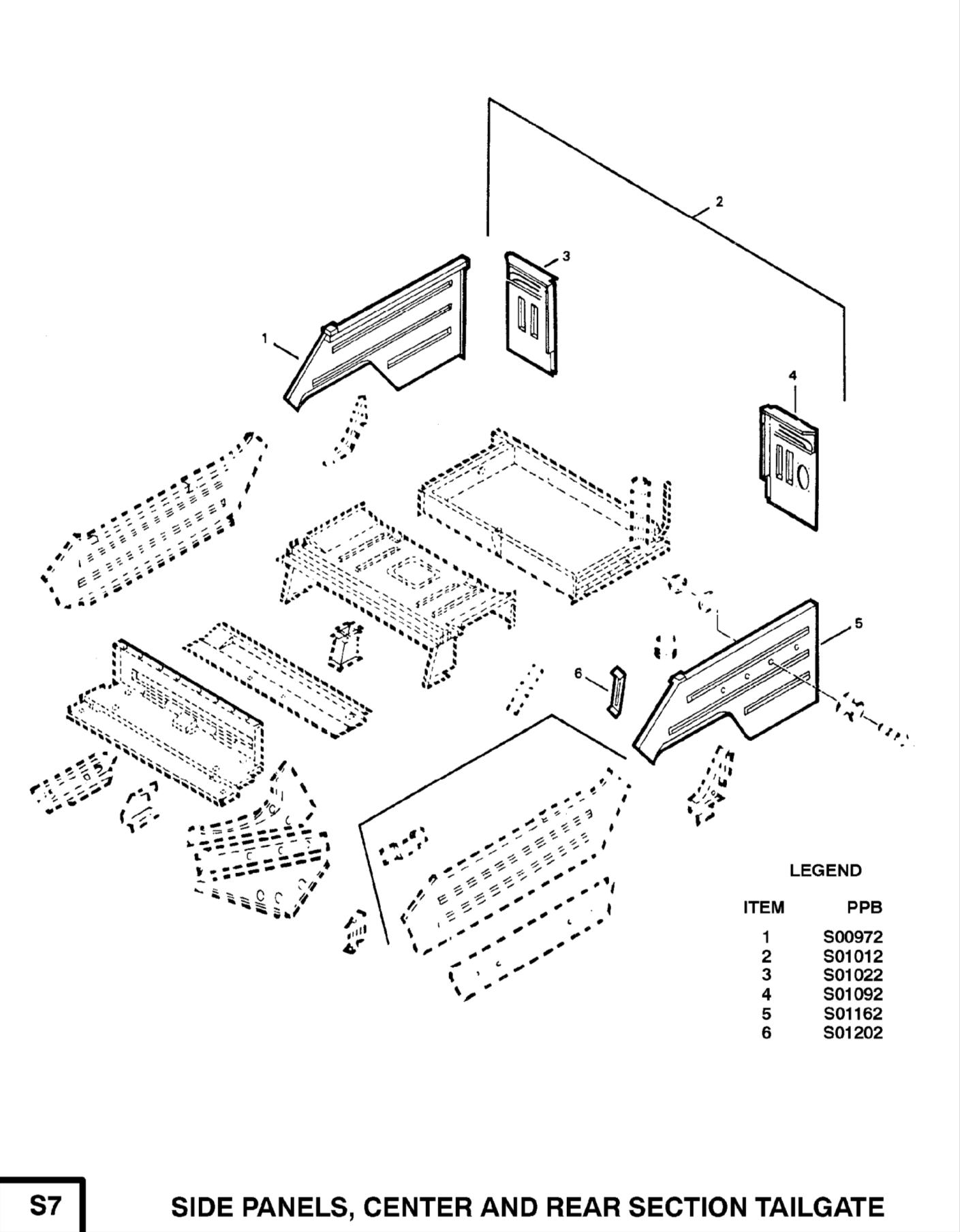

S7 — Side Panels, Center and Rear Section Tailgate S7 — Side Panels, Center and Rear Section Tailgate
Click image to enlarge.

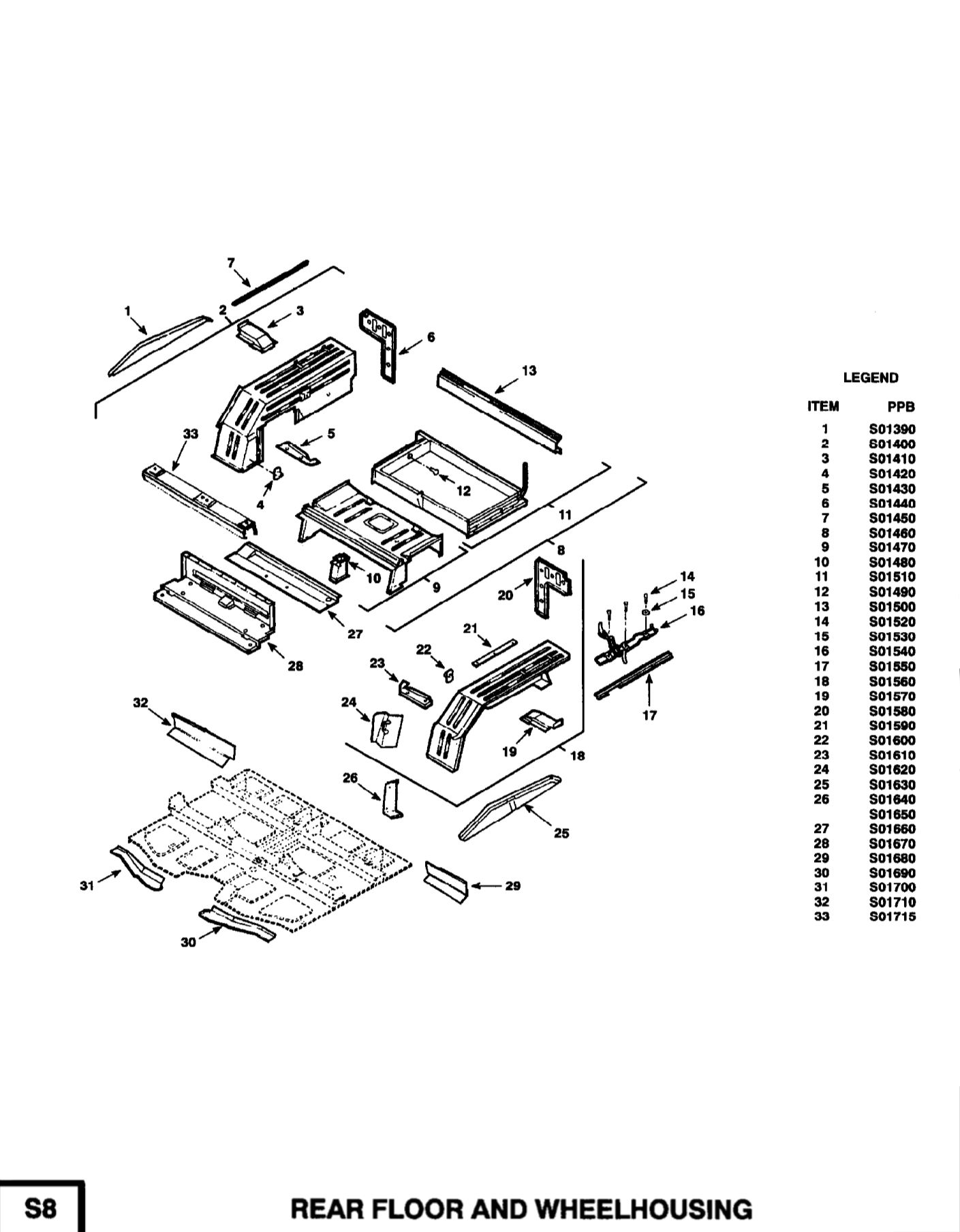

S8 — Rear Floor and Wheelhousing S8 — Rear Floor and Wheelhousing
Click image to enlarge.

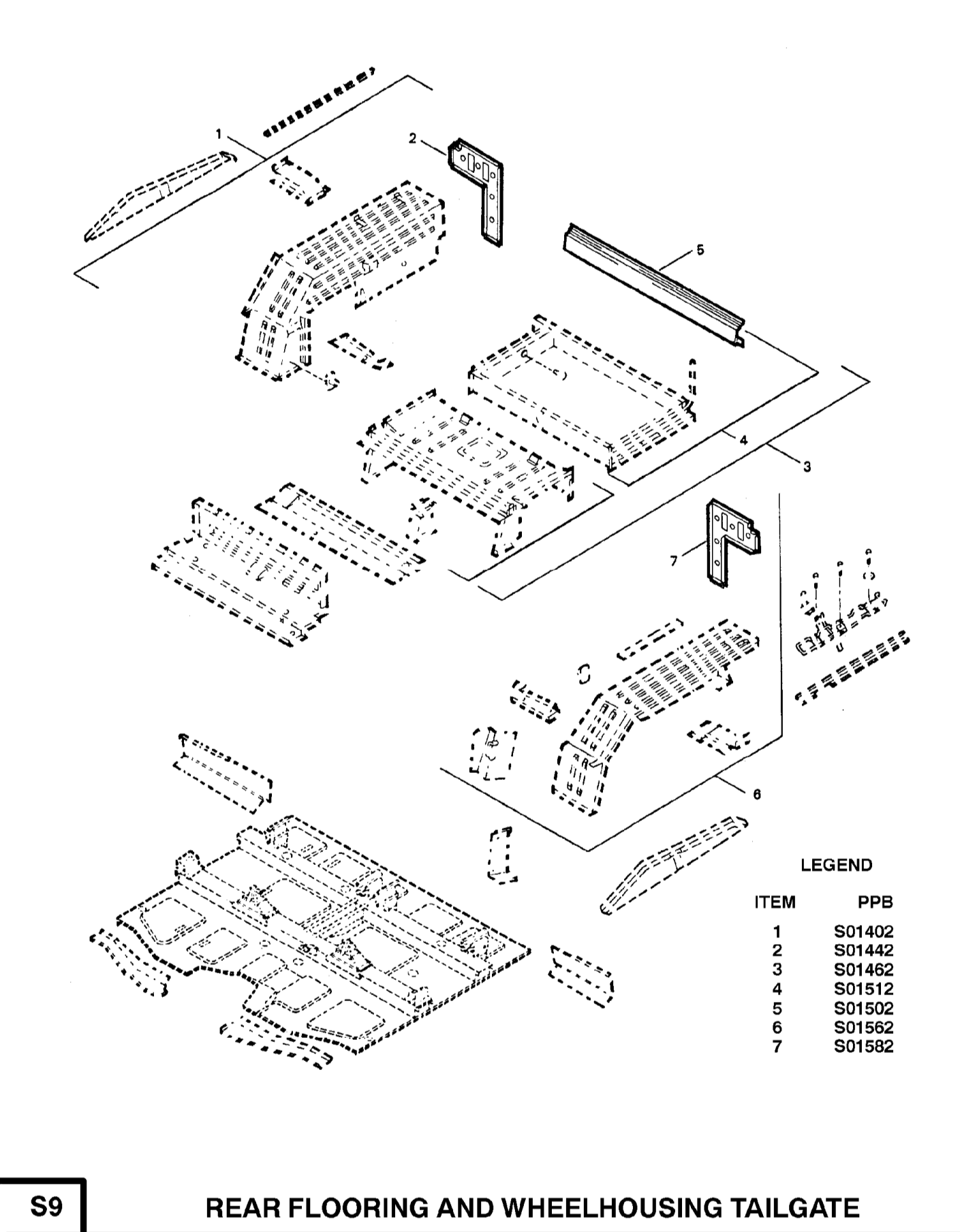

S9 — Rear Flooring and Wheelhousing Tailgate S9 — Rear Flooring and Wheelhousing Tailgate
Click image to enlarge.

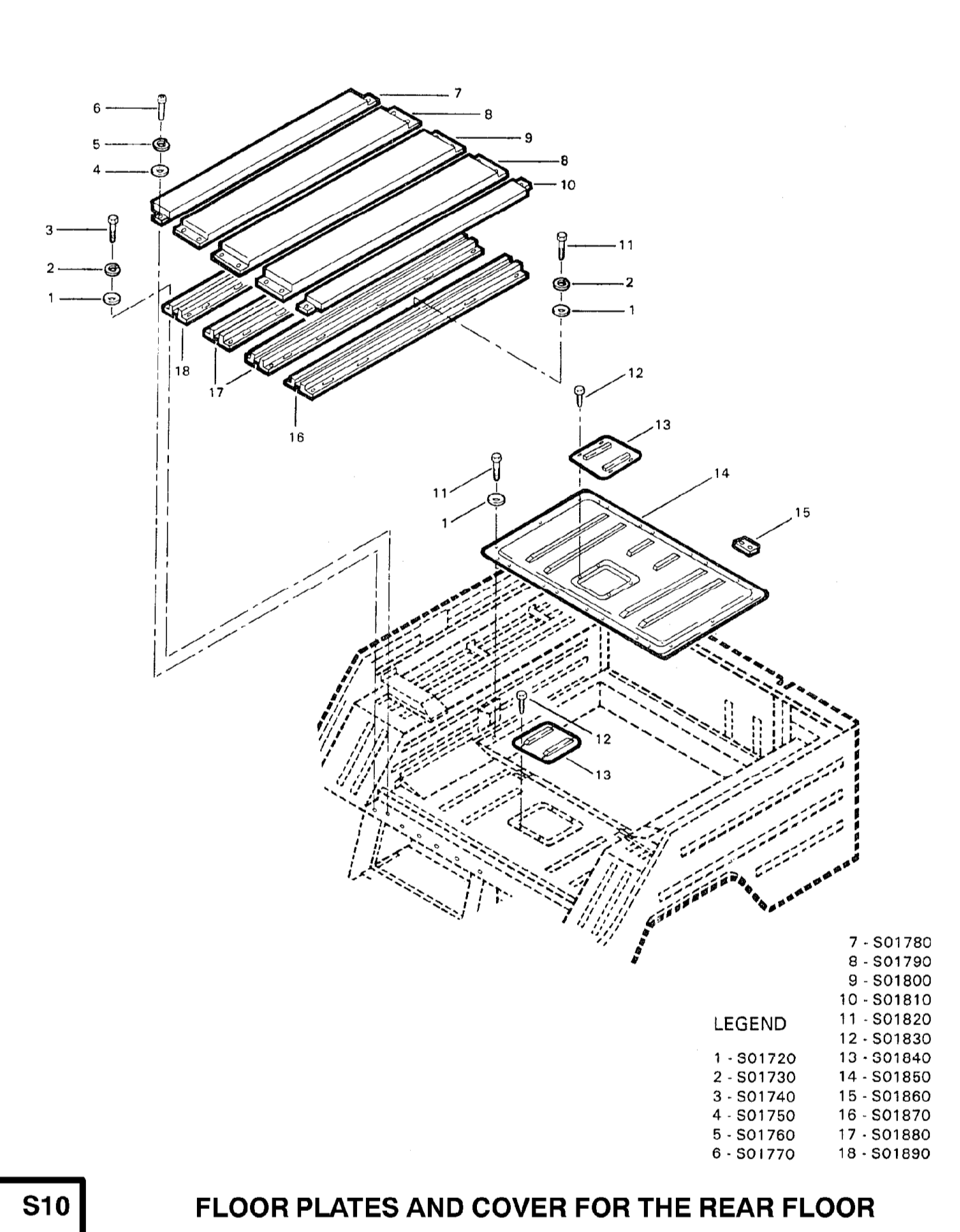

S10 — Floor Plates and Cover for the Rear Floor S10 — Floor Plates and Cover for the Rear Floor
Click image to enlarge.

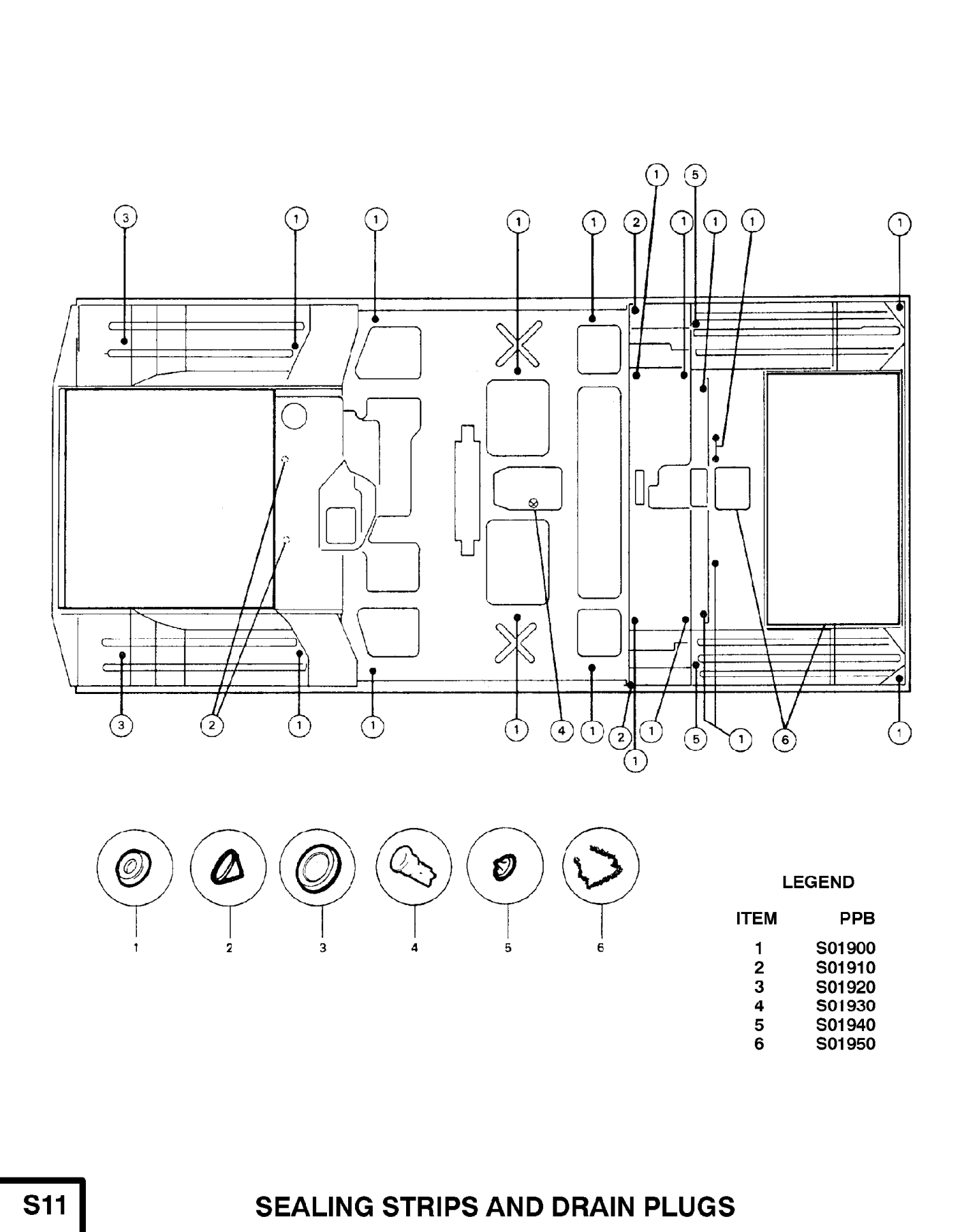

S11 — Sealing Strips and Drain Plugs S11 — Sealing Strips and Drain Plugs
Click image to enlarge.

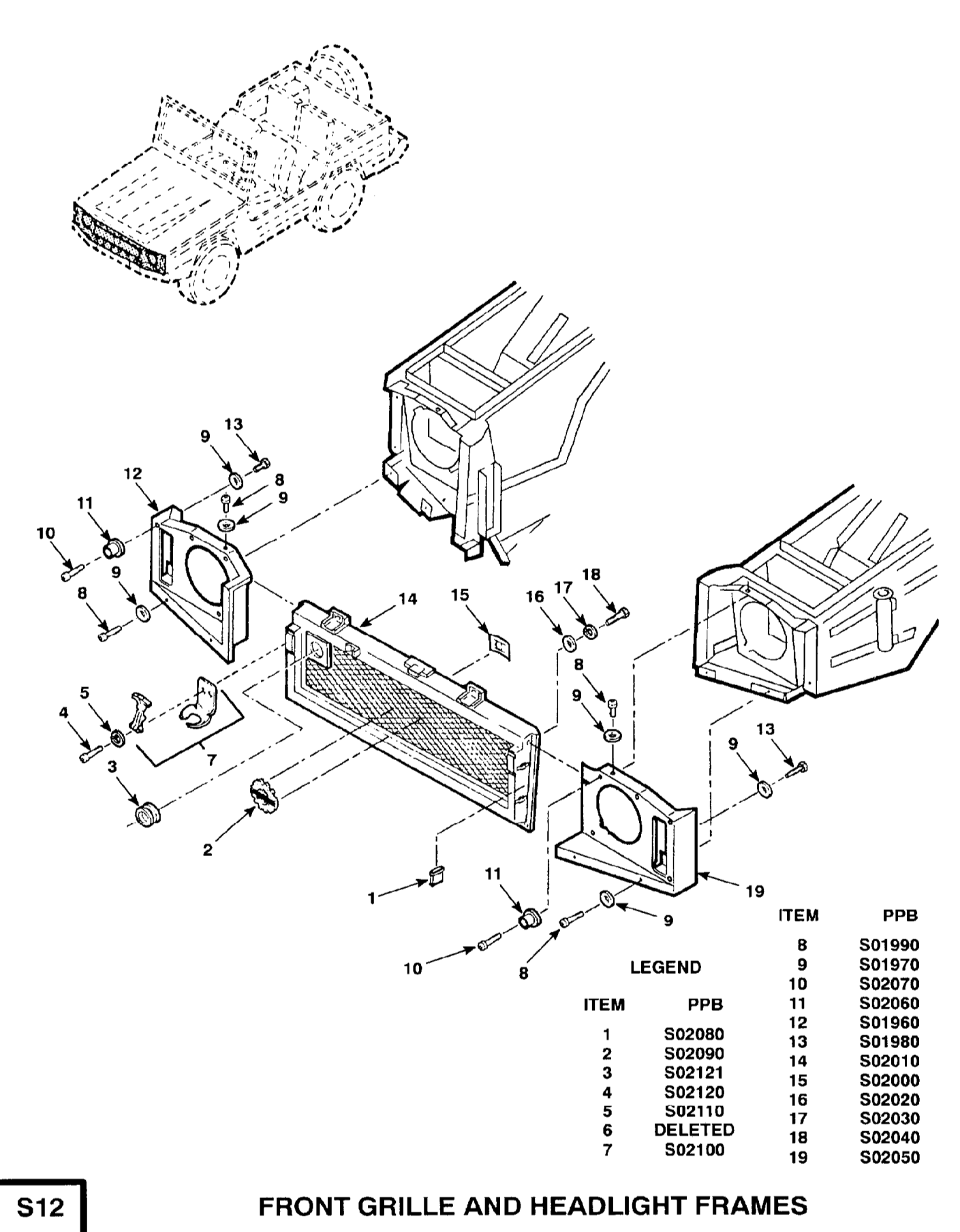

S12 — Front Grille and Headlight Frames S12 — Front Grille and Headlight Frames
Click image to enlarge.

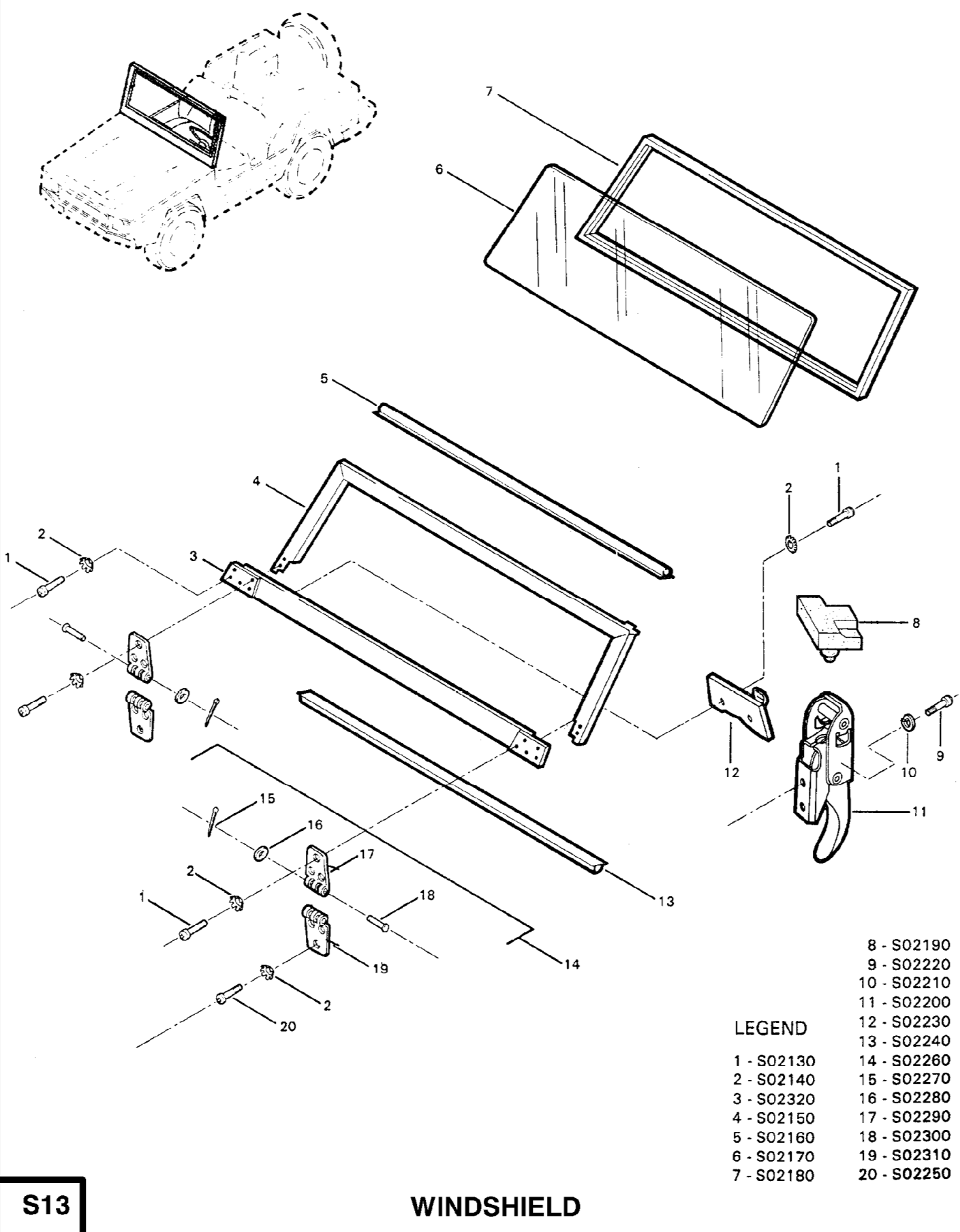

S13 — Windshield S13 — Windshield
Click image to enlarge.

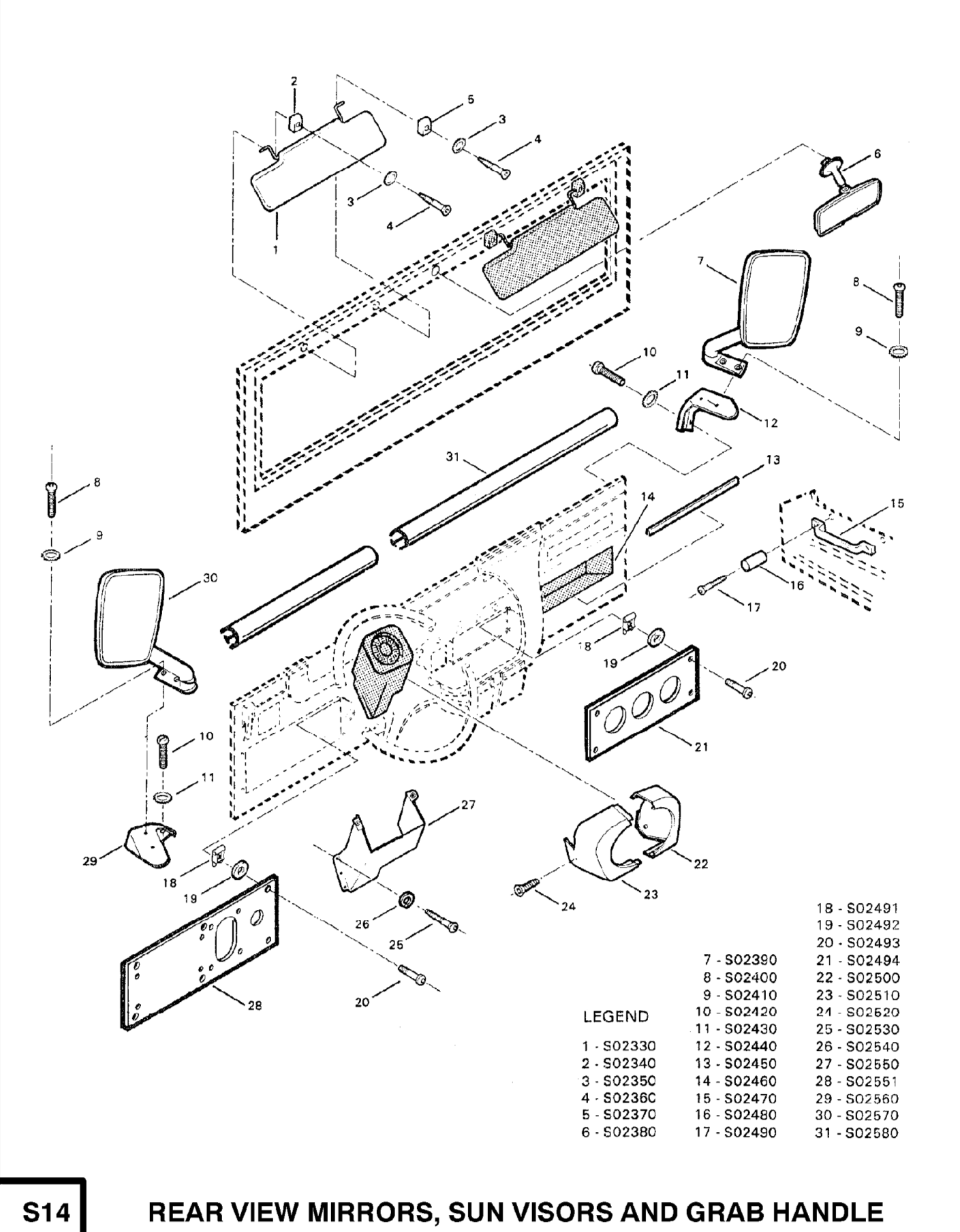

S14 — Rear View Mirrors, Sun Visors and Grab Handle S14 — Rear View Mirrors, Sun Visors and Grab Handle
Click image to enlarge.

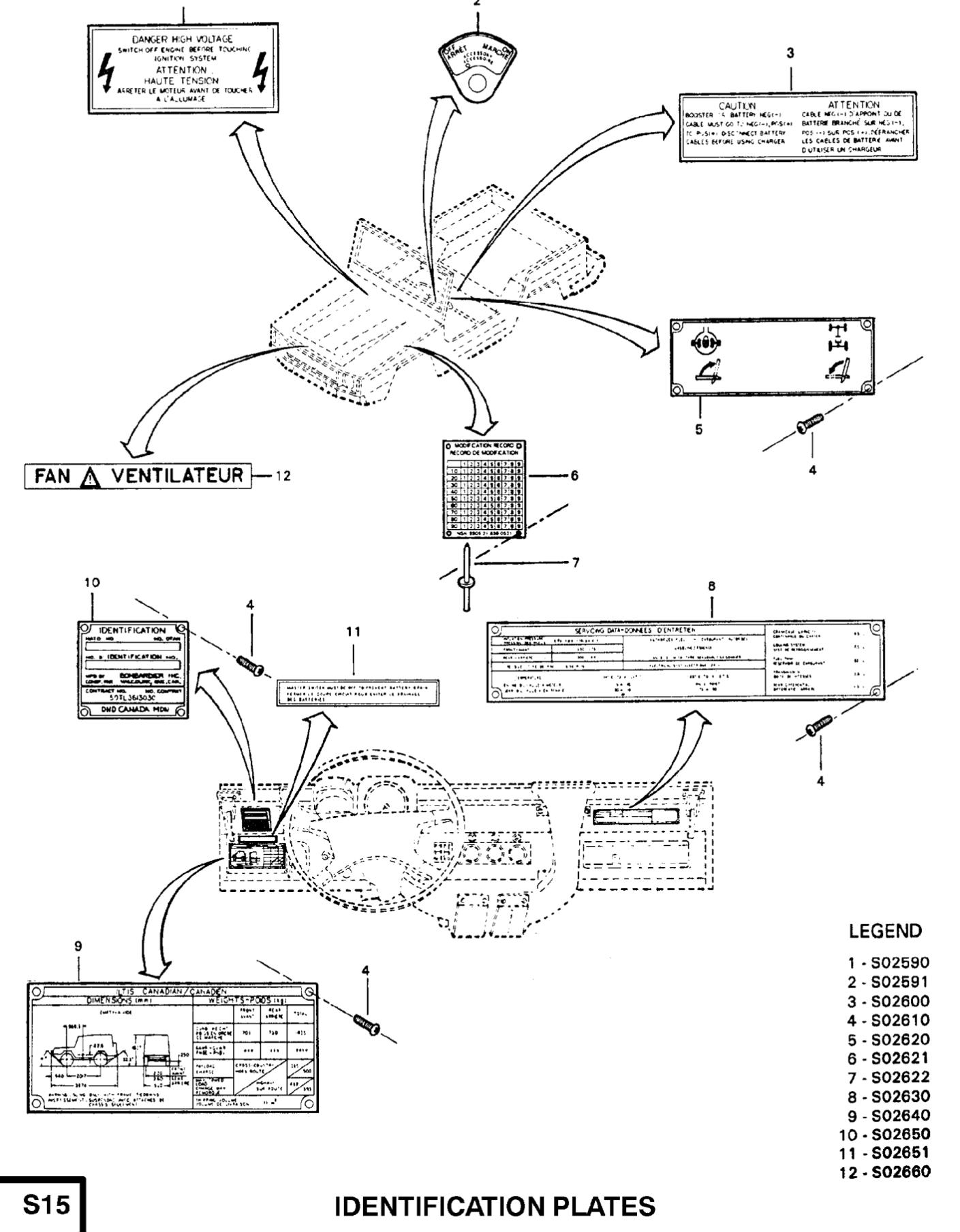

S15 — Identification Plates S15 — Identification Plates
Click image to enlarge.

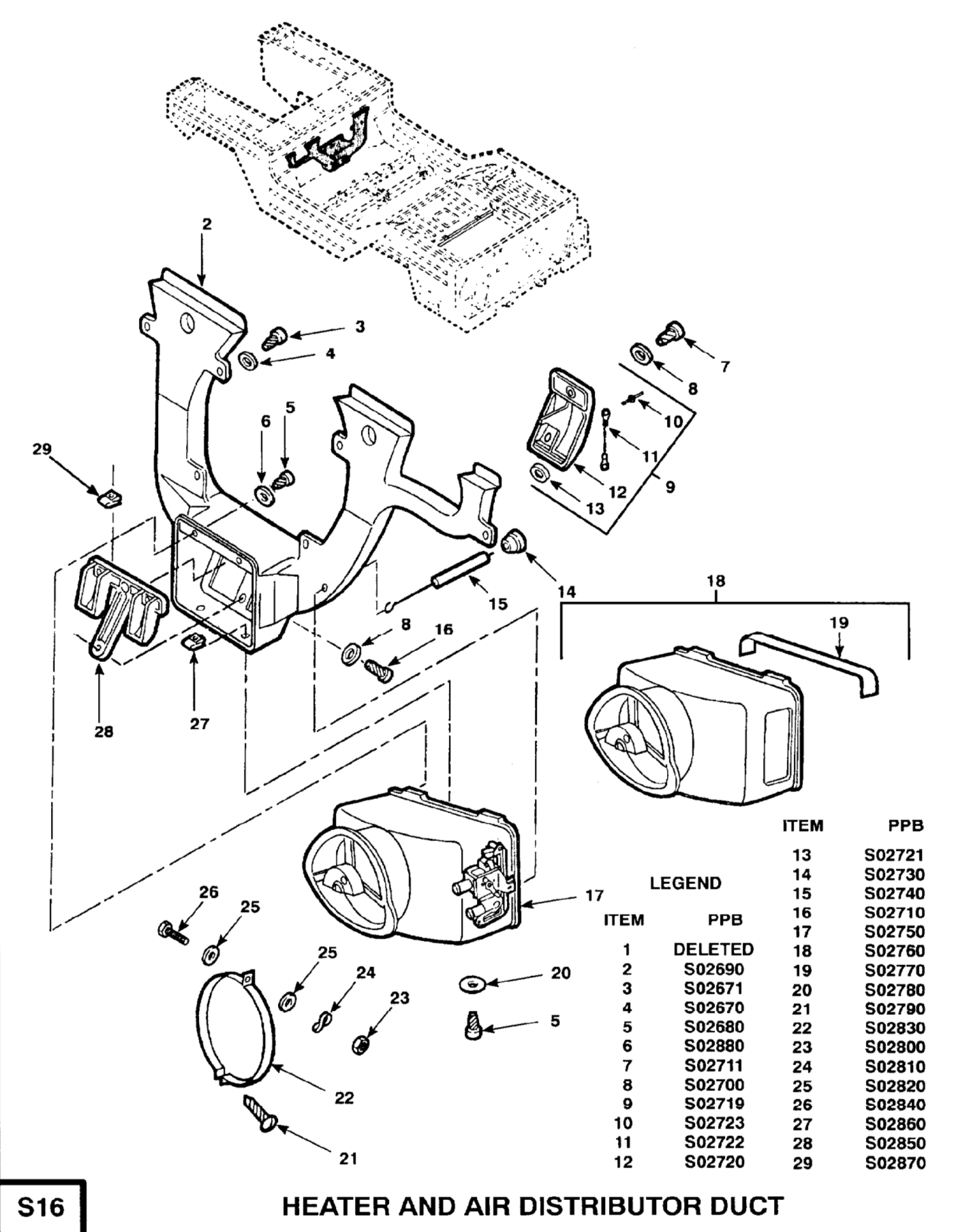

S16 — Heater and Air Distributor Duct S16 — Heater and Air Distributor Duct
Click image to enlarge.

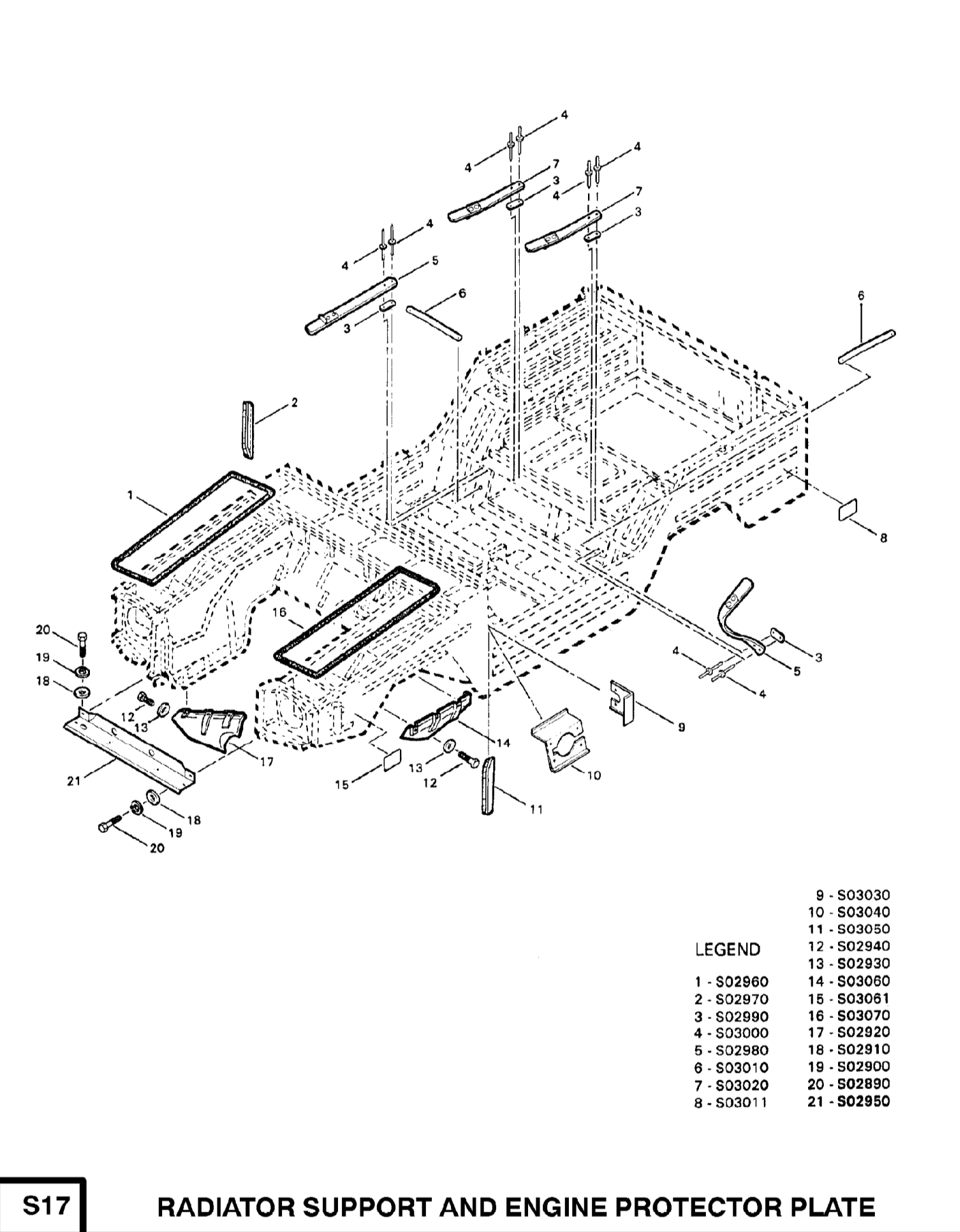

S17 — Radiator Support and Engine Protector Plate S17 — Radiator Support and Engine Protector Plate
Click image to enlarge.

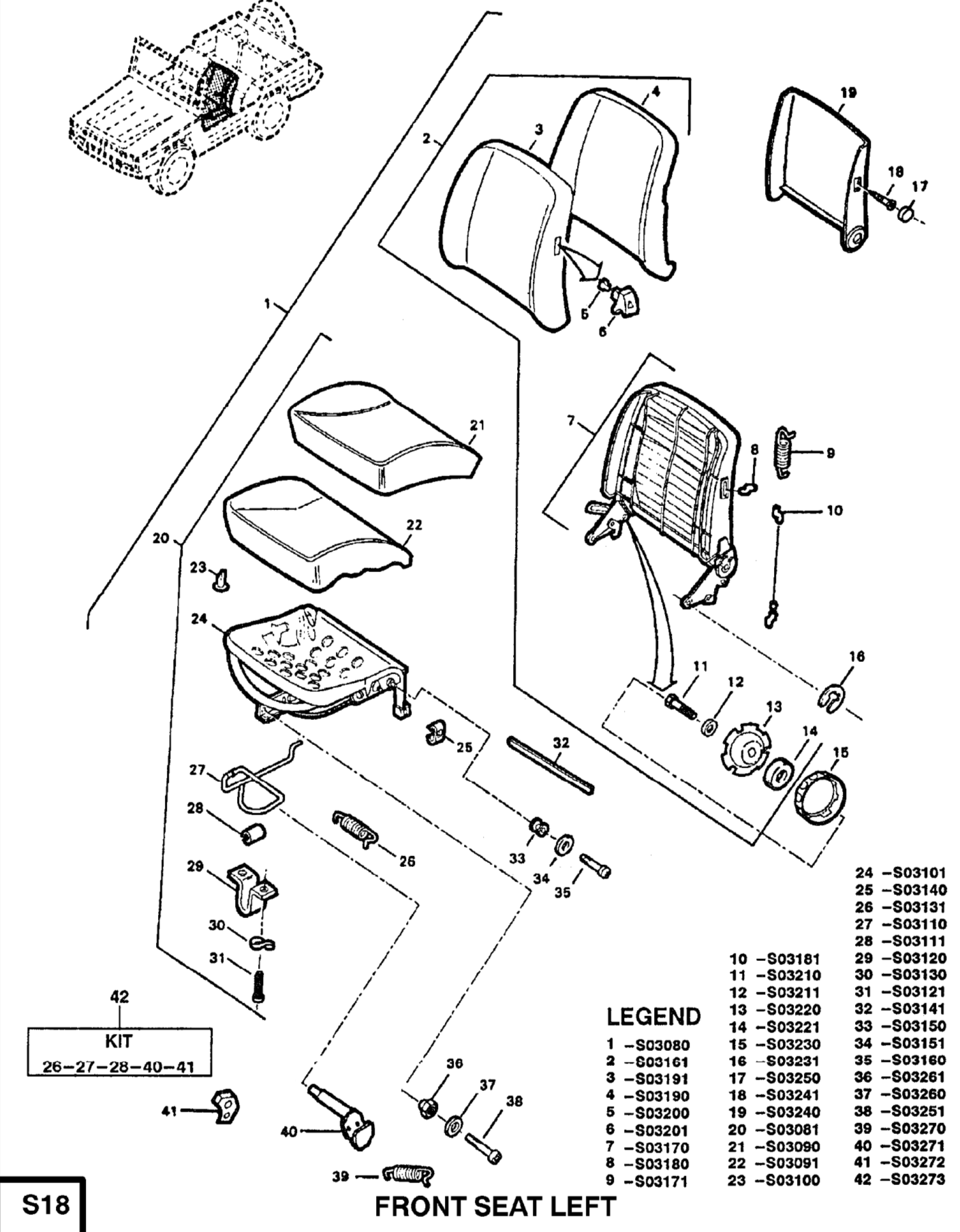

S18 — Front Seat Left S18 — Front Seat Left
Click image to enlarge.

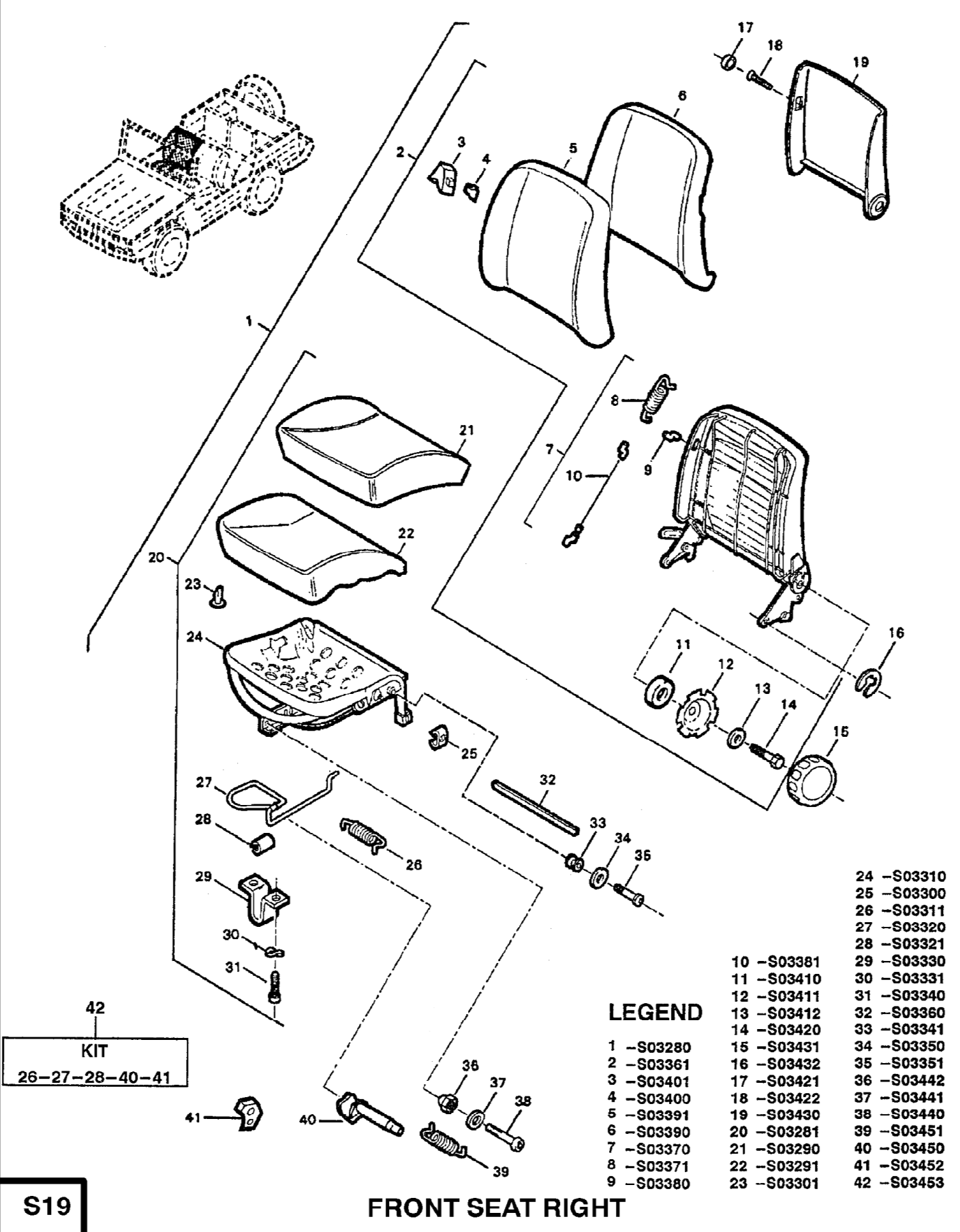

S19 — Front Seat Right S19 — Front Seat Right
Click image to enlarge.

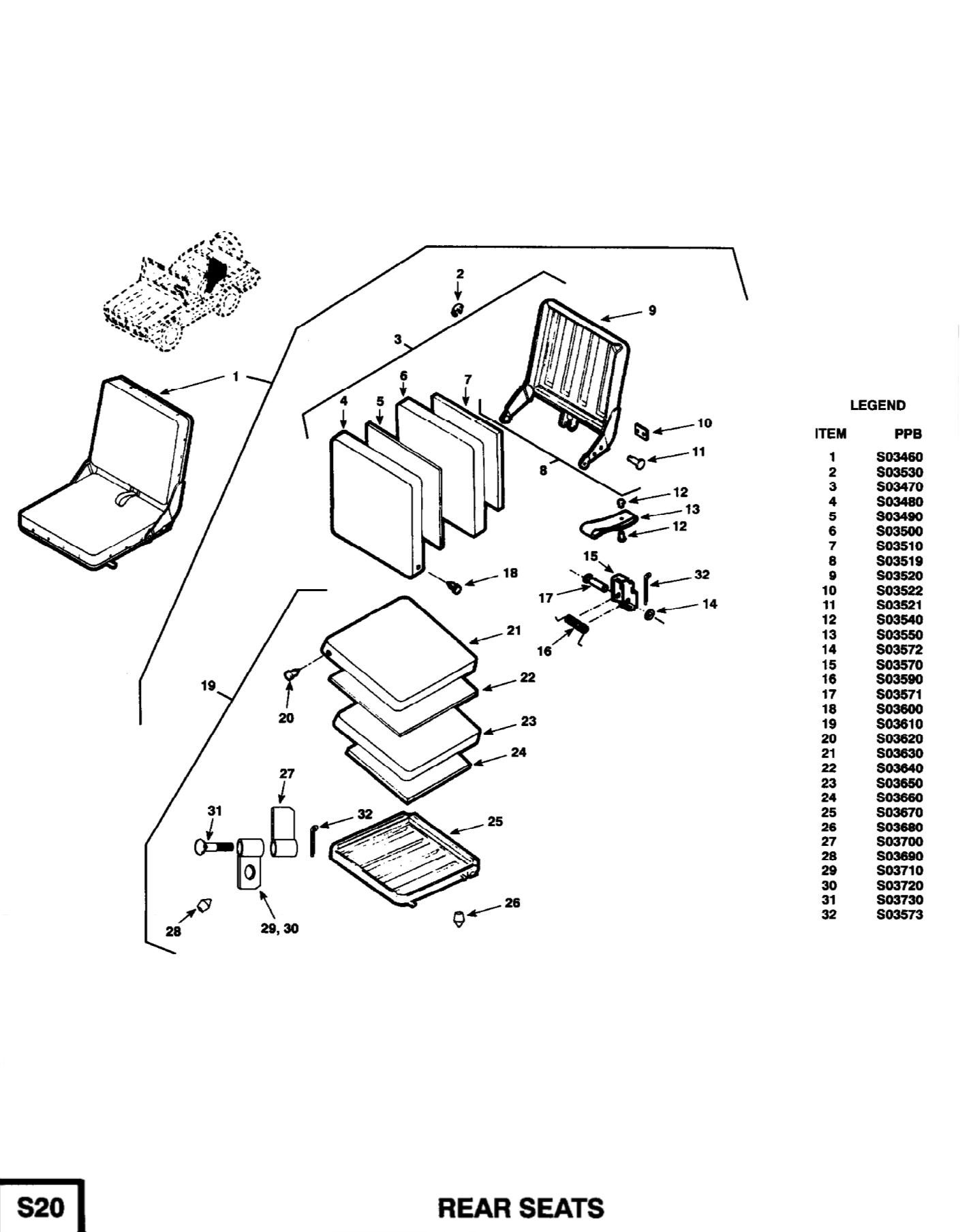

S20 — Rear Seats S20 — Rear Seats
Click image to enlarge.

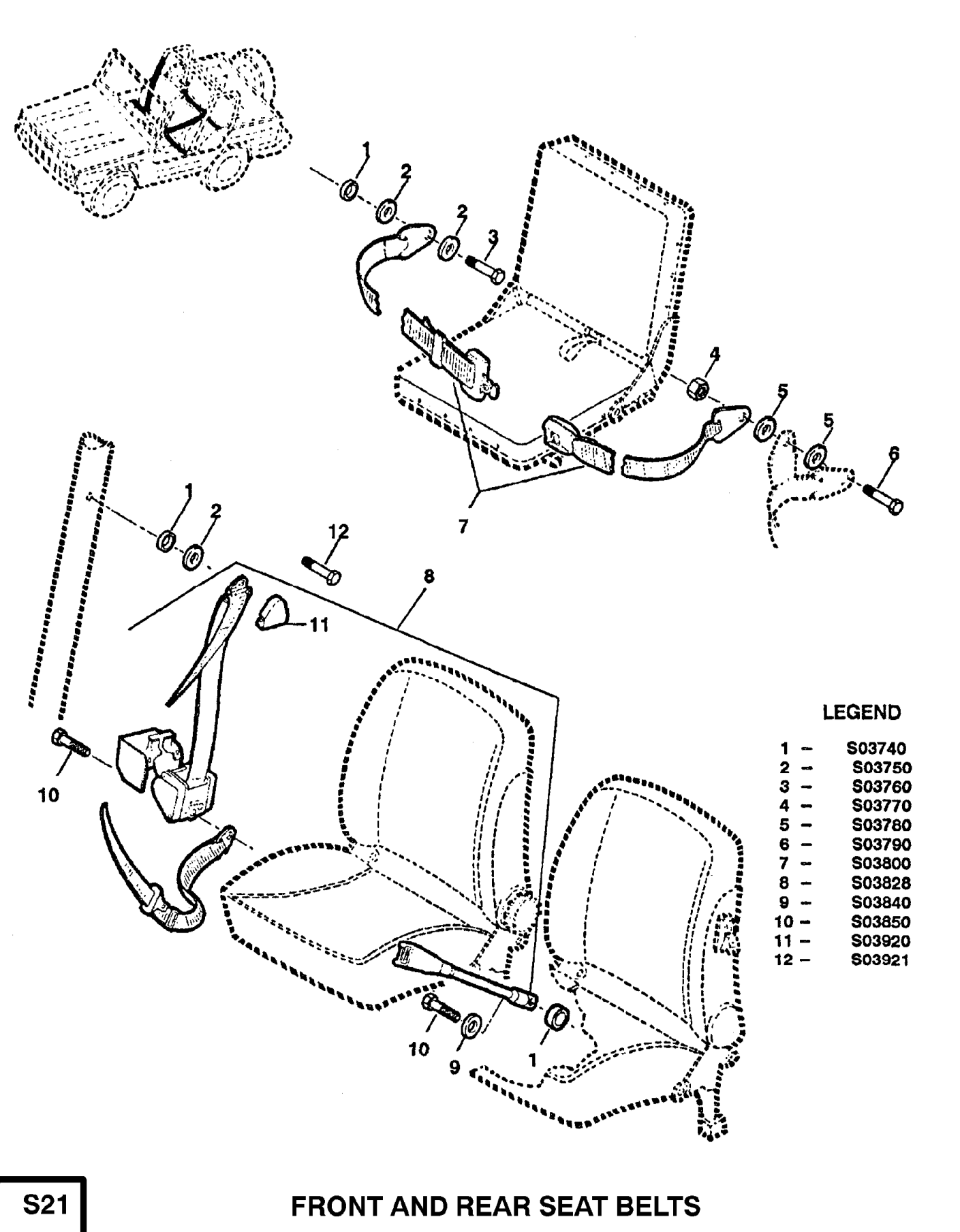

S21 — Front and Rear Seat Belts S21 — Front and Rear Seat Belts
Click image to enlarge.

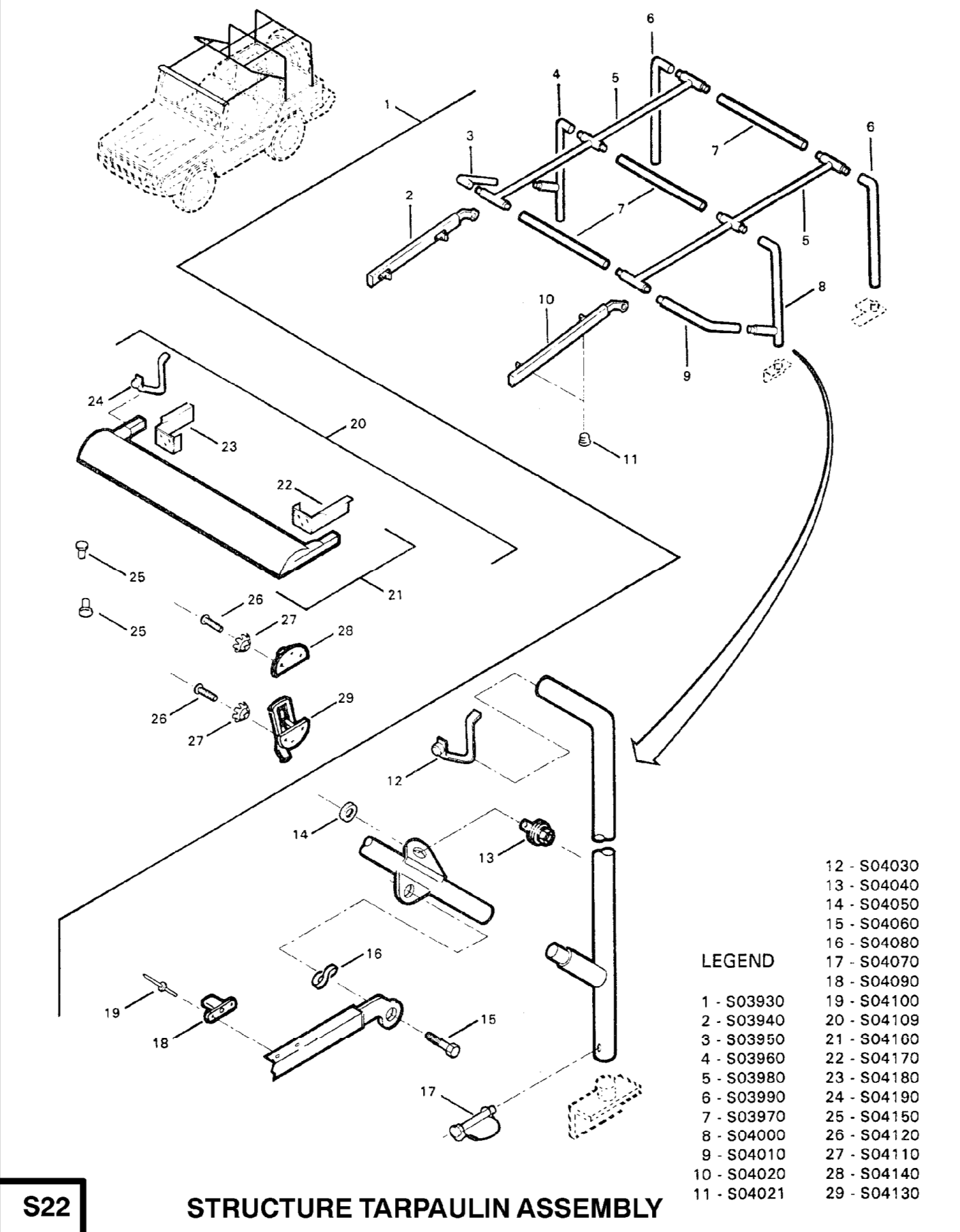

S22 — Structure Tarpaulin Assembly S22 — Structure Tarpaulin Assembly
Click image to enlarge.

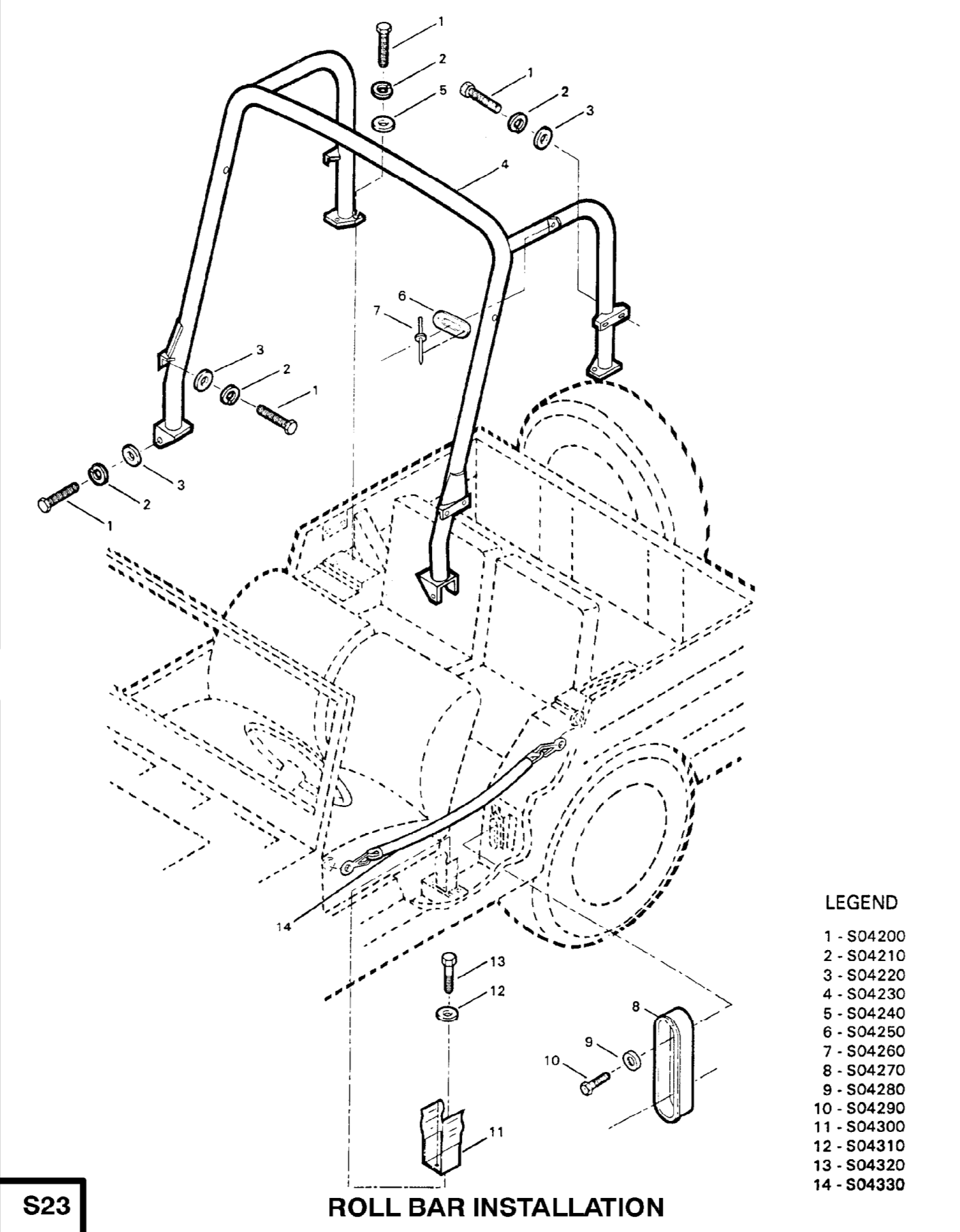

S23 — Roll Bar Installation S23 — Roll Bar Installation
Click image to enlarge.

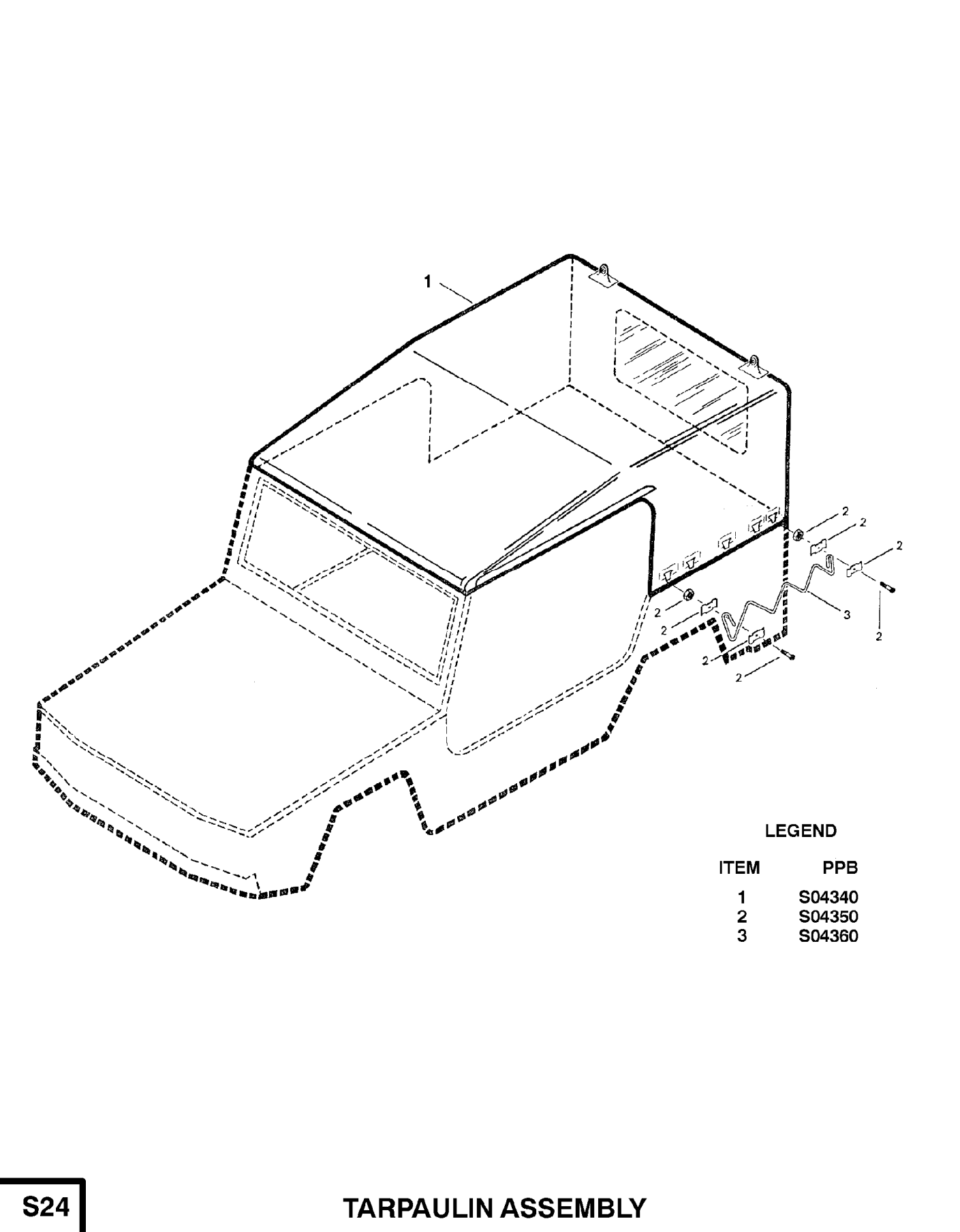

S24 — Tarpaulin Assembly S24 — Tarpaulin Assembly
Click image to enlarge.

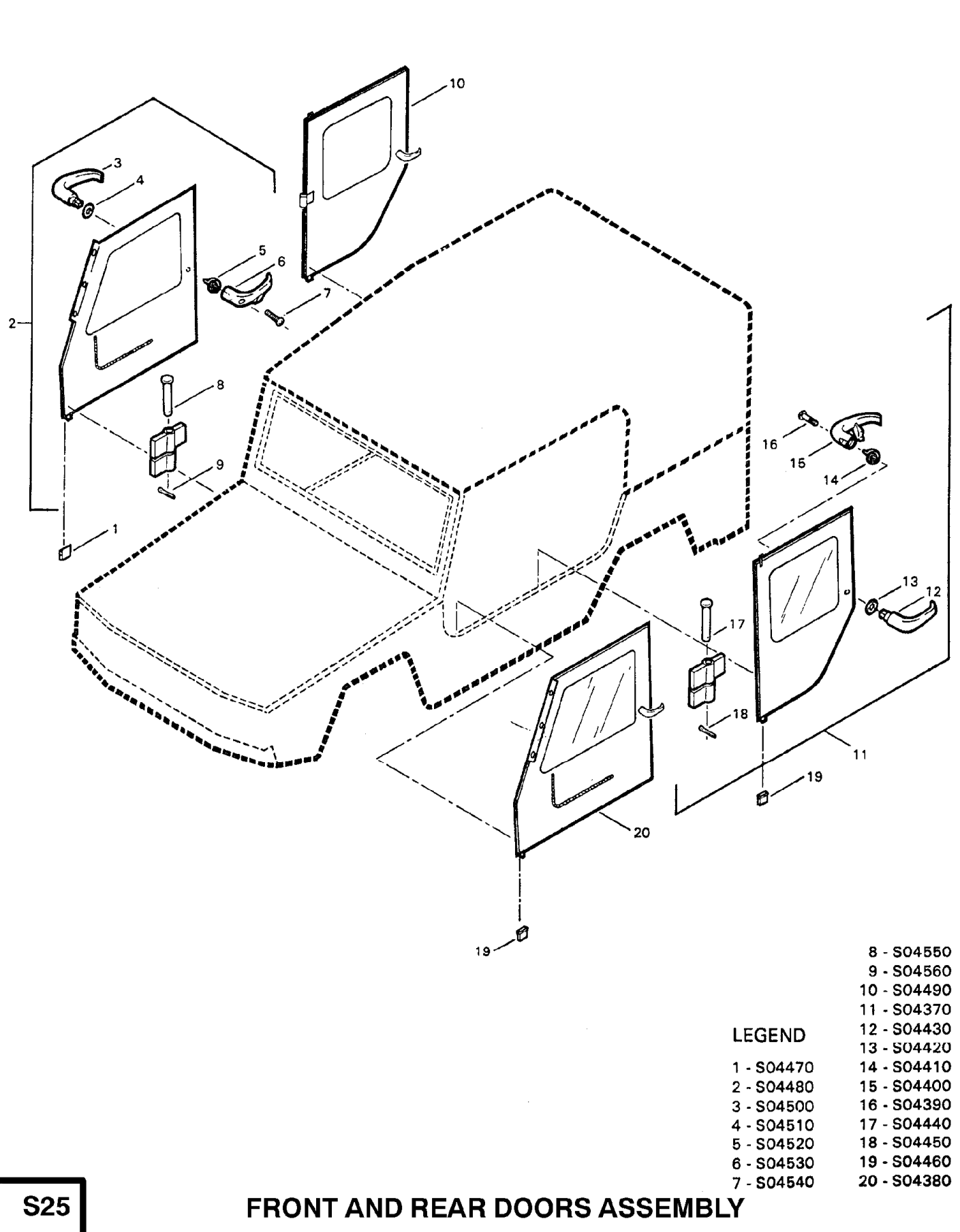

S25 — Front and Rear Doors Assembly S25 — Front and Rear Doors Assembly
Click image to enlarge.

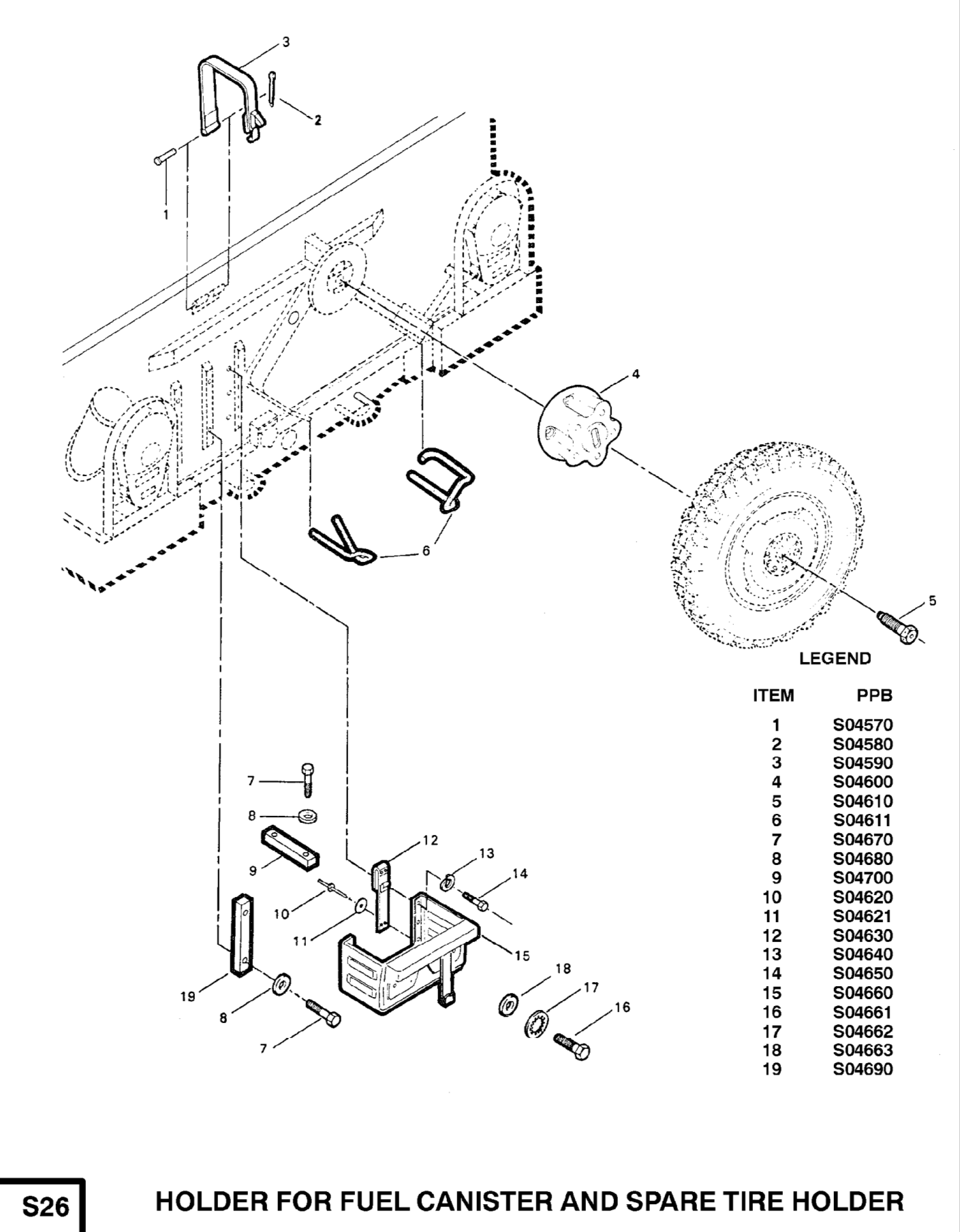

S26 — Holder for Fuel Canister and Spare Tire Holder S26 — Holder for Fuel Canister and Spare Tire Holder
Click image to enlarge.

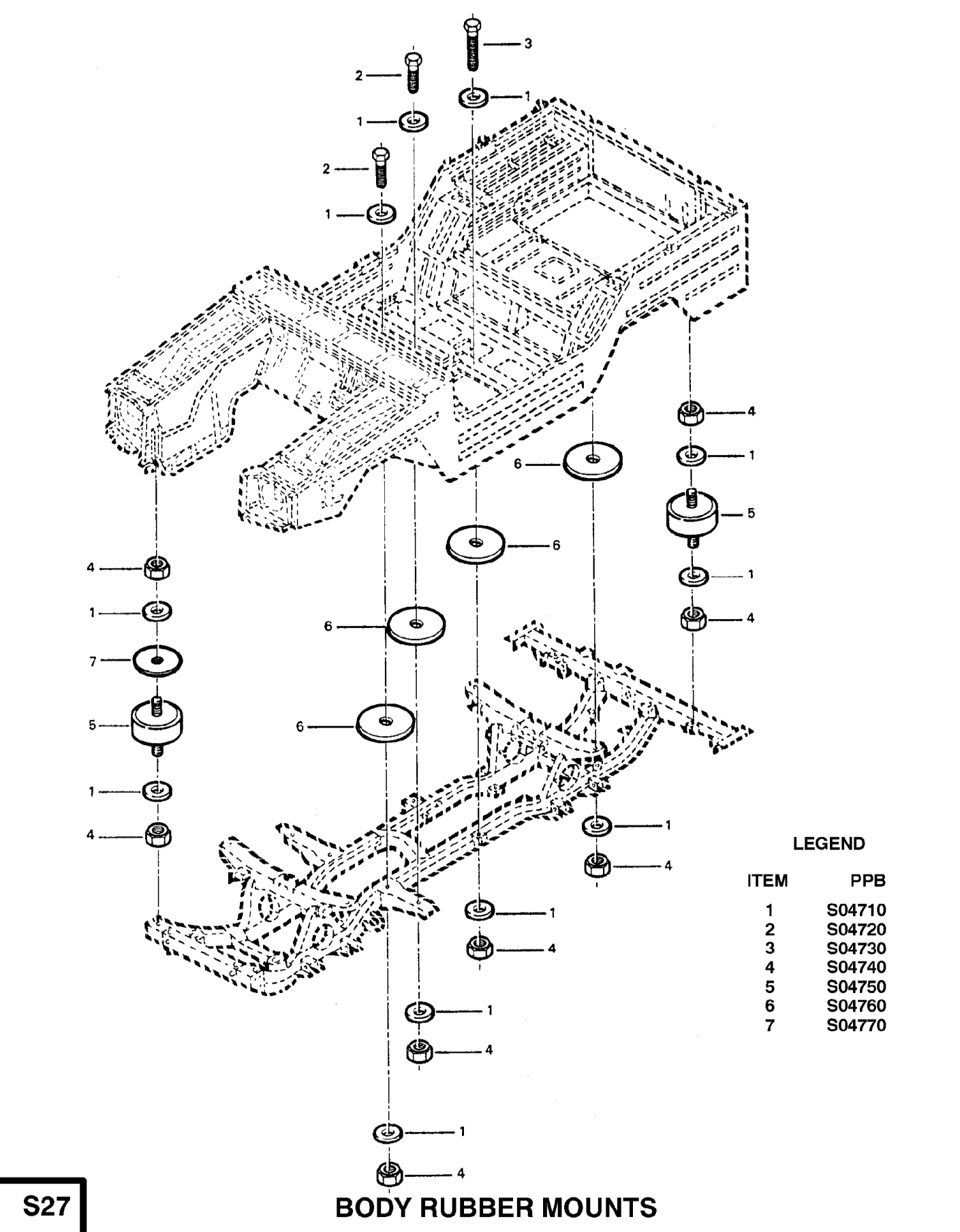

S27 — Body Rubber Mounts S27 — Body Rubber Mounts
Click image to enlarge.

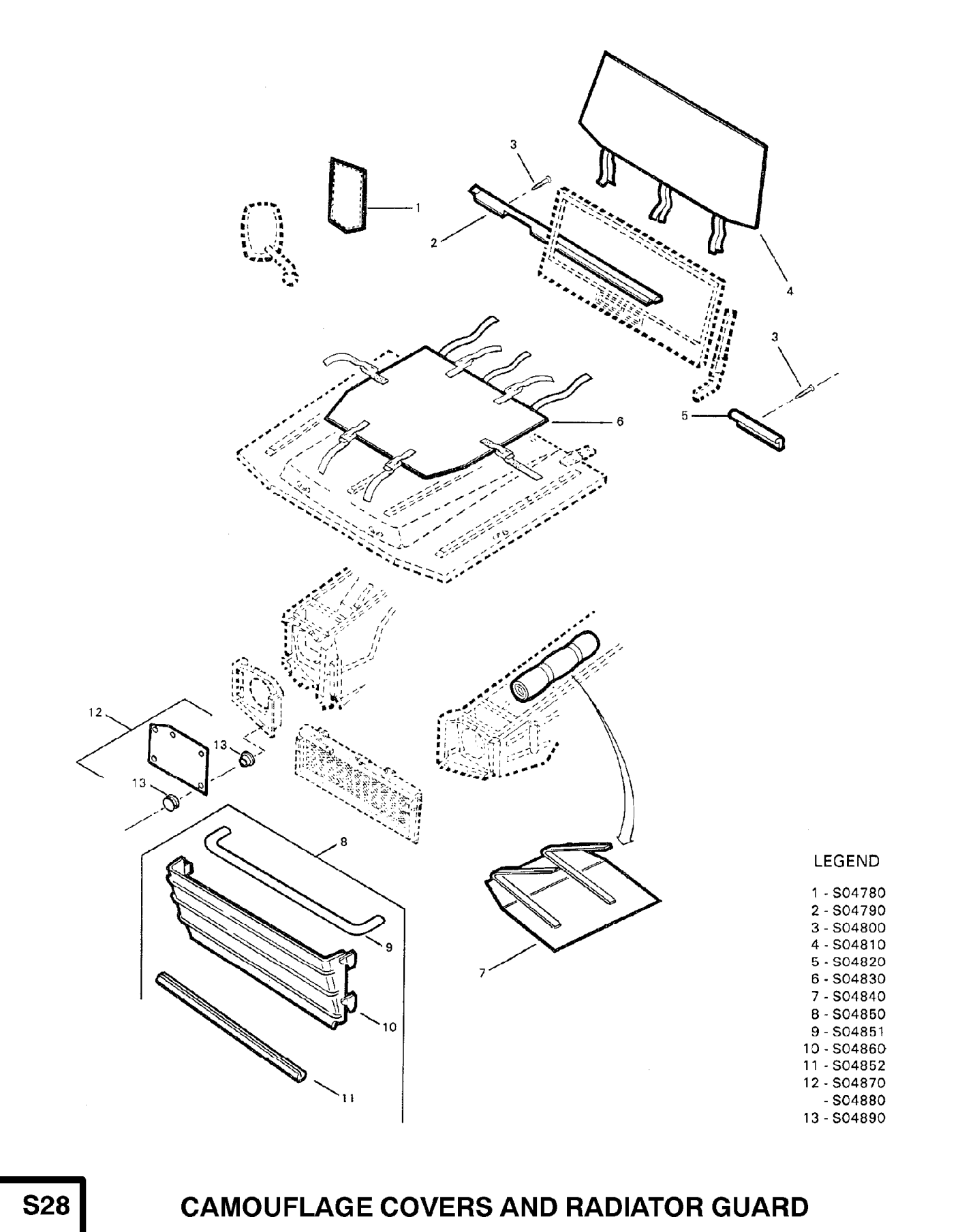

S28 — Camouflage Covers and Radiator Guard S28 — Camouflage Covers and Radiator Guard
Click image to enlarge.

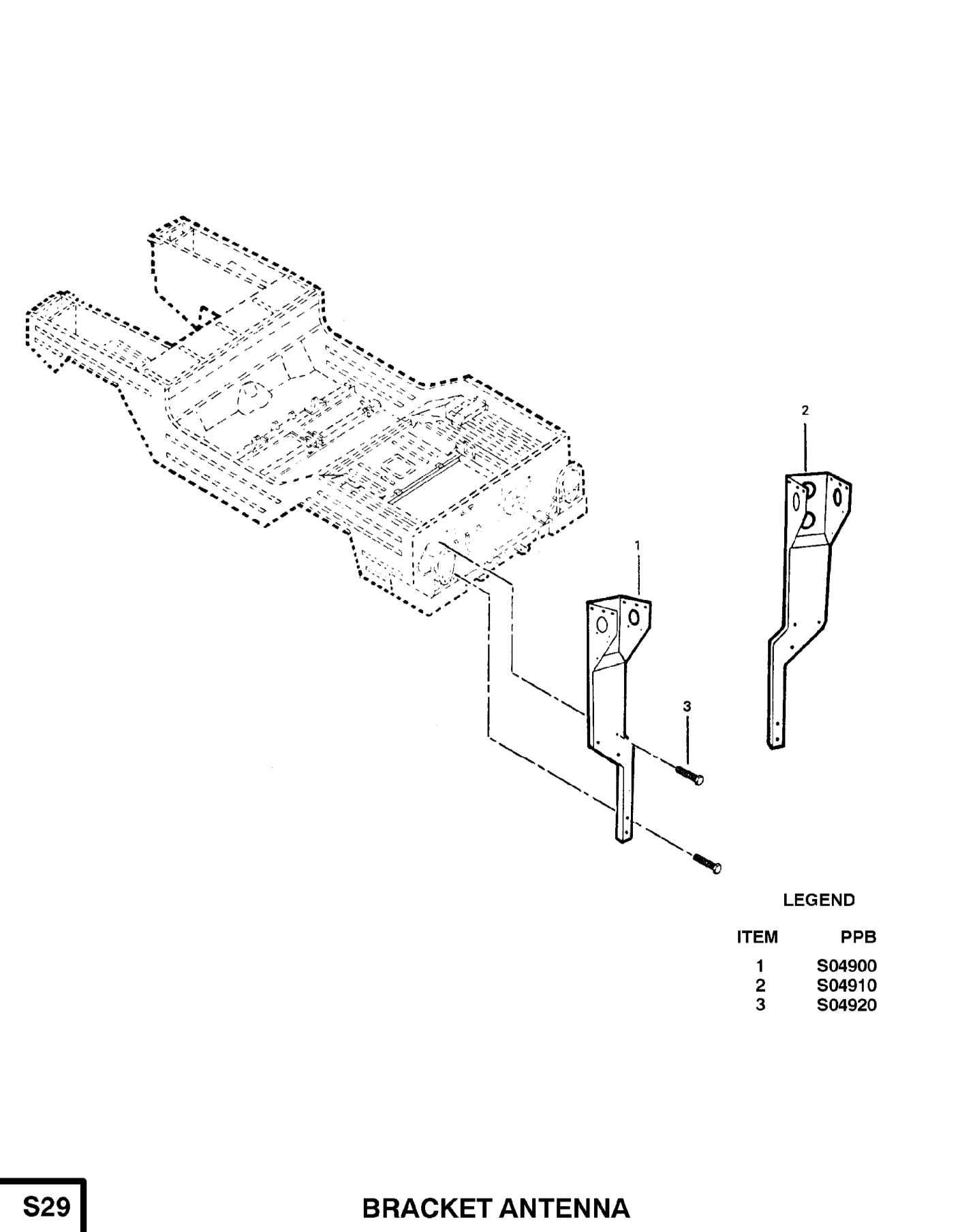

S29 — Bracket Antenna S29 — Bracket Antenna
Click image to enlarge.

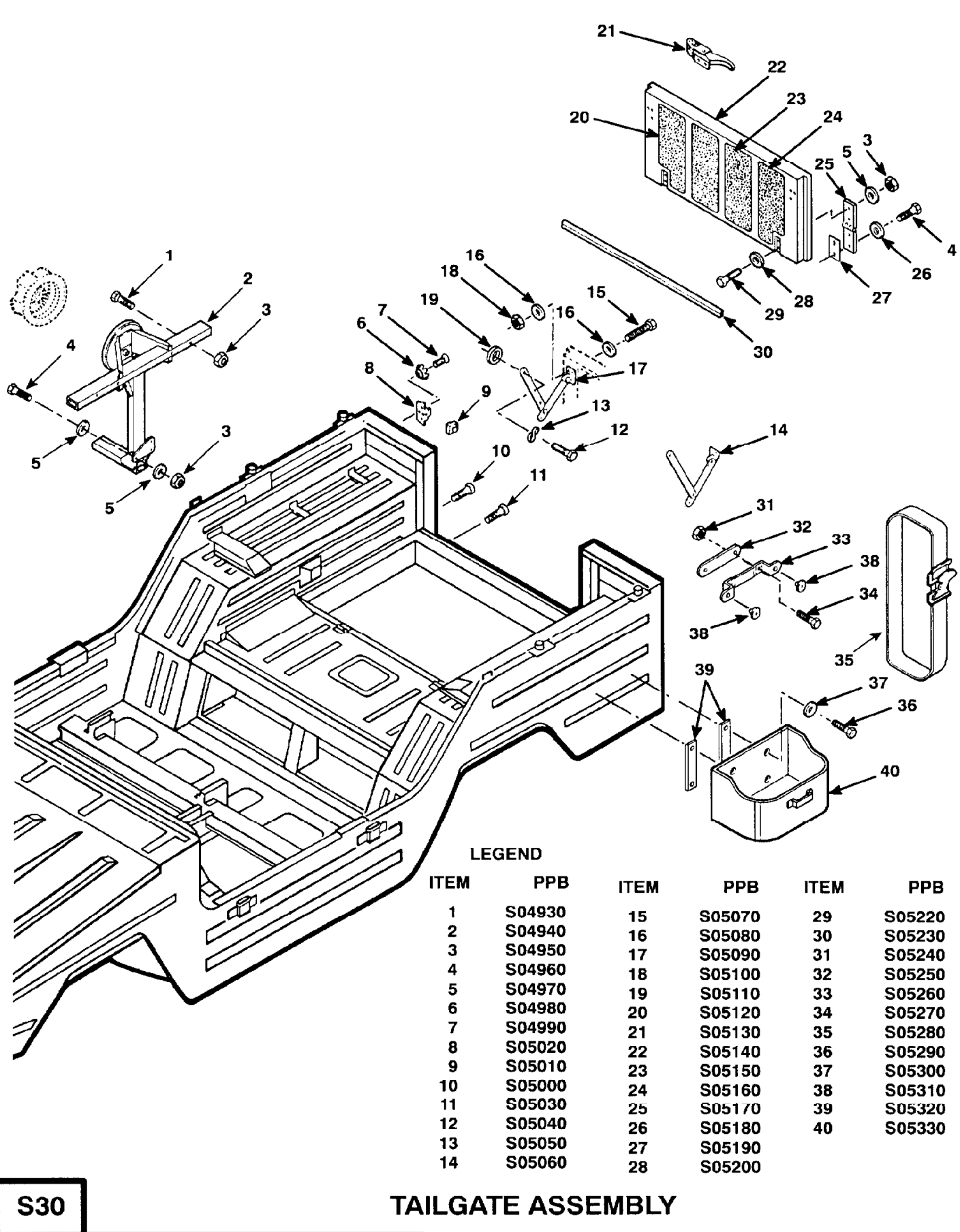

S30 — Tailgate Assembly S30 — Tailgate Assembly
Click image to enlarge.

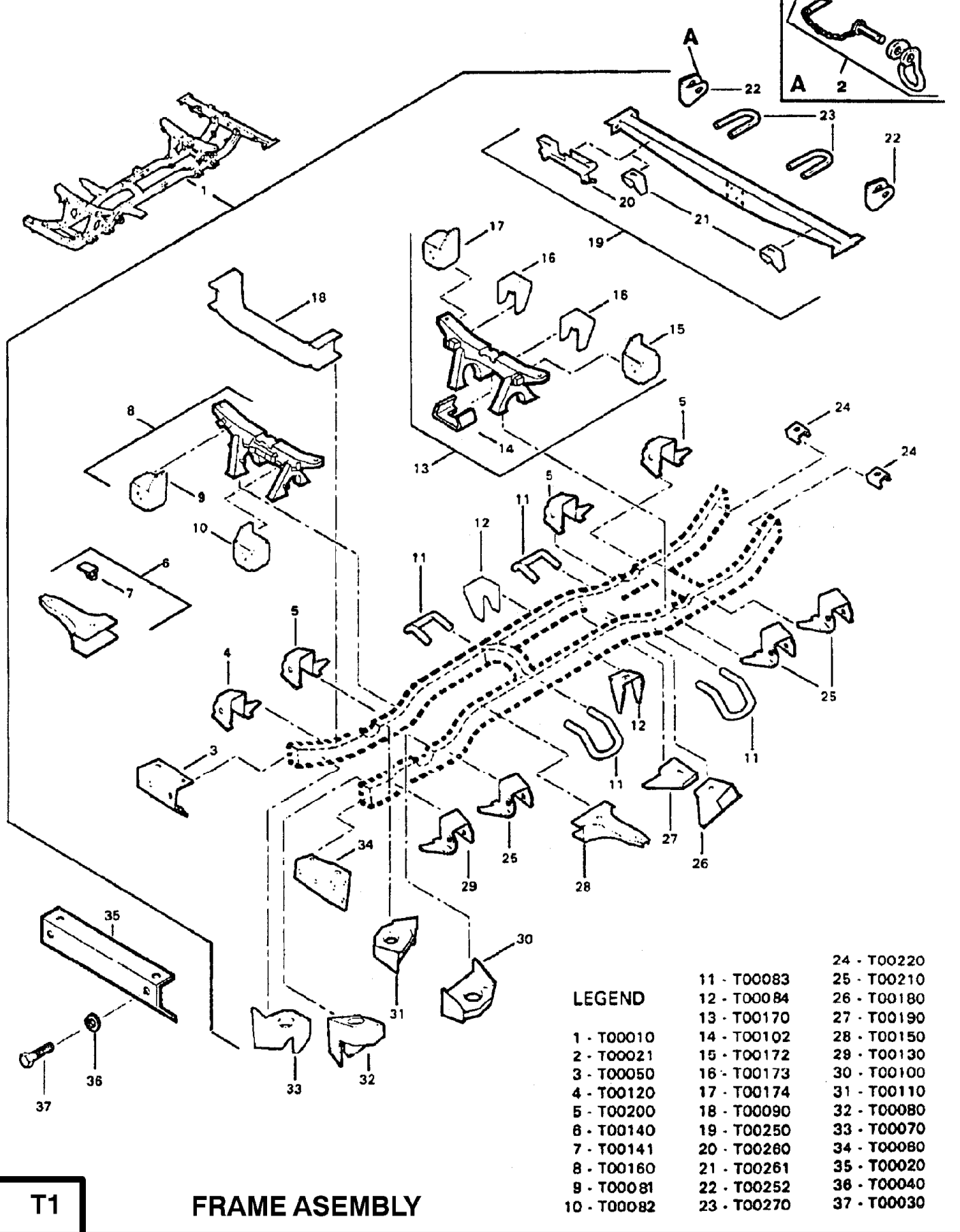

T1 — Frame Assembly T1 — Frame Assembly
Click image to enlarge.

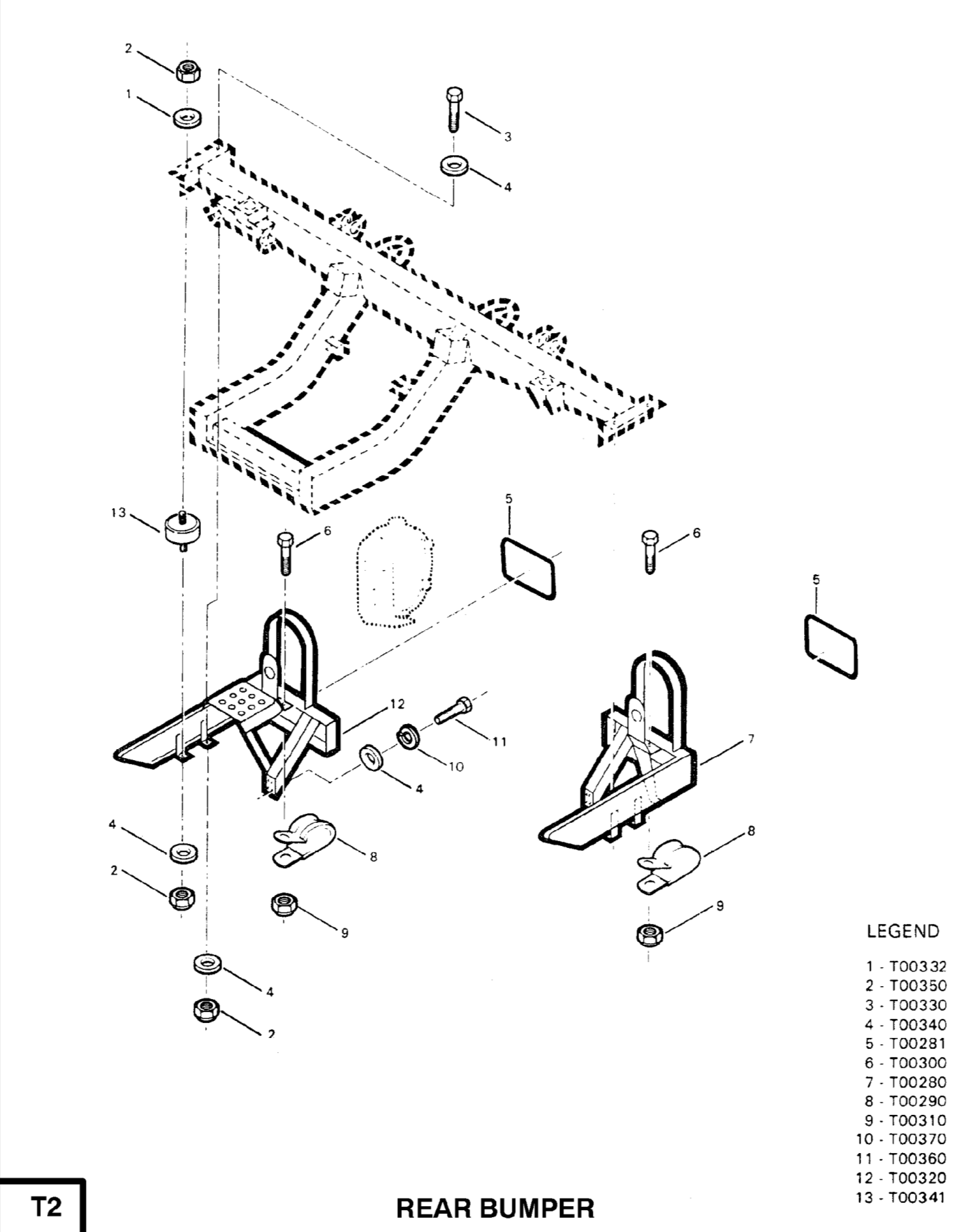

T2 — Rear Bumper T2 — Rear Bumper
Click image to enlarge.

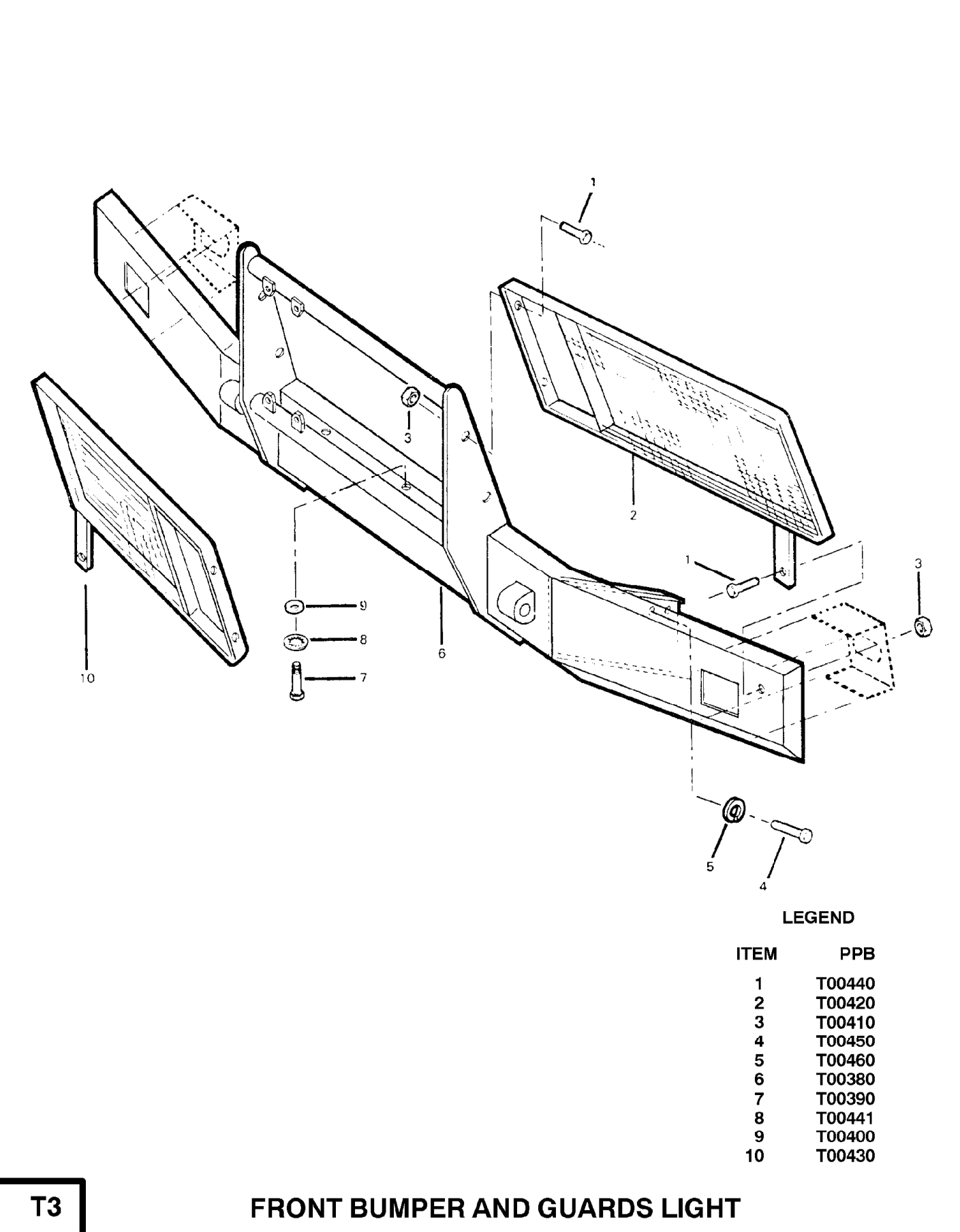

T3 — Front Bumper and Guards Light T3 — Front Bumper and Guards Light
Click image to enlarge.

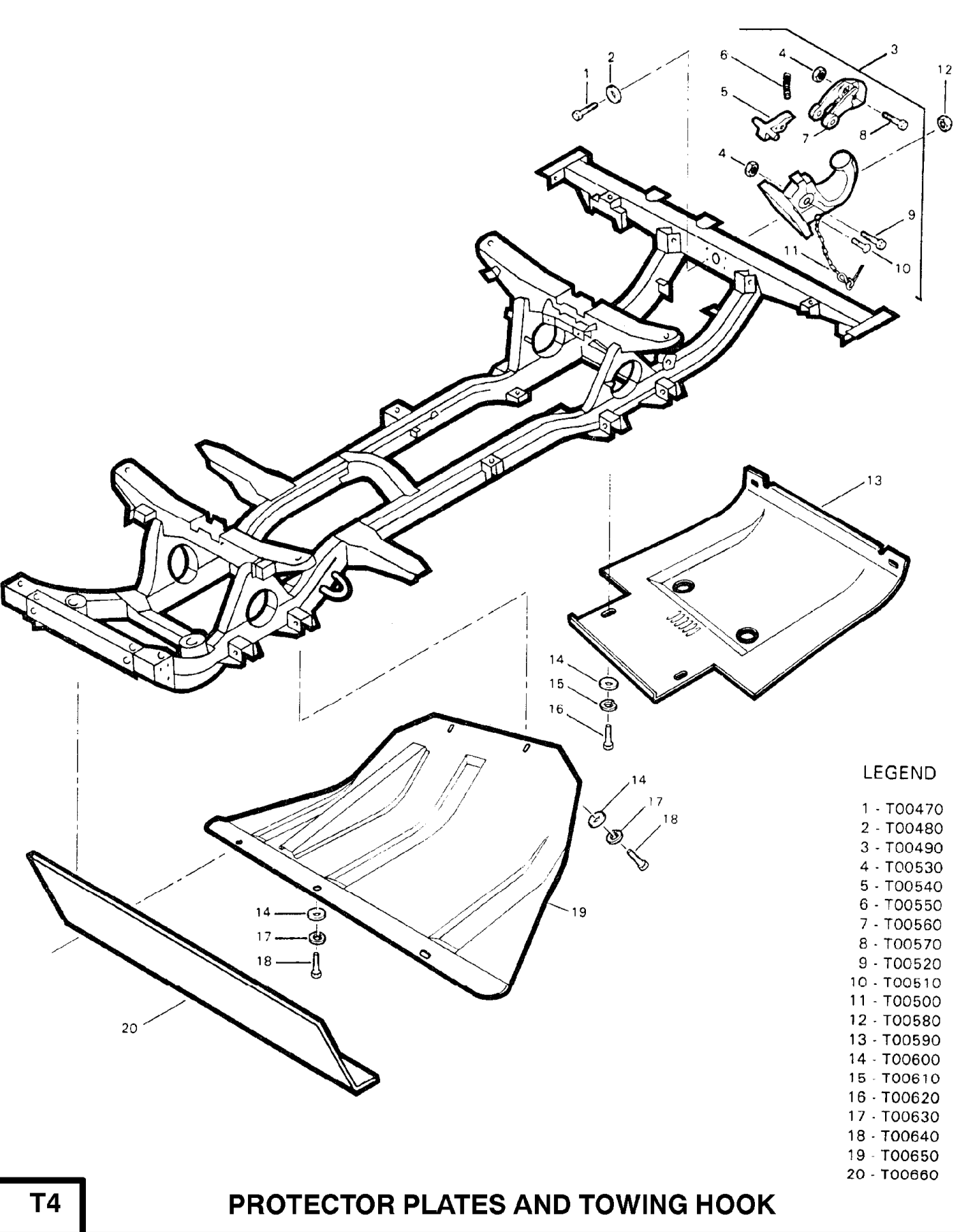

T4 — Protector Plates and Towing Hook T4 — Protector Plates and Towing Hook
Click image to enlarge.

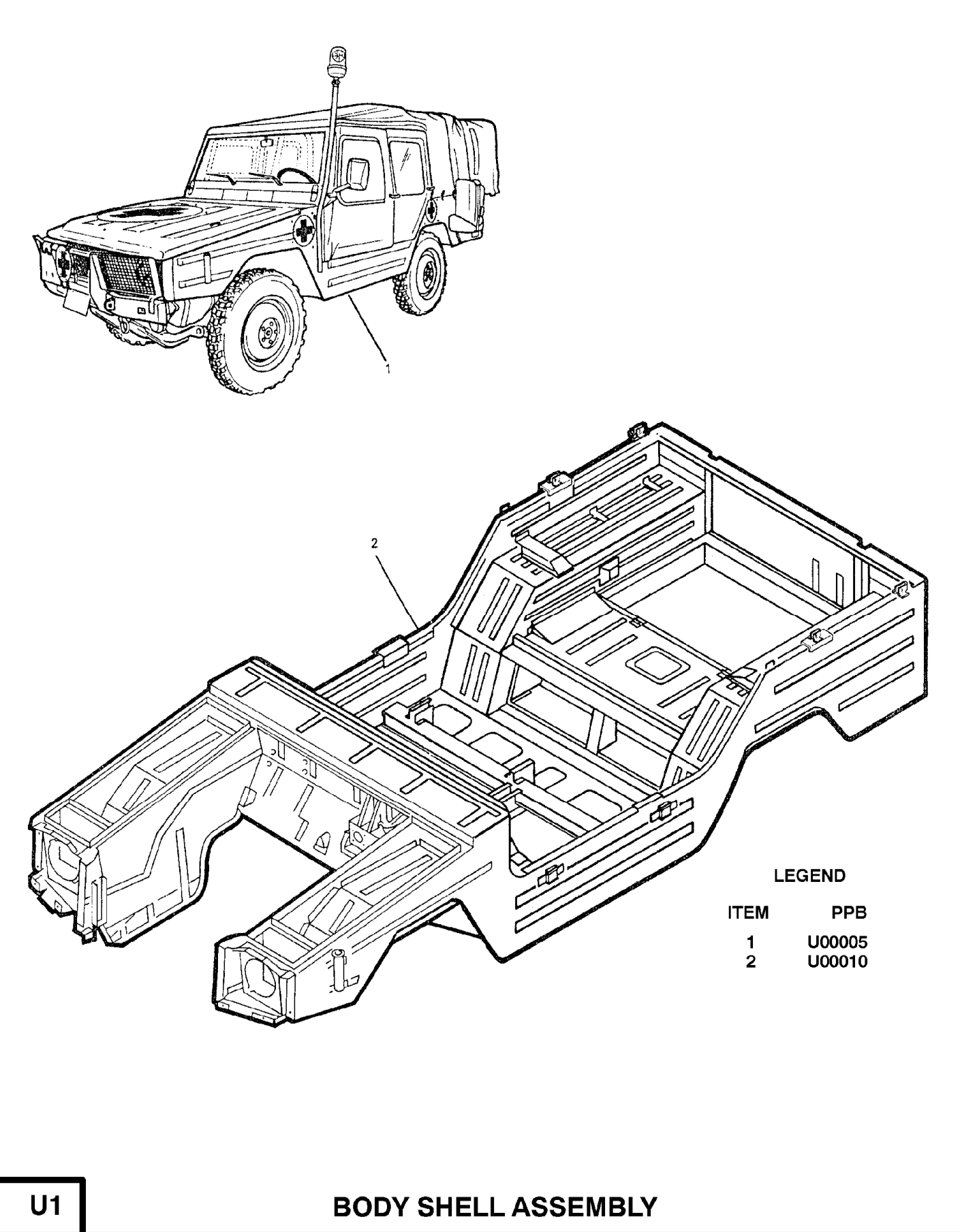

U1 — Body Shell Assembly U1 — Body Shell Assembly
Click image to enlarge.

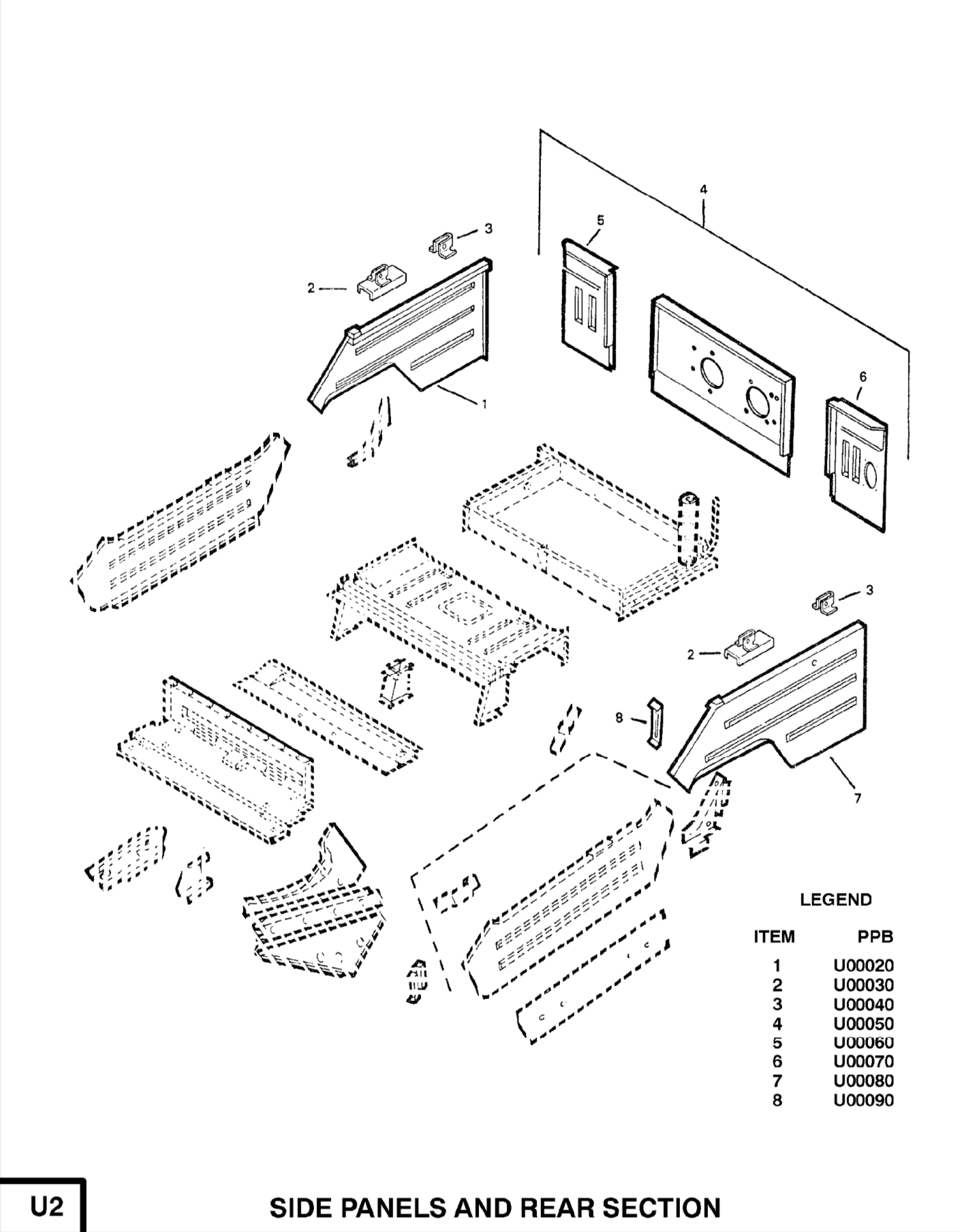

U2 — Side Panels and Rear Section U2 — Side Panels and Rear Section
Click image to enlarge.

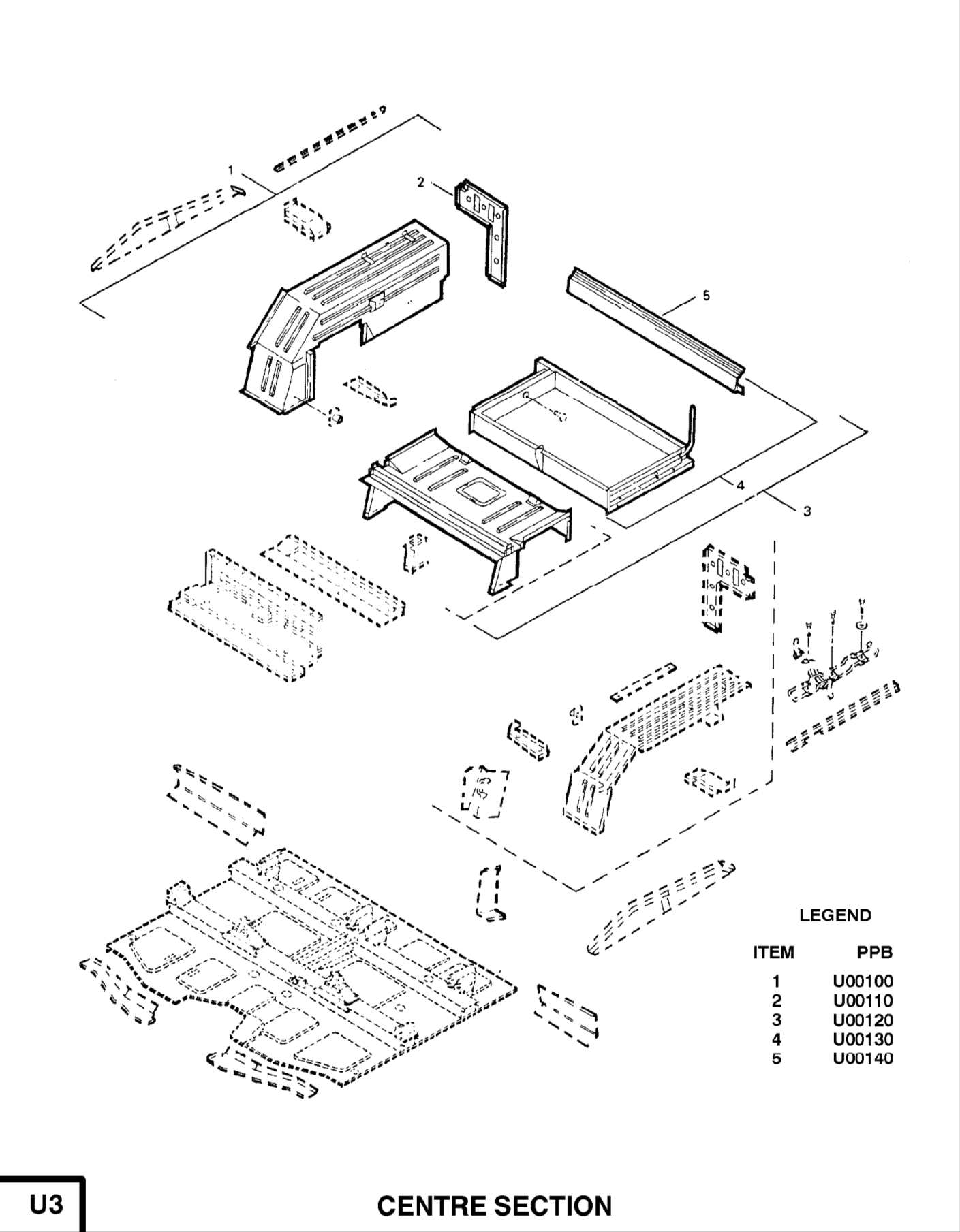

U3 — Centre Section U3 — Centre Section
Click image to enlarge.

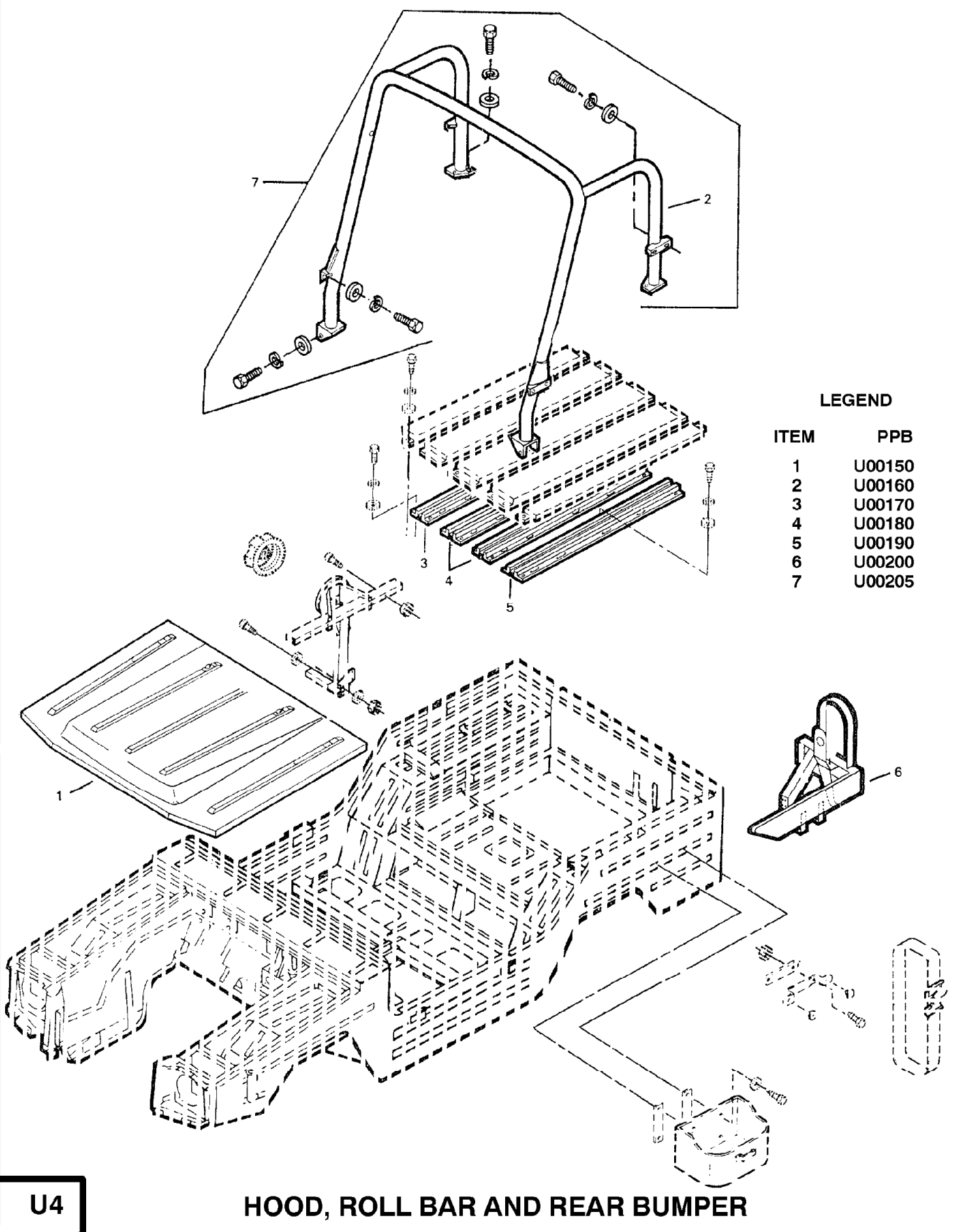

U4 — Hood, Roll Bar and Rear Bumper U4 — Hood, Roll Bar and Rear Bumper
Click image to enlarge.

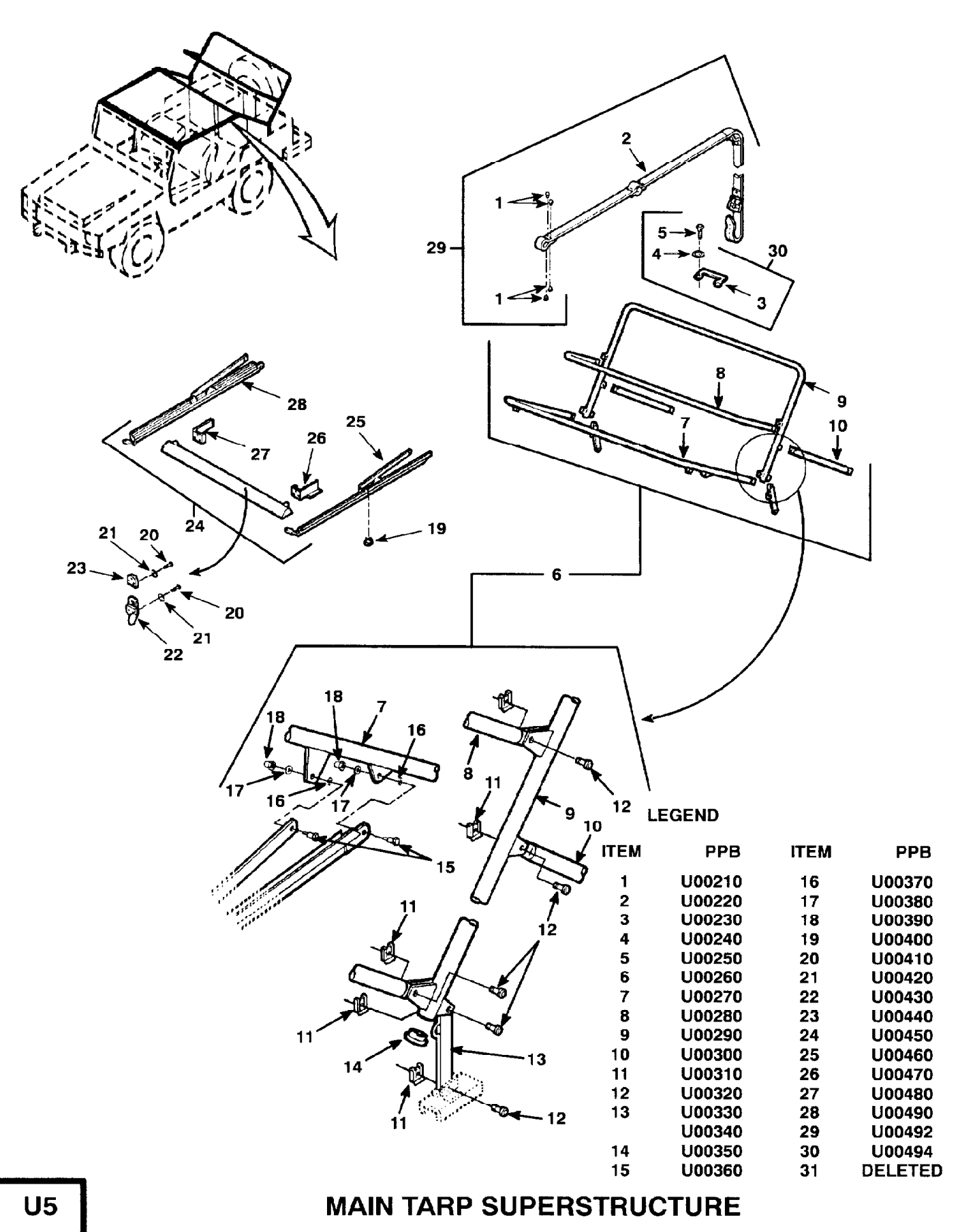

U5 — Main Tarp Superstructure U5 — Main Tarp Superstructure
Click image to enlarge.

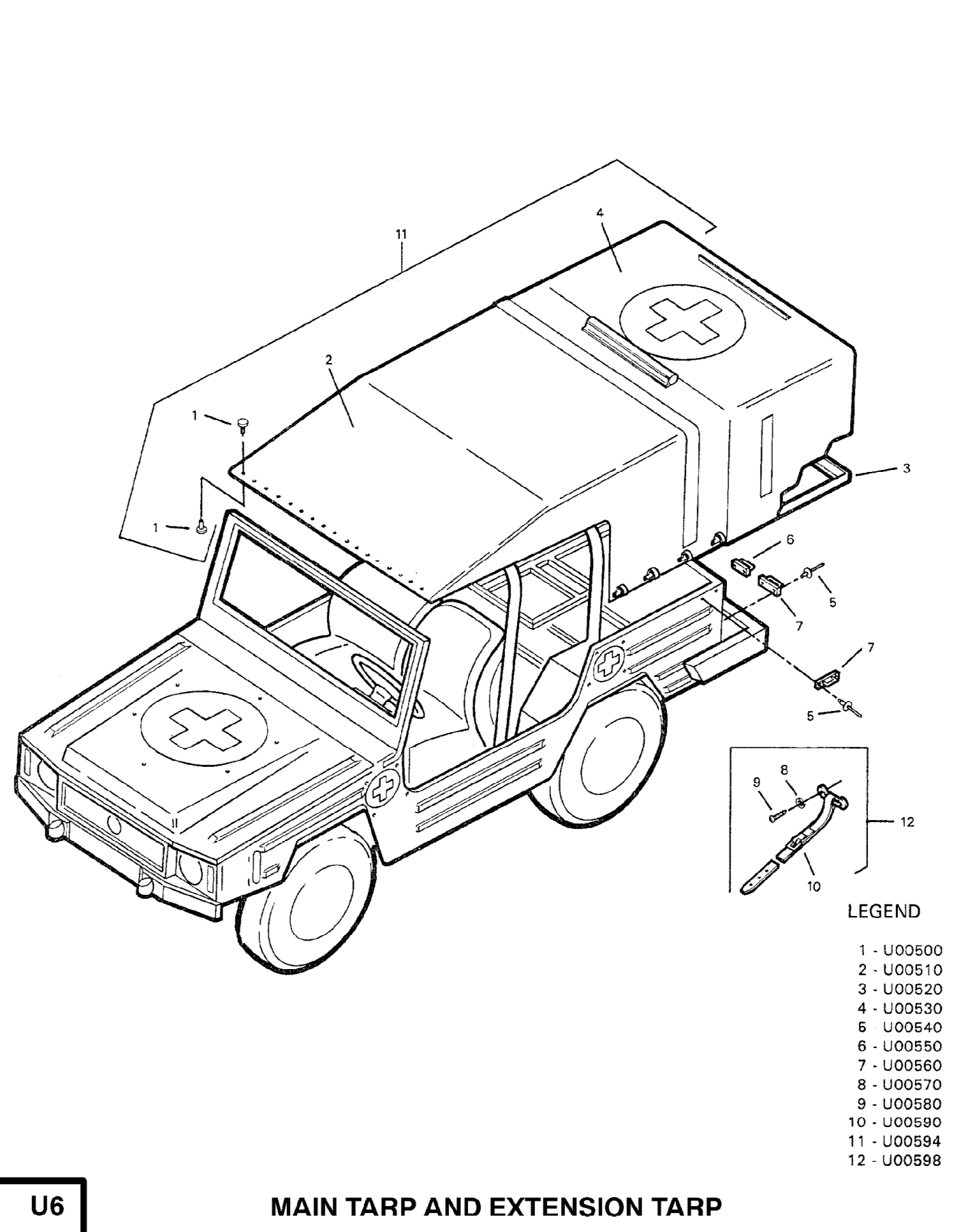

U6 — Main Tarp and Extension Tarp U6 — Main Tarp and Extension Tarp
Click image to enlarge.

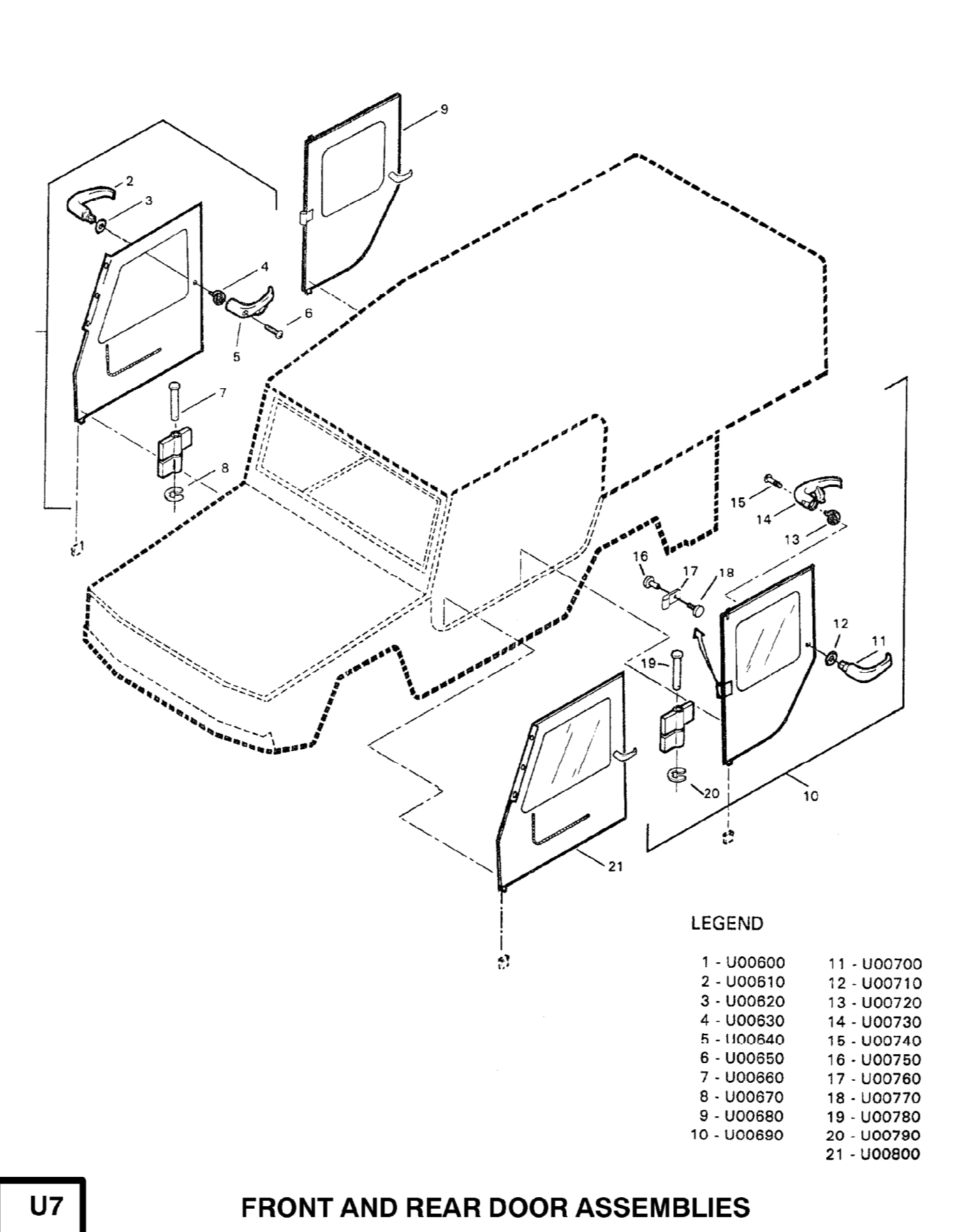

U7 — Front and Rear Door Assemblies U7 — Front and Rear Door Assemblies
Click image to enlarge.

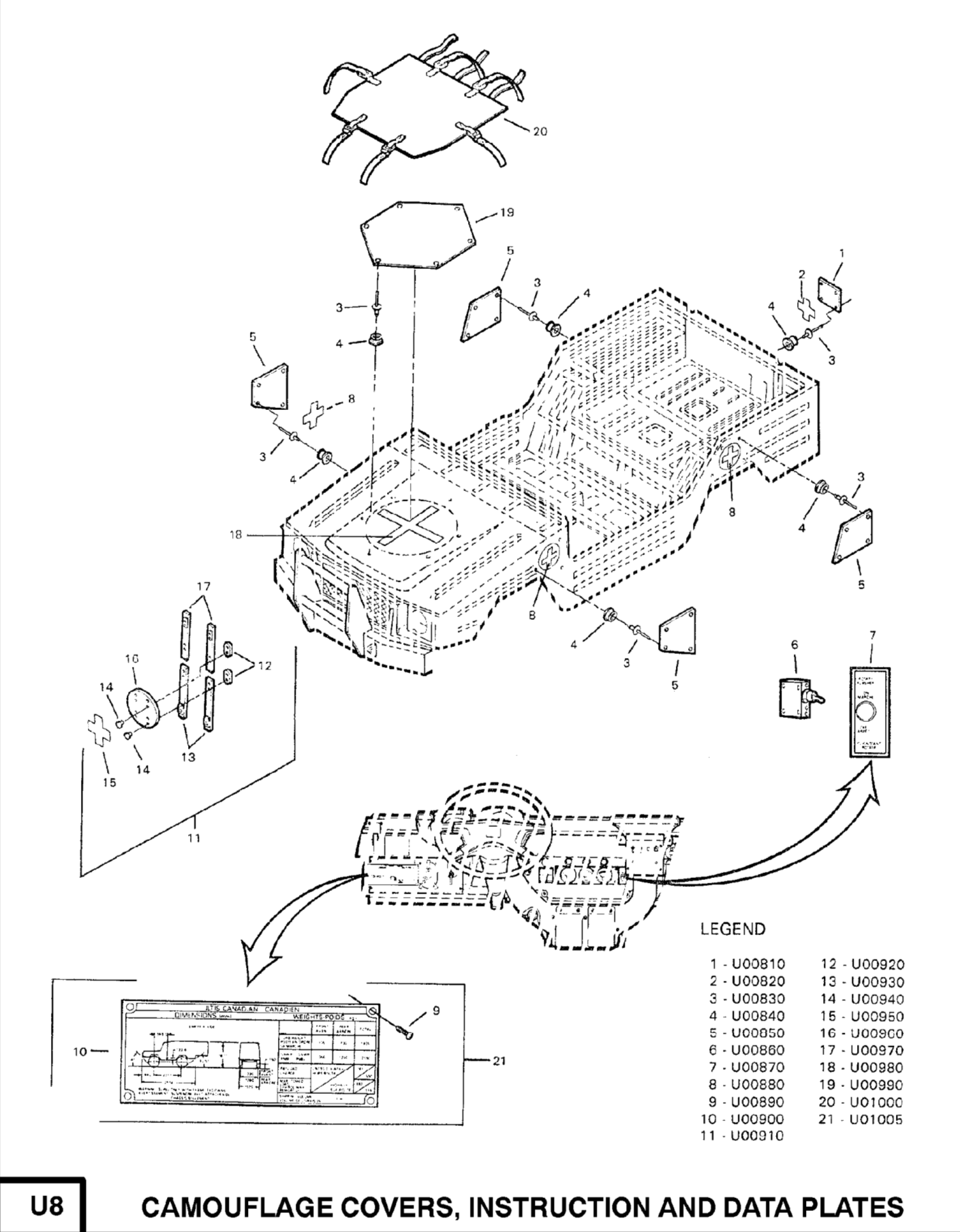

U8 — Camouflage Covers, Instruction and Data Plates U8 — Camouflage Covers, Instruction and Data Plates
Click image to enlarge.

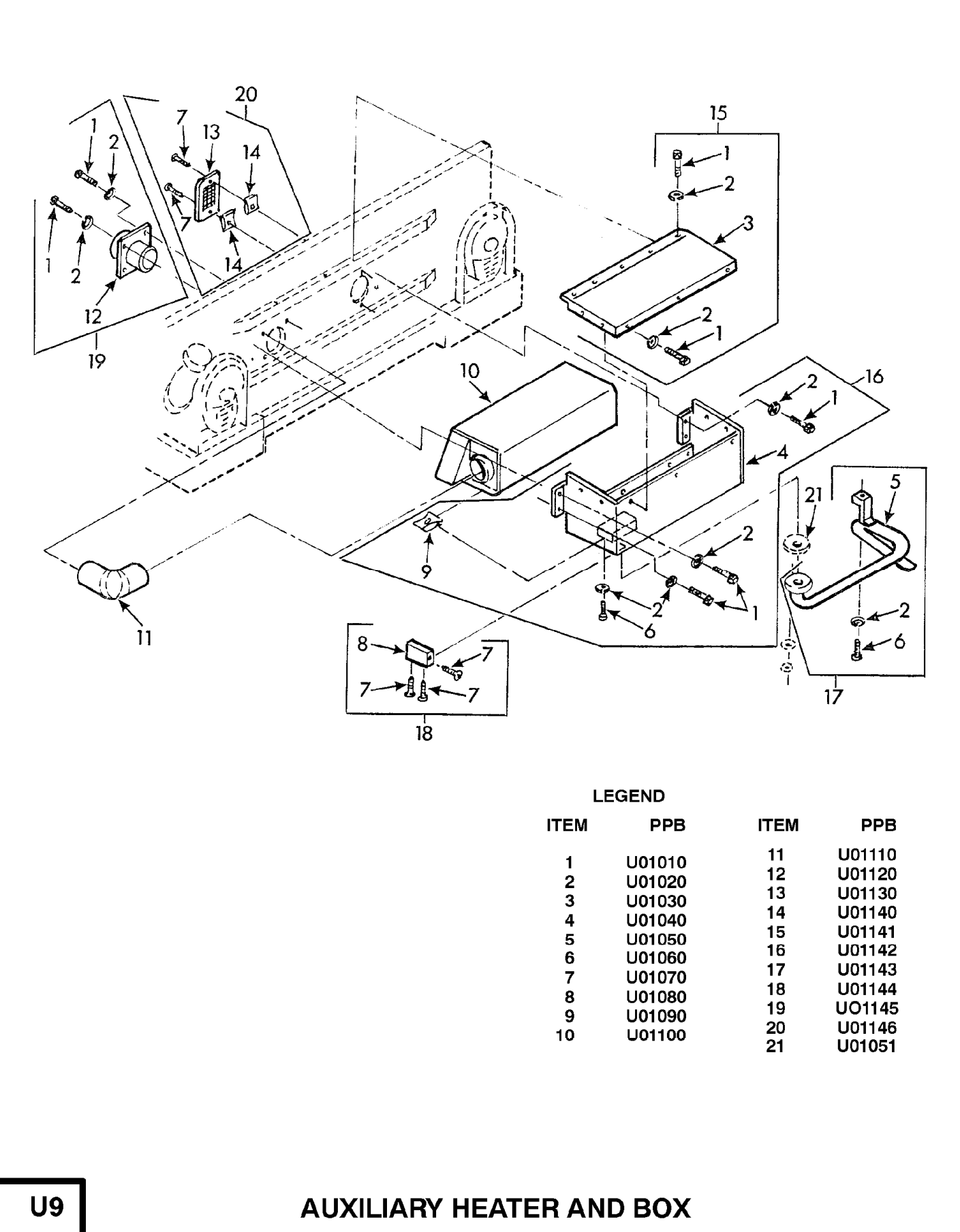

U9 — Auxiliary Heater and Box U9 — Auxiliary Heater and Box
Click image to enlarge.

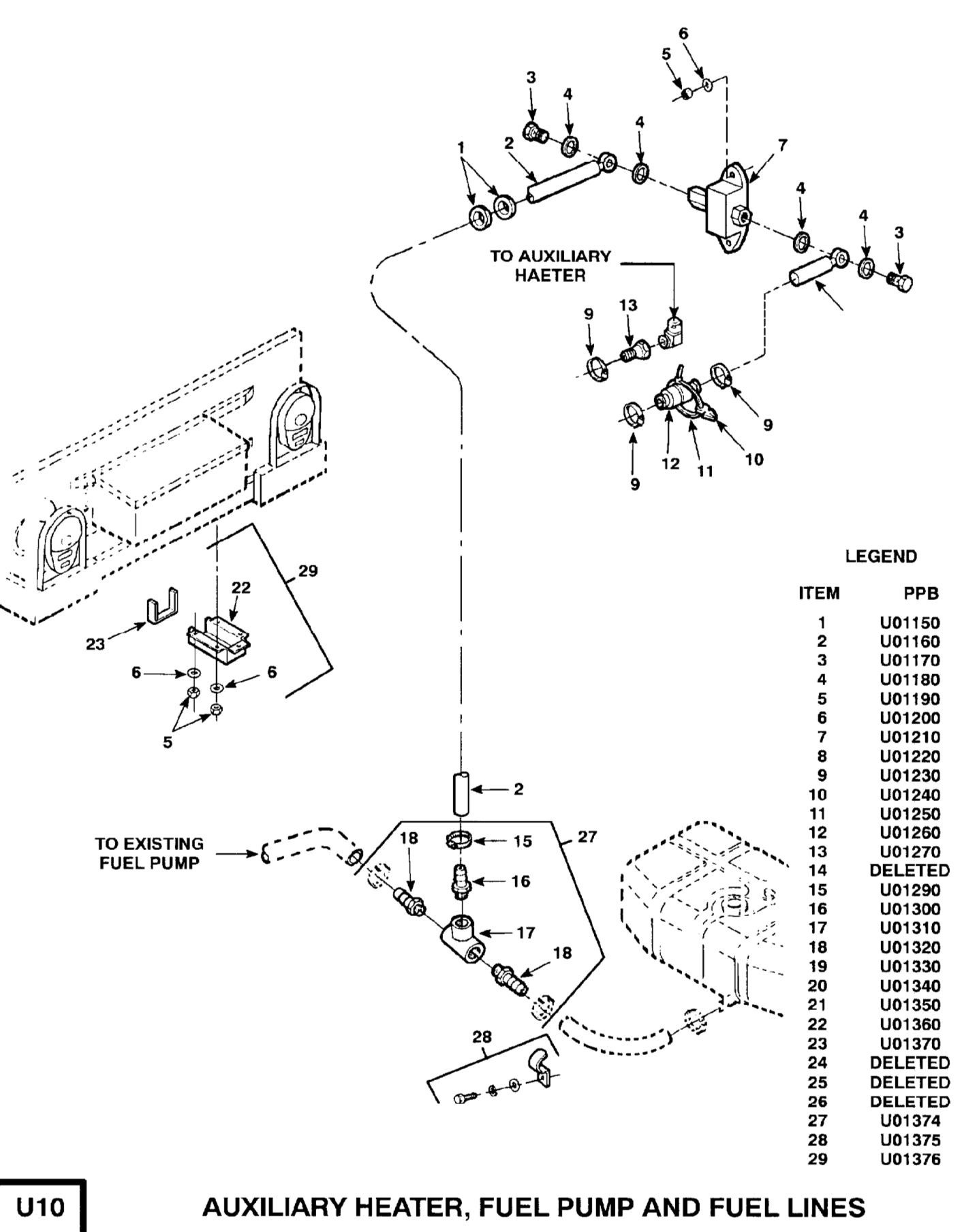

U10 — Auxiliary Heater, Fuel Pump and Fuel Lines

U10 — Auxiliary Heater, Fuel Pump and Fuel Lines
Click image to enlarge.

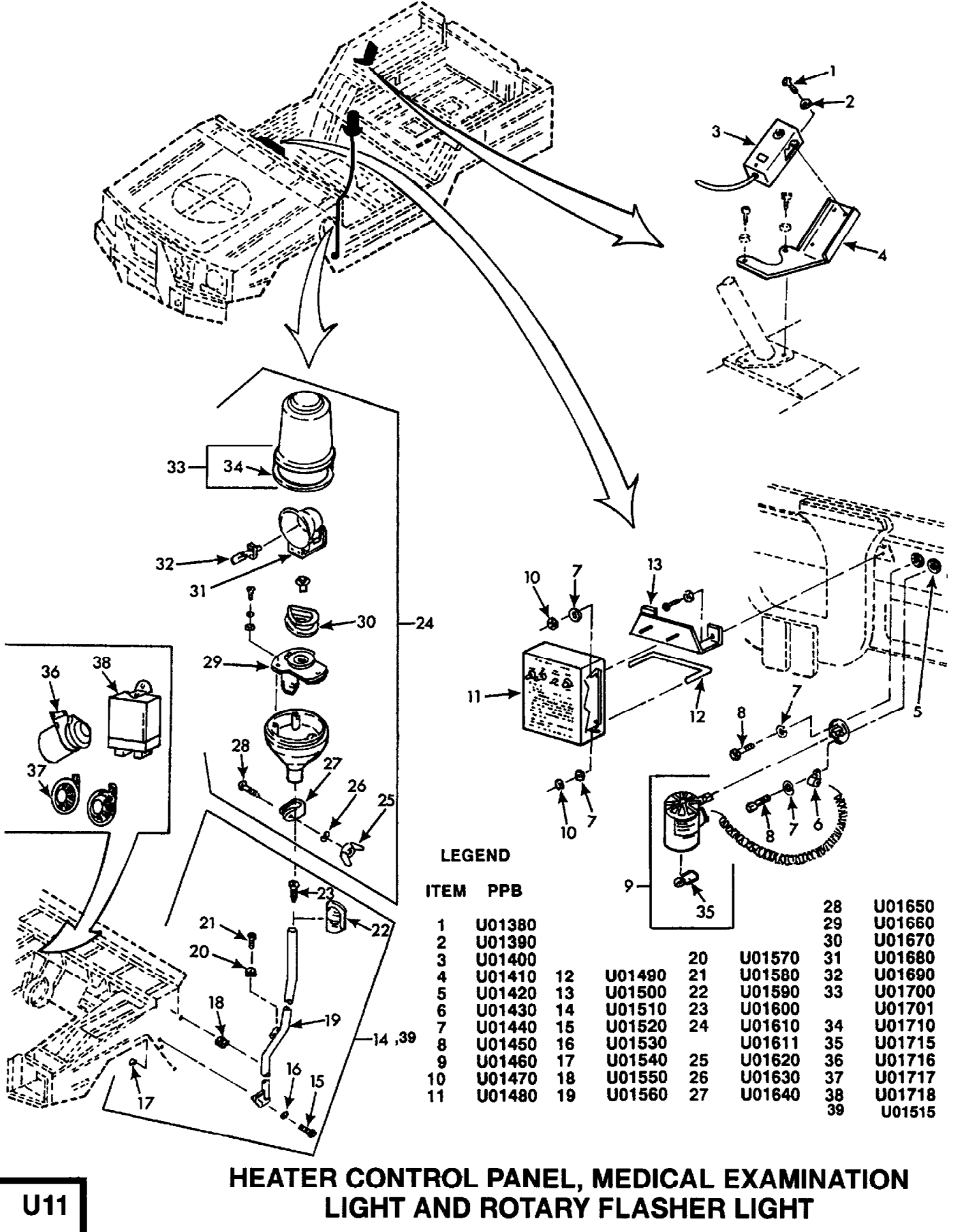

U11 — Heater Control Panel, Medicial Examination Light and Rotary Flasher Light U11 — Heater Control Panel, Medicial Examination Light and Rotary Flasher Light
Click image to enlarge.

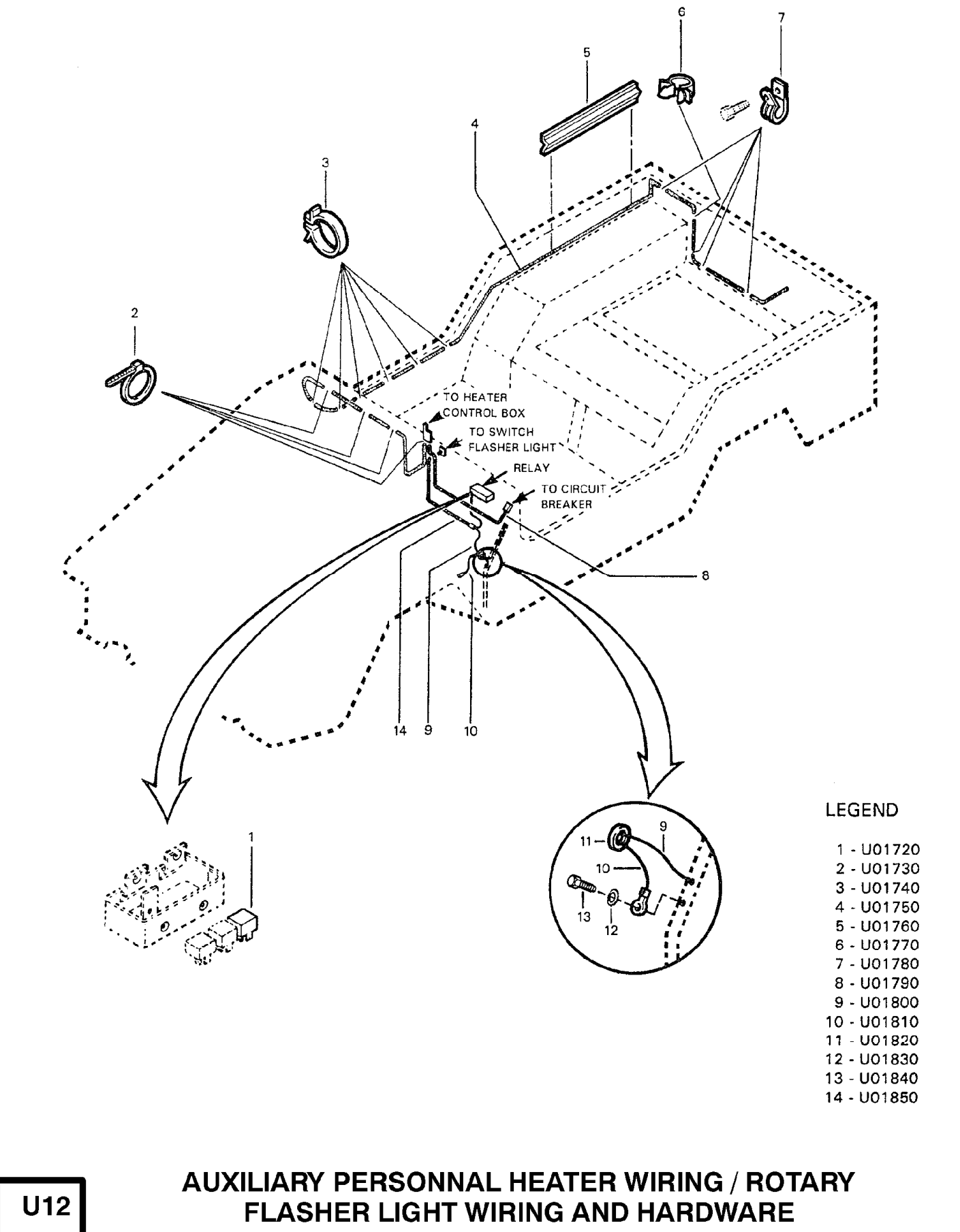

U12 — Auxiliary Personnal Heater Wiring / Rotary Flasher Light Wiring and Hardware U12 — Auxiliary Personnal Heater Wiring / Rotary Flasher Light Wiring and Hardware
Click image to enlarge.

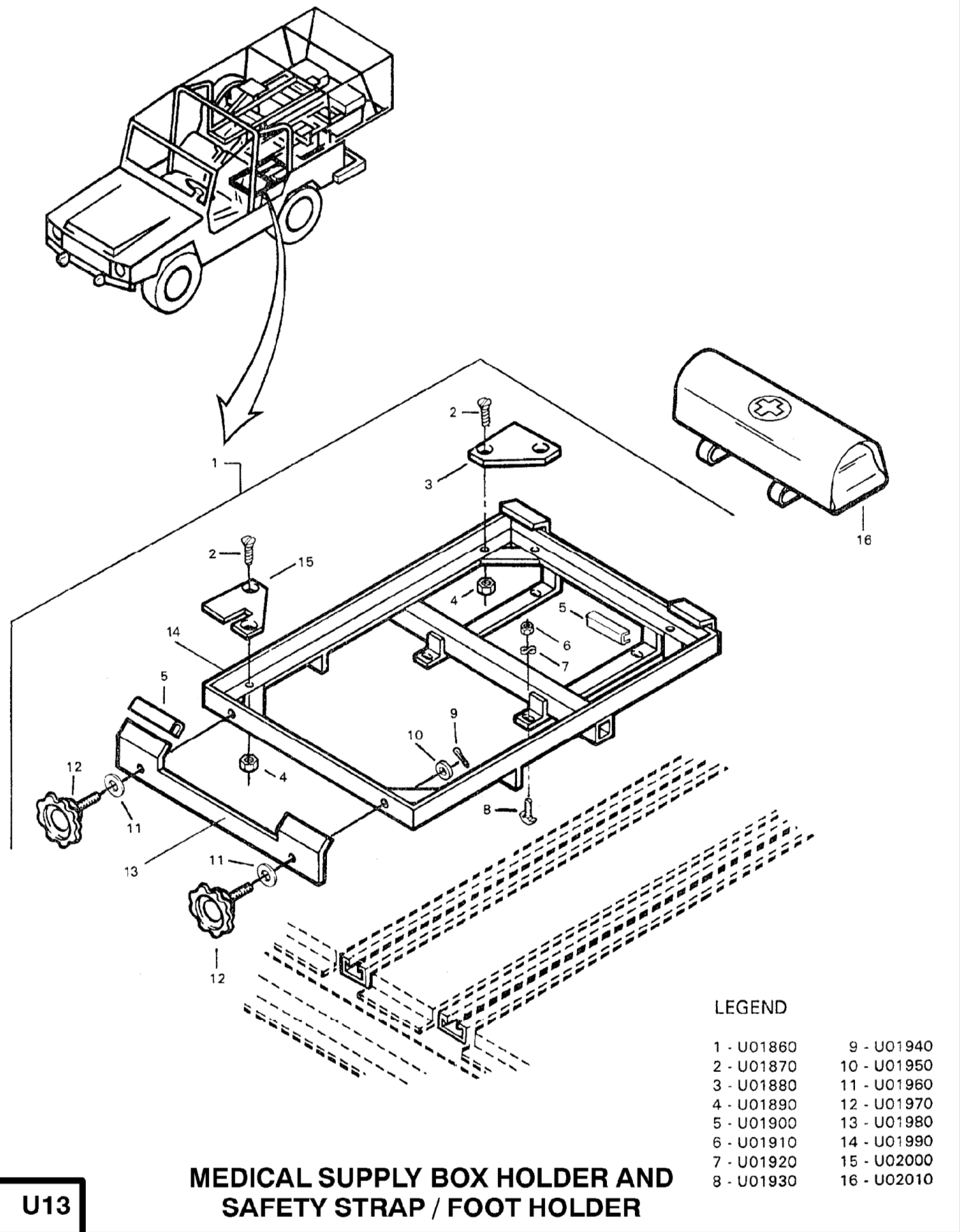

U13 — Medical Supply Box Holder and Safety Strap / Foot Holder U13 — Medical Supply Box Holder and Safety Strap / Foot Holder
Click image to enlarge.

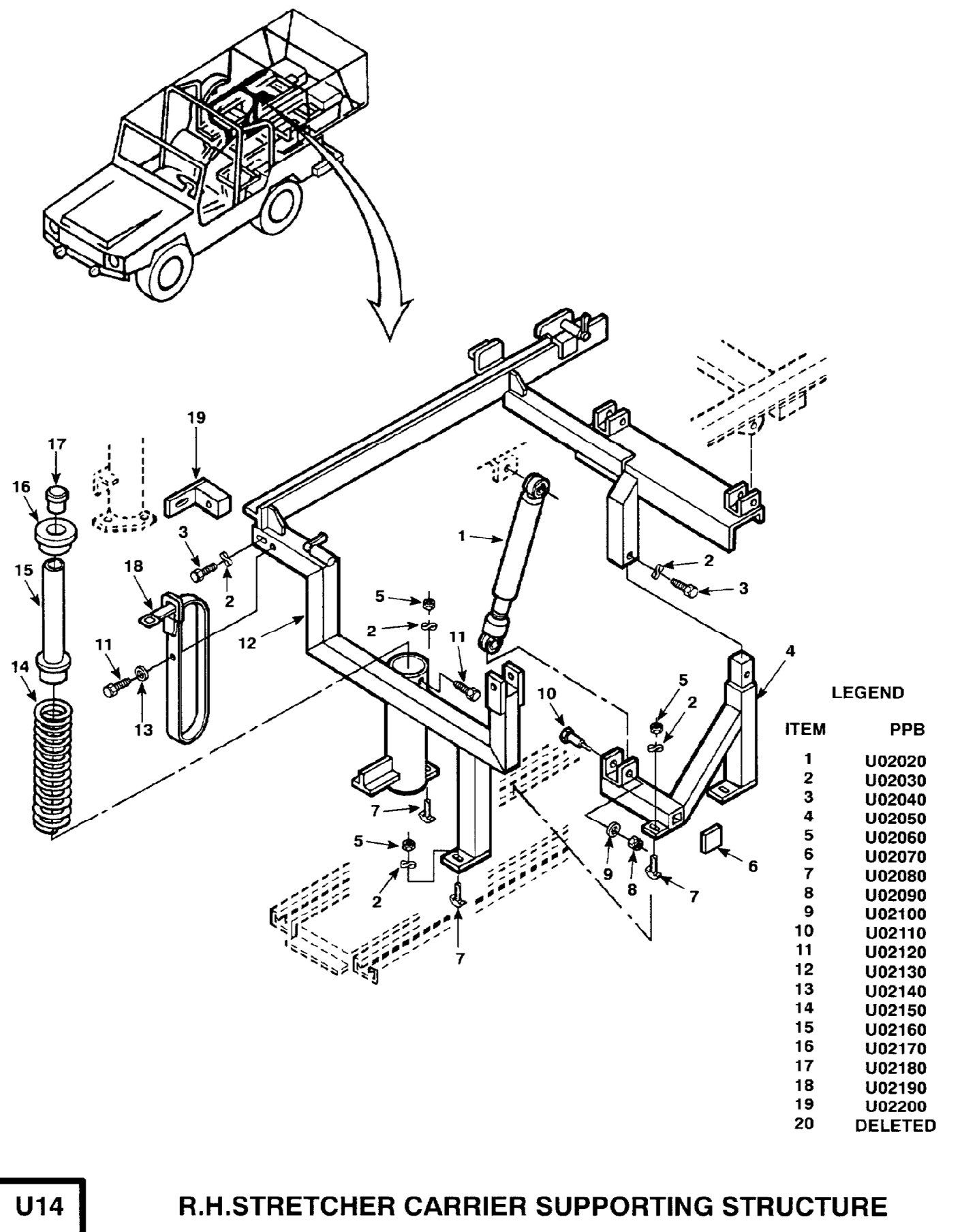

U14 — RH Stretcher Carrier Supporting Structure U14 — RH Stretcher Carrier Supporting Structure
Click image to enlarge.

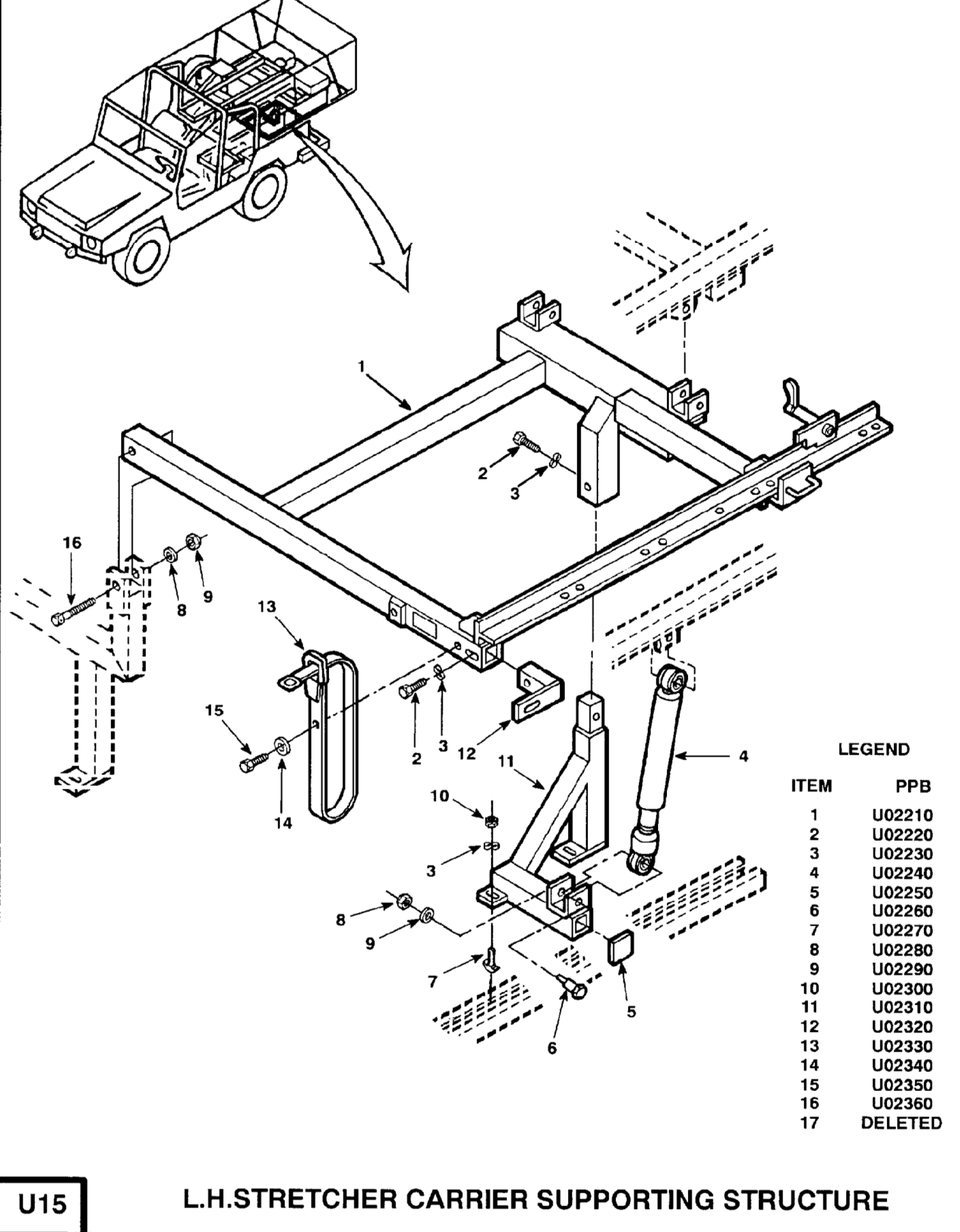

U15 — LH Stretcher Carrier Supporting Structure U15 — LH Stretcher Carrier Supporting Structure
Click image to enlarge.

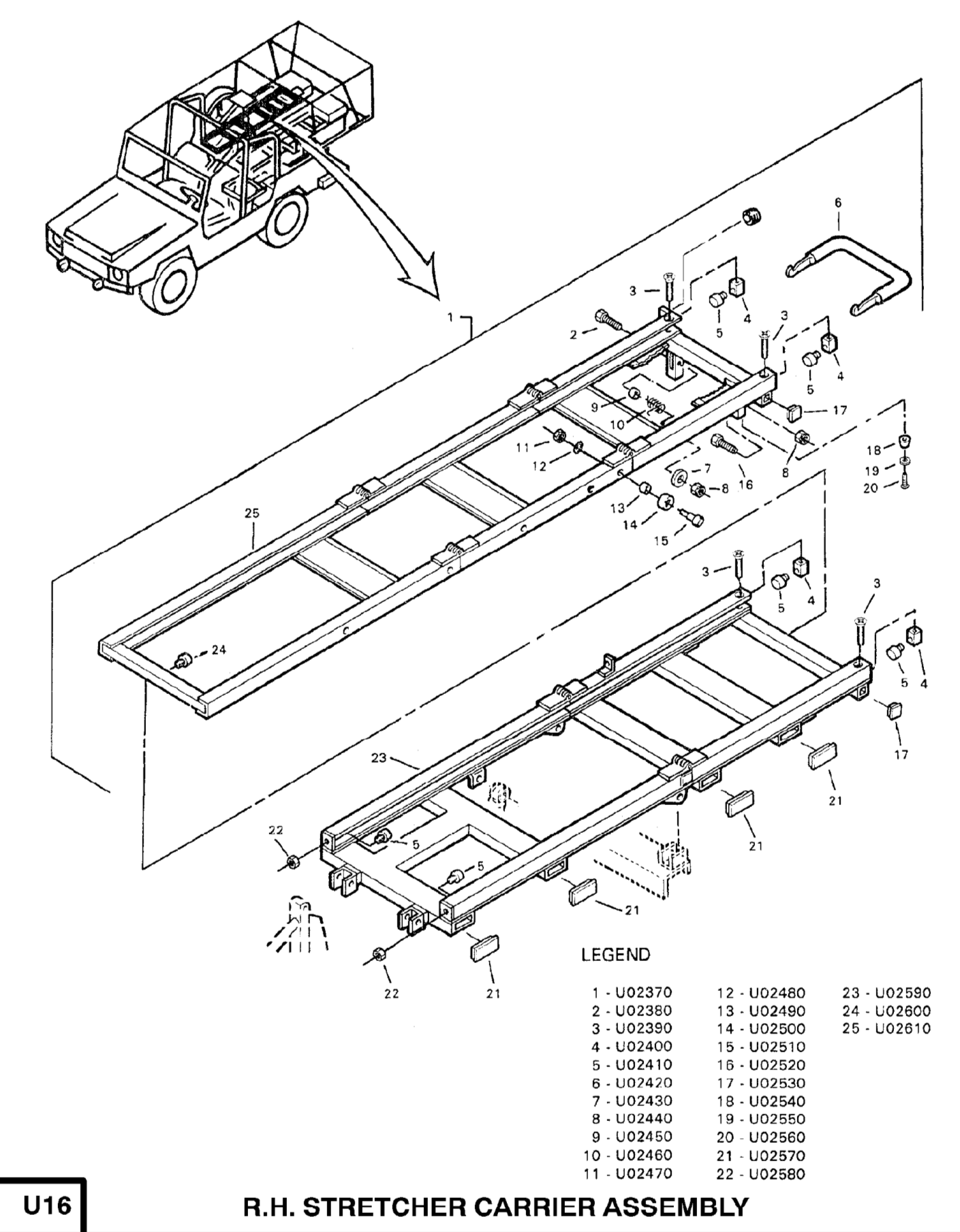

U16 — RH Stretcher Carrier Assembly U16 — RH Stretcher Carrier Assembly
Click image to enlarge.

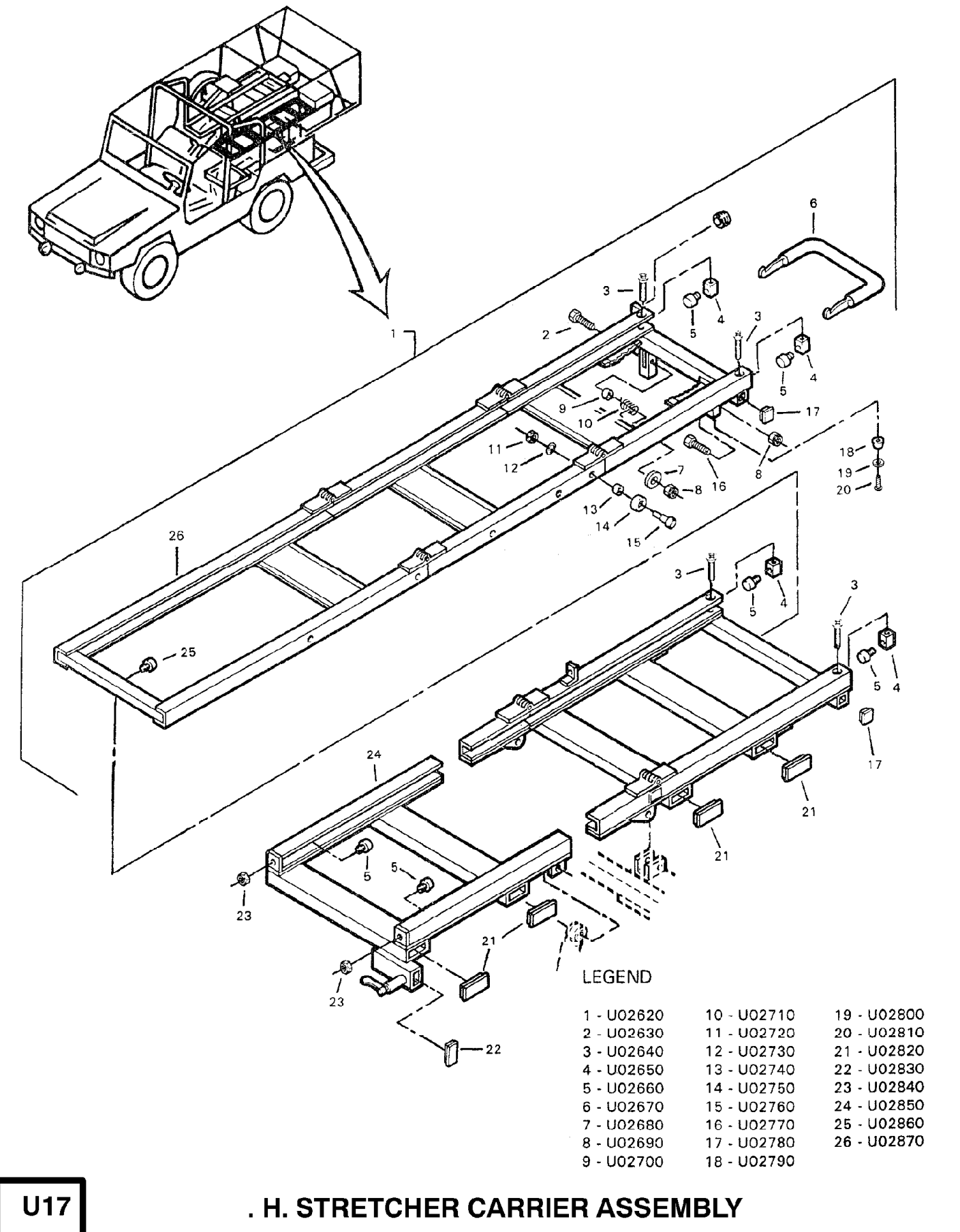

U17 — LH Stretcher Carrier Assembly U17 — LH Stretcher Carrier Assembly
Click image to enlarge.

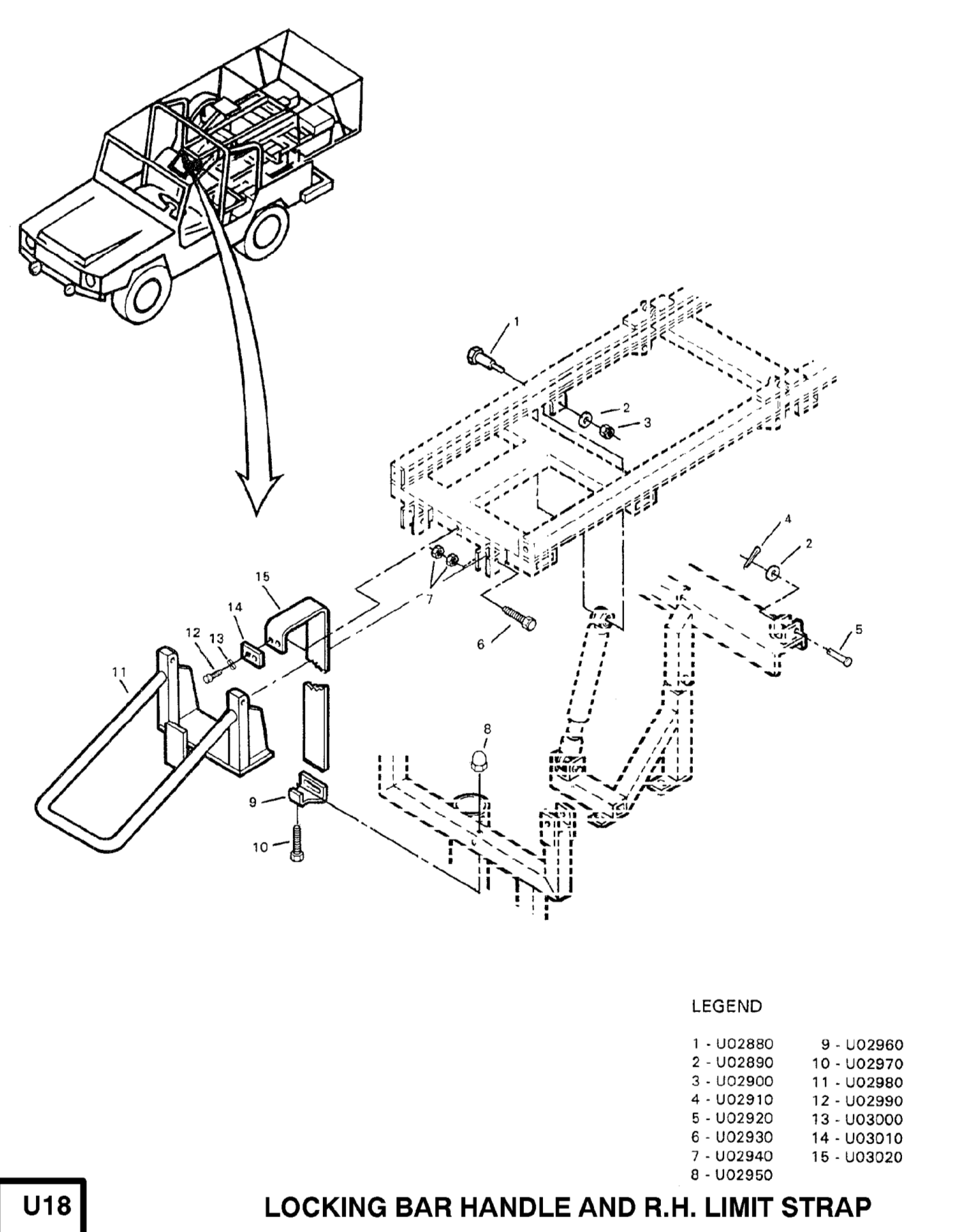

U18 — Locking Bar Handle and RH Limit Strap U18 — Locking Bar Handle and RH Limit Strap
Click image to enlarge.

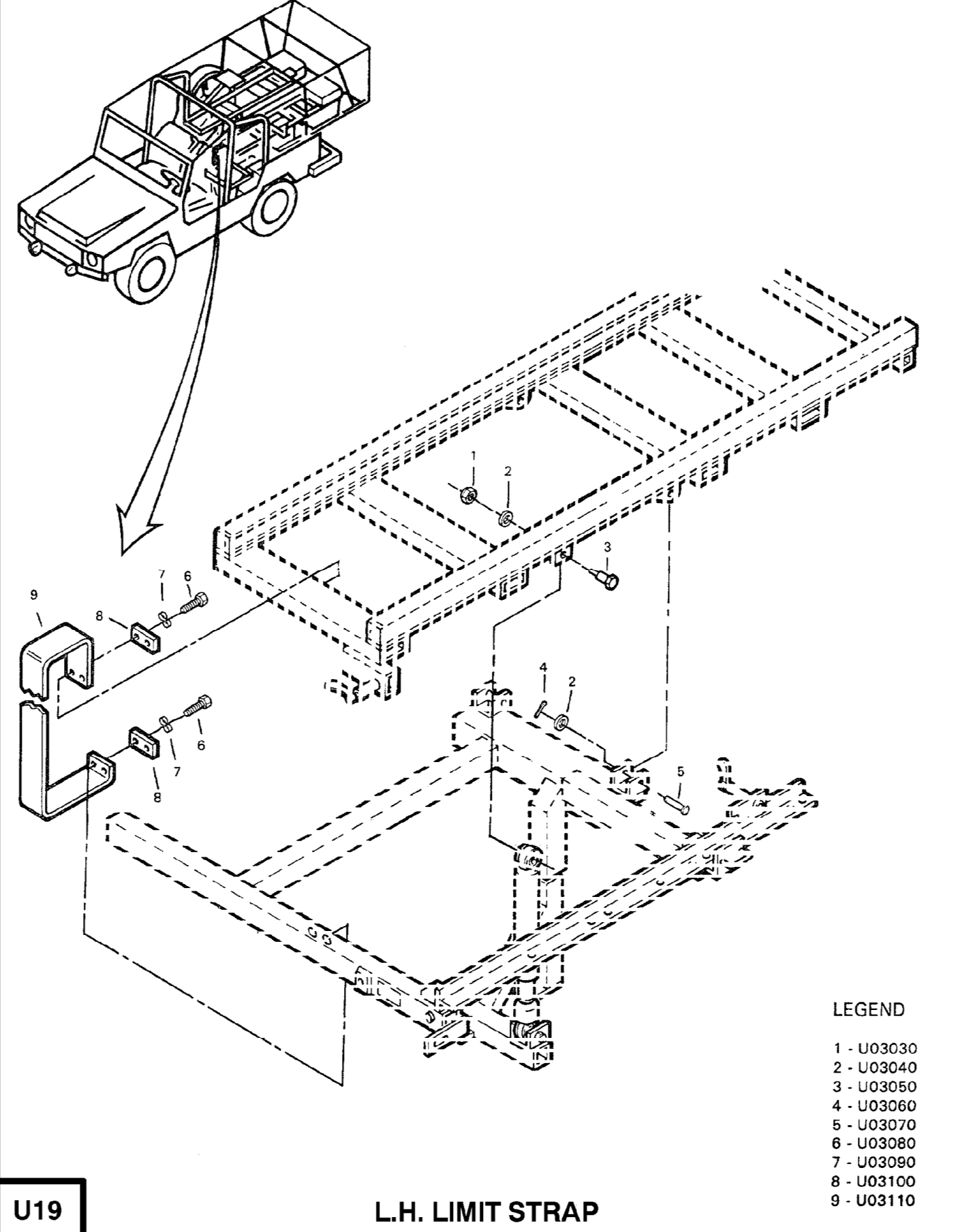

U19 — LH Limit Strap U19 — LH Limit Strap
Click image to enlarge.

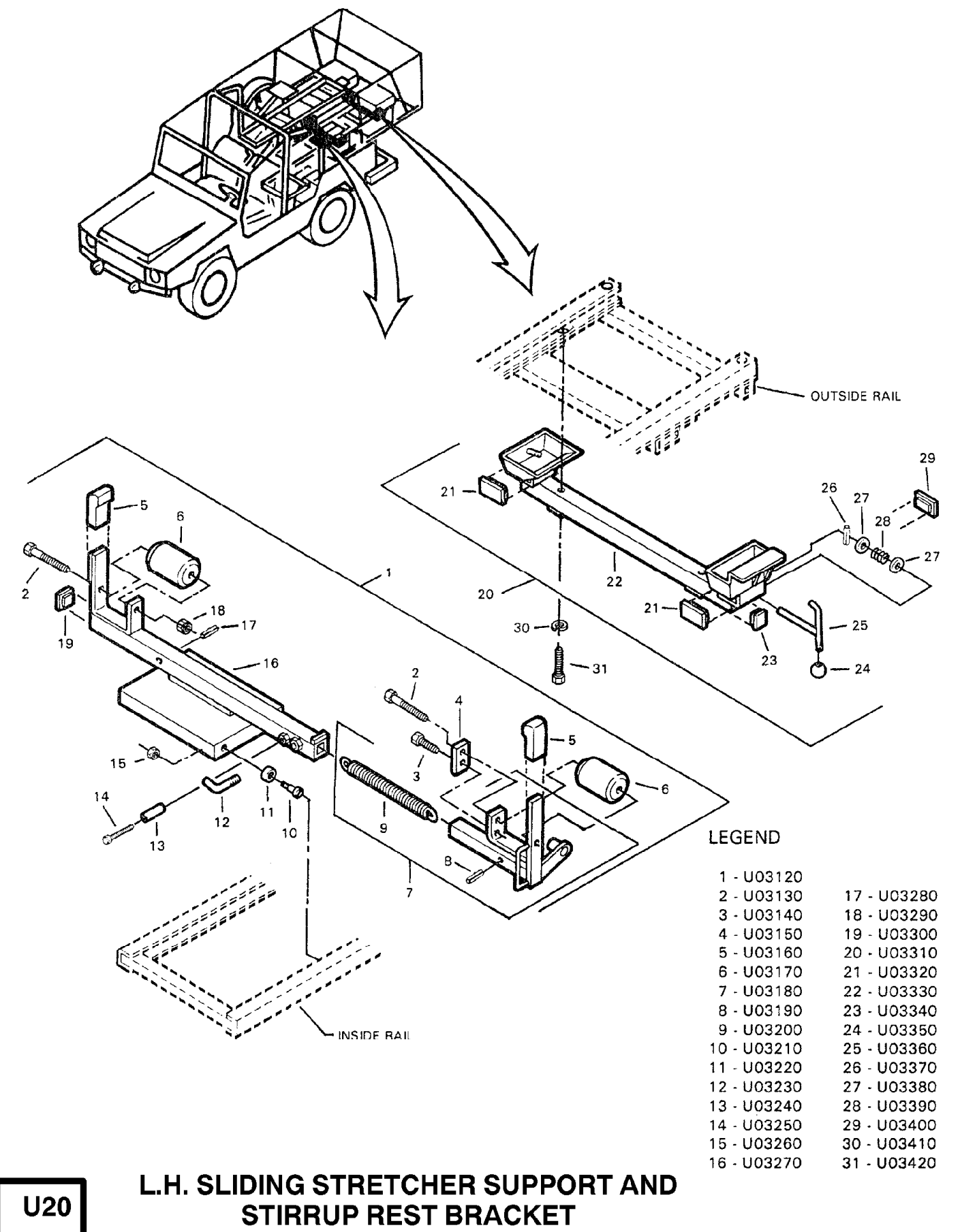

U20 — LH Sliding Stretcher Support and Stirrup Rest Bracket U20 — LH Sliding Stretcher Support and Stirrup Rest Bracket
Click image to enlarge.

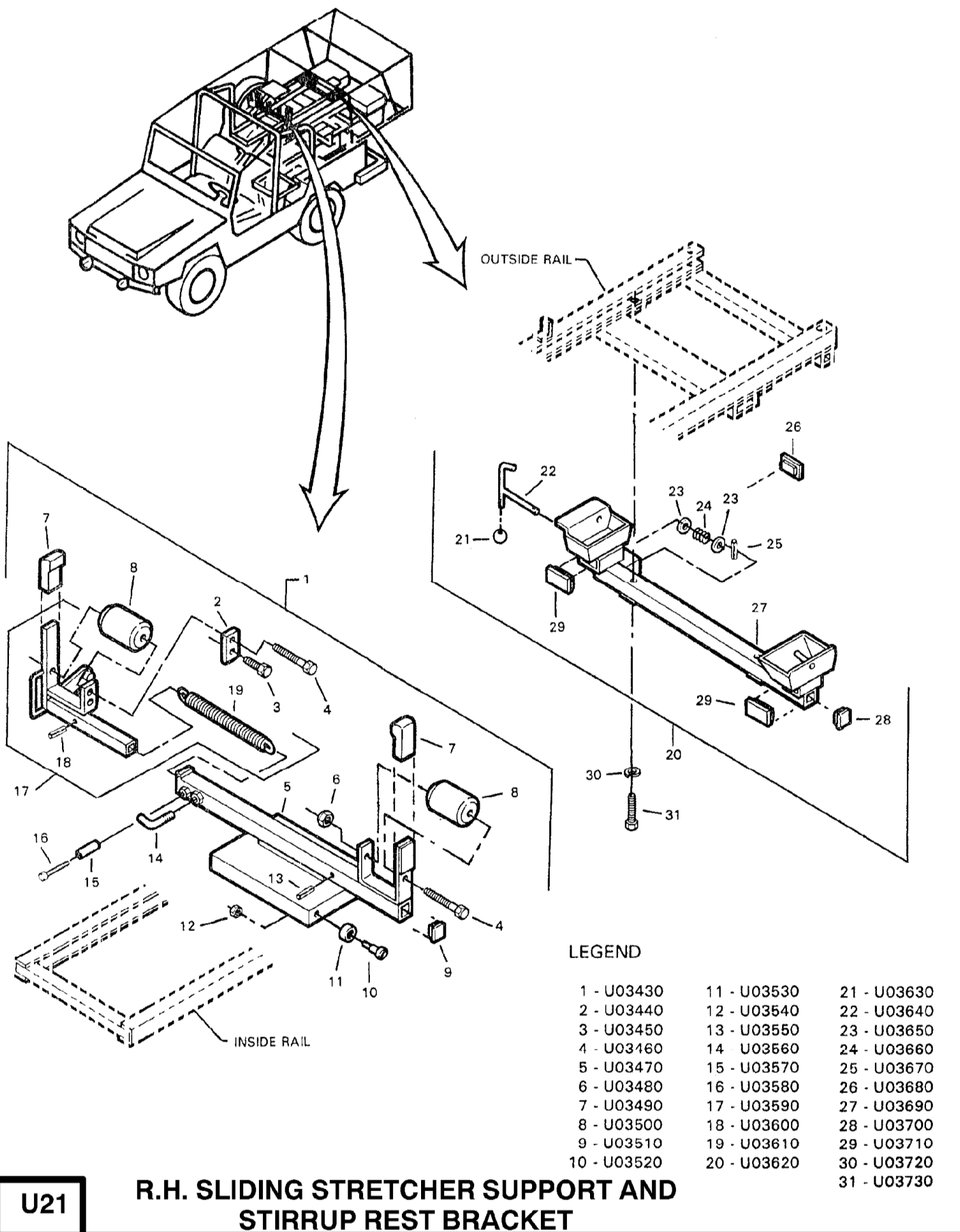

U21 — RH Sliding Stretcher Support and Stirrup Rest Bracket U21 — RH Sliding Stretcher Support and Stirrup Rest Bracket
Click image to enlarge.

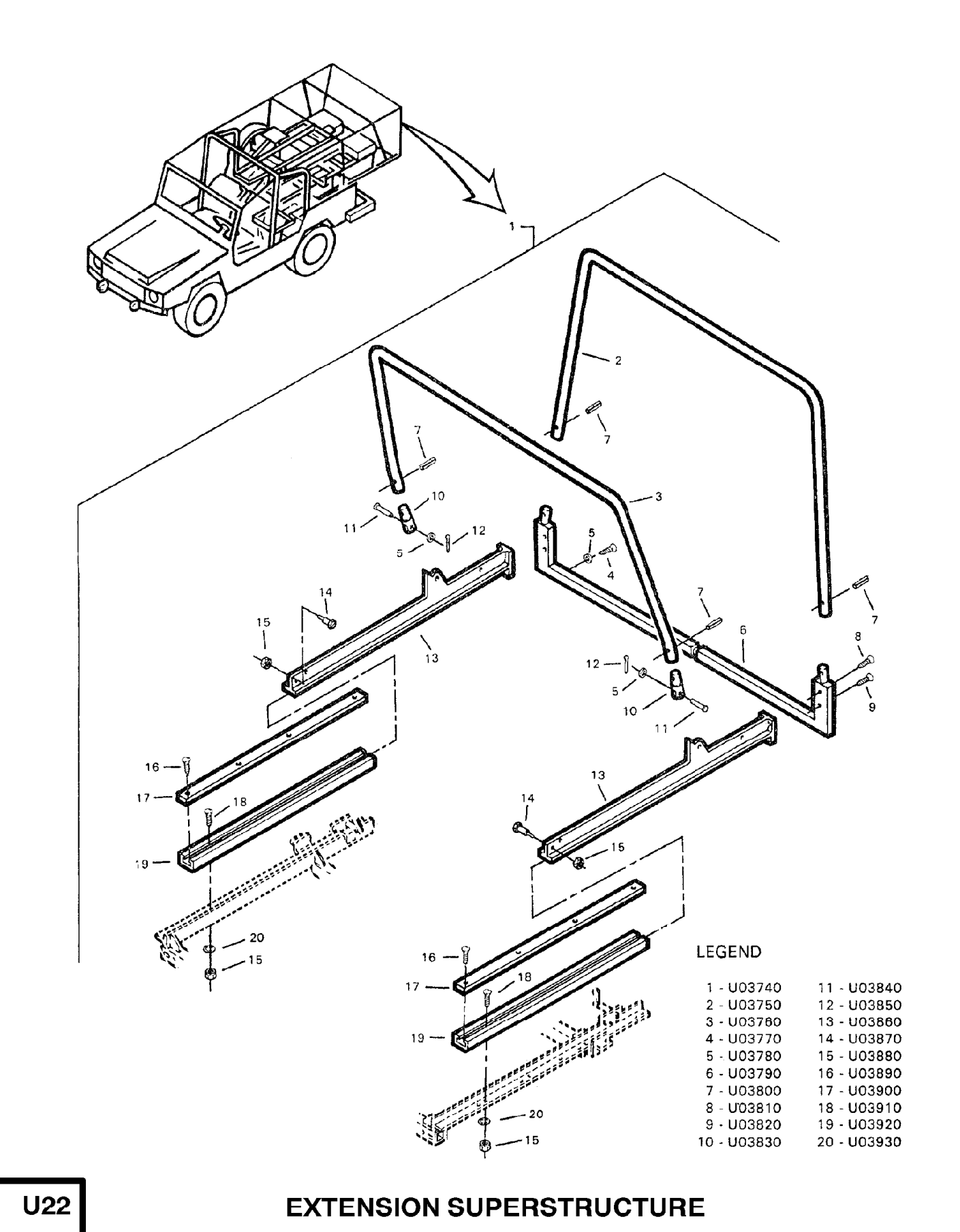

U22 — Extension Superstructure U22 — Extension Superstructure
Click image to enlarge.

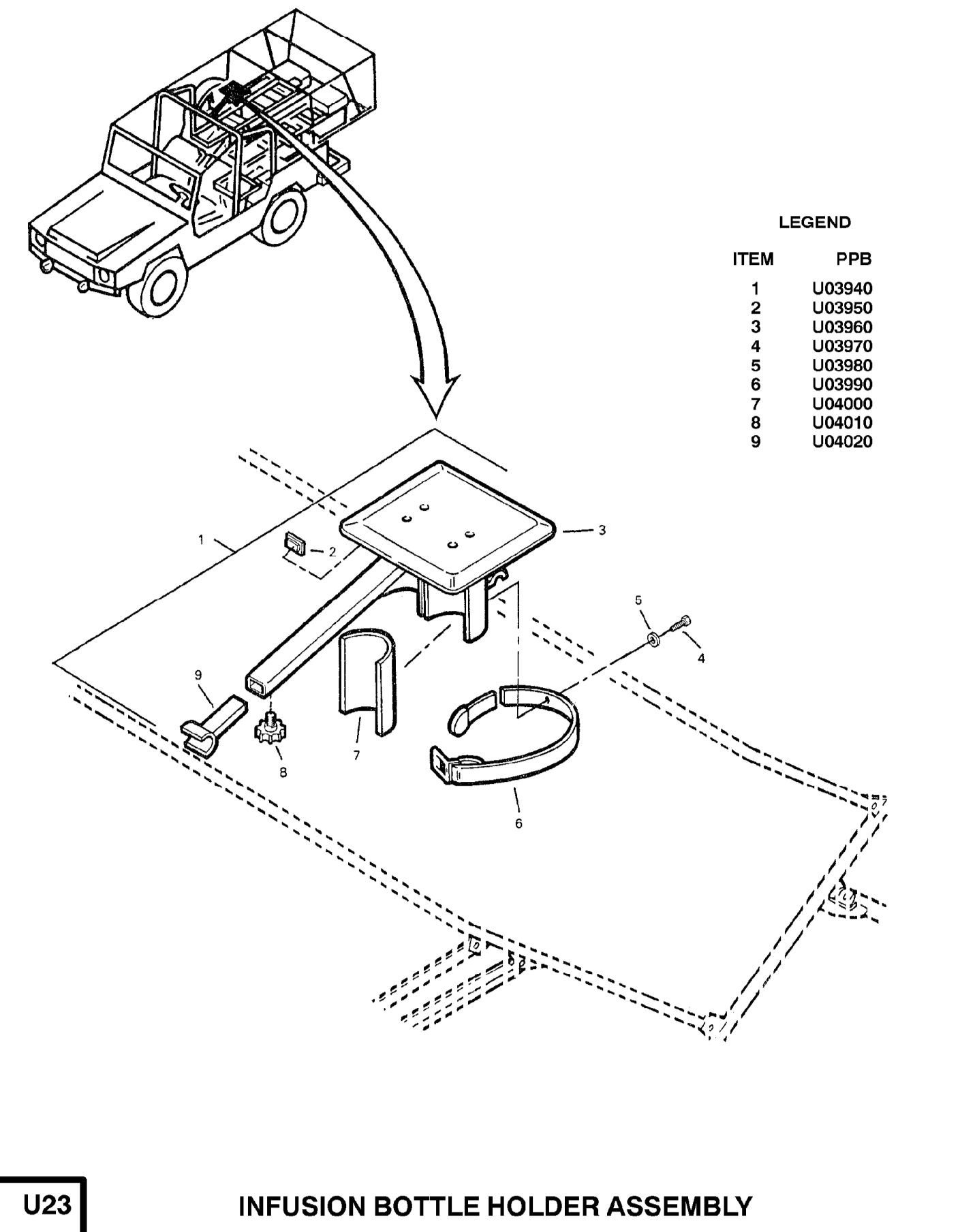

U23 — Infusion Bottle Holder Assembly U23 — Infusion Bottle Holder Assembly
Click image to enlarge.
